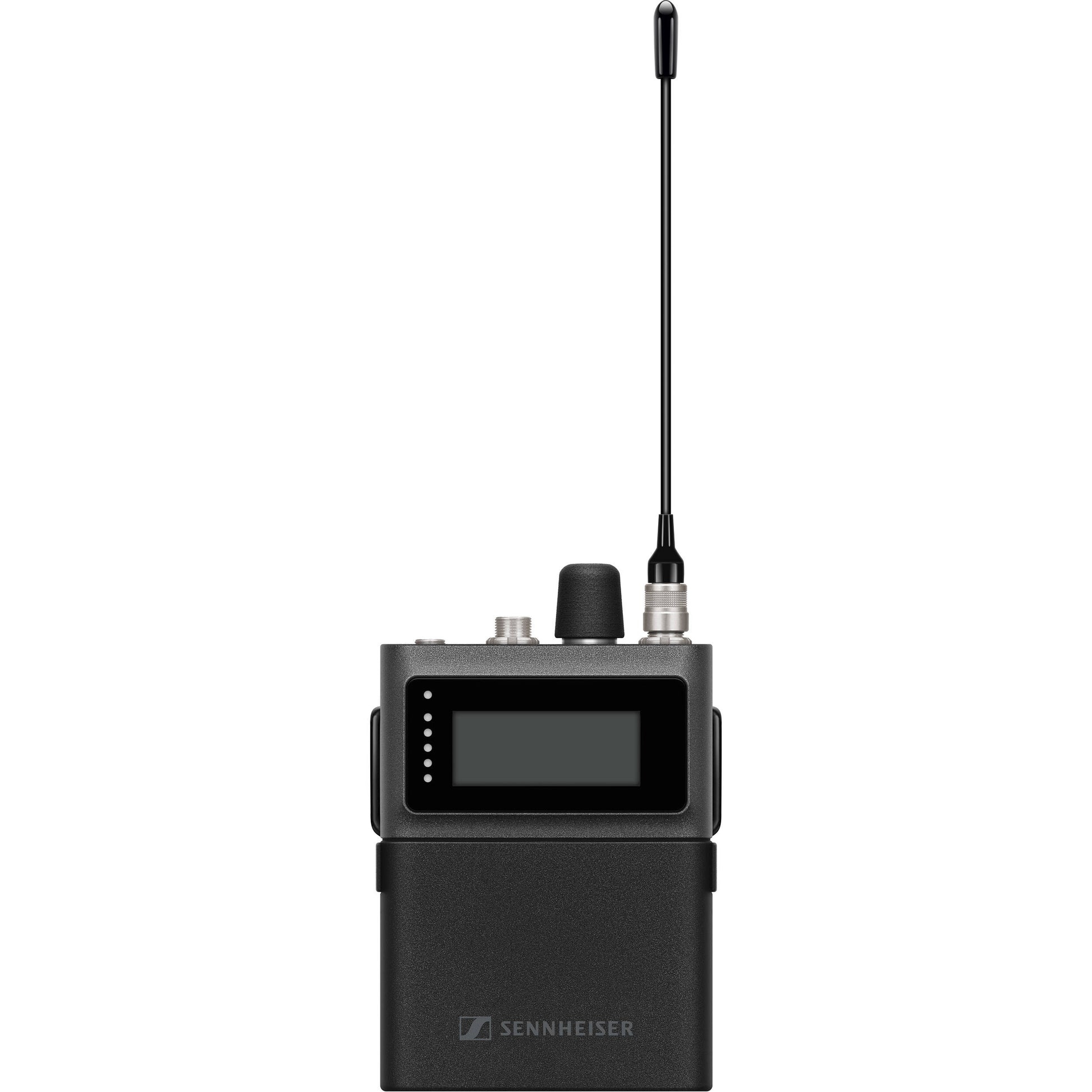

Each bidirectional Spectera SEK body pack manages both an IEM/IFB and a mic/line stream simultaneously.
Plus, they allow for full remote control and monitoring, via identical RF connection, of IEM volume, audio level and settings, RF health, battery status, and more via LinkDesk software. Variants include UHF (470–608 MHz and 630–698 MHz) or 1G4 (1350–1400 MHz and 1435–1525 MHz). Spectera SEK body packs feature an impedance matching high-power headphone amplifier and offer up to seven hours of operating time depending on the selected Audio Link mode and settings with rechargeable lithium-ion battery BA 70.
| Product Name | Sennheiser Spectera SEK Wireless Bodypack Transmitter/Receiver - UHF |
|---|---|
| Brand | Sennheiser |
| Condition | New |
| MPN | 509164 |
| UPC | 615104356580 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Spectera SEK UHF bodypack
- Spectera SEK belt clip
- Spectera SEK antenna (UHF)
- 3‑pin protective cap for MIC/LINE
- Pouch
- Quick start guide
- Safety guide
- Bidirectional bodypack manages both digital IEM/IFB and mic/line signals simultaneously
- Bidirectional data and audio control in identical RF carrier of all mobile devices
- Available variants: UHF (470–608 MHz and 630–698 MHz) or 1G4 (1350–1400 MHz and 1435–1525 MHz)
- Full remote control and monitoring of SEK bodypack: IEM volume, mic/line gain, RF health, battery status, and more
- Impedance-matching high-power headphone amplifier
- Continuous interference management
- Endless encoder and push button

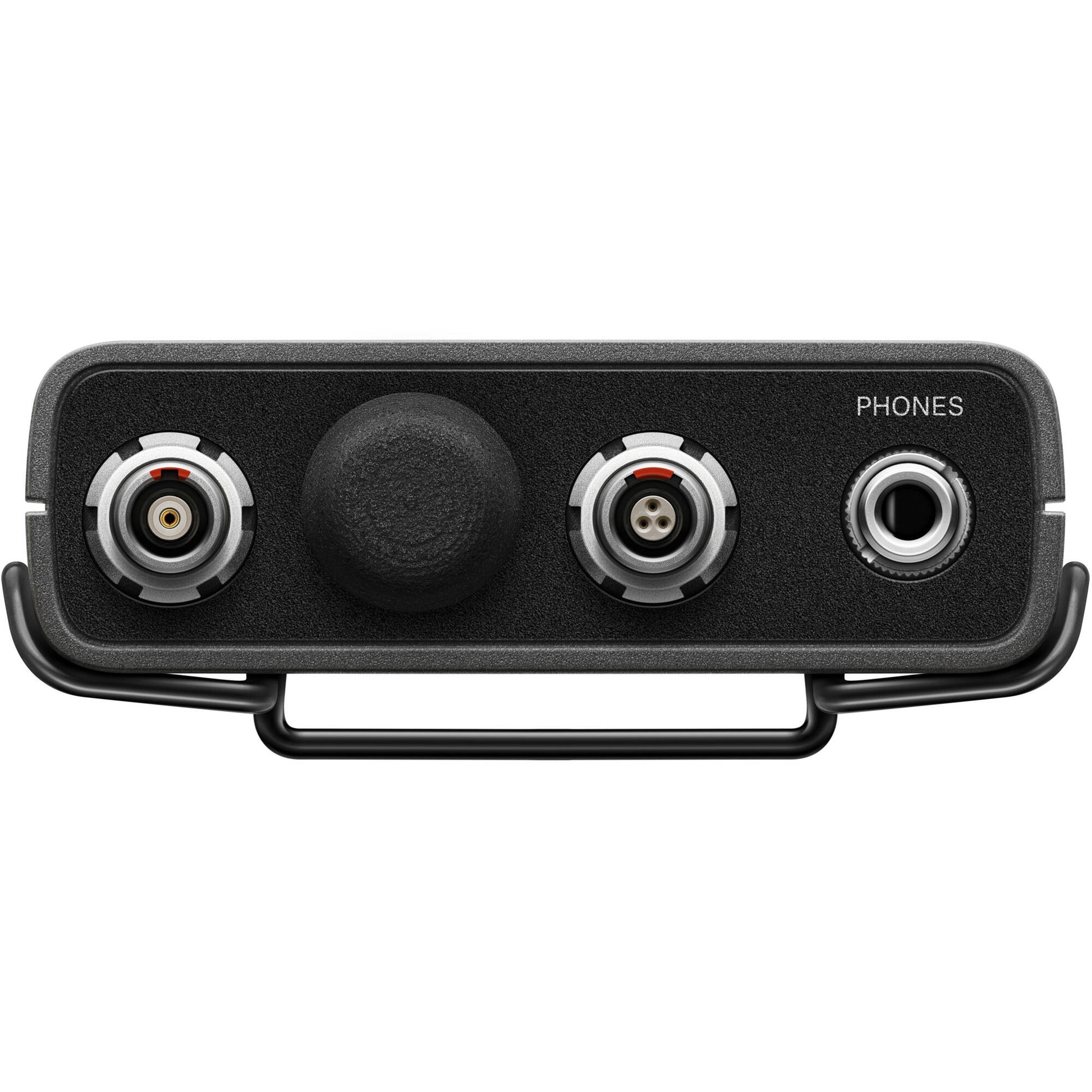

- 3-pin mic/line input and IEM/IFB 3.5 mm headphone connector

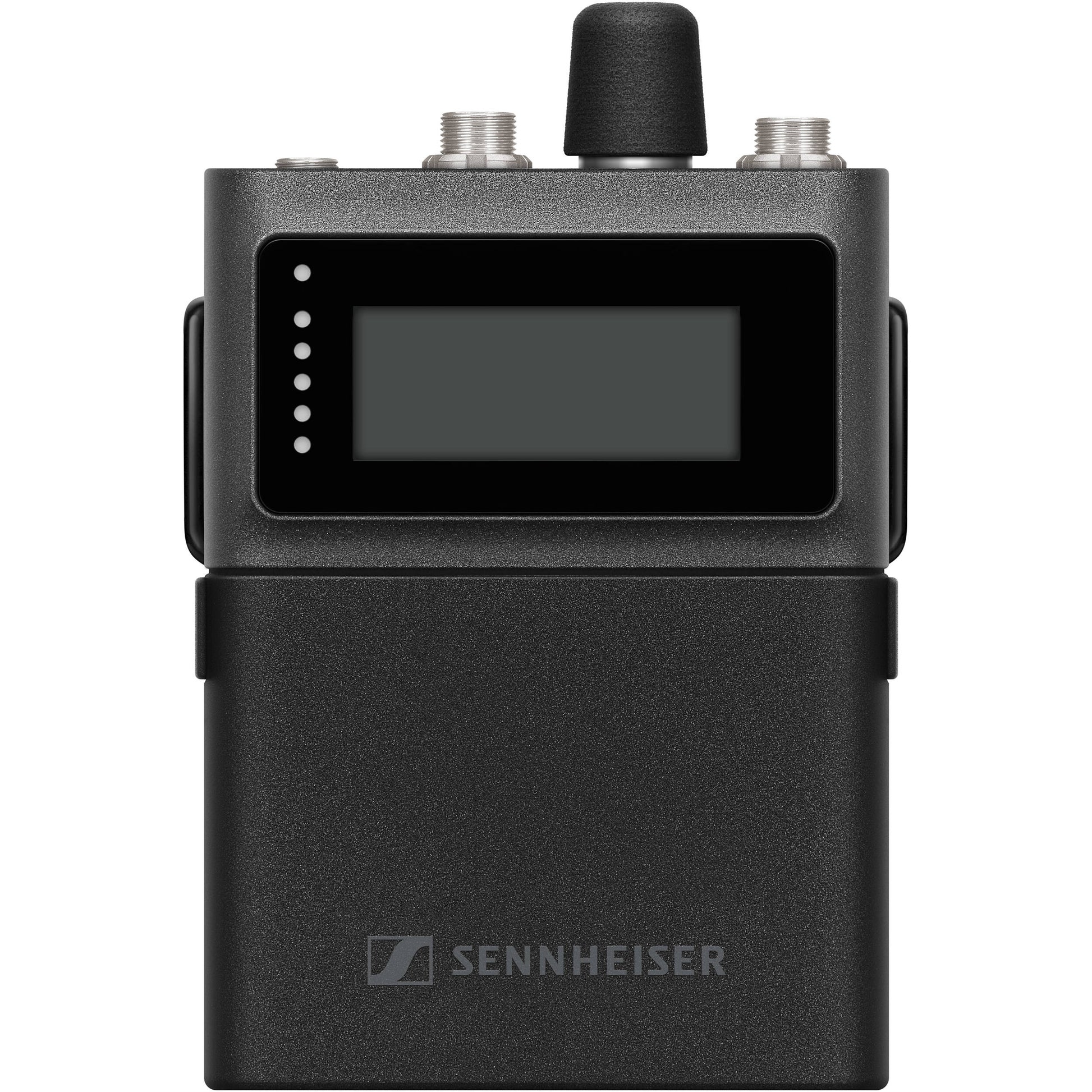

- LED meter, status LED and persistent E-Ink display for “always on” information — name visible on screen even when batteries are removed

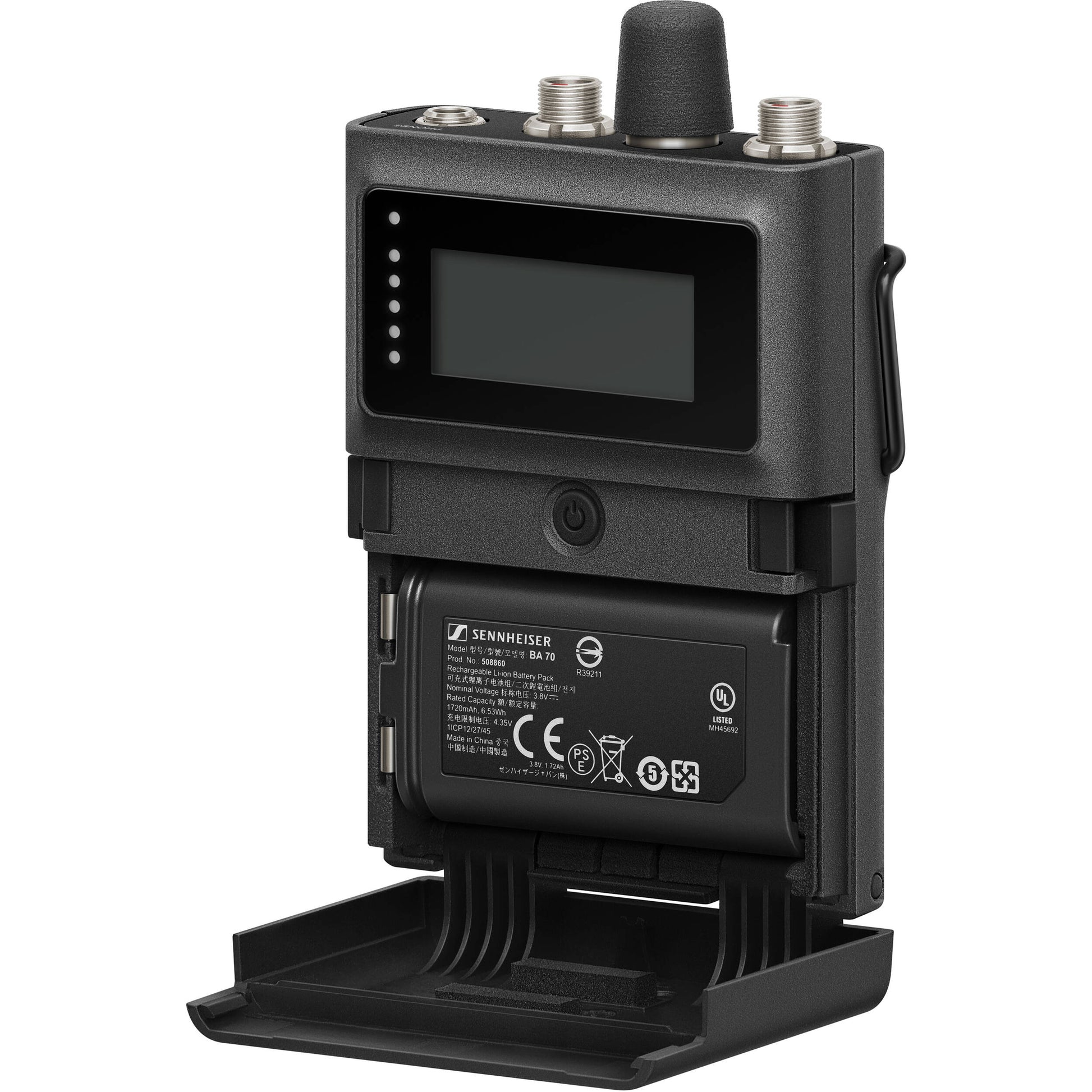

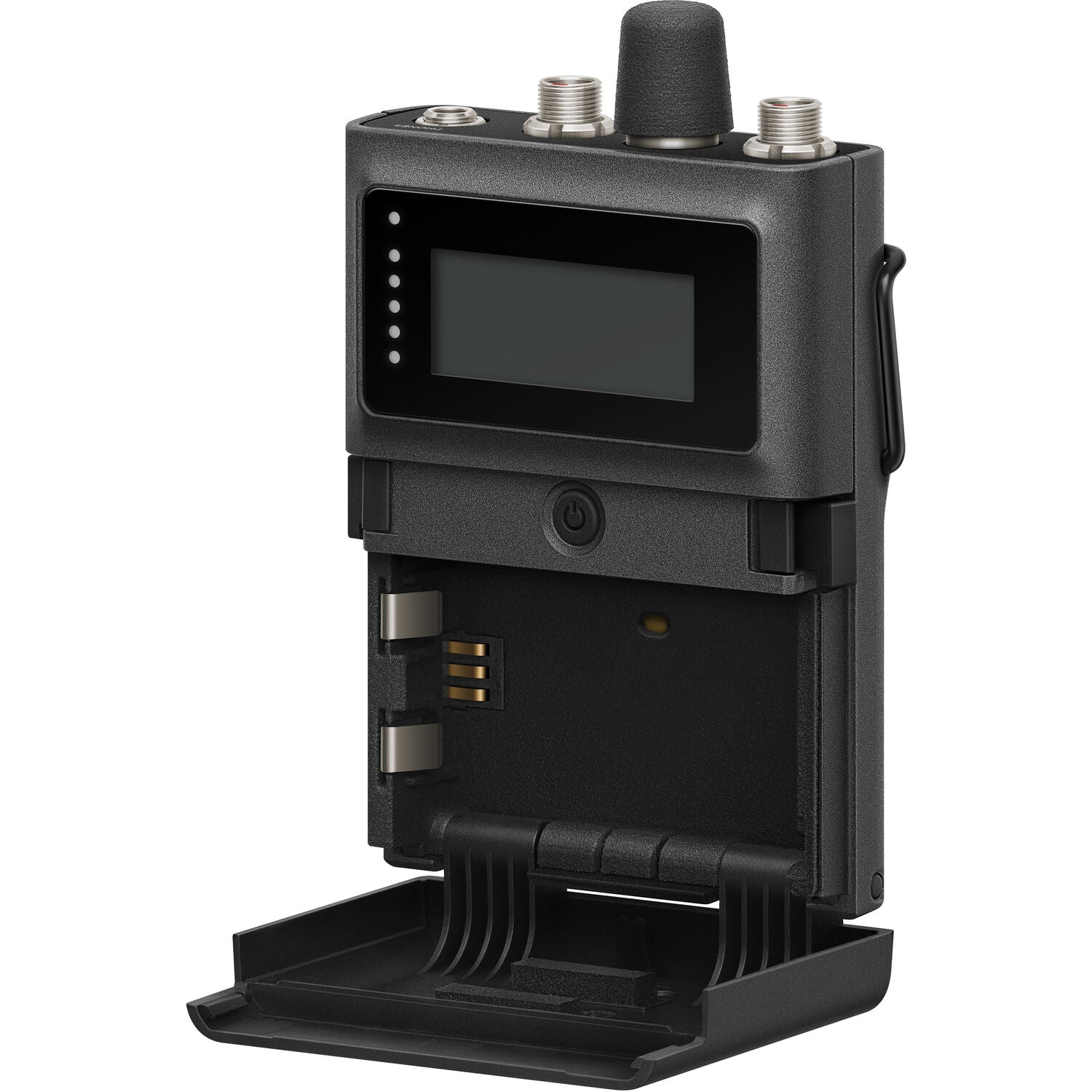

- Up to 7 hours of operating time depending on the selected audio link mode and settings with rechargeable lithium-ion battery BA 70 (sold separately)
- Encrypted RF connection between the Base Station and bodypack
- Secure transmission of confidential content using AES 256 encryption
- Versatile charging options also available: L 70 USB, LM 6070 Module for L 6000 full rack charging station and charging contacts for in-device charging with CHG 70N-C

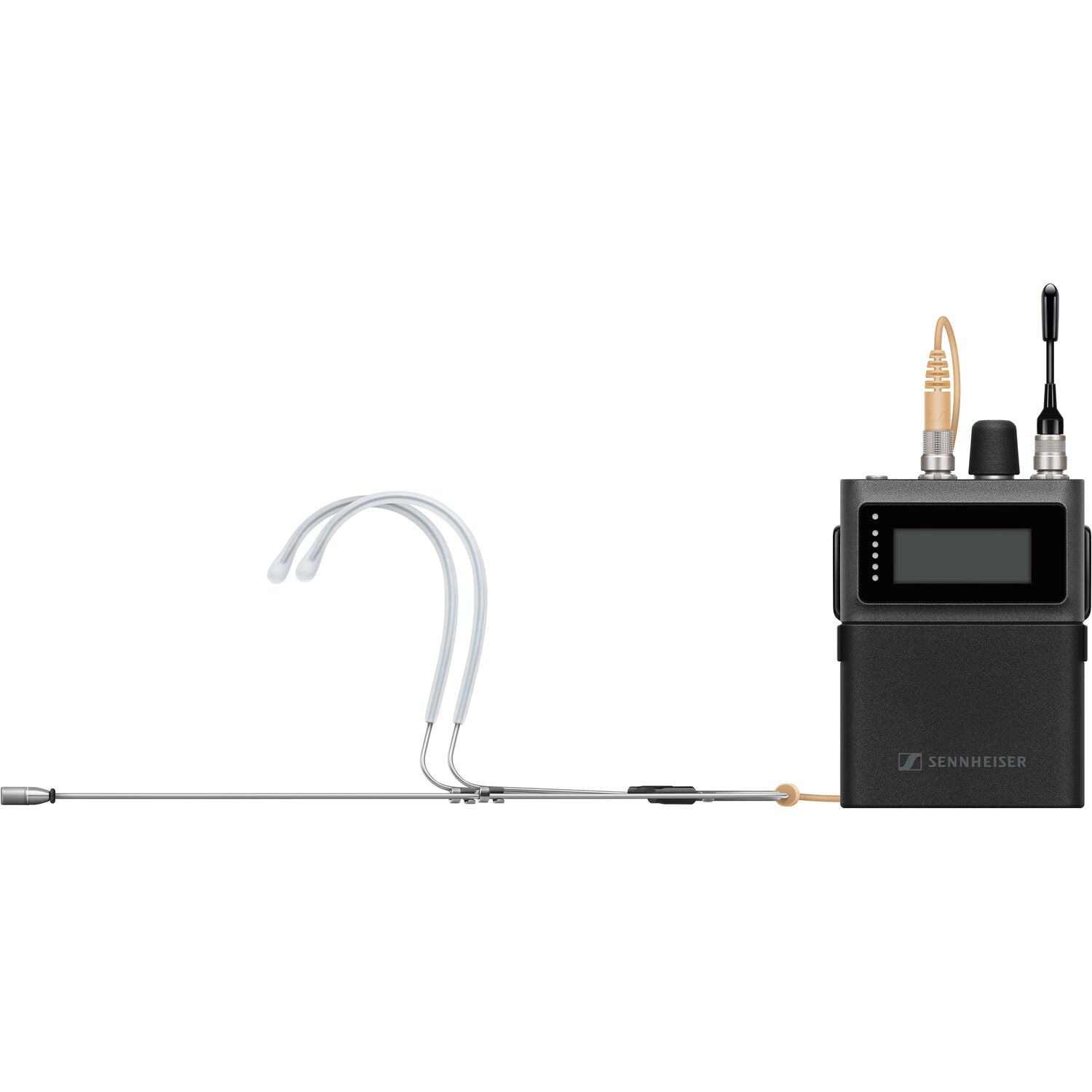

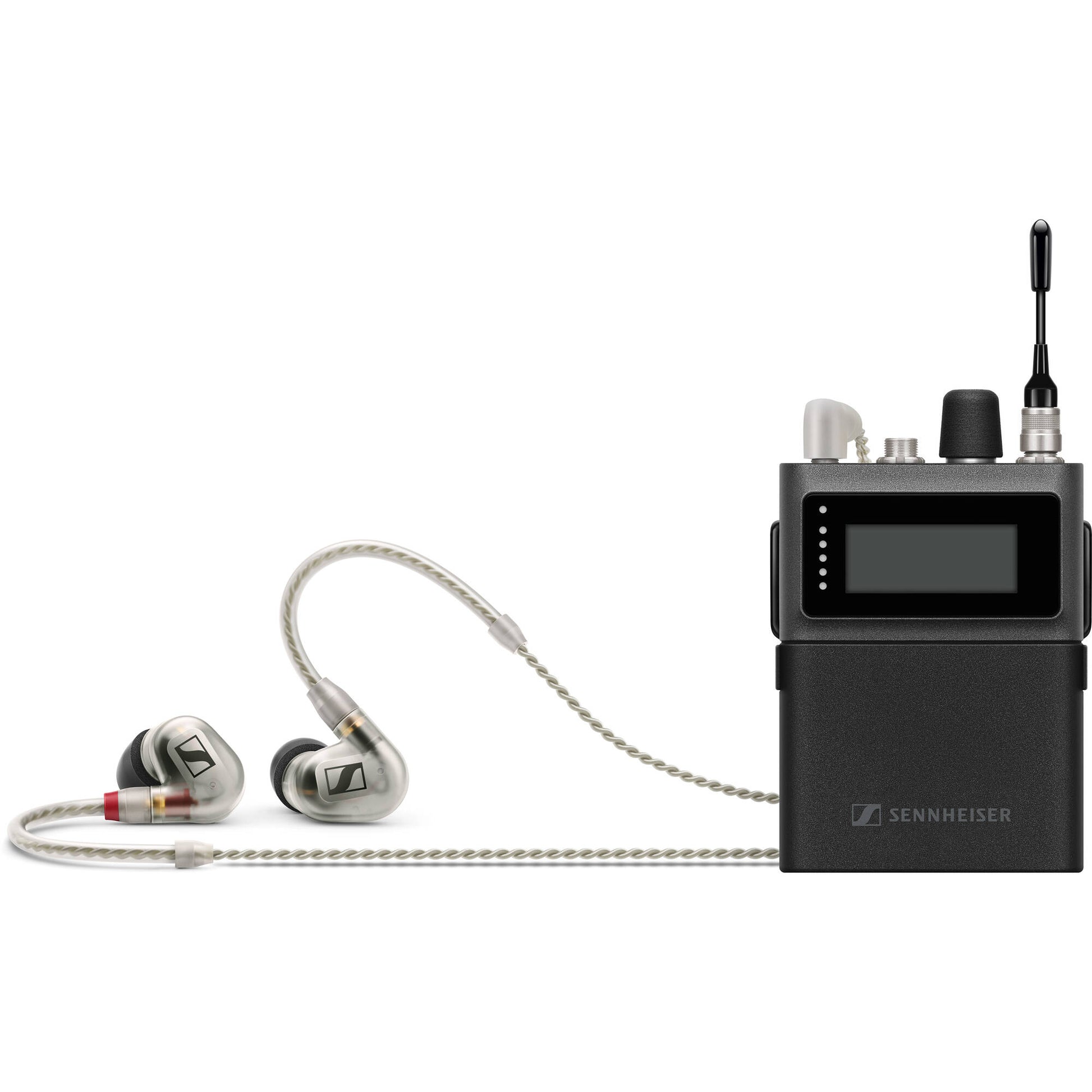

- Compatible with a wide range of Sennheiser lavalier and headset microphones with 3-pin locking connector and in-ear monitors with 3.5 mm connector
- Rugged metal housing
General |
|
|---|---|
| Color | Anthracite |
Performance |
|
| Frequency Range | 470.000 – 608.000 MHz; 630.000 – 698.000 MHz |
| Latency | tbd per ALM |
Connectivity |
|
| Connection | Wireless |
| Connectors |
3.5 mm TRS (1/8") Se3PIN SeCoax50 |
Sennheiser Spectera SEK Wireless Bodypack Transmitter/Receiver - UHF
Details
Each bidirectional Spectera SEK body pack manages both an IEM/IFB and a mic/line stream simultaneously.
Plus, they allow for full remote control and monitoring, via identical RF connection, of IEM volume, audio level and settings, RF health, battery status, and more via LinkDesk software. Variants include UHF (470–608 MHz and 630–698 MHz) or 1G4 (1350–1400 MHz and 1435–1525 MHz). Spectera SEK body packs feature an impedance matching high-power headphone amplifier and offer up to seven hours of operating time depending on the selected Audio Link mode and settings with rechargeable lithium-ion battery BA 70.
| Product Name | Sennheiser Spectera SEK Wireless Bodypack Transmitter/Receiver - UHF |
|---|---|
| Condition | New |
| MPN | 509164 |
| UPC | 615104356580 |
What's in the Box?
- Spectera SEK UHF bodypack
- Spectera SEK belt clip
- Spectera SEK antenna (UHF)
- 3‑pin protective cap for MIC/LINE
- Pouch
- Quick start guide
- Safety guide
Features
- Bidirectional bodypack manages both digital IEM/IFB and mic/line signals simultaneously
- Bidirectional data and audio control in identical RF carrier of all mobile devices
- Available variants: UHF (470–608 MHz and 630–698 MHz) or 1G4 (1350–1400 MHz and 1435–1525 MHz)
- Full remote control and monitoring of SEK bodypack: IEM volume, mic/line gain, RF health, battery status, and more
- Impedance-matching high-power headphone amplifier
- Continuous interference management
- Endless encoder and push button
- 3-pin mic/line input and IEM/IFB 3.5 mm headphone connector
- LED meter, status LED and persistent E-Ink display for “always on” information — name visible on screen even when batteries are removed
- Up to 7 hours of operating time depending on the selected audio link mode and settings with rechargeable lithium-ion battery BA 70 (sold separately)
- Encrypted RF connection between the Base Station and bodypack
- Secure transmission of confidential content using AES 256 encryption
- Versatile charging options also available: L 70 USB, LM 6070 Module for L 6000 full rack charging station and charging contacts for in-device charging with CHG 70N-C
- Compatible with a wide range of Sennheiser lavalier and headset microphones with 3-pin locking connector and in-ear monitors with 3.5 mm connector
- Rugged metal housing
Tech Specs
General |
|
|---|---|
| Color | Anthracite |
Performance |
|
| Frequency Range | 470.000 – 608.000 MHz; 630.000 – 698.000 MHz |
| Latency | tbd per ALM |
Connectivity |
|
| Connection | Wireless |
| Connectors |
3.5 mm TRS (1/8") Se3PIN SeCoax50 |
