Express yourself, hands free. Rugged, reliable and easy-to-use, XS Wireless delivers renowned Sennheiser sound to small venues, conference rooms or houses of worship. A compact body pack transmitter with easy-to-wear cardioid condenser headset provides great pop protection and powerful sound. An all-metal True Diversity receiver offers 960 tunable frequencies, with powerful scan and sync functions that ensure up to 10 hours of trouble-free operation.
- All metal true diversity receiver.
- 960 tunable frequencies.
- Scan and sync functions.
- Frequency Range A.
| Product Name | Sennheiser XSW 52 A Presentation Wireless Set |
|---|---|
| Brand | Sennheiser |
| Condition | New |
| MPN | xsw52a |
| UPC | 615104219779 |
| Shipping Option | Free Shipping to the Continental U.S. |
-
Easy-to-use, all-in-one package for singers, speakers and presenters
-
Hands-free operation
-
Outstanding sound quality
-
Mute button for full speech control
-
Synchronization via RF remote channel
-
Frequencies tunable in steps of 25 kHz
-
24 MHz bandwidth
-
8 frequency banks with each max 12 presets
Technical Data
|
RF frequency range |
548...572 MHz |
504925 |
|
821...832 MHz / 863...865 MHz |
504927 |
|
|
766...790 MHz |
504926 |
|
|
614...638 MHz |
504924 |
|
|
606...630 MHz |
504923 |
|
|
548...865 MHz |
||
|
Presets |
12 |
|
|
Frequency response |
mic.: 100 - 16000 Hz |
|
|
line: 60 - 16 000 Hz |
||
|
THD, total harmonic distortion |
< 1 % |
|
|
Signal-to-noise ratio |
> 103 dB(A) |
|
|
Transmission/receiving frequencies |
960 (520 in range E) |
|
|
Switching bandwidth |
24 MHz (13 MHz in range E) |
|
Receivers
|
Dimensions |
200 x 127 x 42 mm |
|
|
Weight |
~ 730 g |
|
|
Antenna connector |
2 BNC, 50 Ω |
|
|
Audio output level (balanced) |
XLR : +14 dBu max |
|
|
Audio output level (unbalanced) |
Jack : +8 dBu max |
|
|
Diversity reception |
True Diversity |
|
Transmitter
|
|
|||
|
Dimensions |
96 x 66 x 24 mm |
|
|
|
Weight |
~ 95 g |
|
|
|
RF output power |
typ. 10 mW |
|
|
|
In compliance with |
ETS 300422 , ETS 300445 , CE , FCC |
|
|
|
Operating time |
approx. 10 h |
|
|
|
Input voltage range |
0,5 Vrms |
|
|
Microphone
|
Microphone |
permanent polarized |
|
|
Sound pressure level (SPL) |
150 dB |
|
|
Transducer principle |
permanently polarised |
|
|
Pick-up pattern |
cardioid |
|
|
AF sensitivity |
1,6 mV/Pa |
|

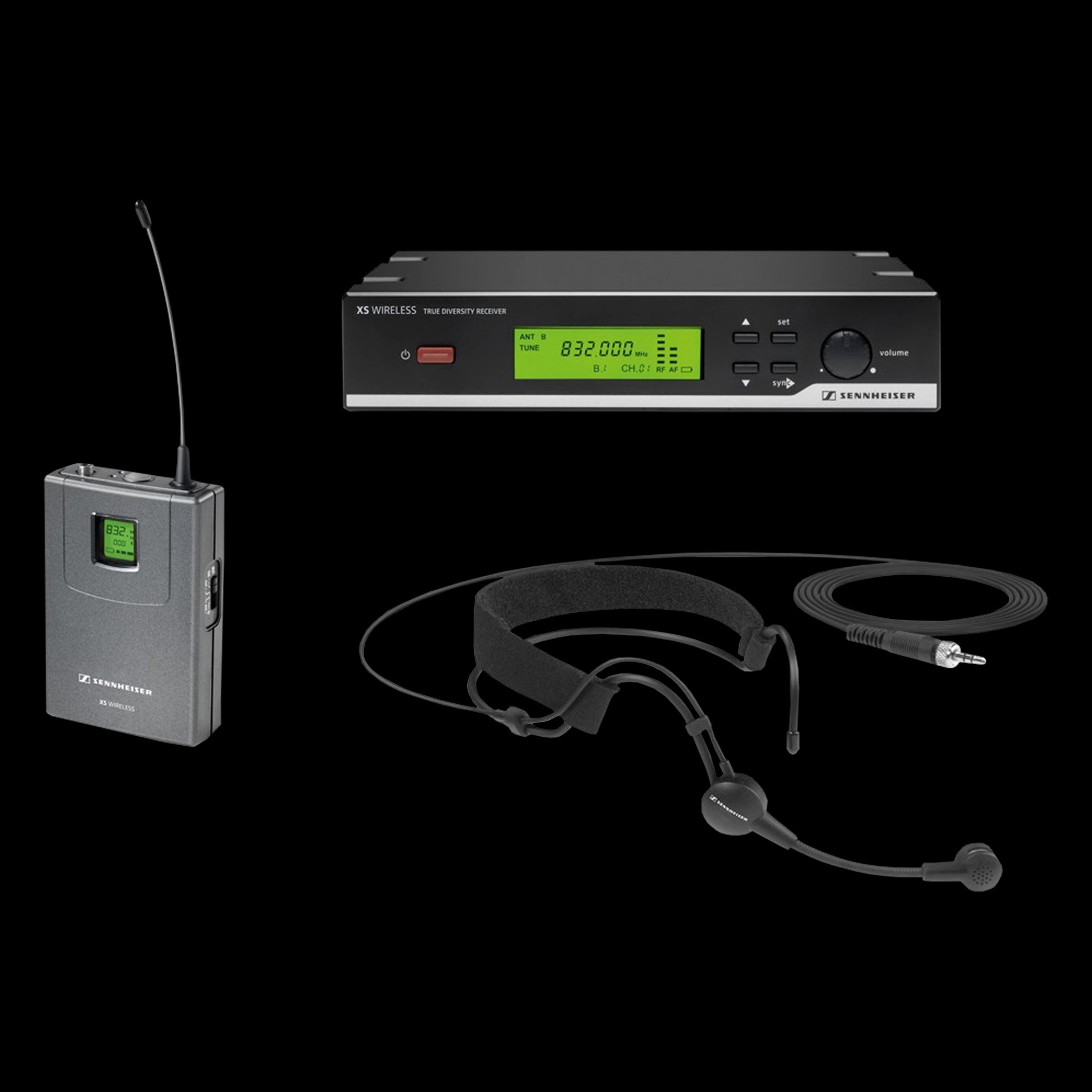

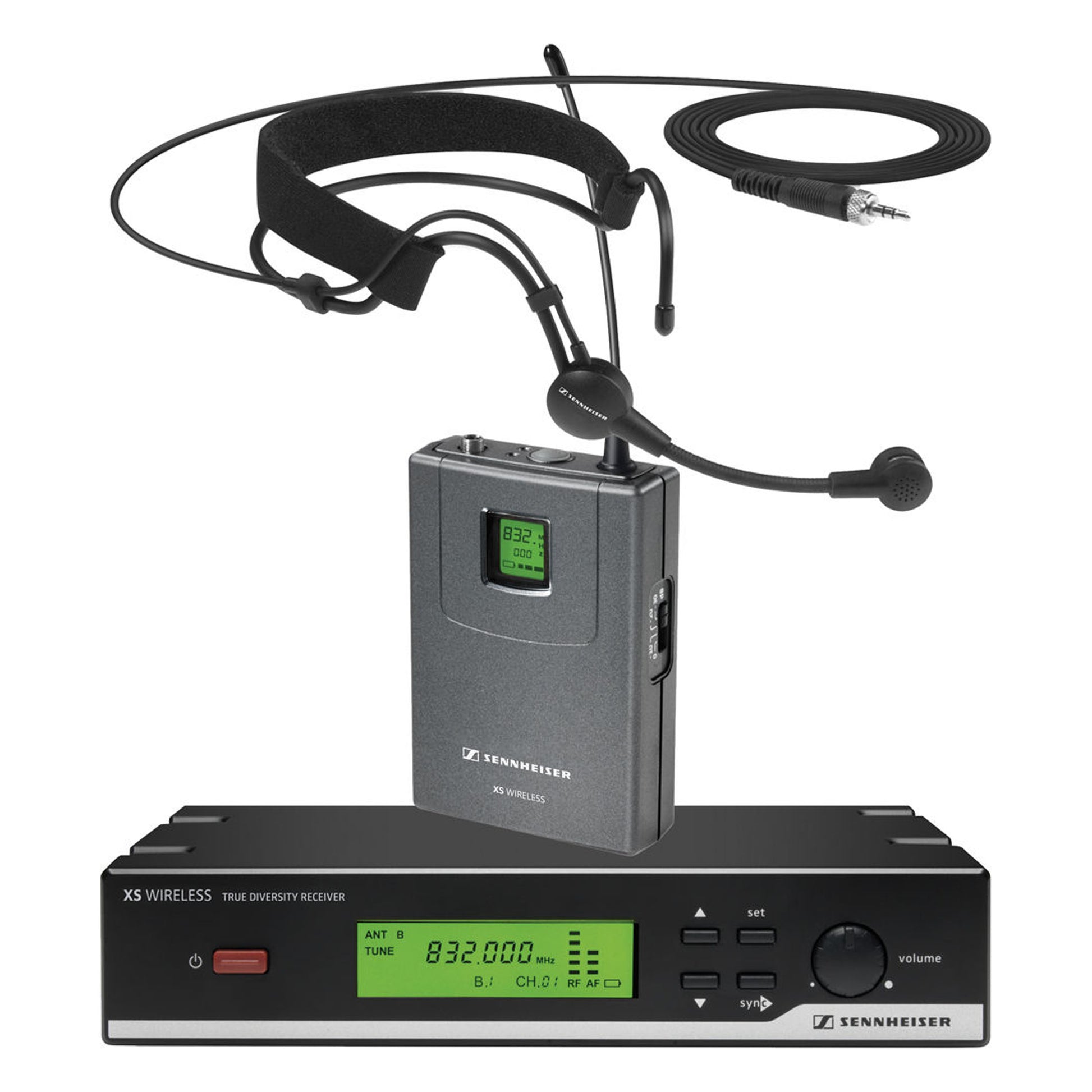

What's in the box?
- (1) EM 10 stationary receiver
- (1) SK 20 bodypack transmitter
- (1) ME 3 headworn microphone (super-cardioid pick-up pattern)
- (1) NT 2-3 power supply unit
- (2) antennas
- (2) AA batteries
- (1) pouch
- Instruction manual
Sennheiser XSW 52 A Presentation Wireless Set
Express yourself, hands free. Rugged, reliable and easy-to-use, XS Wireless delivers renowned Sennheiser sound to small venues, conference rooms or houses of worship. A compact body pack transmitter with easy-to-wear cardioid condenser headset provides great pop protection and powerful sound. An all-metal True Diversity receiver offers 960 tunable frequencies, with powerful scan and sync functions that ensure up to 10 hours of trouble-free operation.
- All metal true diversity receiver.
- 960 tunable frequencies.
- Scan and sync functions.
- Frequency Range A.
| Product Name | Sennheiser XSW 52 A Presentation Wireless Set |
|---|---|
| Brand | Sennheiser |
| Condition | New |
| MPN | xsw52a |
| UPC | 615104219779 |
| Shipping Option | Free Shipping to the Continental U.S. |
-
Easy-to-use, all-in-one package for singers, speakers and presenters
-
Hands-free operation
-
Outstanding sound quality
-
Mute button for full speech control
-
Synchronization via RF remote channel
-
Frequencies tunable in steps of 25 kHz
-
24 MHz bandwidth
-
8 frequency banks with each max 12 presets
Technical Data
|
RF frequency range |
548...572 MHz |
504925 |
|
821...832 MHz / 863...865 MHz |
504927 |
|
|
766...790 MHz |
504926 |
|
|
614...638 MHz |
504924 |
|
|
606...630 MHz |
504923 |
|
|
548...865 MHz |
||
|
Presets |
12 |
|
|
Frequency response |
mic.: 100 - 16000 Hz |
|
|
line: 60 - 16 000 Hz |
||
|
THD, total harmonic distortion |
< 1 % |
|
|
Signal-to-noise ratio |
> 103 dB(A) |
|
|
Transmission/receiving frequencies |
960 (520 in range E) |
|
|
Switching bandwidth |
24 MHz (13 MHz in range E) |
|
Receivers
|
Dimensions |
200 x 127 x 42 mm |
|
|
Weight |
~ 730 g |
|
|
Antenna connector |
2 BNC, 50 Ω |
|
|
Audio output level (balanced) |
XLR : +14 dBu max |
|
|
Audio output level (unbalanced) |
Jack : +8 dBu max |
|
|
Diversity reception |
True Diversity |
|
Transmitter
|
|
|||
|
Dimensions |
96 x 66 x 24 mm |
|
|
|
Weight |
~ 95 g |
|
|
|
RF output power |
typ. 10 mW |
|
|
|
In compliance with |
ETS 300422 , ETS 300445 , CE , FCC |
|
|
|
Operating time |
approx. 10 h |
|
|
|
Input voltage range |
0,5 Vrms |
|
|
Microphone
|
Microphone |
permanent polarized |
|
|
Sound pressure level (SPL) |
150 dB |
|
|
Transducer principle |
permanently polarised |
|
|
Pick-up pattern |
cardioid |
|
|
AF sensitivity |
1,6 mV/Pa |
|
What's in the box?
- (1) EM 10 stationary receiver
- (1) SK 20 bodypack transmitter
- (1) ME 3 headworn microphone (super-cardioid pick-up pattern)
- (1) NT 2-3 power supply unit
- (2) antennas
- (2) AA batteries
- (1) pouch
- Instruction manual
