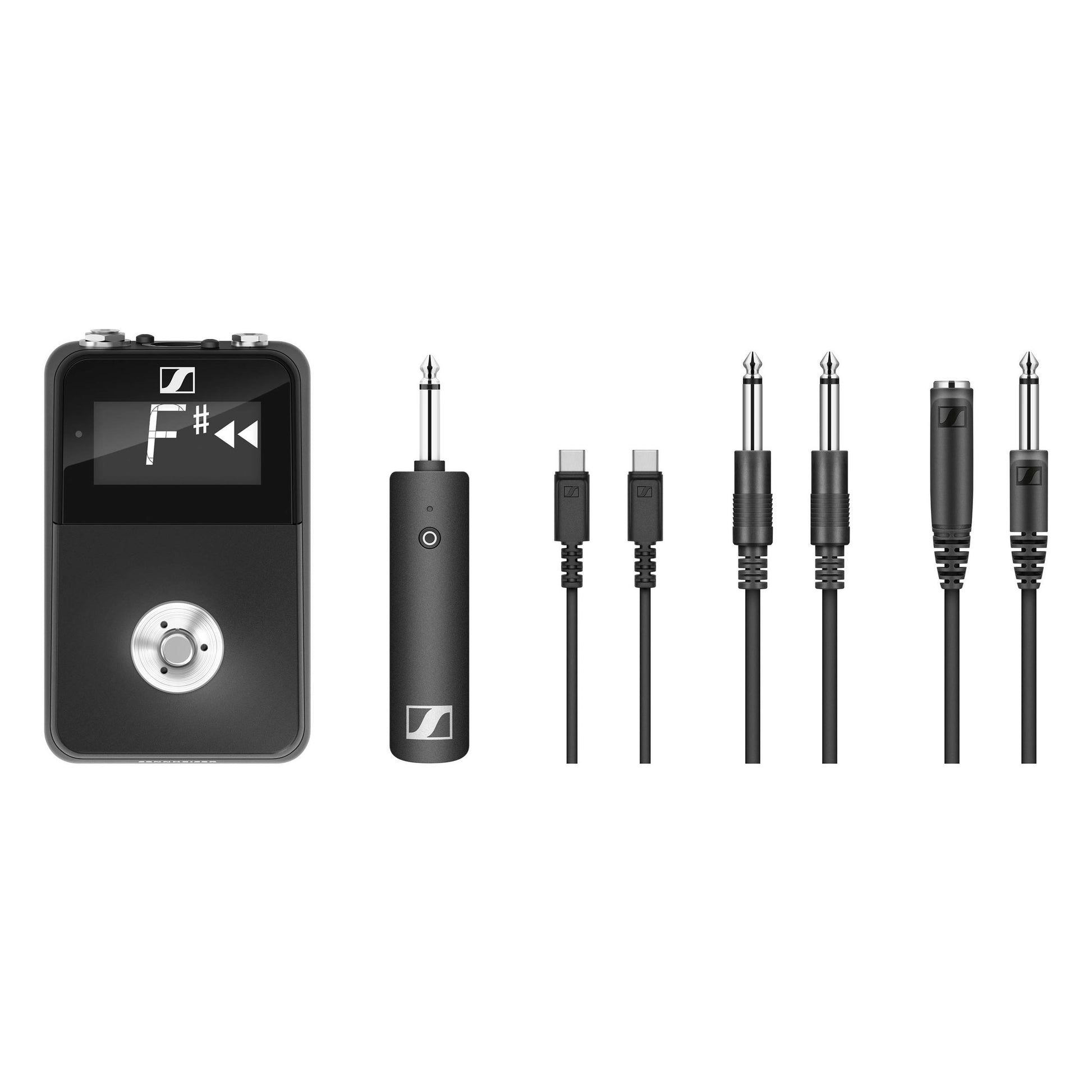

Sennheiser XSW-D PEDALBOARD SET

Sennheiser XSW-D PEDALBOARD SET

$308.00
$308.00
Sale Sold out

+ Free Shipping

Blink Image Blink Image

Out of Stock

View full details
  • Details
  • Tech Specs
  • Reviews

One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. This elegant solution allows you to play guitar wirelessly and still use a pedalboard, all while maintaining a reliable connection.

  • One touch ease-of-use
  • 2.4 GHz digital transmission for worldwide operation
  • 75m range (250ft) in optimal conditions
  • Up to 5 hours battery life on a single charge
  • Switch between multiple transmitters linked to one receiver
  • Configure any combination of transmitters and receivers
  • Mute from either transmitter or receiver
More Information
Product Name Sennheiser XSW-D PEDALBOARD SET
Brand Sennheiser
Condition New
MPN 508486
UPC 615104317758
Shipping Option Free Shipping to the Continental U.S.
  • Dimensions
    XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm
    XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm
    XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm
    XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm
    XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm
    XSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mm
    XSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm
  • THD, total harmonic distortion
    < 0.1 %
  • Charging time
    typ. 3 h
  • Audio output
    max. 12 dBu
  • Operating temperature
    -10 °C to +55 °C (14 °F to 131 °F)
  • Signal-to-noise ratio
    ≥ 106 dB
  • Operating time
    up to 5 h
  • Modulation
    GFSK with TDMA
  • Battery Specification
    Li-Ion
  • Capacity
    850 mAh
  • Codecs
    aptX® Live
  • Frequency range
    2,400 - 2,483.5MHz
  • Max. Input voltage
    typ. 5.0 V
  • Transmission power
    max. 10 mW
  • Voltage
    3.7 V
  • Operating relative humidity
    95 % (non-condensing)
  • Latency
    < 4 ms
  • Temperature Range
    0 °C - 60 °C (32 °F - 140 °F)
  • Audio frequency response
    3.5 mm Jack/XLR: 80 - 18,000 Hz
    6.3 mm Jack: 10 - 18,000 Hz

Sennheiser XSW-D PEDALBOARD SET
Details

One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. This elegant solution allows you to play guitar wirelessly and still use a pedalboard, all while maintaining a reliable connection.

  • One touch ease-of-use
  • 2.4 GHz digital transmission for worldwide operation
  • 75m range (250ft) in optimal conditions
  • Up to 5 hours battery life on a single charge
  • Switch between multiple transmitters linked to one receiver
  • Configure any combination of transmitters and receivers
  • Mute from either transmitter or receiver
More Information
Product Name Sennheiser XSW-D PEDALBOARD SET
Brand Sennheiser
Condition New
MPN 508486
UPC 615104317758
Shipping Option Free Shipping to the Continental U.S.
Tech Specs
  • Dimensions
    XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm
    XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm
    XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm
    XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm
    XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm
    XSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mm
    XSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm
  • THD, total harmonic distortion
    < 0.1 %
  • Charging time
    typ. 3 h
  • Audio output
    max. 12 dBu
  • Operating temperature
    -10 °C to +55 °C (14 °F to 131 °F)
  • Signal-to-noise ratio
    ≥ 106 dB
  • Operating time
    up to 5 h
  • Modulation
    GFSK with TDMA
  • Battery Specification
    Li-Ion
  • Capacity
    850 mAh
  • Codecs
    aptX® Live
  • Frequency range
    2,400 - 2,483.5MHz
  • Max. Input voltage
    typ. 5.0 V
  • Transmission power
    max. 10 mW
  • Voltage
    3.7 V
  • Operating relative humidity
    95 % (non-condensing)
  • Latency
    < 4 ms
  • Temperature Range
    0 °C - 60 °C (32 °F - 140 °F)
  • Audio frequency response
    3.5 mm Jack/XLR: 80 - 18,000 Hz
    6.3 mm Jack: 10 - 18,000 Hz
