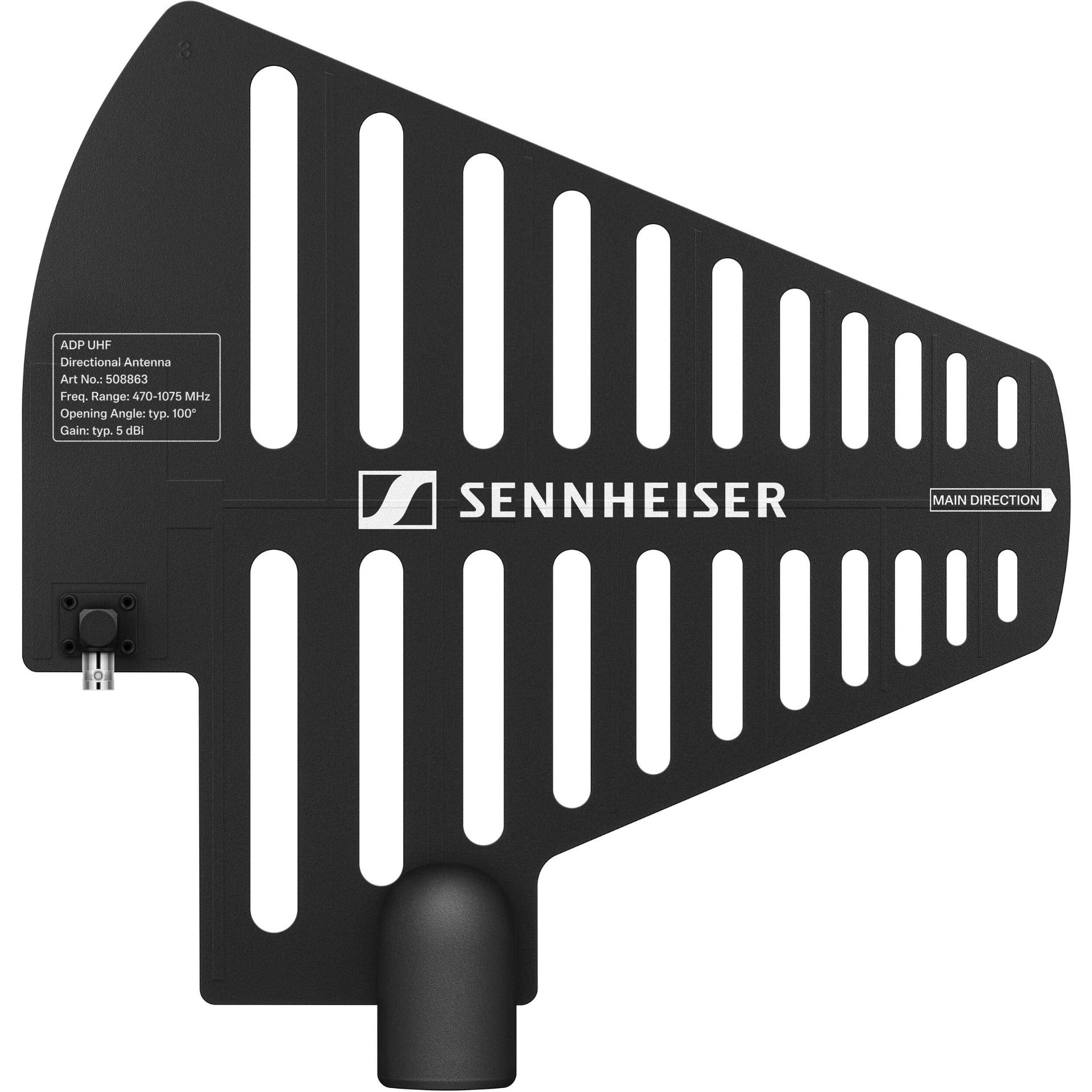

Sennheisser ADP UHF (470 - 1075 MHz) Passive Directional UHF Antenna
Sennheisser ADP UHF (470 - 1075 MHz) Passive Directional UHF Antenna
Regular price
$379.00
Regular price
Sale price
$379.00
Unit price
per
+ Free Shipping
![Blink Image](https://cdn.shopify.com/s/files/1/0750/9049/3723/files/blink-2020-sq-scaled.png?v=1695807695")
On order with the manufacturer!
Couldn't load pickup availability
- Details
- Tech Specs
- Reviews
Passive directional antenna for use with Evolution Wireless Digital systems.
The ADP UHF passive directional antenna is the perfect addition for enhancing the wireless performance of your Evolution Wireless Digital system. The ⅝" and ⅜" threads make it easy to mount on any mic stand. The ADP UHF can be connected to the EW-D EM receiver, the EW-D AB antenna booster or EW-D ASA antenna splitter.
- UHF transmission greatly enhances range, reliability and scalability
- Built-in ⅝" and ⅜" threads allow for easy mic stand mounting
| Product Name | Sennheisser ADP UHF (470 - 1075 MHz) Passive Directional UHF Antenna |
|---|---|
| Shipping Option | Free Shipping to the Continental U.S. |
- Frequency range: 470 – 1075 MHz
- Apex angle (-3 dB): approx. 100°
- Front-to-back ratio: > 14 dB
- Gain: typ. 5 dBi
- Impedance: 50 Ω
- Connection: BNC female, no DC path
- Threads for tripod mounting: 3/8" and 5/8"
- Dimensions: 319 x 310 mm
- Weight: Approx. 1100 g (2.43 lbs)
- Operating temperature range:
- -10 °C - +55 °C
- (14 °F - 131 °F)
- Storage temperature range:
- -20 °C - +85 °C
- (-4 °F - 185 °F)
- Relative humidity: max. 95 % (non-condensing)
Sennheisser ADP UHF (470 - 1075 MHz) Passive Directional UHF Antenna
Details
Passive directional antenna for use with Evolution Wireless Digital systems.
The ADP UHF passive directional antenna is the perfect addition for enhancing the wireless performance of your Evolution Wireless Digital system. The ⅝" and ⅜" threads make it easy to mount on any mic stand. The ADP UHF can be connected to the EW-D EM receiver, the EW-D AB antenna booster or EW-D ASA antenna splitter.
- UHF transmission greatly enhances range, reliability and scalability
- Built-in ⅝" and ⅜" threads allow for easy mic stand mounting
| Product Name | Sennheisser ADP UHF (470 - 1075 MHz) Passive Directional UHF Antenna |
|---|---|
| Shipping Option | Free Shipping to the Continental U.S. |
Tech Specs
- Frequency range: 470 – 1075 MHz
- Apex angle (-3 dB): approx. 100°
- Front-to-back ratio: > 14 dB
- Gain: typ. 5 dBi
- Impedance: 50 Ω
- Connection: BNC female, no DC path
- Threads for tripod mounting: 3/8" and 5/8"
- Dimensions: 319 x 310 mm
- Weight: Approx. 1100 g (2.43 lbs)
- Operating temperature range:
- -10 °C - +55 °C
- (14 °F - 131 °F)
- Storage temperature range:
- -20 °C - +85 °C
- (-4 °F - 185 °F)
- Relative humidity: max. 95 % (non-condensing)
