The Soldano X88R is considered by many guitar players as the holy grail of rack mount tube preamps. From its inspiring Soldano tone to distinctive purple anodized panel, the X88R is one of the world’s most sought-after pieces of vintage gear used by countless professional musicians including Peter Frampton, Warren DeMartini, Michael Landau, Steve Lukather, Lou Reed and Lee Ritenour to name a few.

The new X88-IR continues this legacy by preserving every ounce of Soldano’s legendary tone, with updated modern features tailored to meet the needs of today’s professional players. To fully appreciate the new X88-IR, we must first look back into its history.

THE CHANNELS:

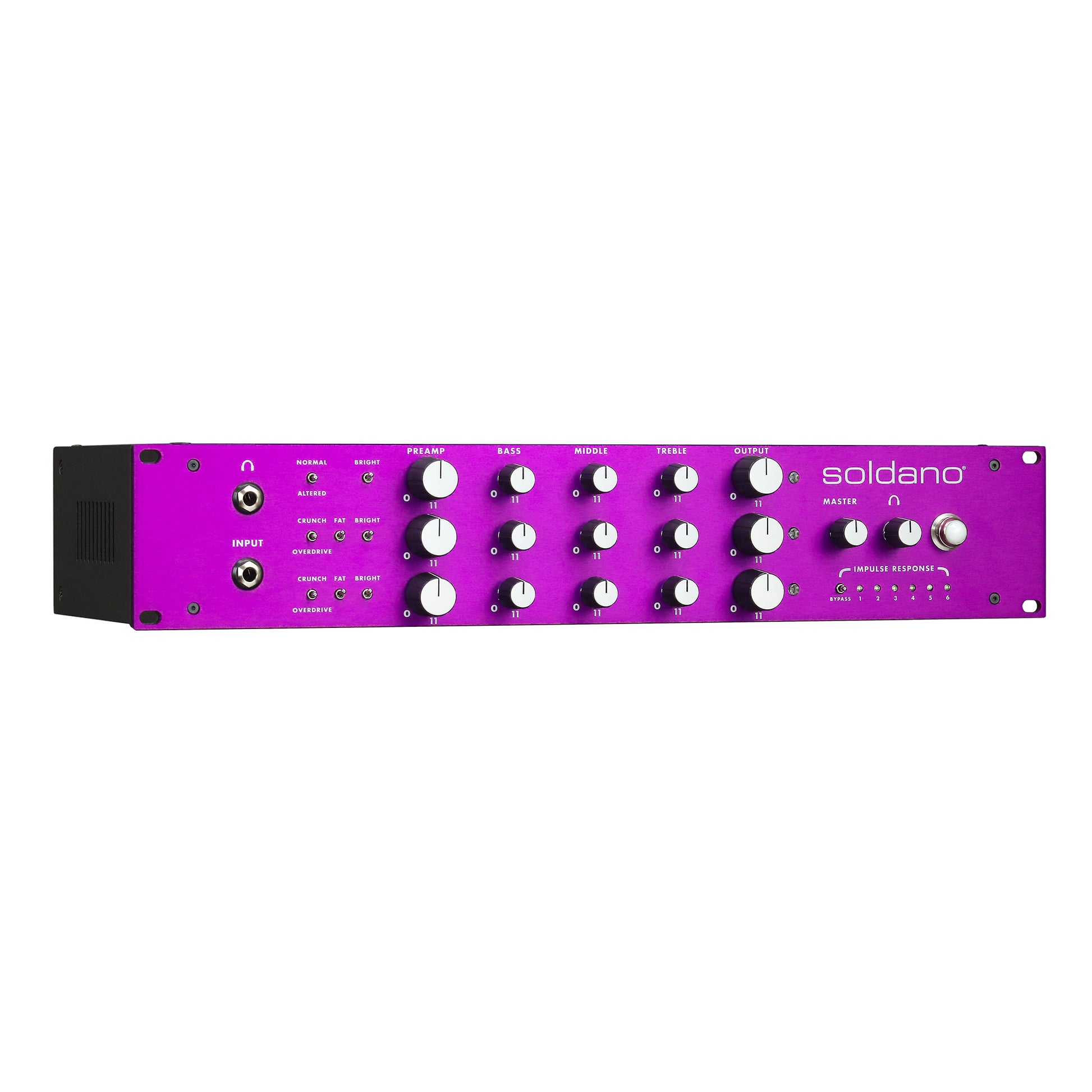

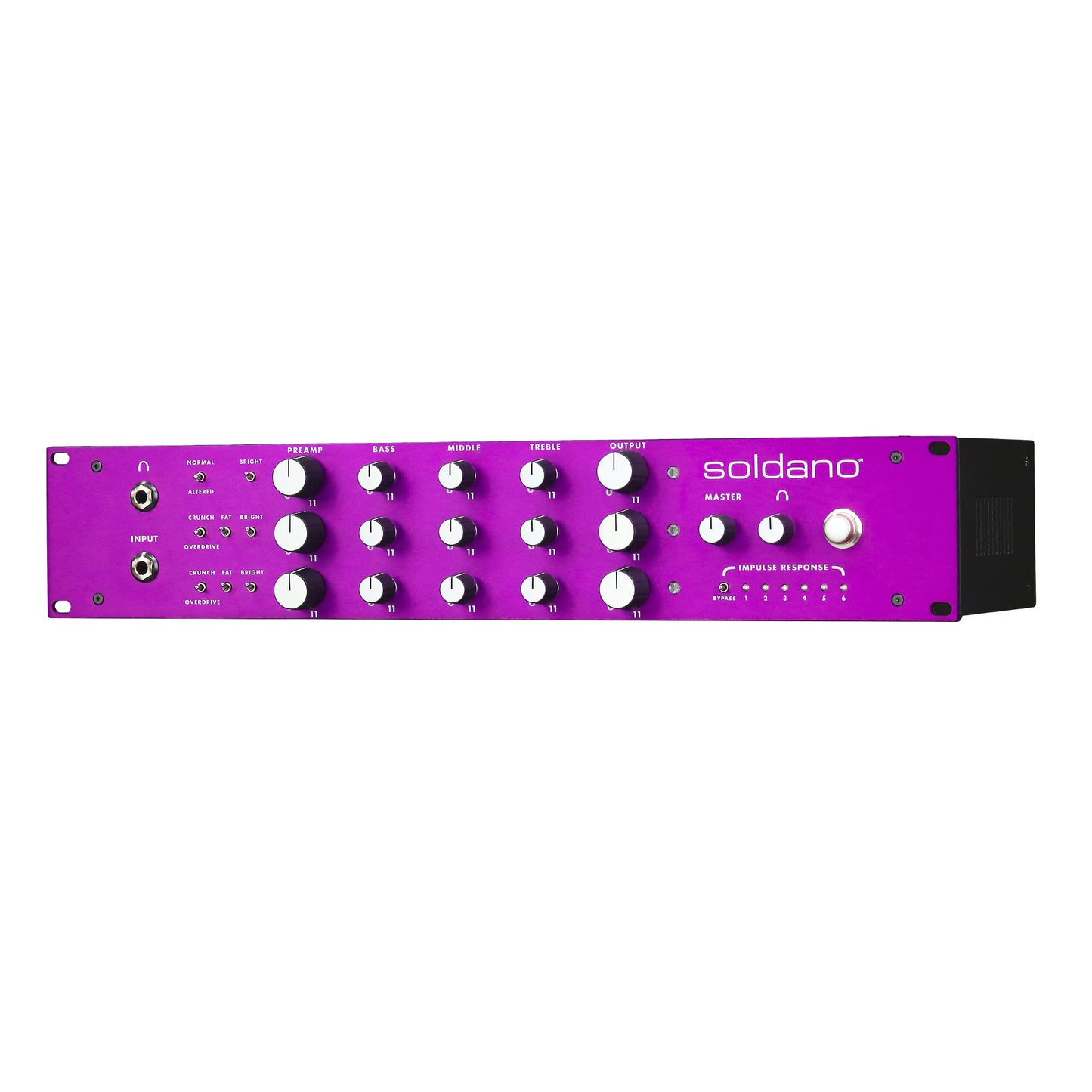

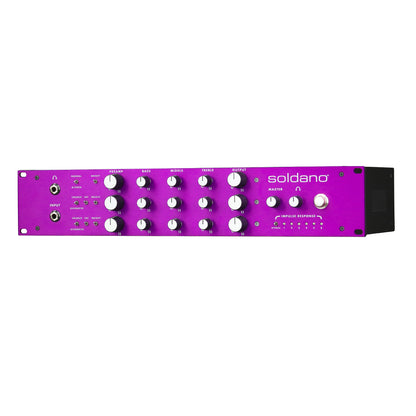

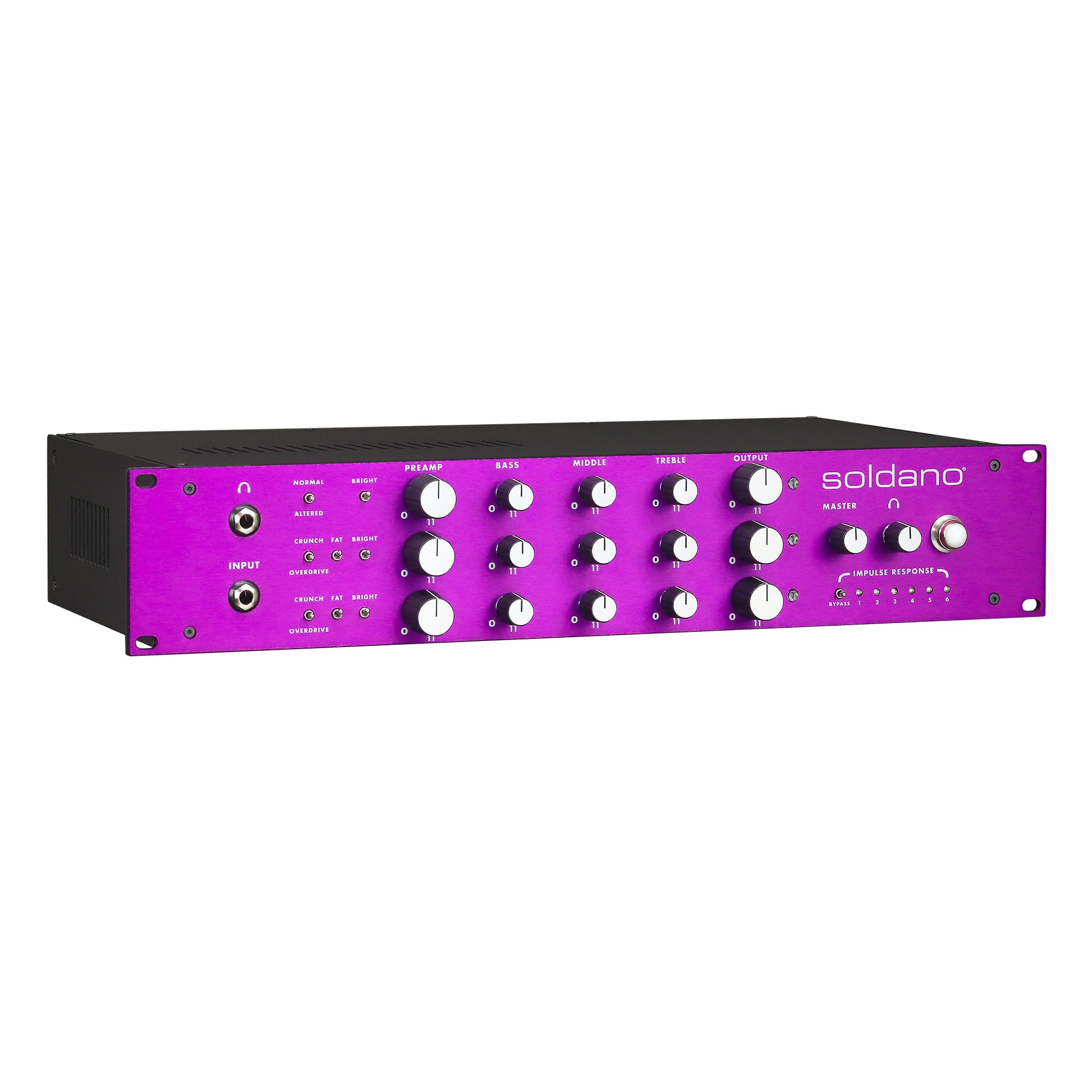

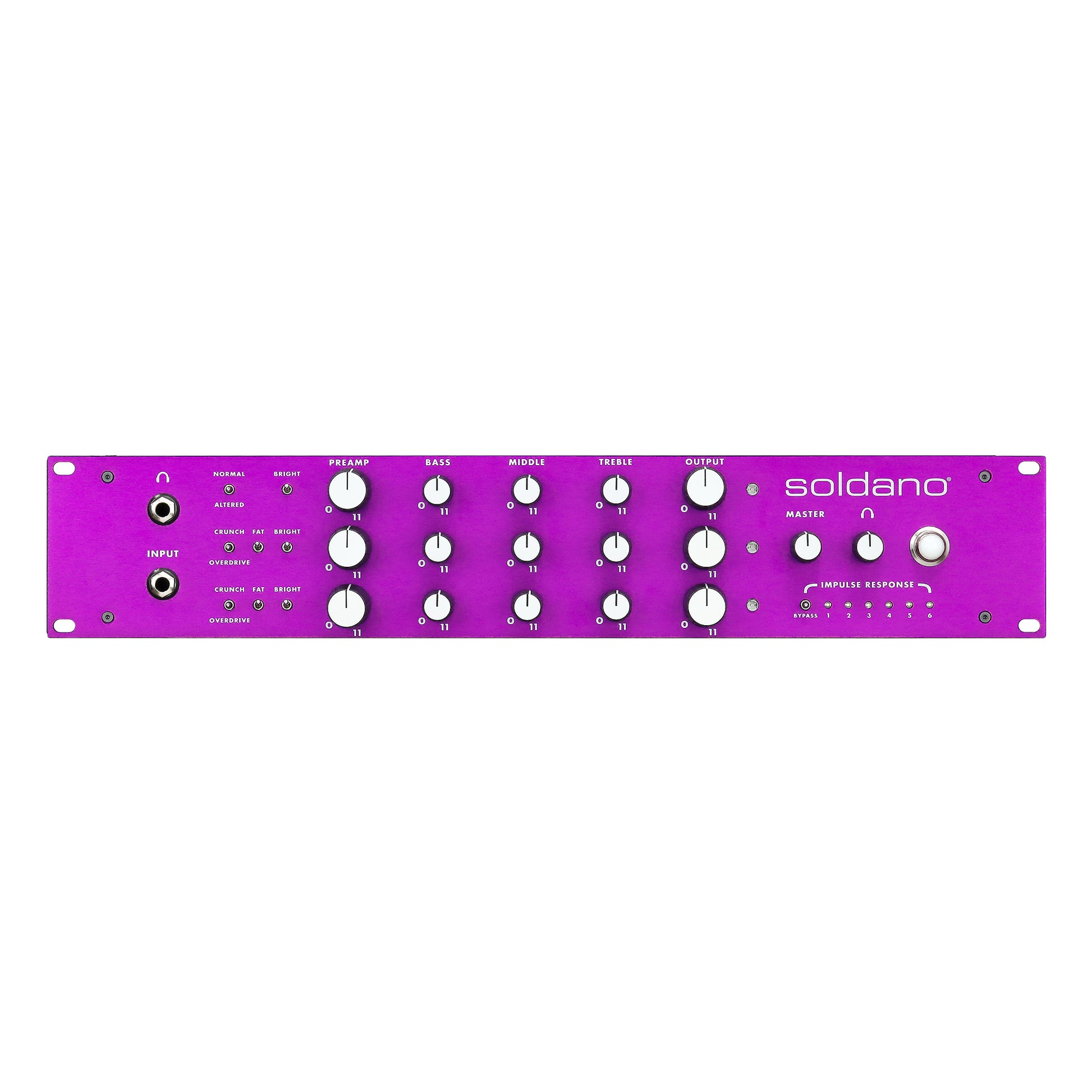

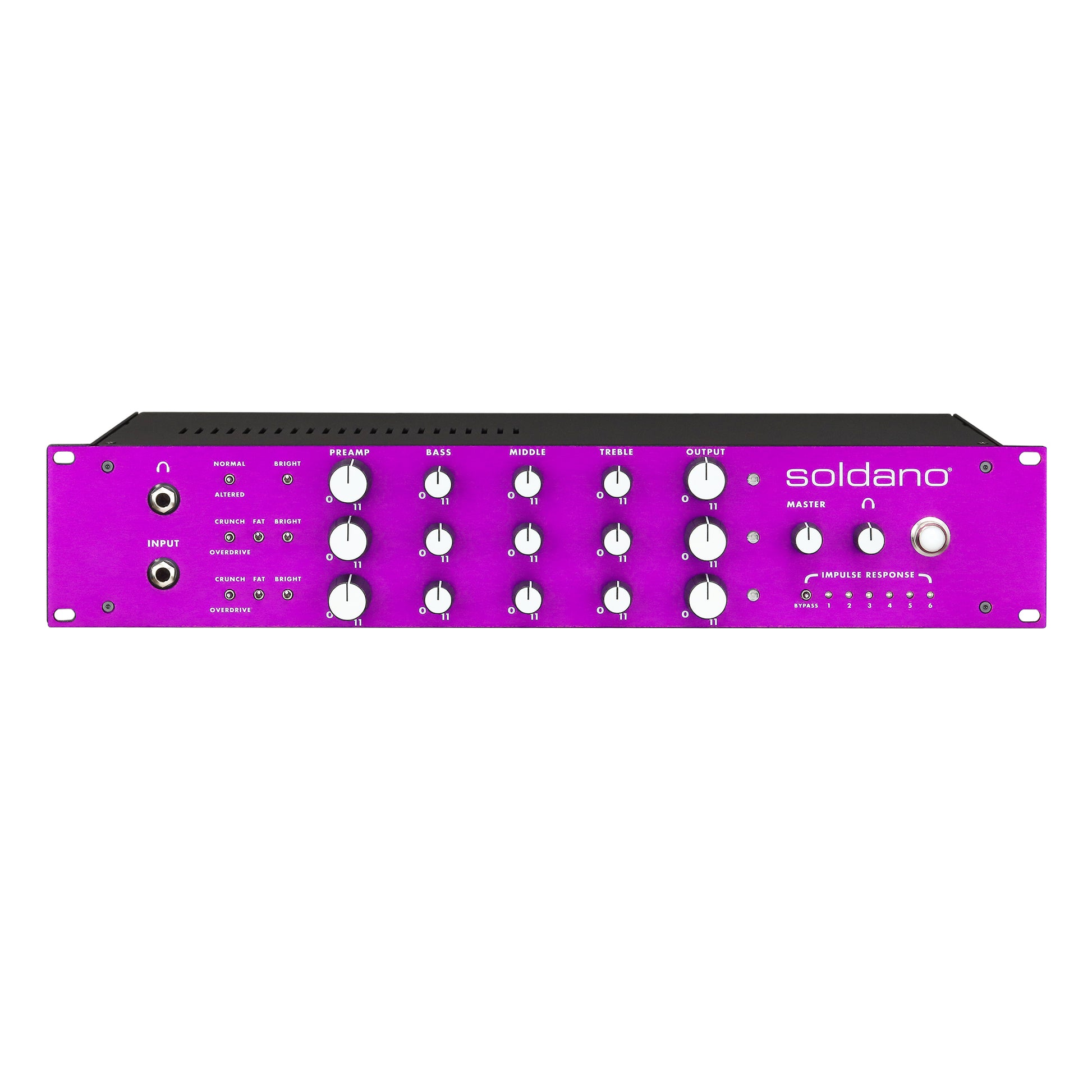

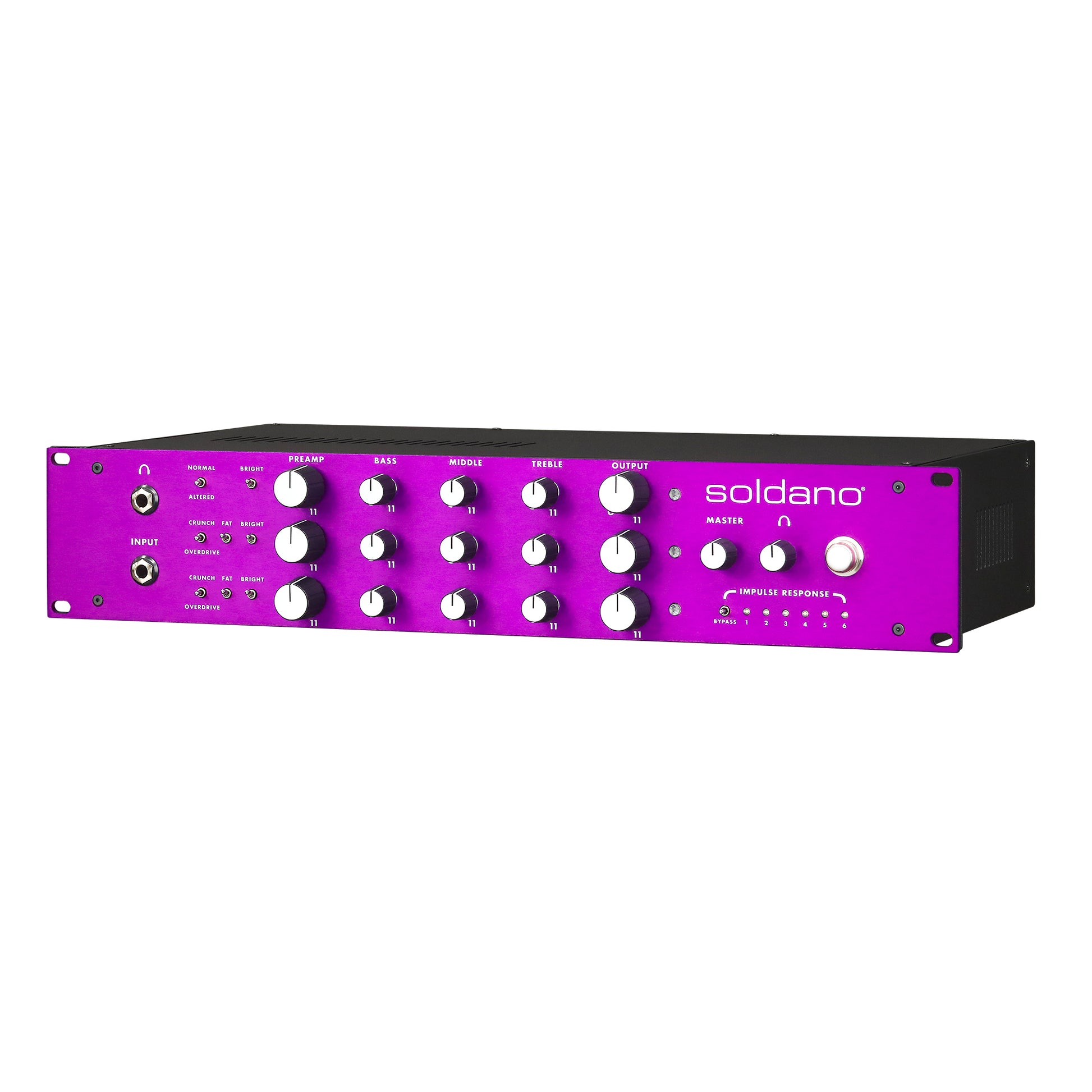

Just like the X88R, the new X88-IR features three channels each with Preamp Level, 3-Band EQ, Output Level and Bright Switch. The original X88R featured independent channels for clean, crunch and overdrive. The new X88-IR offers significantly more flexibility including:

Channel 1 (the “clean” Channel) now includes a two position Normal/Altered mode.
The Normal mode is a Fender inspired clean tone. The Altered mode offers a boosted clean for edge of breakup tones In Normal Mode, the channel 1 select button will illuminate Green. In Altered Mode the channel 1 select button will illuminate Yellow.

Channel 2 and Channel 3 are identical, both featuring a Fat Switch, a Bright switch and a selectable Crunch/Overdrive switch.

This allows you to customize channels 2/3 to your liking. You can select one Crunch and one Overdrive channels, two Crunch Channels or two Overdrive Channels.

In Crunch Mode, the corresponding channel 2/3 select button will illuminate Purple. In Overdrive Mode, the corresponding channel 2/3 select button will illuminate Red.

Channel Select - MIDI Store - Each of the three channels features an illuminated channel select switch. Press and hold any of the channel select switches to MIDI store a preset.

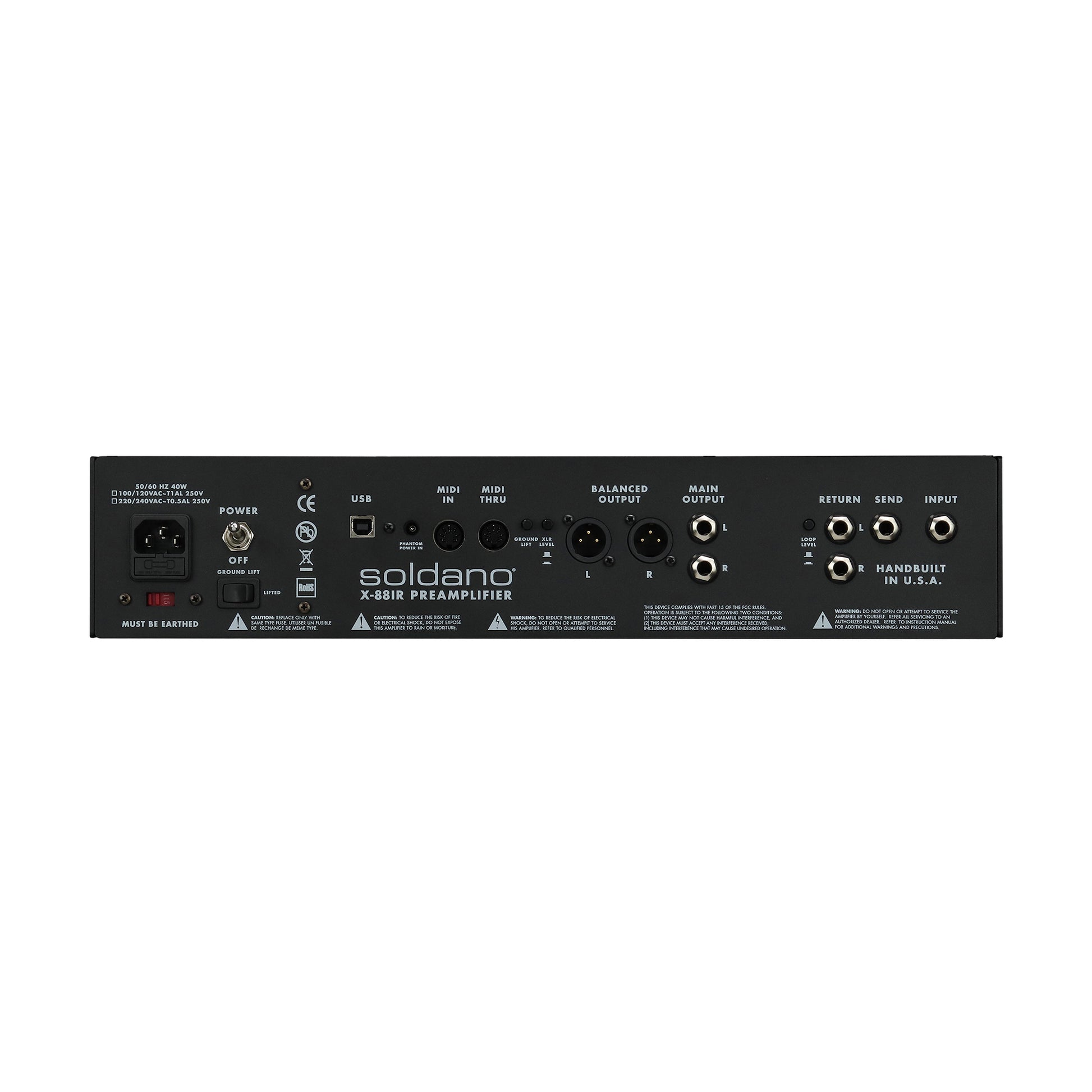

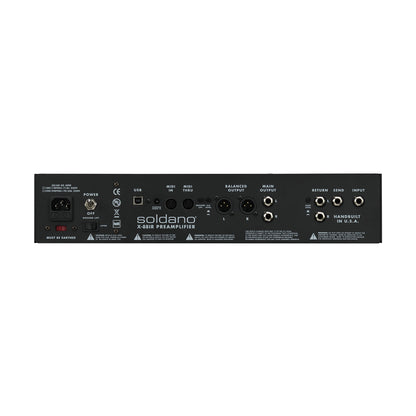

MASTER SECTION - The Master section includes a global Master Level Control, Headphone Output jack and Headphone Level Control. STEREO OPERATION / STEREO LOOP The X88-IR offers stereo operation with:
• 1⁄4” Main Outputs
• Balanced XLR Outputs with a Ground Lift and Level Switch • Stereo Loop with a Mono Send and Stereo Return as well
as a Loop Level switch
3-Channel All-Tube Stereo Rackmount Preamp

IMPULSE RESPONSES - ASSIGNABLE PER CHANNEL/MODE
Impulse response cabinet simulation is an essential tool for modern guitarists. The X88-IR offers six onboard IR slots to choose from.
Each expertly recorded IR can be assigned to each channel/mode independently, ensuring you get the perfect tone and speaker response, whether running direct onstage, recording, or utilizing the amp’s headphone output for silent at-home practice. You can bypass the IRs using the provided Bypass switch. Add and manage your own IRs using the included Soldano Editor Software powered by Synergy.

POWER AMP MODELING - As the power amp is a key factor for a truly dynamic and authentic tone, the X88-IR provides an AI captured power amp model simulation based on a 120W 6L6 power amp. This dynamic stereo power amp simulation, coupled with the on-board ultra-low latency cabinet Impulse Responses delivers a studio grade direct solution.

SOLDANO EDITOR SOFTWARE - EXPANDED FEATURES
The Soldano Editor Software features an intuitive user interface, allowing you to easily select the channels, the channel mode, the different IRs for all three channels, load and organize your IR library, and save up to 128 MIDI presets.

The Editor Software offers additional features which are assignable to each channel/mode including:
• Low-Pass and High-Pass Filters
• Power Amp three position Depth Switch
• Power Amp three position Presence Switch

MIDI IMPLEMENTATION - The X88-IR preamp accepts external MIDI switchers and controllers, giving you up to 128 user-created presets with real time Control Changes. You can assign and organize your presets right from the front panel or with the included Soldano Editor Software.

UNIVERSAL VOLTAGE - Mike Soldano designed the X88-IR to work seamlessly anywhere in the world with the help of a voltage selector switch found on the back panel. When traveling or moving to a different country and want to take the X88-IR with you, just select the right voltage, replace the mains fuse with the correct rating (see manual for safety pre-cautions) and you’re ready to go!

PHANTOM POWER - The X88-IR includes a back-panel Phantom Power jack which can be used to power MIDI controllers.
