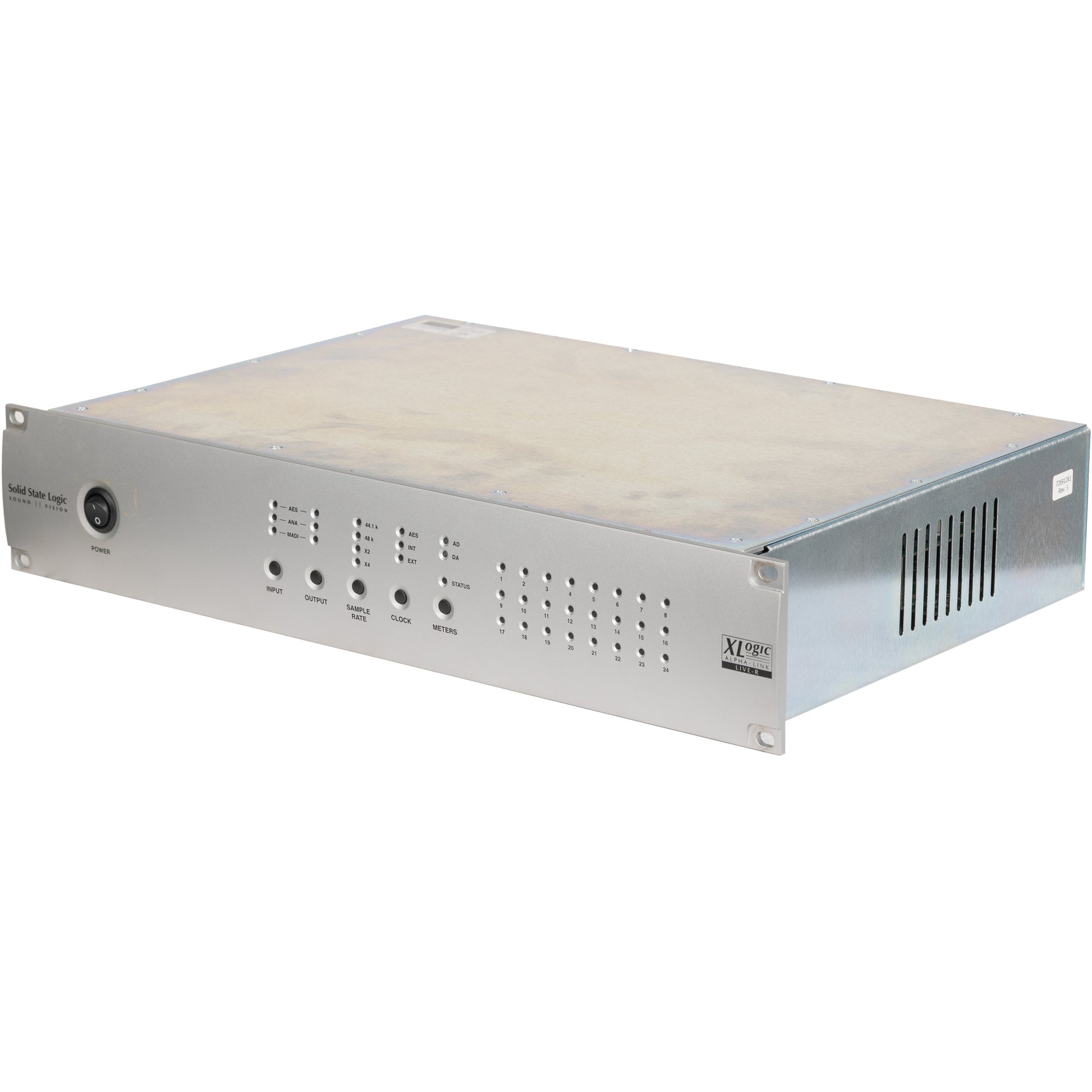

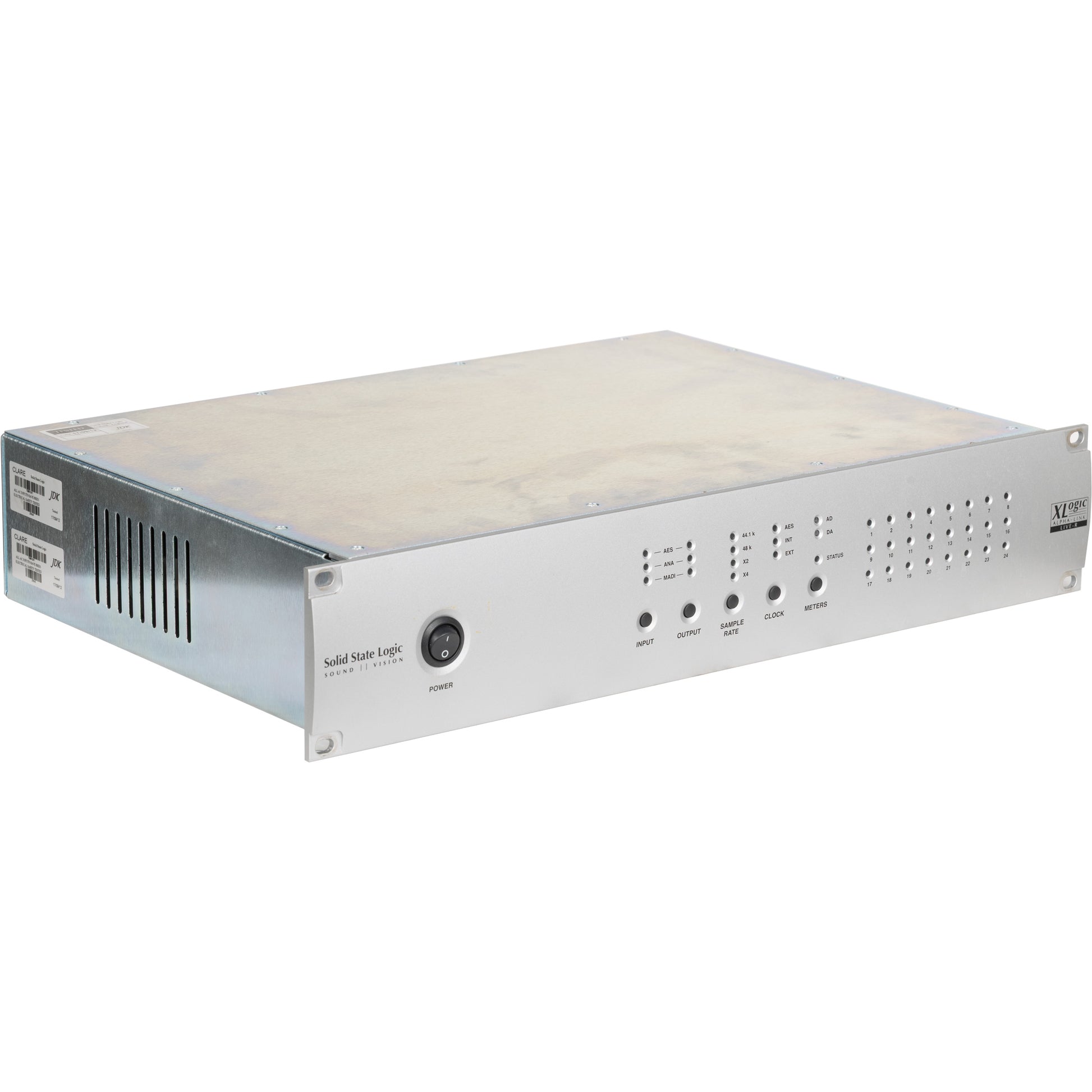

*Please note -- This pre-owned item may show signs of use. Please see photos for details of the product.
The Alpha-Link LIVE-R from Solid State Logic is a versatile, high-quality, fixed configuration audio converter unit. It can be used to provide local or remote I/O for both C100 HDS and C10 HD consoles or alternatively as a stand-alone format converter. The Alpha-Link LIVE-R unit provides 24 balanced analog inputs and outputs (with high-quality 24-bit analog conversion) and 12 AES input and output pairs (with 8 channels of 24-bit sample rate conversion). It connects to the console using fully redundant MADI over fiber to ensure absolute signal integrity and with embedded control data; remote control of IO parameters from the console is achieved with minimum cabling. The Alpha-Link LIVE-R is configurable to suit US broadcast analog interface levels. The Alpha-Link LIVE-R is suitable for studio, live, and broadcast applications and includes redundant PSUs, all fitted into a compact 2U rack.

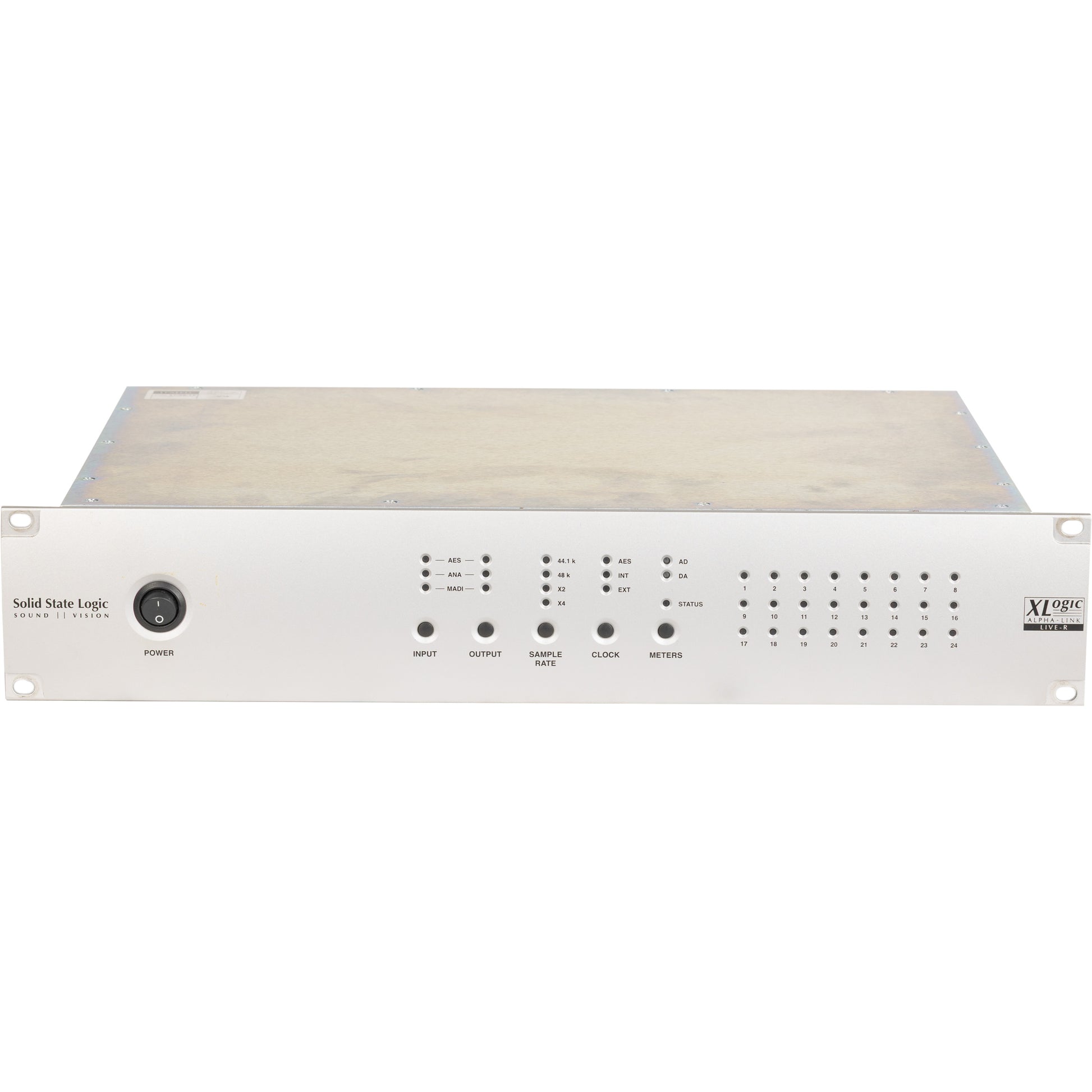

The unit offers simple front panel controls for configuration and a comprehensive input / output routing matrix which can be used to set up global connections between the various I/O connections and makes all combinations possible. There is also a meter section for the analog inputs and outputs with an AD / DA selection button, mode indicator LEDs, and 24 tri-color level LEDs.
The Alpha-Link LIVE-R unit can be used as stand-alone format converter. In stand-alone mode, all input and output channels can be used simultaneously in any configuration. When used as a stand-alone converter, the front panel controls for Alpha-Link LIVE-R are used for format conversion configuration. When used in combination with an SSL C10 HD or C100 HDS console, it provides a powerful, highly flexible I/O solution which is especially suited to broadcast applications. When connected to a C10 HD or C100 HDS console, the Alpha-Link LIVE-R provides automatic fiber redundancy switching, and remote control of up to 3 Alpha-Link 8-RMP Mic preamps is possible.
| Product Name | Solid State Logic XLogic Alpha-Link MADI Converter |
|---|---|
| Brand | Solid State Logic |
| Condition | Pre-Owned |
| MPN | 726912X1 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Solid State Logic XLogic Alpha-Link LIVE-R MADI Converter
- MADI Fiber I/O connections
- MADI I/O can be locked to the C10 HD and C100 HDS highly stable clocks
- Selectable as a Clock Master device or can be externally synchronized to AES/EBU, Wordclock, or video sync
- Twenty-four balanced analog I/O
- Twelve pairs of AES Digital I/O
- Fiber MADI guarantees pristine audio
- Embedded control data simplifies cabling and operation
- Analog input/output metering via 24 tricolor LEDs
- 56- or 64-channel MADI modes
- Supports Fs and 2Fs formats in either high-speed or legacy modes
- USB interface for firmware updates
- Compact 2U rack enclosure
| Image Processing | Quantization |
| Sample Rates | 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz |
| Sample Rate Conversion | Conversion Range: 4 to 212 kHz, AES port A input only |
| Dynamic Range (A-weighted) | 128 dB |
| THD+N (1 kHz at -60 dB) | -125 dB |
| Analog I/O Levels | Balanced, 14 dBu to 24 dBu maximum (selectable from front panel) |
| Power | 2 x IEC320 3-pin connector, 100 to 240 VAC, 50 to 60 Hz |

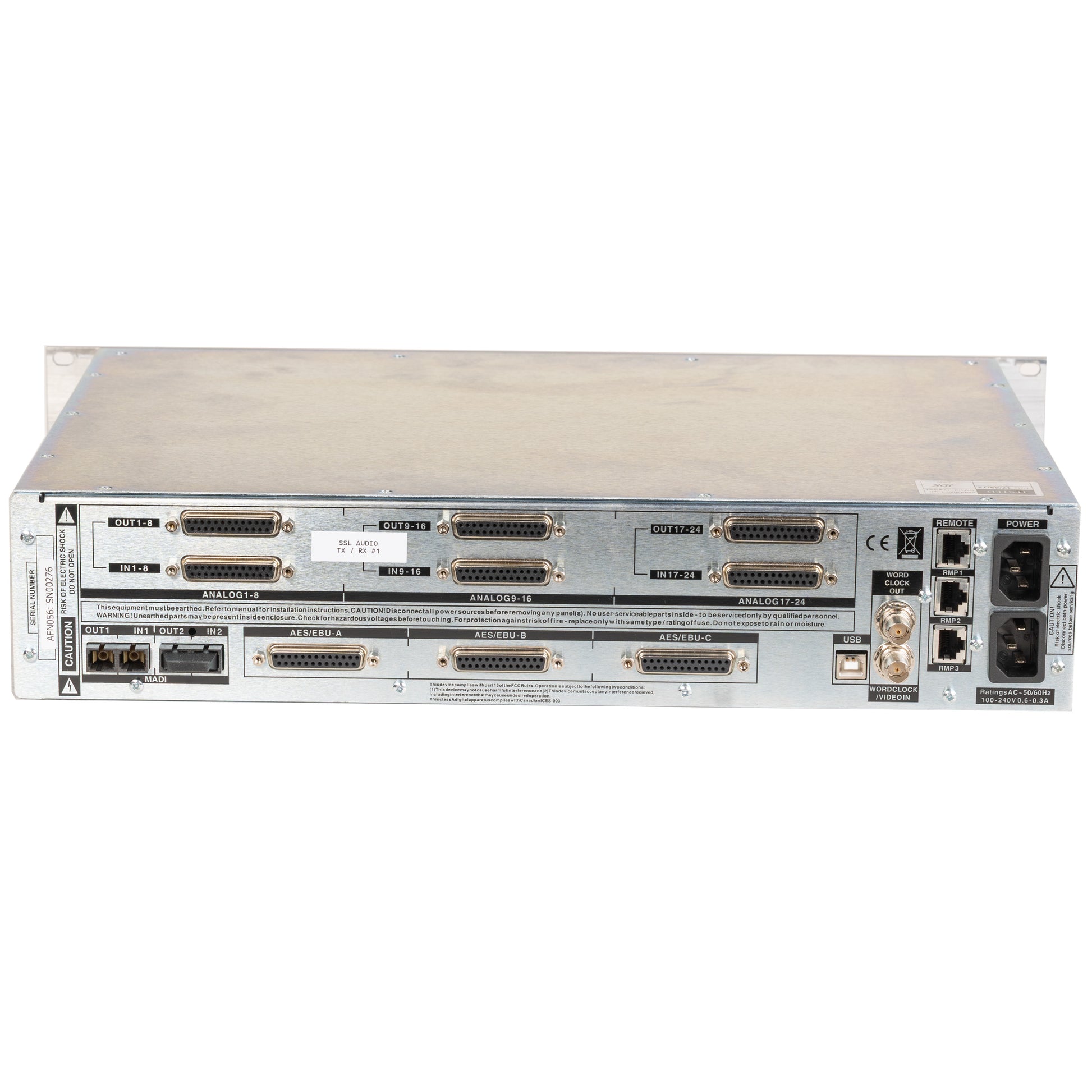

| Analog I/O Connections | 6 x 25-pin D sockets provide 24 input and 24 output channels (8 in/out per socket) |
| AES/EBU I/O | 3 x 25-pin D socket, Zin/out ≈ 110 Ω, balanced and isolated providing 24 input / 24 output channels (8 in/out per socket) |
| MADI I/O | 2 x twin SC type chassis sockets (main and backup), glass multimode fiber 50 / 125 μ (65 / 125 μ compatible), provides 64 channels at 48 kHz |
| USB | 1 x type-B chassis socket (for firmware upgrades) |
| World Clock | 75 Ω BNC, Zin ≈ 75 Ω, 3 V 3 / 5 V TTL compatible, Connector Style: BNC |
| Remote | 3 x 8 P8c modular connector; RJ-45 type |
| Operating Voltage | 100 to 240 VAC, 50/60 Hz |
| Power Consumption | <30 W |
| Temperature | Operating: 5 to 30°C, Non-Operating: -20 to 50°C, Maximum Gradient: 15°C/hour |
| Relative Humidity | Operating: 20 to 80%, Non-Operating: 5 to 90%, Maximum Wet Bulb (Non-Condensing): 29°C |
| Vibration | Operating: <0.2 G (3 to 100 Hz), Non-Operating: <0.4 G (3 to 100 Hz) |
| Shock | Operating: <2 G (maximum 10 ms), Non-Operating: <10 G (maximum 10 ms) |
| Altitude Above Sea Level | Operating: 0 to 3,000 m, Non-Operating: 0 to 12,000 m |
| Testing Parameters | EMC Performance Criteria: Line level inputs and outputs, Measure at mid gain, noise <-56 dBu |
