40Gbps Thunderbolt 3 — The USB C That Does It All
The Echo Express III-D - Thunderbolt 3 Edition includes two Thunderbolt 3 (USB-C) ports; the first is used for connection to your computer, while the second supports daisy chaining of up to five additional Thunderbolt peripheral devices to a single port on your computer. The III-D includes 10Gbps USB 3.1 Gen 2 support, meaning you can connect a USB device to the second port using the proper cable or adapter. The III-D also provides full support for connecting two 4K displays @ 60Hz or one 5K display @ 60Hz(3). For connected devices requiring extra power, 15 watts is provided to connected bus-powered devices.
All-Around Smart Design
The Echo Express III-D - Thunderbolt 3 Edition is wrapped in a rugged, yet lightweight aluminum outer shell, resulting in a system light enough to carry without weighing you down, yet sturdy enough to securely protect the installed PCIe cards.
Its two large, slow-spinning fans, enhanced with computer-modeled airflow management, ensure that even hot-running cards remain reliably cool without the need to install an extra PCIe blower card that would prevent the use of one of the three slots. Because the fans automatically speed up and slow down as needed, you don’t have to guess which speed setting to select, and there’s no need for tools to change settings. There is no power switch on the chassis, nor is one needed, because the III-D automatically powers on and off with your computer.
Every Thunderbolt 3 and MacOS Compatible PCIe Card Supported

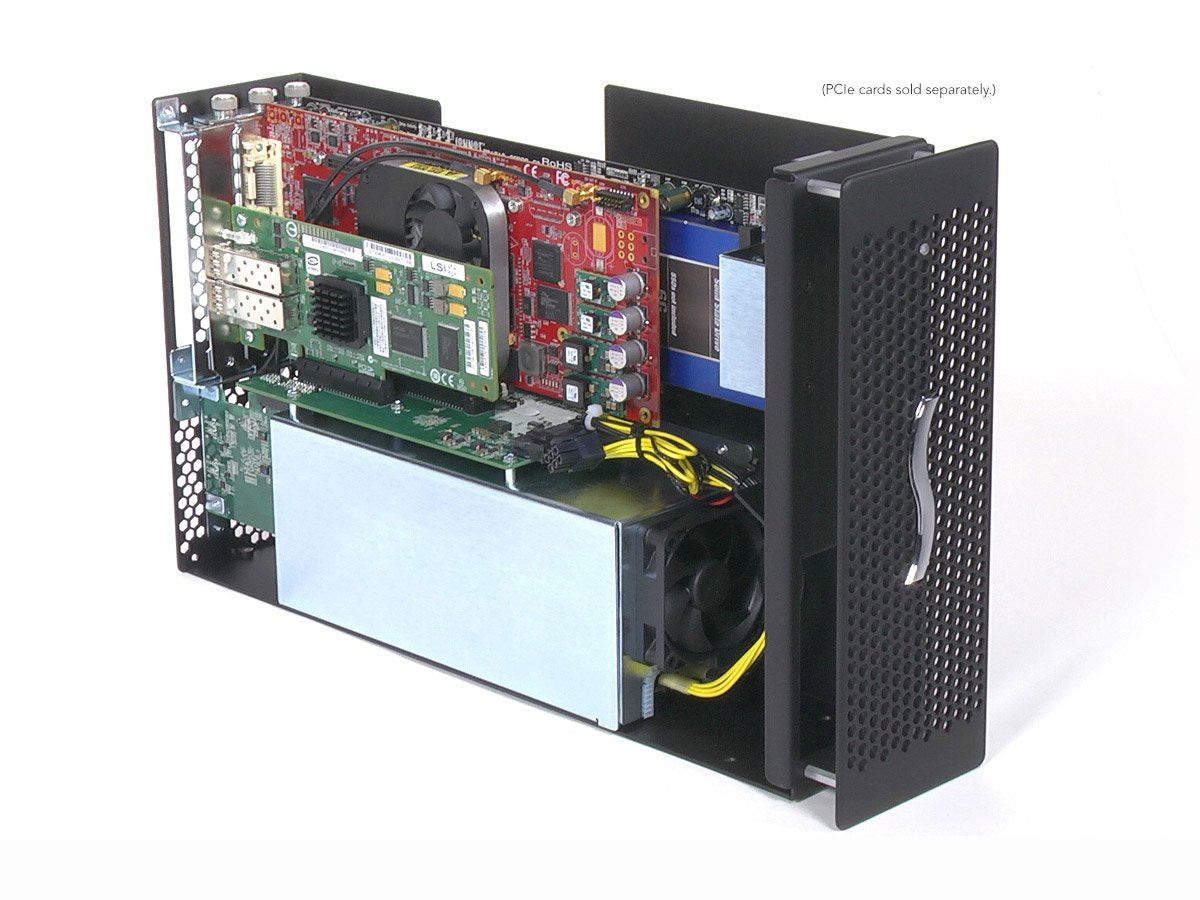

The Echo Express III-D - Thunderbolt 3 Edition supports three single-width, full-length PCIe cards, or one double-width, full-length card plus one single-width card, enabling it to support every Thunderbolt 3- and macOS-compatible PCIe 1.1, PCIe 2.0, and PCIe 3.0 card available.
Thunderbolt 3 (40Gbps) Cable Included
To connect the Echo Express III-D - Thunderbolt 3 Edition to your computer, Sonnet includes a 1.0-meter Thunderbolt 3 (40Gbps) cable.
| Product Name | Sonnet Echo Express III Desktop Thunderbolt 3 |
|---|---|
| Brand | Sonnet Technologies |
| Condition | New |
| MPN | ECHO-EXP3FD-TB3 |
| UPC | 732311012280 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Connects Three Full-Length PCIe Cards to any Computer with Thunderbolt 3 Ports—Use multiple high-performance PCIe cards at the same time
- Three PCIe 3.0 Slots—Supports three full-height, single-width cards, or one double-width card plus one single-width card
- 40Gbps Thunderbolt 3 Interface—Offers 2750 MB/s of PCIe bandwidth, doubling the performance of Thunderbolt 2
- Two Thunderbolt 3 Ports—One port used to connect to the computer; second port supports daisy-chaining of up to five additional Thunderbolt(4)peripheral devices to your computer, attaching a single USB(5)peripheral device, or connecting up to two 4K displays or one 5K display(3)
- Remarkably Quiet—Large, temperature-controlled, variable-speed fans that automatically cool the cards, plus computer-modeled design that reduces airflow turbulence and velocity, combine to provide quieter cooling for all cards
- Built-in Universal Power Supply—Integrated 300W power supply with 75W auxiliary power connector
- Rugged Aluminum Housing—Provides robust and secure protection
- Power for Peripherals—Provides up to 15W of power to connected peripherals
- Every Thunderbolt 3 Compatible, Non-GPU Card Supported—Works with every Thunderbolt 3 compatible PCIe card, regardless of length or height
- Thunderbolt 3 Cable & ThunderLok 3L Included—Includes 1-meter Thunderbolt 3 (40Gbps) cable and ThunderLok 3L Thunderbolt connector retainer clip to secure cable from accidental disconnections
Sonnet Echo Express III Desktop Thunderbolt 3
40Gbps Thunderbolt 3 — The USB C That Does It All
The Echo Express III-D - Thunderbolt 3 Edition includes two Thunderbolt 3 (USB-C) ports; the first is used for connection to your computer, while the second supports daisy chaining of up to five additional Thunderbolt peripheral devices to a single port on your computer. The III-D includes 10Gbps USB 3.1 Gen 2 support, meaning you can connect a USB device to the second port using the proper cable or adapter. The III-D also provides full support for connecting two 4K displays @ 60Hz or one 5K display @ 60Hz(3). For connected devices requiring extra power, 15 watts is provided to connected bus-powered devices.
All-Around Smart Design
The Echo Express III-D - Thunderbolt 3 Edition is wrapped in a rugged, yet lightweight aluminum outer shell, resulting in a system light enough to carry without weighing you down, yet sturdy enough to securely protect the installed PCIe cards.
Its two large, slow-spinning fans, enhanced with computer-modeled airflow management, ensure that even hot-running cards remain reliably cool without the need to install an extra PCIe blower card that would prevent the use of one of the three slots. Because the fans automatically speed up and slow down as needed, you don’t have to guess which speed setting to select, and there’s no need for tools to change settings. There is no power switch on the chassis, nor is one needed, because the III-D automatically powers on and off with your computer.
Every Thunderbolt 3 and MacOS Compatible PCIe Card Supported
The Echo Express III-D - Thunderbolt 3 Edition supports three single-width, full-length PCIe cards, or one double-width, full-length card plus one single-width card, enabling it to support every Thunderbolt 3- and macOS-compatible PCIe 1.1, PCIe 2.0, and PCIe 3.0 card available.
Thunderbolt 3 (40Gbps) Cable Included
To connect the Echo Express III-D - Thunderbolt 3 Edition to your computer, Sonnet includes a 1.0-meter Thunderbolt 3 (40Gbps) cable.
| Product Name | Sonnet Echo Express III Desktop Thunderbolt 3 |
|---|---|
| Brand | Sonnet Technologies |
| Condition | New |
| MPN | ECHO-EXP3FD-TB3 |
| UPC | 732311012280 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Connects Three Full-Length PCIe Cards to any Computer with Thunderbolt 3 Ports—Use multiple high-performance PCIe cards at the same time
- Three PCIe 3.0 Slots—Supports three full-height, single-width cards, or one double-width card plus one single-width card
- 40Gbps Thunderbolt 3 Interface—Offers 2750 MB/s of PCIe bandwidth, doubling the performance of Thunderbolt 2
- Two Thunderbolt 3 Ports—One port used to connect to the computer; second port supports daisy-chaining of up to five additional Thunderbolt(4)peripheral devices to your computer, attaching a single USB(5)peripheral device, or connecting up to two 4K displays or one 5K display(3)
- Remarkably Quiet—Large, temperature-controlled, variable-speed fans that automatically cool the cards, plus computer-modeled design that reduces airflow turbulence and velocity, combine to provide quieter cooling for all cards
- Built-in Universal Power Supply—Integrated 300W power supply with 75W auxiliary power connector
- Rugged Aluminum Housing—Provides robust and secure protection
- Power for Peripherals—Provides up to 15W of power to connected peripherals
- Every Thunderbolt 3 Compatible, Non-GPU Card Supported—Works with every Thunderbolt 3 compatible PCIe card, regardless of length or height
- Thunderbolt 3 Cable & ThunderLok 3L Included—Includes 1-meter Thunderbolt 3 (40Gbps) cable and ThunderLok 3L Thunderbolt connector retainer clip to secure cable from accidental disconnections
