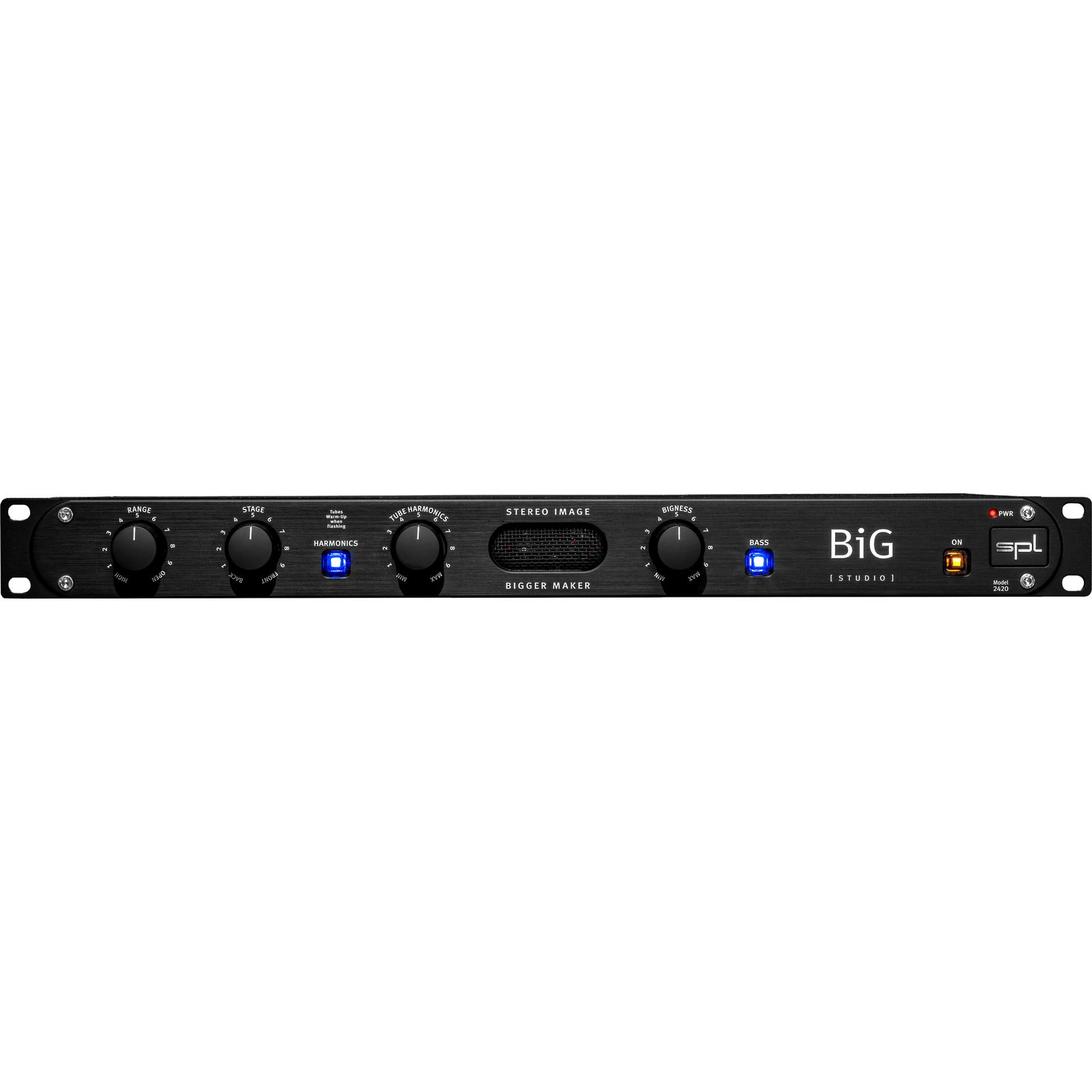

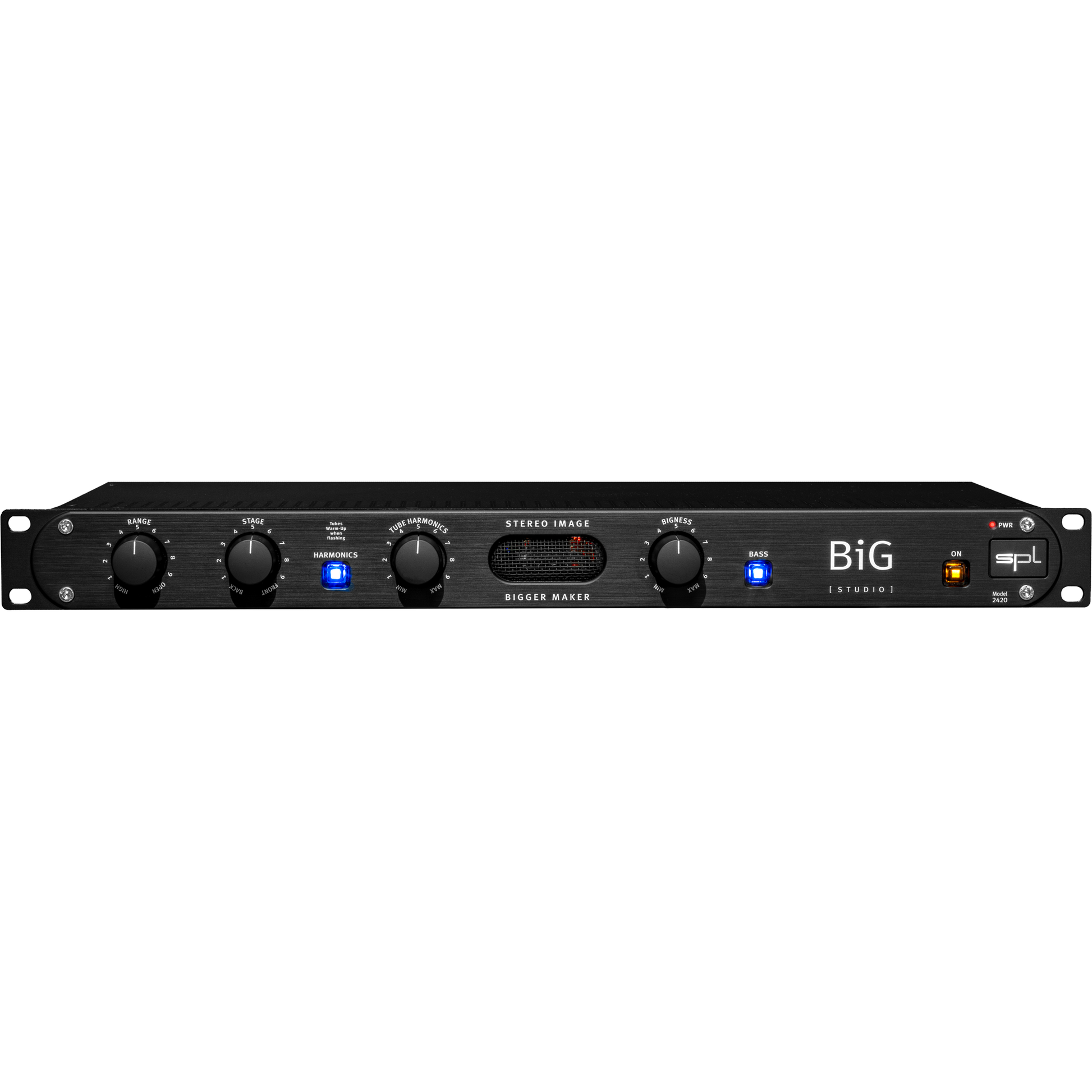

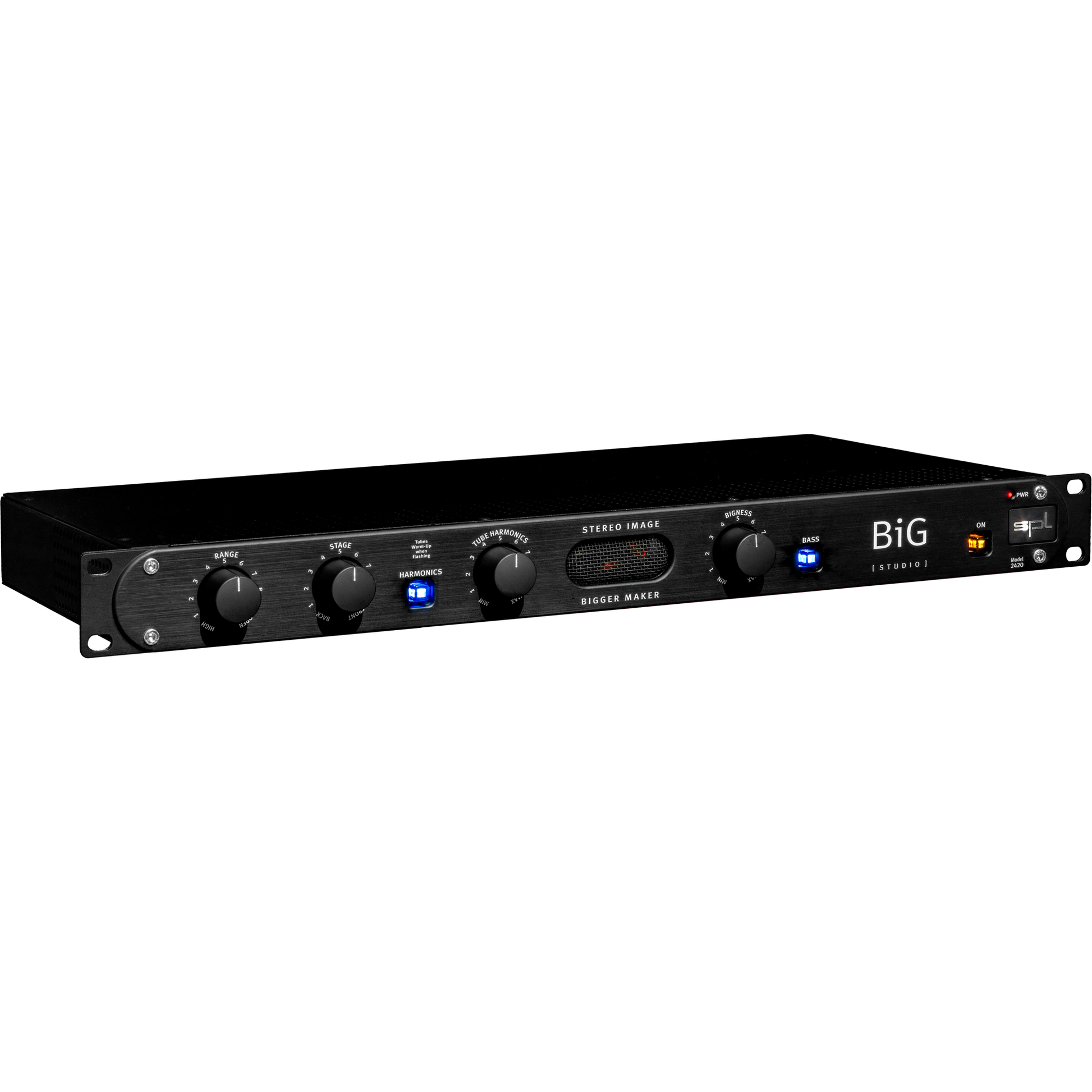

The Stereo Image Bigger Maker in 19″ rack format
BiG [Studio] spectacularly enlarges the stereo image and opens up new creative ways of sound shaping. BiG [Studio] expands the possibilities of sound shaping with a new tube circuit. The Tube Harmonics control refi nes the harmonic spectrum of every signal, making it more vivid, detailed and increased in size – bigger than life! Visually, BiG [Studio] sports the black design of the SPL Studio series. The internal audio voltage of +/-18V ensures great sound!
| Product Name | SPL Big Studio Stereo Image Shaper - 19” Rackmount |
|---|---|
| Brand | SPL |
| Condition | New |
| MPN | 2420 |
| UPC | 4260149320308 |
| Shipping Option | Free Shipping to the Continental U.S. |
Analog Inputs & Output |
|
|---|---|

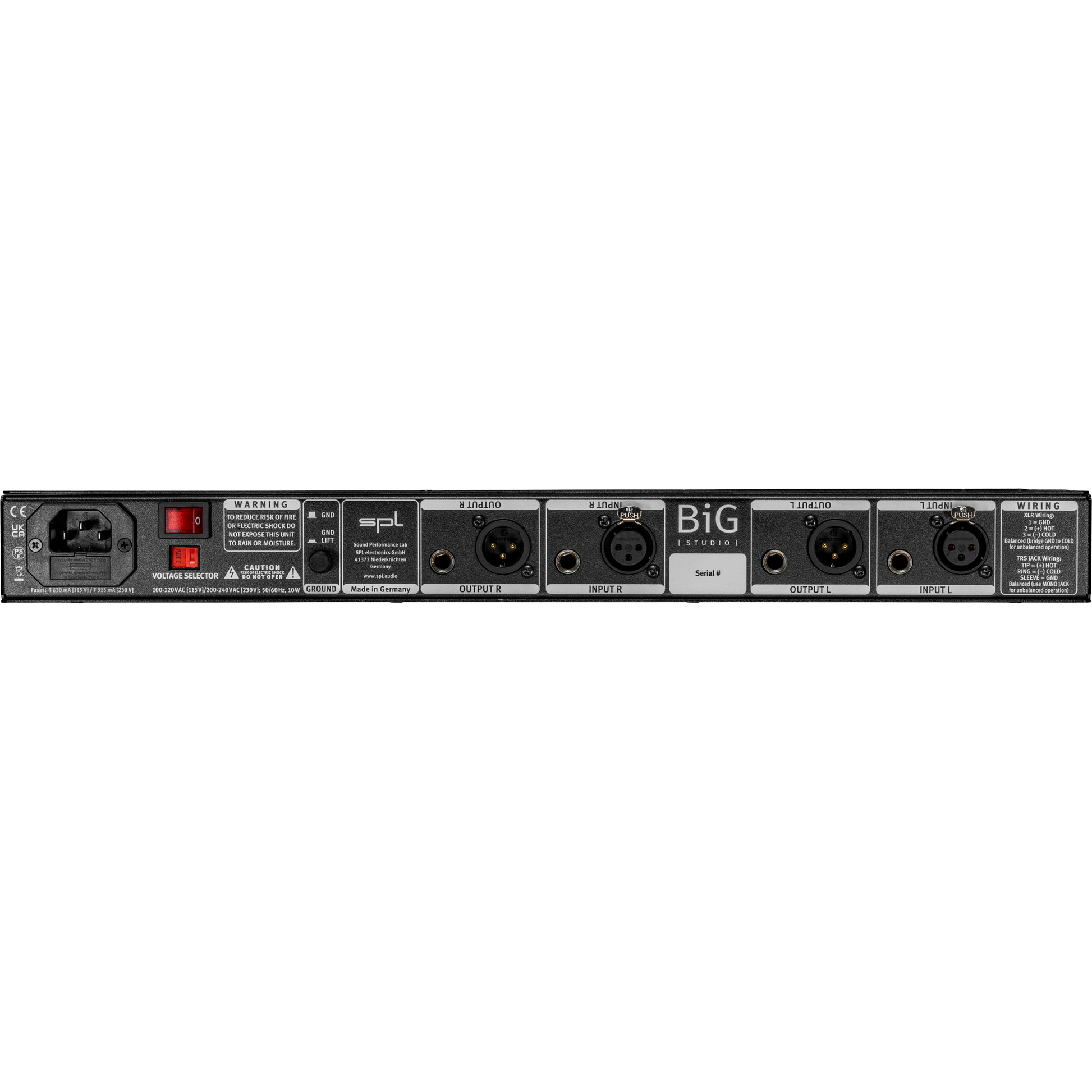

| Connections | XLR & TRS Jack (all balanced) |
| Maximum Input and Output Gain | 22.5 dBu |
| Input Impedance | 20 kΩ |
| Output Impedance | 112 Ω |
| Frequency Range (-3 dB) | 10 Hz–200 kHz |
| THD + N (0 dBu, 10 Hz–22 kHz) | 0.0035% |
| Noise (A-weighted) | -97.5 dBu |
| Dynamic Range | 120 dB |
| Bass Frequency | 42 Hz |
| Bass Boost | 2 dB |
Power Supply |
|
| Internal Power Supply | Linear with Shielded Toroidal Transformer |
| Operating Voltage (Analog Audio) | +/-18 V |
| Operating Voltage (LEDs & Relays) | +12 V |
| Tubes Anode Voltage | +250 V |
| Tubes Heating Voltage | +12.6 V |
Mains Power Supply |
|
| Mains Voltage (Selectable) | 230 V AC / 50 Hz; 115 V AC / 60 Hz |
| Fuse (230 V) | T 312 mA |
| Fuse (115 V) | T 630 mA |
| Power Consumption | max. 9.9 VA |
Dimensions & Weight |
|
| Dimensions (W × H × D) | 19" × 1.73" × 8.27" (482 × 44 × 210 mm) |
| Unit Weight | 8.49 lbs (3.85 kg) |

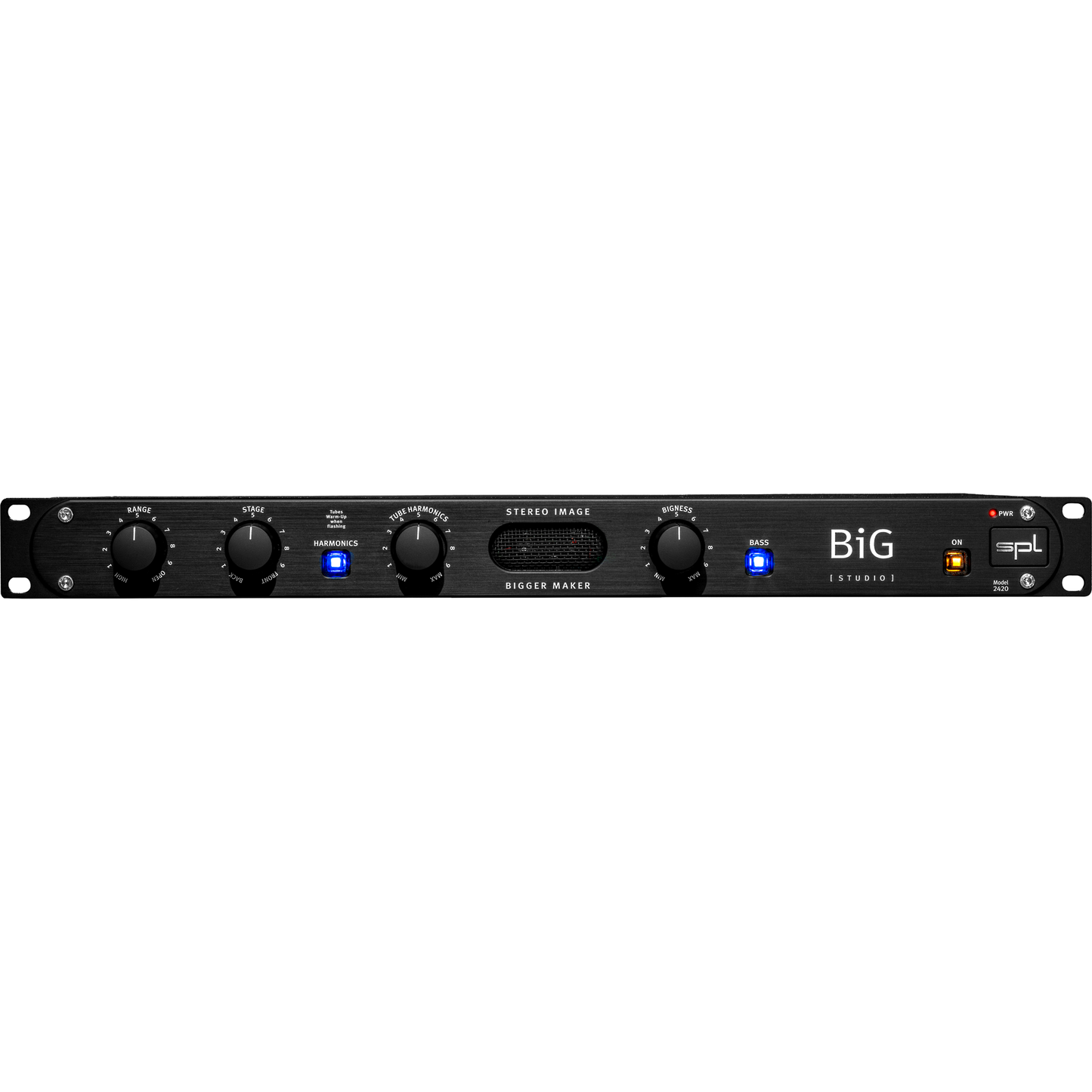

SPL Big Studio Stereo Image Shaper - 19” Rackmount
