Summit Audio TLA-100 Single Channel Compressor / Limiter. The TLA-100A from Summit Audio is a single channel leveling amplifier/compressor, based on a classic design that produces a warm and smooth sounding output.
View full details
- Details
- Reviews

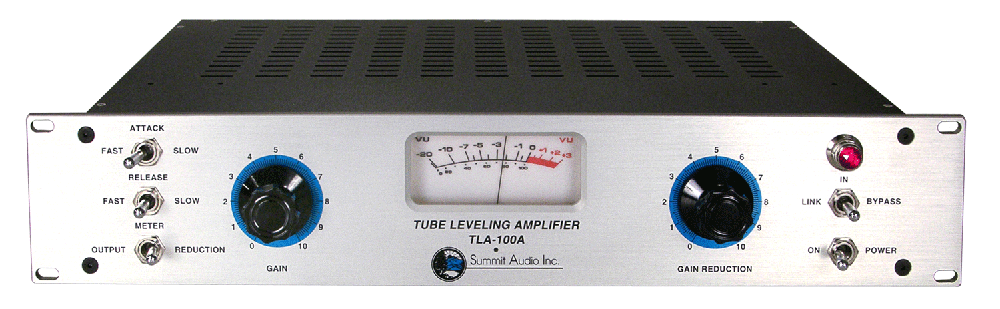

Summit Audio TLA-100 Single Channel Compressor / Limiter
The TLA-100A from Summit Audio is a single channel leveling amplifier/compressor, based on a classic design that produces a warm and smooth sounding output. The unit functions in a set-and-forget mode and delivers great sounding results without having to do a large amount of knob turning. The amplifier has a sidechain input and 2 TLA-100A units can be coupled together for stereo processing.
The TLA-100A uses a soft-knee and program-dependent transition characteristic, and provides switch selectable attack and release settings. The unit is a hybrid processor that uses a selected 12AX7A vacuum tube with high reliability 990 op-amps in a transformerless signal path. The leveling amplifier is hand built in the USA to the most exacting standards.
Easy to set up single channel leveling amplifier with tube/solid state signal path
Switch selectable attack and release times
Soft-knee transition characteristic
Sidechain insert for EQ dependent processing or ducking
Transformerless signal path
990 output stage (balanced or unbalanced)
Stereo linkable
Universal internal power supply
Hand crafted in the USA
Function Leveling amplifier
Number of Channels Single
Inputs 1 x XLR
1 x 1/4" TRS phone Insert
Outputs 1 x XLR
1 x 1/4" TS phone Stereo Link
Maximum Input Level +26dBu
Compression Threshold Program dependent
Compression Ratio Program dependent
Attack Time Fast/Medium/Slow, switchable
Release Time Fast/Medium/Slow, switchable
Maximum Output Level +26dBu
Make-up Gain +34dBu
Frequency Response 20Hz to 20kHz, +/-1.0dB with 5dB compression
Dynamic Range 60dB
THD + Noise 0.09% @ 1kHz, 0dB out
Power Requirements 115 or 230VAC, 50/60Hz
Dimensions (WxDxH) 19 x 10.5 x 3.5" (483 x 267 x 89mm)
Weight 17 lbs (7.7kg) shipping
Specialties VU meter monitors output level or gain reduction
| Product Name | Summit Audio TLA-100 |
|---|---|
| Brand | Summit Audio |
| Condition | New |
| MPN | TLA-100A |
| UPC | 836213010112 |
| Shipping Option | Free Shipping to the Continental U.S. |
Summit Audio TLA-100
Details
Summit Audio TLA-100 Single Channel Compressor / Limiter
The TLA-100A from Summit Audio is a single channel leveling amplifier/compressor, based on a classic design that produces a warm and smooth sounding output. The unit functions in a set-and-forget mode and delivers great sounding results without having to do a large amount of knob turning. The amplifier has a sidechain input and 2 TLA-100A units can be coupled together for stereo processing.
The TLA-100A uses a soft-knee and program-dependent transition characteristic, and provides switch selectable attack and release settings. The unit is a hybrid processor that uses a selected 12AX7A vacuum tube with high reliability 990 op-amps in a transformerless signal path. The leveling amplifier is hand built in the USA to the most exacting standards.
Easy to set up single channel leveling amplifier with tube/solid state signal path
Switch selectable attack and release times
Soft-knee transition characteristic
Sidechain insert for EQ dependent processing or ducking
Transformerless signal path
990 output stage (balanced or unbalanced)
Stereo linkable
Universal internal power supply
Hand crafted in the USA
Function Leveling amplifier
Number of Channels Single
Inputs 1 x XLR
1 x 1/4" TRS phone Insert
Outputs 1 x XLR
1 x 1/4" TS phone Stereo Link
Maximum Input Level +26dBu
Compression Threshold Program dependent
Compression Ratio Program dependent
Attack Time Fast/Medium/Slow, switchable
Release Time Fast/Medium/Slow, switchable
Maximum Output Level +26dBu
Make-up Gain +34dBu
Frequency Response 20Hz to 20kHz, +/-1.0dB with 5dB compression
Dynamic Range 60dB
THD + Noise 0.09% @ 1kHz, 0dB out
Power Requirements 115 or 230VAC, 50/60Hz
Dimensions (WxDxH) 19 x 10.5 x 3.5" (483 x 267 x 89mm)
Weight 17 lbs (7.7kg) shipping
Specialties VU meter monitors output level or gain reduction
| Product Name | Summit Audio TLA-100 |
|---|---|
| Brand | Summit Audio |
| Condition | New |
| MPN | TLA-100A |
| UPC | 836213010112 |
| Shipping Option | Free Shipping to the Continental U.S. |
