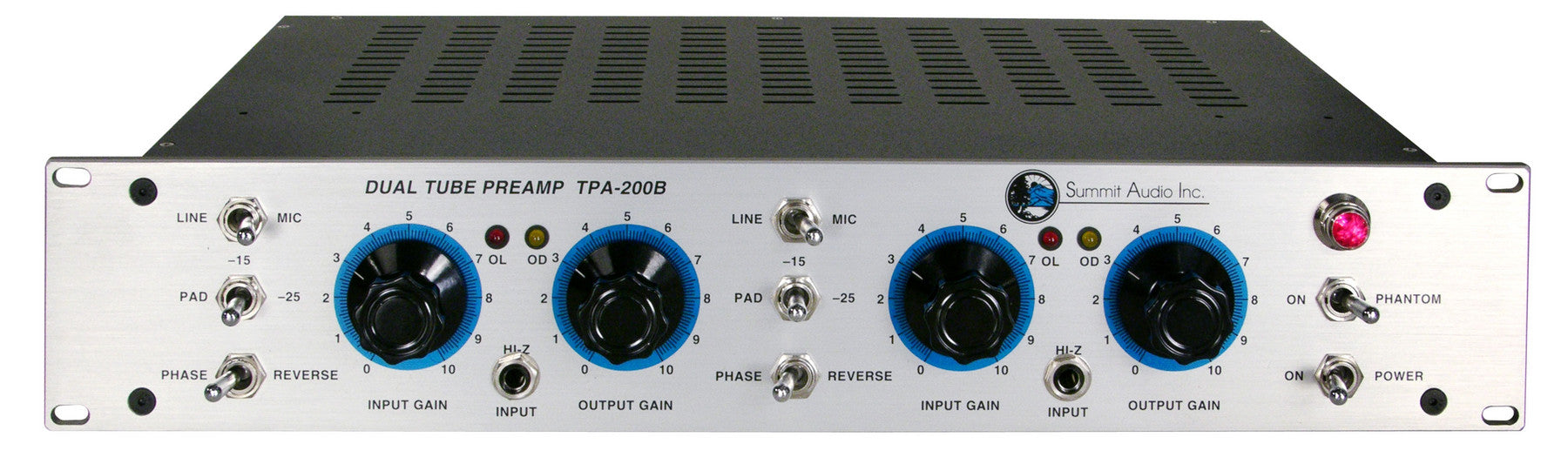

Summit Audio TPA-200B Dual Tube Microphone / Instrument Preamp
The TPA-200B from Summit Audio is dual-channel, tube/solid state hybrid microphone preamp featuring 3 input types - microphone input, line level input and front panel Hi-Z input. The unit is equally suited for tracking and mixing duties due to the constantly variable input and output gain that can overdrive the tubes in any amount.
The Jensen input transformers deliver an open and airy top end that enhances diverse signals, even those with dense frequency content such as voice and electric guitars. A 2 position pad switch allows for further signal enhancement and individual phase reverse switches help fix issues in multiple microphone setups.
The TPA-200B is hand-crafted in the USA with exceptional attention to detail, while the circuit design of the unit is perfect for eradicating the sterility of any cold or hard digital signals.
Dual channel, tube/solid state hybrid microphone preamp with microphone, line and front-panel Hi-Z inputs
Completely variable input and output allows for driving the tubes as hard or as lightly as desired, providing tones that vary from crystal clear and open, to full tube saturation, and any tone in between
Other sonic options include the 2 position input pad that provides a choice as to how hard to drive the input Jensen microphone transformer
Overload and Overdrive indicators
Global switchable +48V phantom power
Universal internal power supply
Hand-crafted in the USA
Number of Channels 2
Inputs 2 x XLR Microphone
2 x 1/4" TRS phone Line
2 x 1/4" TS phone (front panel)
Output 2 x XLR
Phantom Power +48V
Multi Function No
Gain Range Maximum gain: 75dB
Maximum Output Level +25dBu
Frequency Response 10Hz to 50kHz, -1.0dB
Noise EIN: -135dB average (unweighted), 10Hz to 20kHz
Power Requirements 115V~230V, 50/60Hz
35W 1
Dimensions (WxDxH) 19 x 10.5 x 3.5" (483 x 267 x 89mm)
Weight 17 lbs (7.7kg) shipping
Specialties 3 x 12AX7A vacuum tubes
| Product Name | Summit Audio TPA-200B |
|---|---|
| Brand | Summit Audio |
| Condition | New |
| MPN | TPA-200B |
| UPC | 889406204157 |
| Shipping Option | Free Shipping to the Continental U.S. |
Summit Audio TPA-200B
Details
Summit Audio TPA-200B Dual Tube Microphone / Instrument Preamp
The TPA-200B from Summit Audio is dual-channel, tube/solid state hybrid microphone preamp featuring 3 input types - microphone input, line level input and front panel Hi-Z input. The unit is equally suited for tracking and mixing duties due to the constantly variable input and output gain that can overdrive the tubes in any amount.
The Jensen input transformers deliver an open and airy top end that enhances diverse signals, even those with dense frequency content such as voice and electric guitars. A 2 position pad switch allows for further signal enhancement and individual phase reverse switches help fix issues in multiple microphone setups.
The TPA-200B is hand-crafted in the USA with exceptional attention to detail, while the circuit design of the unit is perfect for eradicating the sterility of any cold or hard digital signals.
Dual channel, tube/solid state hybrid microphone preamp with microphone, line and front-panel Hi-Z inputs
Completely variable input and output allows for driving the tubes as hard or as lightly as desired, providing tones that vary from crystal clear and open, to full tube saturation, and any tone in between
Other sonic options include the 2 position input pad that provides a choice as to how hard to drive the input Jensen microphone transformer
Overload and Overdrive indicators
Global switchable +48V phantom power
Universal internal power supply
Hand-crafted in the USA
Number of Channels 2
Inputs 2 x XLR Microphone
2 x 1/4" TRS phone Line
2 x 1/4" TS phone (front panel)
Output 2 x XLR
Phantom Power +48V
Multi Function No
Gain Range Maximum gain: 75dB
Maximum Output Level +25dBu
Frequency Response 10Hz to 50kHz, -1.0dB
Noise EIN: -135dB average (unweighted), 10Hz to 20kHz
Power Requirements 115V~230V, 50/60Hz
35W 1
Dimensions (WxDxH) 19 x 10.5 x 3.5" (483 x 267 x 89mm)
Weight 17 lbs (7.7kg) shipping
Specialties 3 x 12AX7A vacuum tubes
| Product Name | Summit Audio TPA-200B |
|---|---|
| Brand | Summit Audio |
| Condition | New |
| MPN | TPA-200B |
| UPC | 889406204157 |
| Shipping Option | Free Shipping to the Continental U.S. |
