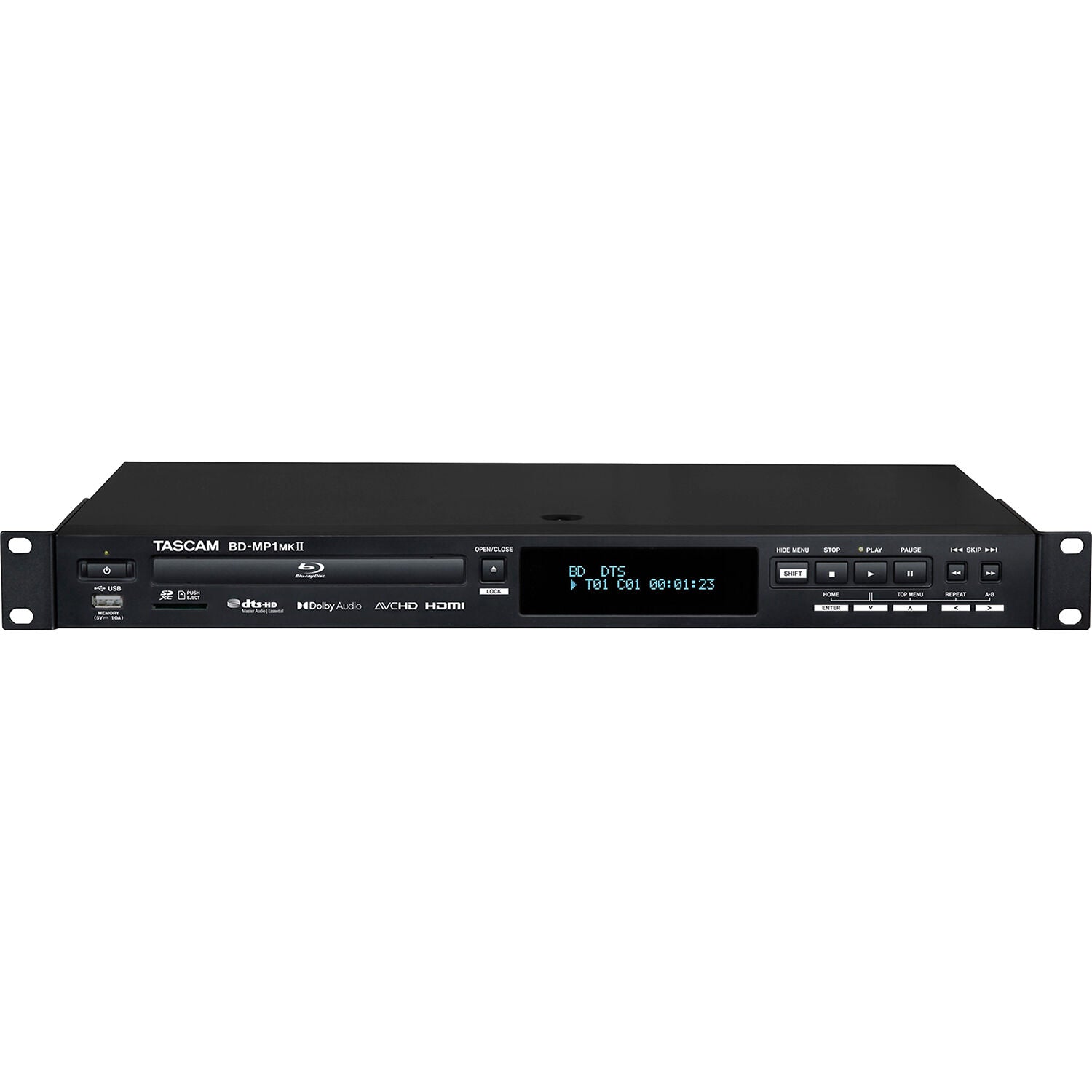

The TASCAM BD-MP1MKII is a professional-grade Blu-ray player that expands the legacy of TASCAM’s popular BD-01U and BD-MP1 Blu-ray players. The BD-MP1MKII is the perfect choice for a wide range of high-end residential and commercial installations, including public, educational and commercial facilities, theaters, amusement and entertainment businesses, to name a few.
DVD/CD, SD Card and USB Flash Memory Options
The versatile BD-MP1MKII can automatically play back content in a wide range of file formats via any of the three front-panel media input slots, including Blu-ray/DVD/CD, USB Flash Memory, or SD card.
Supports a Wide Range of Disc Formats
The BD-MP1MKII eliminates the need for discrete audio/video playback devices in an installation, offering single-source playback for a wide range of media and file formats, including Blue-ray (BD25, BD50, BD-ROM, BD-R, BD-RE), DVD (DVD-ROM, DVD-R, DVD-RW, DVD-+R, DVD+RW), and CD (CD-DA, CD-R, CD-RW).
Versatile File Format Playback Support
The BD-MP1MKII is the ideal single-source playback solution for commercial and residential installations, supporting an extensive range of file formats, including Video (ASF, MPEG, AV1, 3GP, DAT, MKV, MOV, M2TS, OGM, TP, TS, MP4, WMV), Image (JPEG, GIF, PNG) and Audio (WAV, MP3,WMA. AAC, FLAC, APE).
| Product Name | Tascam BD-MP1MKII Blu-Ray Player with SD and USB Playback |
|---|---|
| Brand | Tascam |
| Condition | Pre-Owned |
| MPN | BD-MP1MK2 |
| UPC | - |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- BD-MP1MKII × 1
- Power cord × 1
- Wireless remote control (TASCAM RC-BDMP1MKII) × 1
- AAA batteries × 2
- Rackmount screw kit
- Rackmount ears (left and right) × 2
- Screws for ear attachment × 6
- Screws for attachment to rack × 4
- Washers (for rack) × 4
- Owner's manual (including warranty) × 1
- Supports playback of various formats of Blu-ray, DVD, and CD discs
- Supports playback of various video, still image, and audio formats from SD cards (SD/SDHC/SDXC up to 512G) and USB memory
- Power on play function (Disc media only)
- Seamless repeat function: by chapter, title, or A-B repetition
- Hide MENU function to display only the main contents on the screen
- Lock functions: panel, IR, and tray lock
- HDMI output that can pass through audio formats such as Dolby Atmos and DTS-HD to an AV amplifier
- Dual XLR balanced and RCA unbalanced outputs
- RCA 7.1ch audio outputs
- External remote control via LAN or RS-232C
- 1U rackmount size
Disc Media |
|
|---|---|
| Compatibility Notes | *SL indicates single-layer discs and DL indicates double-layer discs. This unit can play only BD and DVD-VIDEO with matching region code or ALL. |
| Blu-ray | BD25, BD50, BD-ROM, BD-R (SL, DL), BD-RE (SL, DL) |
| DVD | DVD-ROM, DVD-R (SL, DL), DVD-RW, DVD+R (SL, DL), DVD+RW |
| CD | CD-DA, CD-R, CD-RW |
Disc Formats |
|
| Notes | Blu-ray 3D supported |
| Blu-ray Formats | BDMV, BDAV |
| DVD Formats | DVD-Video, DVD-VR, AVCHD |
File Formats |
|
| Notes | USB flash drive and SD card must use FAT16, FAT32, exFAT, or NTFS file systems |
| Video | ASF, MPG, AVI, 3GP, DAT, MKV, MOV, M2TS, OGM, TP, TS, MP4, WMV |
| Audio | WAV, MP3, WMA, AAC, FLAC, APE |
| Picture | JPEG, GIF, PNG |
| Subtitle Formats | .sub, .ass, idx+sub (.idx + .sub) |
Audio |
|
| BD/DVD/USB/SD Sampling Frequency | 44.1k / 48k / 64k / 88.2k / 96k / 176.4k / 192k Hz |
| BD/DVD/USB/SD Bit Length | 16 / 24 bit |
| CD Sampling Frequency | 44.1k / 48k Hz |
| CD Bit Length | 16 / 24 bit |
| MP3/WMA Sampling Frequency | 32k / 44.1k / 48k Hz |
| MP3 Bitrate | 112k to 320k bps |
| WMA Bitrate | 48k to 192k bps |
HDMI Output |
|
| Connector | HDMI 19-pin Type A |
| Resolution | 480i/576i, 480p/576p, 720p, 1080i, 1080p |
| Aspect Ratio | 16:9 Full, 16:9 Normal, 4:3 Pan & Scan, 4:3 Letterbox |
| Video Format | NTSC, PAL, Multi |
| HDMI Signal System | RGB PC level, RGB Video level, YCbCr (4:4:4), YCbCr (4:2:2) |
Digital Audio Output |
|
| COAXIAL Connector | RCA pin jack |
| Format | IEC60958-3 (S/PDIF) |
| Output Impedance | 75 Ω or lower |
Analog Audio Outputs |
|
| Balanced Connectors | XLR-3-32 (1: GND, 2: HOT, 3: COLD) × 2 (Stereo) |
| Balanced Normal Output Level | +4 dBu (1.23 Vrms) |
| Balanced Max Output Level | +20 dBu (7.75 Vrms) |
| Balanced Output Impedance | 200 Ω or lower |
| Unbalanced Connector | RCA pin jack × 1 pair |
| Unbalanced Normal Output Level | -10 dBV (0.316 Vrms) |
| Unbalanced Max Output Level | +6 dBV (2.0 Vrms) |
| Unbalanced Output Impedance | 210 Ω or lower |
7.1ch Audio Outputs |
|
| Connector | RCA × 8 (FL/FR/SL/SR/SBL/SBR/C/SW) |
| Connector Color | FL/SL/SBL: White; FR/SR/SBR: Red; C/SW: Black |
| Normal Output Level | -10 dBV (0.316 Vrms) |
| Maximum Output Level | +6 dBV (2.0 Vrms) |
| Output Impedance | 210 Ω or lower |
Connectivity |
|
| RS-232C | D-sub 9-pin (RS-232C compliant) |
| Ethernet | RJ-45 (10BASE-T / 100BASE-TX, Category 5e or faster) |
| USB | USB Type-A × 2 (front × 1, back × 1), USB 2.0, DC 5V/1A, Mass storage class (≤ 2 TB), FAT16/FAT32/exFAT/NTFS |
| SD Slot | SD (512 MB–2 GB), SDHC (4–32 GB), SDXC (64–512 GB), FAT16/FAT32/exFAT/NTFS |
Power |
|
| Power Supply | AC 100–240V, 50–60 Hz |
| Power Consumption | 30 W |
Dimensions & Weight |
|
| Dimensions | 482.6 mm (W) × 44 mm (H) × 280.7 mm (D) (19.0" × 1.73" × 11.05") |
| Weight | 2.64 kg (5.82 lb) |
Environmental |
|
| Operating Temperature Range | 5–35°C (41–95°F) |
