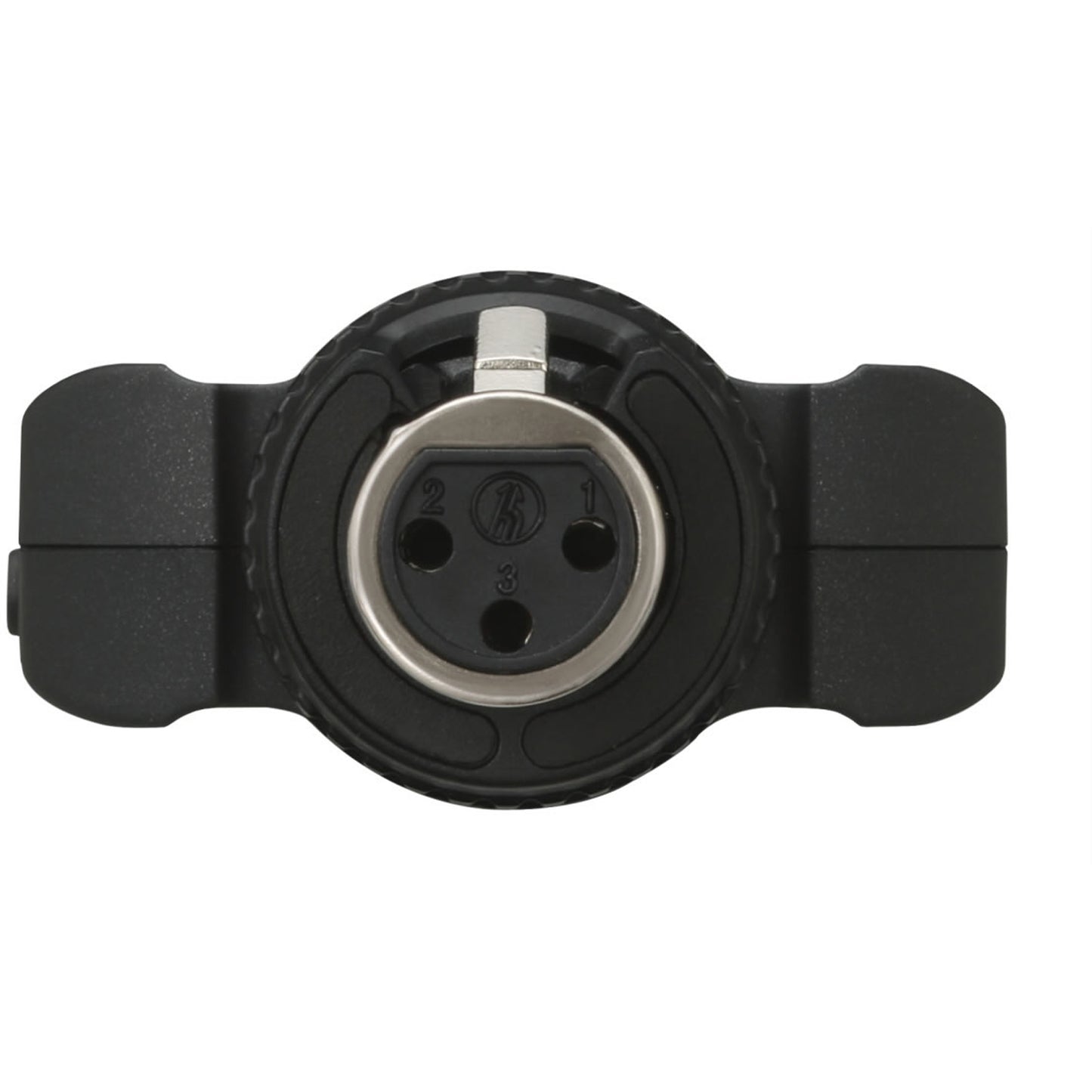

Tascam DR-10X Micro Plug-On Audio Recorder

Tascam DR-10X Micro Plug-On Audio Recorder

On order with the manufacturer!

View full details Liquid error (sections/main-product line 888): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Tech Specs

For the ultimate compact news gathering recording system. A captive XLR connector attaches firmly to your microphone, capturing interviews at 48kHz/24-bit Broadcast WAV resolution.

Record audio without a cable by connecting this unit directly to a dynamic mic with XLR output

This audio recorder is designed for plug-on connection, so it can be connected directly to XLR handheld mics. In addition to dynamic mics, it can also be used with battery-powered condenser mics. In addition to using this recorder with handheld mics in interviews and mics on stands in press conferences, it can also be used for recording seminars, meetings and any other situations using a handheld microphone.

Compact and lightweight

The DR-10X is compact - fitting in the palm of the hand and lightweight at 56.3 grams. In addition, the mic connector has a locking mechanism that ensures a tight fit to the microphone body giving the entire assembly a solid feel.

When recording interviews or reporting that requires high audio quality, a field recorder is normally needed. But for small-scale reporting, you can record high-quality audio with just a microphone and the DR-10X. No need to carry bulky equipment - you can now record with a compact rig that you can hold in one hand.

Multiple functions, including dual-recording for simultaneously creating a safety track at a lower level

Many times, there is only one chance to get the desired audio. This unit has functions to prevent issues related to recording level settings - including a dual recording function that allows you to set the recording level as high as possible while simultaneously recording a backup track at a lower level.

In addition, this unit has an automatic gain control function that adjusts the input level to match the input volume. There is also a limiter function.

More Information
Product Name Tascam DR-10X Micro Plug-On Audio Recorder
Brand Tascam
Condition New
MPN DR-10X
UPC 043774031283
Shipping Option Free Shipping on orders over $94.72

What's in the Box?

  • DR-10X
  • USB cable
  • Owner’s manual(including warranty)
  • XLR plug-on connection
  • Compatible with dynamic mics as well as bettery-powered condenser mics
  • 48kHz/24-bit linear PCM mono recording
  • WAV files (compatible with BWF format)
  • Media: microSD/SDHC cards (supports 32GB capacities)
  • Sliding record switch and hold function to prevent misoperation during recording
  • Dual recording function
  • automatic file closing function to prevent the loss of already recorded data
  • XLR connector also can use as external input for external input
  • High/Mid/Low recording level settings
  • Low-cut filter
  • Limiter
  • Automatic level function
  • With a built-in clock function, supports BWF files that can have time information added, which is convenient for editing and searching
  • Time track incrementing function can create new files at regular intervals (about every 15 minutes) during recording
  • Playback function allows recorded data to be checked immediately
  • Headphone output
  • Locking mechanism assure a tight connection with the microphone body
  • Easy-to-read organic EL display
  • micro USB B port enables easy data exchange with computers
  • Records at least 10 hours on a single AAA battery by using alkaline batteries (EVOLTA)
  • Unit settings can be created and transferred as a computer text file
  • Settings can be transferred between multiple DR-10X units using the infrared transmission function
  • Firmware can be updated using a microSD card
  • RoHS-compliant product

General

Recording Media microSD card (64MB to 2GB), microSDHC card (4GB to 32GB)
Media Discharging Push-Push type (Guard cover mounted)

Recording Format

WAV (V1.00) 44.1k / 48k Hz, 16 / 24-bit mono/poly WAV (BWF format)
WAV (V2.00) 44.1k / 48k Hz, 16 / 24-bit mono/poly (BWF format)
MP3 44.1k / 48k Hz, 24-bit mono/poly
Recording Bitrate 128k / 192k bps
Playback Bitrate 32k to 320k bps

Analog Audio Inputs

Connector XLR-3-31 × 1
Input Impedance 10kΩ or more
MIC Input Gain LOW / MID / HIGH

PHONES

Connector 1/8" (3.5 mm) Stereo Mini jack (DUAL MONO) × 1

USB

Connector USB Micro-B type × 1
Maximum Output USB2.0 HIGH SPEED mass storage class

Power

Power Supply 1 AAA batteries (Alkaline or NiMH), USB bus power
Battery Operation Time Approx. 10 hours (Alkaline batteries EVOLTA)
RTC Battery Lithium × 1 (built-in with soldering)

Dimensions & Weight

Dimensions 2.1" × 3.7" × 1.1" (52 × 94.4 × 28 mm)
Weight (with batteries) 2.4 oz (68.3 g)
Weight (without batteries) 1.99 oz (56.3 g)

Accessories

Included Items USB cable, Owner's Manual (including warranty)
