The LM-8ST is a line mixer that mixes eight stereo line inputs. In addition to the TRS balance line inputs available for each channel, an XLR balanced mic input is possible with channel-1. The LM-8ST supports a simple PA system that requires a microphone.
| Product Name | Tascam LM-8ST Line Mixer |
|---|---|
| Brand | Tascam |
| Condition | Repack |
| MPN | LM-8ST |
| UPC | 043774025169 |
| Shipping Option | Free Shipping on orders over $94.72 |
What's in the Box?
- LM-8ST x 1
- Power cord x 1
- Rackmount screw kit x 1
- A warranty card x 1
- Owner's manual x 1
- 8 stereo channel / 4-buss line mixer
- 8 stereo 1/4" TRS balanced inputs with –10/+4dB switch
- 1U rack mountable
- Mic input with trim control on front panel
- 2-segment LED meter per channel
- ST1 and ST2/AUX level control per channel
- ST1 and ST2/AUX master level controls
- Each channel switchable to ST2 (pre fader) or AUX (post) output
- 1/4" and 1/8" stereo headphone outputs
- XLR balanced ouptuts for ST1 and ST2/AUX
- Stereo balanced buss output/input for cascade
- Ground lift switch and terminal
Audio Inputs / Outputs |
|
|---|---|
| MIC IN Connector | XLR-3-31 × 1 (1=GND, 2=HOT, 3=COLD) |
| MIC Input Impedance | 2.4 kΩ |
| MIC Nominal Input Level | -58 dBu (1 mV) to -12 dBu (195 mV) |
| MIC Maximum Input Level | +10 dBu (2.45 V) |
| STEREO IN Connectors | 1/4" (6.3 mm) TRS phone jack × 8 pairs (Tip=HOT, Ring=COLD, Sleeve=GND) |
| STEREO IN Impedance | 16 kΩ |
| STEREO IN Nominal Level | +4 dBu (1.23 V) |
| STEREO IN Maximum Level | +24 dBu (12.3 V) |
| MASTER BUSS IN Connectors | 1/4" (6.3 mm) TRS phone jack × 1 pair (Tip=HOT, Ring=COLD, Sleeve=GND) |
| MASTER BUSS IN Impedance | 16 kΩ |
| MASTER BUSS IN Nominal Level | +4 dBu (1.23 V) |
| MASTER BUSS IN Maximum Level | +24 dBu (12.3 V) |
| ST1, ST2/AUX OUT (XLR) | XLR-3-32 × 2 pairs (1=GND, 2=HOT, 3=COLD) |
| ST1, ST2/AUX OUT (XLR) Impedance | 94 Ω |
| ST1, ST2/AUX OUT (XLR) Nominal Level | +4 dBu (1.23 V) |
| ST1, ST2/AUX OUT (XLR) Maximum Level | +24 dBu (12.3 V) |
| ST1, ST2/AUX OUT (RCA) | RCA pin jack × 2 pairs |
| ST1, ST2/AUX OUT (RCA) Impedance | 200 Ω |
| ST1, ST2/AUX OUT (RCA) Nominal Level | -10 dBu (0.3 V) |
| ST1, ST2/AUX OUT (RCA) Maximum Level | +10 dBu (3.16 V) |
| BUSS OUT Connectors | 1/4" (6.3 mm) TRS phone jack × 1 pair (Tip=HOT, Ring=COLD, Sleeve=GND) |
| BUSS OUT Impedance | 94 Ω |
| BUSS OUT Nominal Level | +4 dBu (1.23 V) |
| BUSS OUT Maximum Level | +24 dBu (12.3 V) |
| PHONES OUT Connector | 1/4" (6.3 mm) stereo phone jack × 1 |
| PHONES OUT Max Output | 250 mW + 250 mW (32 Ω) |
Power |
|
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | 15 W |
Dimensions & Weight |
|
| Dimensions | 19.0" × 1.73" × 11.0" (482 × 44 × 280 mm) |
| Weight | 8.4 lb (3.8 kg) |
Included Items |
|
| Accessories | Power cord, rackmount screw kit, owner's manual (with warranty) |
Audio Performance |
|
| Frequency Response (Phones Out) | 20 Hz – 50 kHz (±3 dB) |
| Frequency Response (Buss Out) | 10 Hz – 100 kHz (±3 dB) |
| S/N Ratio (Phones Out) | 80 dB or greater |
| S/N Ratio (Buss Out) | 80 dB or greater |
| THD (Phones Out) | 0.07% or less |
| THD (Buss Out) | 0.03% or less |
| Channel Separation (Phones Out) | 50 dB or greater |
| Channel Separation (Buss Out) | 70 dB or greater |
| Crosstalk (Buss Out) | 65 dB or greater |

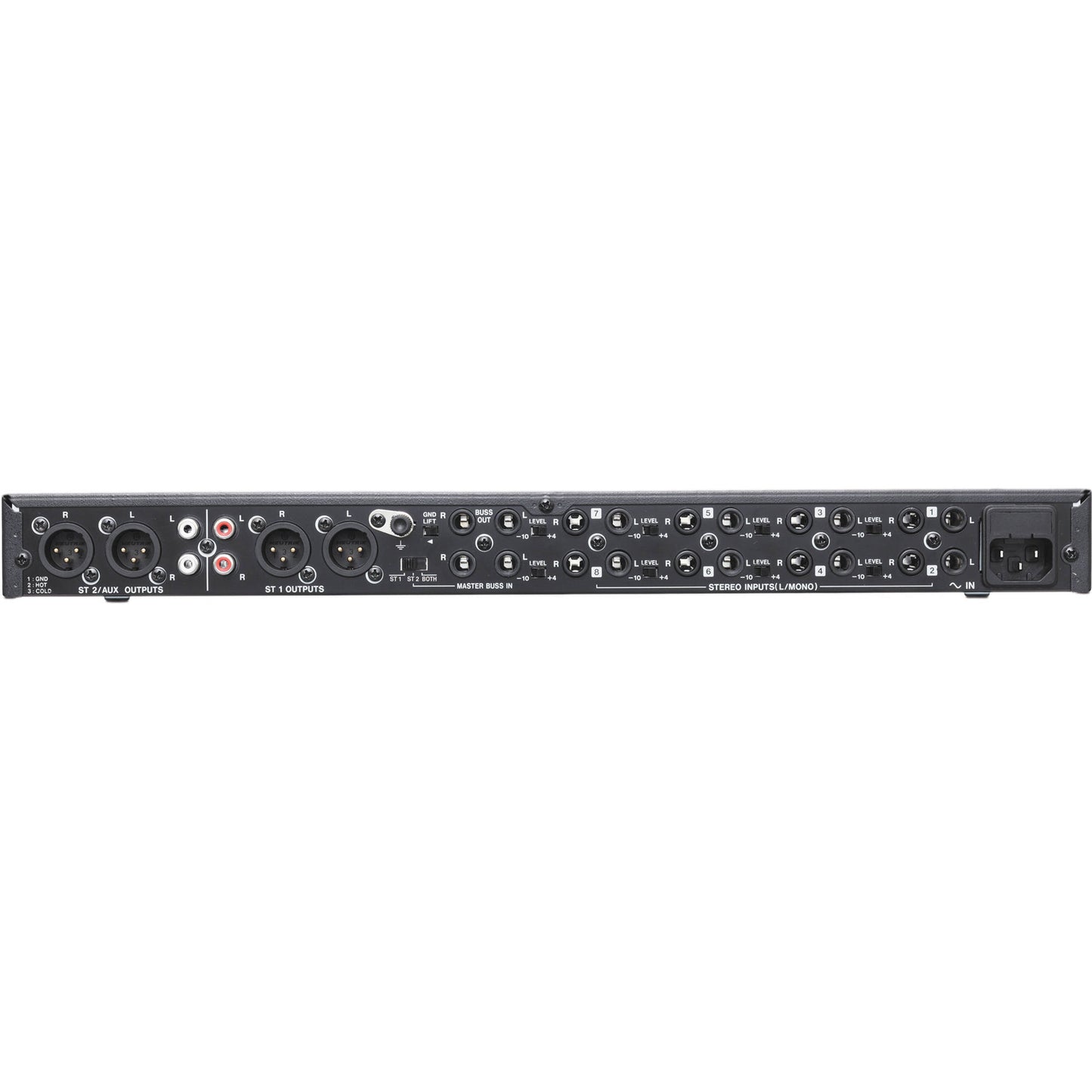

Tascam LM-8ST Line Mixer
Details
The LM-8ST is a line mixer that mixes eight stereo line inputs. In addition to the TRS balance line inputs available for each channel, an XLR balanced mic input is possible with channel-1. The LM-8ST supports a simple PA system that requires a microphone.
| Product Name | Tascam LM-8ST Line Mixer |
|---|---|
| Brand | Tascam |
| Condition | Repack |
| MPN | LM-8ST |
| UPC | 043774025169 |
What's in the Box?
- LM-8ST x 1
- Power cord x 1
- Rackmount screw kit x 1
- A warranty card x 1
- Owner's manual x 1
Features
- 8 stereo channel / 4-buss line mixer
- 8 stereo 1/4" TRS balanced inputs with –10/+4dB switch
- 1U rack mountable
- Mic input with trim control on front panel
- 2-segment LED meter per channel
- ST1 and ST2/AUX level control per channel
- ST1 and ST2/AUX master level controls
- Each channel switchable to ST2 (pre fader) or AUX (post) output
- 1/4" and 1/8" stereo headphone outputs
- XLR balanced ouptuts for ST1 and ST2/AUX
- Stereo balanced buss output/input for cascade
- Ground lift switch and terminal
Tech Specs
Audio Inputs / Outputs |
|
|---|---|
| MIC IN Connector | XLR-3-31 × 1 (1=GND, 2=HOT, 3=COLD) |
| MIC Input Impedance | 2.4 kΩ |
| MIC Nominal Input Level | -58 dBu (1 mV) to -12 dBu (195 mV) |
| MIC Maximum Input Level | +10 dBu (2.45 V) |
| STEREO IN Connectors | 1/4" (6.3 mm) TRS phone jack × 8 pairs (Tip=HOT, Ring=COLD, Sleeve=GND) |
| STEREO IN Impedance | 16 kΩ |
| STEREO IN Nominal Level | +4 dBu (1.23 V) |
| STEREO IN Maximum Level | +24 dBu (12.3 V) |
| MASTER BUSS IN Connectors | 1/4" (6.3 mm) TRS phone jack × 1 pair (Tip=HOT, Ring=COLD, Sleeve=GND) |
| MASTER BUSS IN Impedance | 16 kΩ |
| MASTER BUSS IN Nominal Level | +4 dBu (1.23 V) |
| MASTER BUSS IN Maximum Level | +24 dBu (12.3 V) |
| ST1, ST2/AUX OUT (XLR) | XLR-3-32 × 2 pairs (1=GND, 2=HOT, 3=COLD) |
| ST1, ST2/AUX OUT (XLR) Impedance | 94 Ω |
| ST1, ST2/AUX OUT (XLR) Nominal Level | +4 dBu (1.23 V) |
| ST1, ST2/AUX OUT (XLR) Maximum Level | +24 dBu (12.3 V) |
| ST1, ST2/AUX OUT (RCA) | RCA pin jack × 2 pairs |
| ST1, ST2/AUX OUT (RCA) Impedance | 200 Ω |
| ST1, ST2/AUX OUT (RCA) Nominal Level | -10 dBu (0.3 V) |
| ST1, ST2/AUX OUT (RCA) Maximum Level | +10 dBu (3.16 V) |
| BUSS OUT Connectors | 1/4" (6.3 mm) TRS phone jack × 1 pair (Tip=HOT, Ring=COLD, Sleeve=GND) |
| BUSS OUT Impedance | 94 Ω |
| BUSS OUT Nominal Level | +4 dBu (1.23 V) |
| BUSS OUT Maximum Level | +24 dBu (12.3 V) |
| PHONES OUT Connector | 1/4" (6.3 mm) stereo phone jack × 1 |
| PHONES OUT Max Output | 250 mW + 250 mW (32 Ω) |
Power |
|
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | 15 W |
Dimensions & Weight |
|
| Dimensions | 19.0" × 1.73" × 11.0" (482 × 44 × 280 mm) |
| Weight | 8.4 lb (3.8 kg) |
Included Items |
|
| Accessories | Power cord, rackmount screw kit, owner's manual (with warranty) |
Audio Performance |
|
| Frequency Response (Phones Out) | 20 Hz – 50 kHz (±3 dB) |
| Frequency Response (Buss Out) | 10 Hz – 100 kHz (±3 dB) |
| S/N Ratio (Phones Out) | 80 dB or greater |
| S/N Ratio (Buss Out) | 80 dB or greater |
| THD (Phones Out) | 0.07% or less |
| THD (Buss Out) | 0.03% or less |
| Channel Separation (Phones Out) | 50 dB or greater |
| Channel Separation (Buss Out) | 70 dB or greater |
| Crosstalk (Buss Out) | 65 dB or greater |
