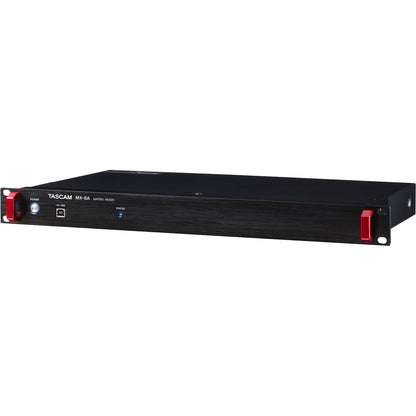

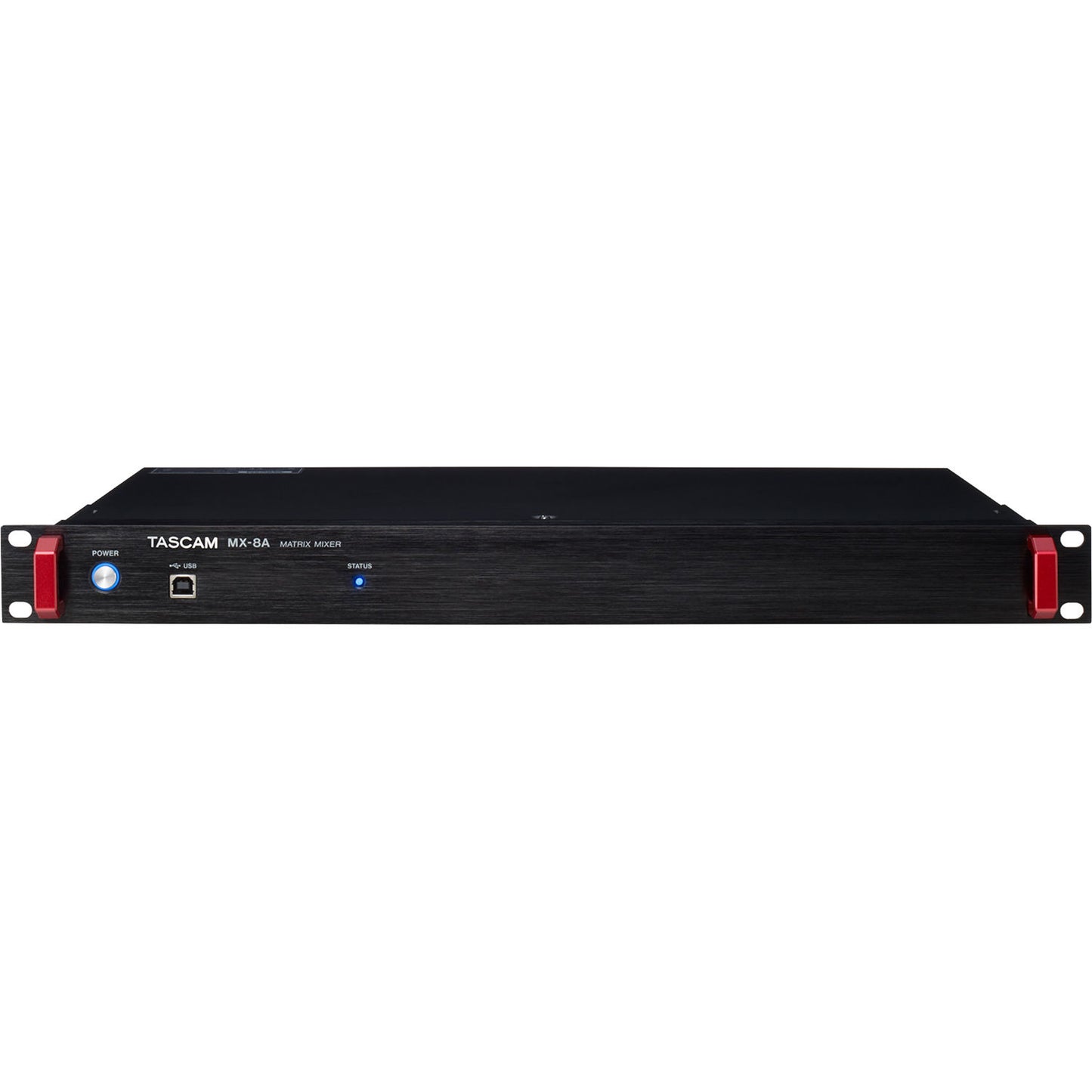

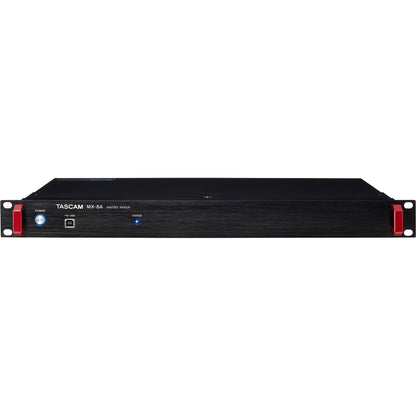

The TASCAM MX-8A is a Matrix Mixer equipped with 8 mic / line inputs and 8 line outputs as well as integrated DSP for audio optimization in various environments and configurations Custom control apps are also available to allow easy setup and adjustment by both system integrators and end users.
| Product Name | Tascam MX-8A 8 Zone Matrix Mixer |
|---|---|
| Brand | Tascam |
| Condition | Pre-Owned |
| MPN | MX-8A |
| UPC | 043774033645 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Main unit × 1
- Power cord × 1
- Euroblock plugs × 16
- Cable band kit × 1
- Rackmount screw kit × 1
- Owner's Manual (including warranty) × 1
- 8-channel mic / line input with phantom power (+48v) support
- Supports remote mic gain control
- 8 line output

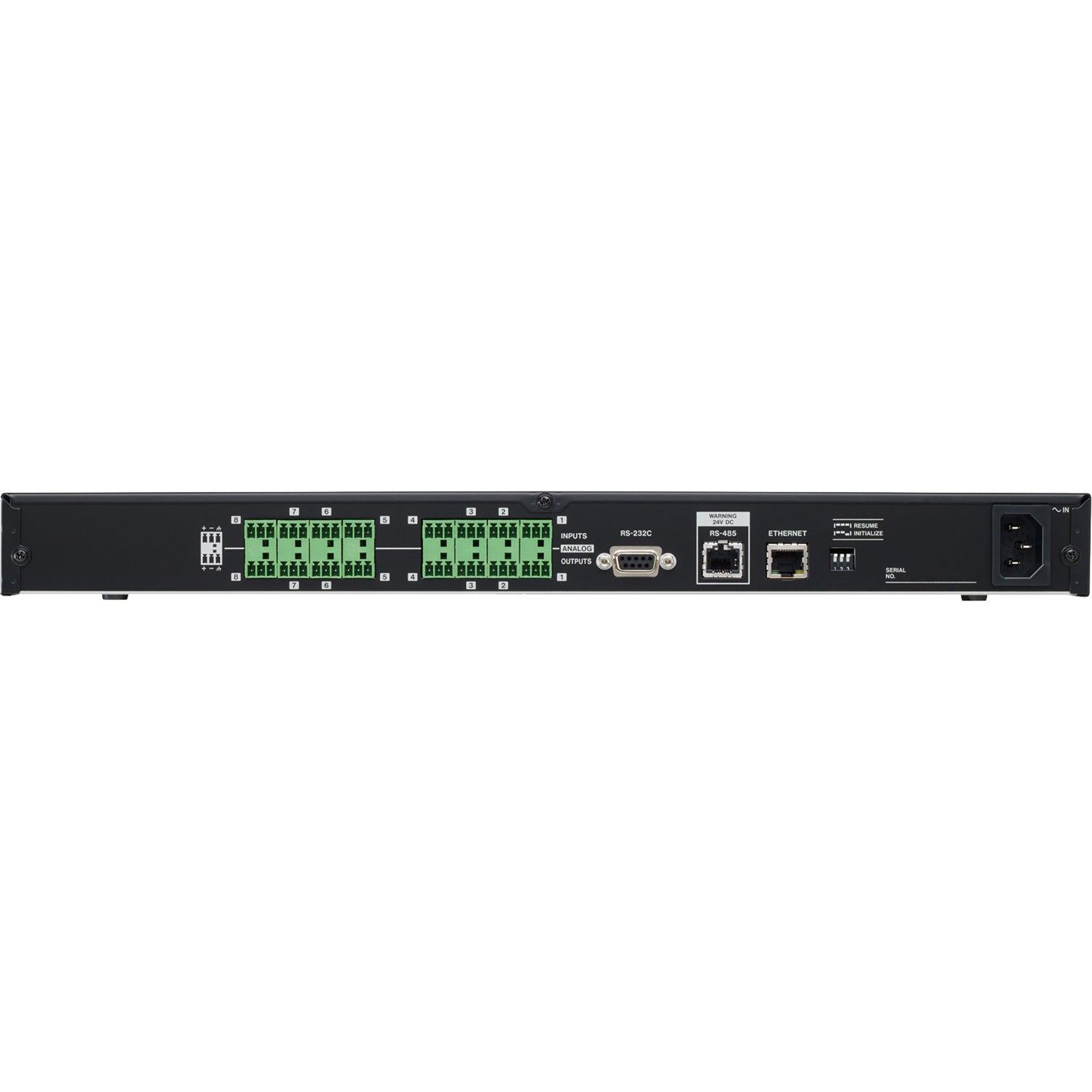

- Equipped with Euroblock connectors for signal input / output
- Compatible with external software (Windows / macOS / Android / iOS) for audio playback / recording via USB audio interface function
- Includes a variety of DSP functions for optimal use in different scenes / environments
- Flexible scene preset function allows recall of a variety of configurations (Up to 50 presets)
- 2 types of user control software available for Windows / Mac / iOS / Android devices:
TASCAM MX CONNECT (For integrators); Input / output routing selection, DSP / design / scene settings of the complete system, etc.
TASCAM EZ CONNECT (For end-users); Simple app design with only the necessary functions such as area volume settings, etc. - Equipped with a RS-232C connector to support serial remote control systems
- Equipped with an RS-485 connector for dedicated wall-mount programmable controller RC-W100-R120 / RC-W100-R86 (optional accessories, sold separately) enabling source selection and volume adjustment.
- Supports remote control via Ethernet
- 1U rack-mountable size
- Installed indicators display operating status and control software connection status
Format |
|
|---|---|
| Sample Rate / Bit Depth | 44.1 kHz / 48 kHz, 16-bit / 24-bit |
USB |
|
| Connector | 4-pin USB B-type |
| Transfer Rate | USB 2.0 High Speed (480 Mbps) |
Analog Input |
|
| Connector | Euroblock (Balanced), 3.81 mm pitch |
| Minimum Input Level | -77.5 dBu |
| Maximum Input Level (Mic) | +26 dBu |
| Maximum Input Level (Line) | +24 dBu |
| Input Impedance | 2.2 kΩ or higher |
Analog Output |
|
| Connector | Euroblock (Balanced), 3.81 mm pitch |
| Nominal Output Level | +4 dBu (Ref Level ≠ -9 dBFS), +6 dBu (Ref Level = -9 dBFS) |
| Maximum Output Level | +15 dBu (-9 dBFS), +18 dBu (-14 dBFS), +20 dBu (-16 dBFS), +22 dBu (-18 dBFS), +24 dBu (-20 dBFS) |
| Output Impedance | 200 Ω or lower |
Control Interfaces |
|
| RS-232C | D-sub 9-pin (female) |
| RS-485 | RJ-45 (Cat5e or faster STP cables) |
Ethernet |
|
| Connector | RJ-45 |
| Protocol | TCP/IP |
| Standard | 100BASE-TX |
| Cabling | Category 5e or faster STP |
Power |
|
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | 21 W |
Dimensions & Weight |
|
| Dimensions | 483 × 45 × 304.1 mm (19.02" × 1.77" × 11.97") |
| Weight | 3.0 kg (6.61 lb) |
Environmental |
|
| Operating Temperature | 0–40°C (32–104°F) |
Included Items |
|
| Accessories | Power cord ×1, Euroblock plug ×16, cable band kit ×1, rackmount screw kit ×1, owner's manual (including warranty) |
Audio Performance |
|
| Mic Amp EIN | -126 dBu or less |
| Frequency Response | 20 Hz – 20 kHz (+0.5 / -0.5 dB) |
| Distortion (THD+N) | 0.005% or less |
| S/N Ratio | 106 dB or higher |
| Crosstalk | 106 dB or higher |
| Dynamic Range | 106 dB or higher |
Supported Audio Drivers |
|
| Windows | UAC2.0, WDM |
| macOS / iOS | UAC2.0 |
| Android | UAC2.0 |
Tascam MX-8A 8 Zone Matrix Mixer
Details
The TASCAM MX-8A is a Matrix Mixer equipped with 8 mic / line inputs and 8 line outputs as well as integrated DSP for audio optimization in various environments and configurations Custom control apps are also available to allow easy setup and adjustment by both system integrators and end users.
| Product Name | Tascam MX-8A 8 Zone Matrix Mixer |
|---|---|
| Brand | Tascam |
| Condition | Pre-Owned |
| MPN | MX-8A |
| UPC | 043774033645 |
What's in the Box?
- Main unit × 1
- Power cord × 1
- Euroblock plugs × 16
- Cable band kit × 1
- Rackmount screw kit × 1
- Owner's Manual (including warranty) × 1
Features
- 8-channel mic / line input with phantom power (+48v) support
- Supports remote mic gain control
- 8 line output
- Equipped with Euroblock connectors for signal input / output
- Compatible with external software (Windows / macOS / Android / iOS) for audio playback / recording via USB audio interface function
- Includes a variety of DSP functions for optimal use in different scenes / environments
- Flexible scene preset function allows recall of a variety of configurations (Up to 50 presets)
- 2 types of user control software available for Windows / Mac / iOS / Android devices:
TASCAM MX CONNECT (For integrators); Input / output routing selection, DSP / design / scene settings of the complete system, etc.
TASCAM EZ CONNECT (For end-users); Simple app design with only the necessary functions such as area volume settings, etc. - Equipped with a RS-232C connector to support serial remote control systems
- Equipped with an RS-485 connector for dedicated wall-mount programmable controller RC-W100-R120 / RC-W100-R86 (optional accessories, sold separately) enabling source selection and volume adjustment.
- Supports remote control via Ethernet
- 1U rack-mountable size
- Installed indicators display operating status and control software connection status
Tech Specs
Format |
|
|---|---|
| Sample Rate / Bit Depth | 44.1 kHz / 48 kHz, 16-bit / 24-bit |
USB |
|
| Connector | 4-pin USB B-type |
| Transfer Rate | USB 2.0 High Speed (480 Mbps) |
Analog Input |
|
| Connector | Euroblock (Balanced), 3.81 mm pitch |
| Minimum Input Level | -77.5 dBu |
| Maximum Input Level (Mic) | +26 dBu |
| Maximum Input Level (Line) | +24 dBu |
| Input Impedance | 2.2 kΩ or higher |
Analog Output |
|
| Connector | Euroblock (Balanced), 3.81 mm pitch |
| Nominal Output Level | +4 dBu (Ref Level ≠ -9 dBFS), +6 dBu (Ref Level = -9 dBFS) |
| Maximum Output Level | +15 dBu (-9 dBFS), +18 dBu (-14 dBFS), +20 dBu (-16 dBFS), +22 dBu (-18 dBFS), +24 dBu (-20 dBFS) |
| Output Impedance | 200 Ω or lower |
Control Interfaces |
|
| RS-232C | D-sub 9-pin (female) |
| RS-485 | RJ-45 (Cat5e or faster STP cables) |
Ethernet |
|
| Connector | RJ-45 |
| Protocol | TCP/IP |
| Standard | 100BASE-TX |
| Cabling | Category 5e or faster STP |
Power |
|
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | 21 W |
Dimensions & Weight |
|
| Dimensions | 483 × 45 × 304.1 mm (19.02" × 1.77" × 11.97") |
| Weight | 3.0 kg (6.61 lb) |
Environmental |
|
| Operating Temperature | 0–40°C (32–104°F) |
Included Items |
|
| Accessories | Power cord ×1, Euroblock plug ×16, cable band kit ×1, rackmount screw kit ×1, owner's manual (including warranty) |
Audio Performance |
|
| Mic Amp EIN | -126 dBu or less |
| Frequency Response | 20 Hz – 20 kHz (+0.5 / -0.5 dB) |
| Distortion (THD+N) | 0.005% or less |
| S/N Ratio | 106 dB or higher |
| Crosstalk | 106 dB or higher |
| Dynamic Range | 106 dB or higher |
Supported Audio Drivers |
|
| Windows | UAC2.0, WDM |
| macOS / iOS | UAC2.0 |
| Android | UAC2.0 |
