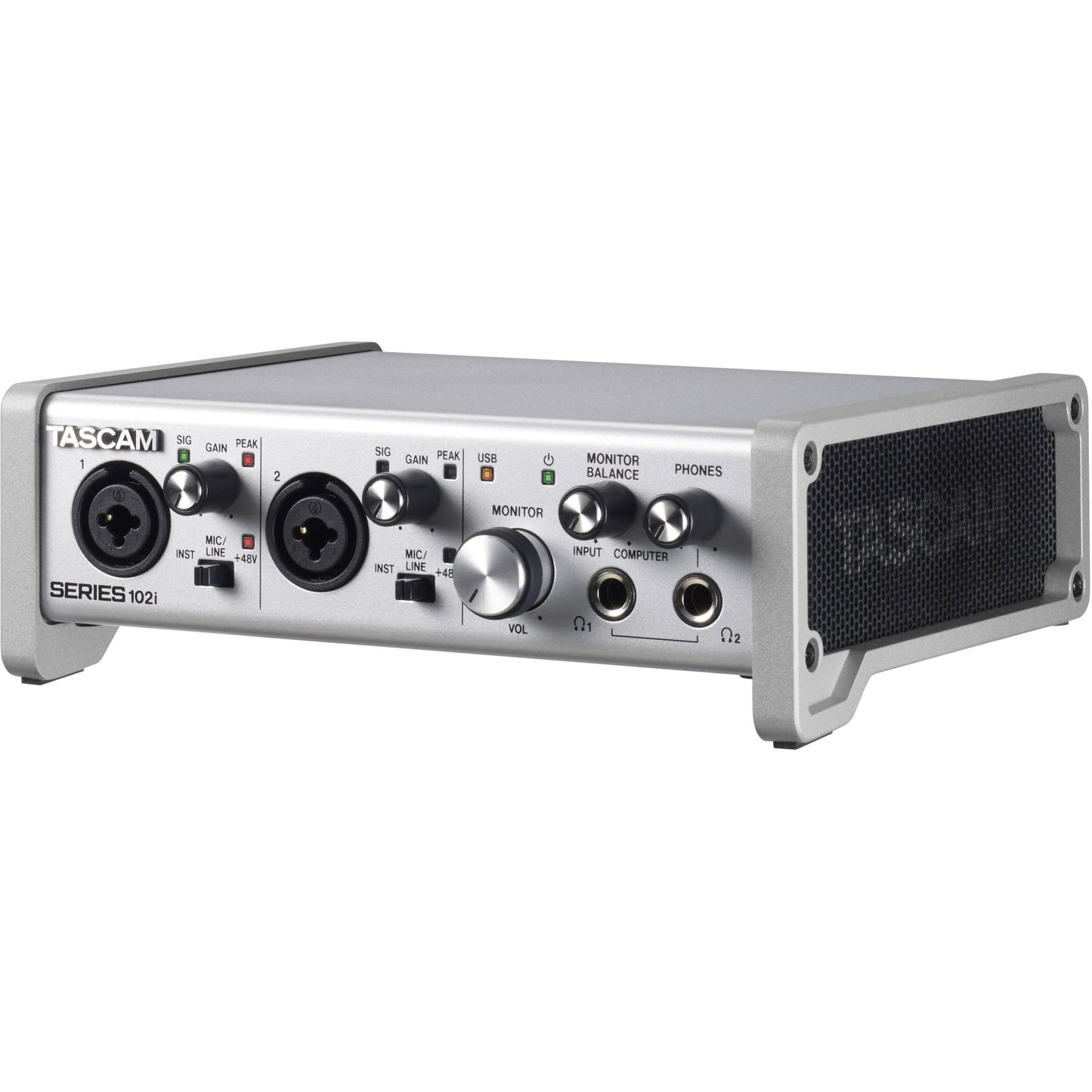

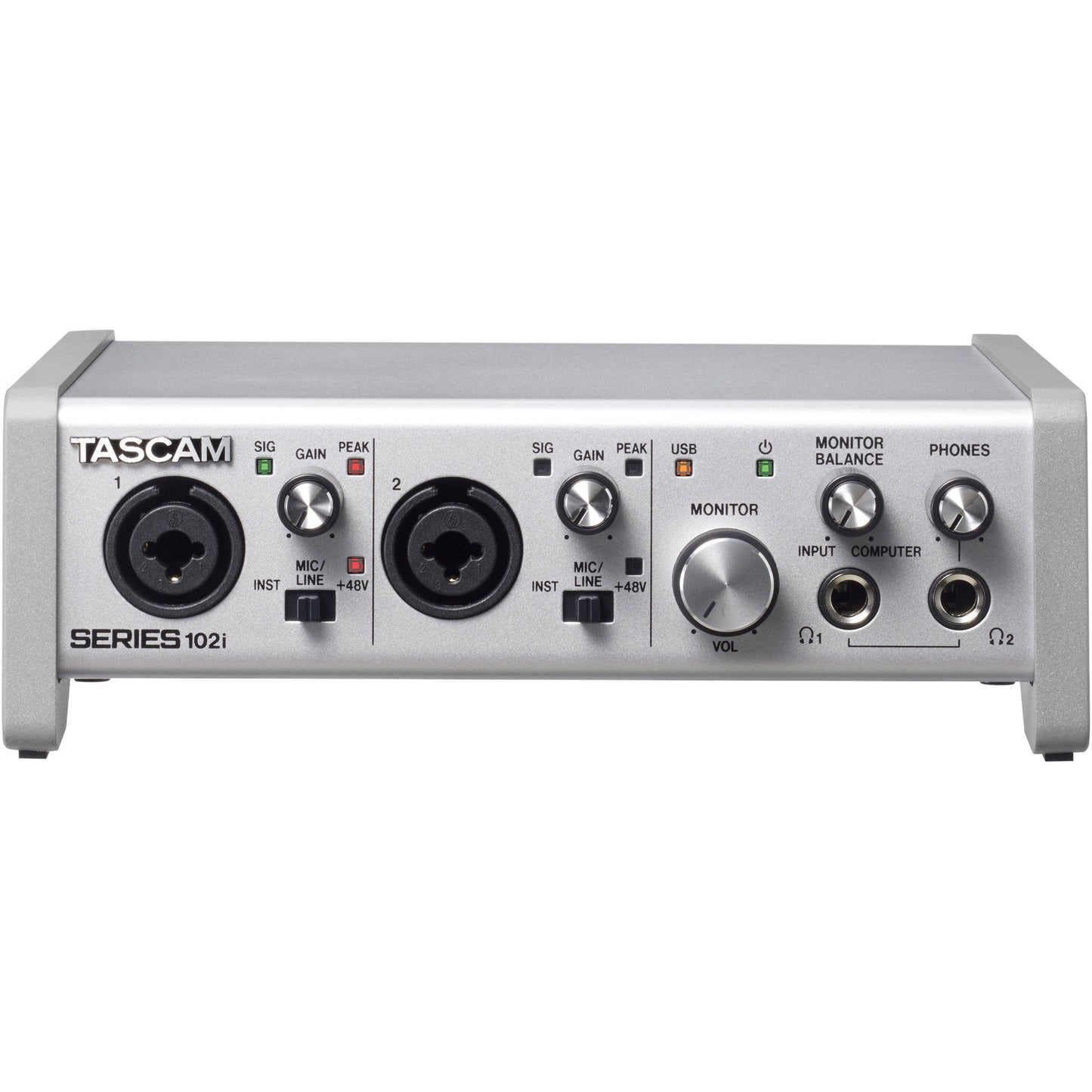

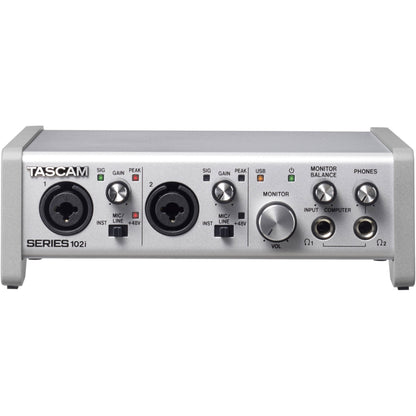

10-IN/2-OUT USB Audio/MIDI Interface
The new TASCAM SERIES audio interface family provides professional quality.
Expandability, both internal and bundled effects processing, internal mixing, external software control, and more for studio, home, and live recording. With a new look, including an angled tabletop design and large, easy-to-grab knobs, TASCAM sets a new standard for mid-grade audio interfaces.
| Product Name | Tascam SERIES 102i USB Audio/MIDI Interface |
|---|---|
| Brand | Tascam |
| Condition | Pre-Owned |
| MPN | SERIES102I |
| Shipping Option | Free Shipping on orders over $94.72 |
What's in the Box?
- Series 102i
- AC adapter (PS-P1220E) (with 3 alternate plugs)
- USB cable
- Set of DAW software installation guides
- Set of DAW plug-in software installation guides
- Owner's Manual (this document) including warranty
- Two XLR/TRS combo mic/line/instrument inputs
- Two transparent, natural-sounding, ultra-low noise TASCAM Ultra HDDA mic preamplifiers
- One optical S/MUX expansion port that accepts up to 8 channels of audio input (10 total inputs)

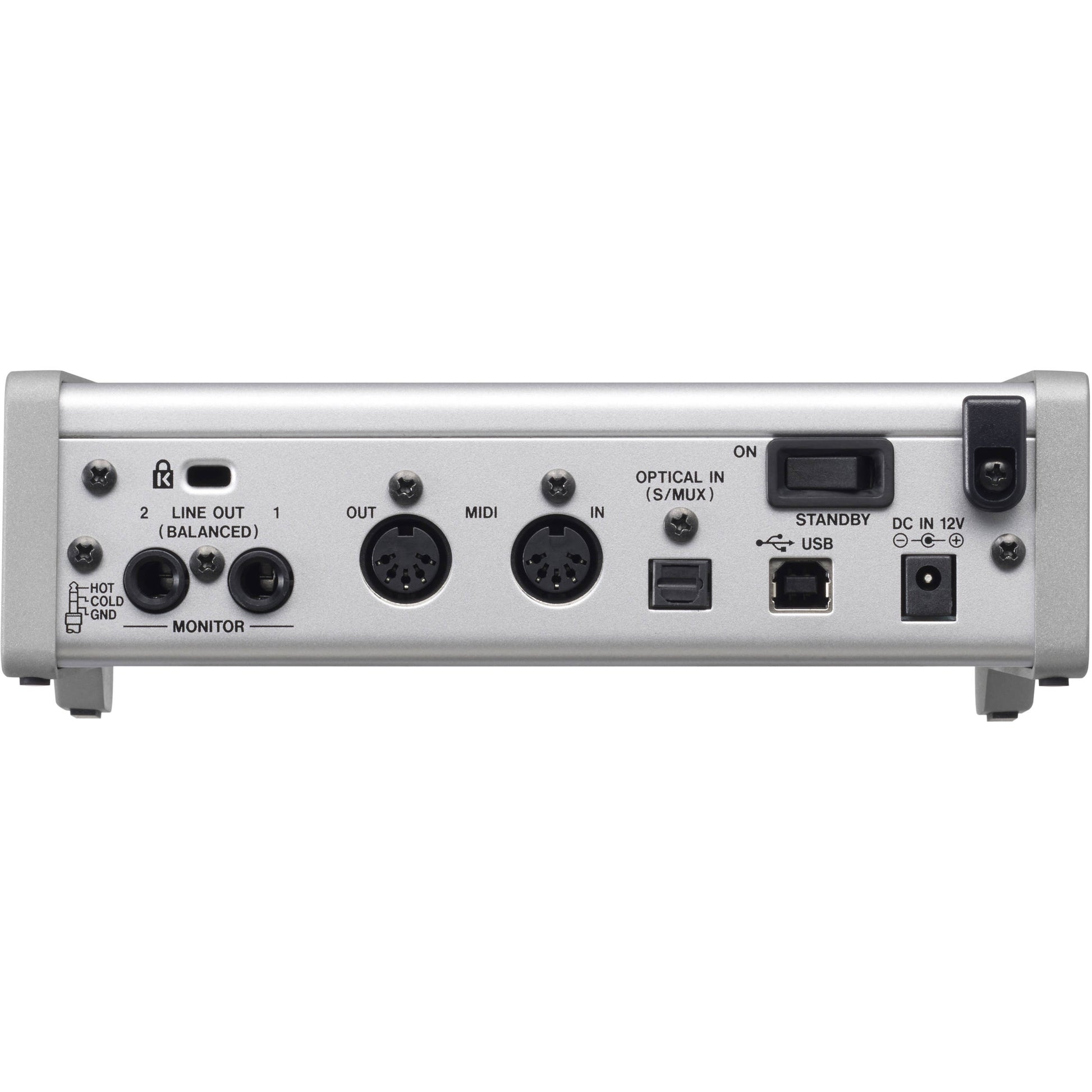

- 2 ¼-inch analog outputs and dual headphone outputs for versatile monitoring
- Built-in effects: reverb, compressor, 4-band EQ
- Flexible DSP input/output mixer controlled via free TASCAM Control software
- Software control of faders, routing, effects, and phase invert
- Up to 24-bit/192 kHz sample resolution
- Sampling Frequency : 44.1k / 48k / 88.2k / 96k / 176.4k / 192k Hz
- Mic Amp EIN : -129dBu or lower
- Signal-to-Noise Ratio : MIC/LINE IN 109dB (GAIN knob at minimum, 20k SPCL LPF+A-Weight)
- Crosstalk : 100dB or higher (MIC/LINE IN thru LINE OUT, 1kHz sine wave, Gain knob at minimum)
- Power : DC 12V (AC Adapter PS-P1220E included)
- Power consumption : 7.2 W
- Dimensions（W×H×D） : 186 × 65 × 160 mm
- Weight : 1.1 kg
Tascam SERIES 102i USB Audio/MIDI Interface
10-IN/2-OUT USB Audio/MIDI Interface
The new TASCAM SERIES audio interface family provides professional quality.
Expandability, both internal and bundled effects processing, internal mixing, external software control, and more for studio, home, and live recording. With a new look, including an angled tabletop design and large, easy-to-grab knobs, TASCAM sets a new standard for mid-grade audio interfaces.
| Product Name | Tascam SERIES 102i USB Audio/MIDI Interface |
|---|---|
| Brand | Tascam |
| Condition | Pre-Owned |
| MPN | SERIES102I |
What's in the Box?
- Series 102i
- AC adapter (PS-P1220E) (with 3 alternate plugs)
- USB cable
- Set of DAW software installation guides
- Set of DAW plug-in software installation guides
- Owner's Manual (this document) including warranty
- Two XLR/TRS combo mic/line/instrument inputs
- Two transparent, natural-sounding, ultra-low noise TASCAM Ultra HDDA mic preamplifiers
- One optical S/MUX expansion port that accepts up to 8 channels of audio input (10 total inputs)
- 2 ¼-inch analog outputs and dual headphone outputs for versatile monitoring
- Built-in effects: reverb, compressor, 4-band EQ
- Flexible DSP input/output mixer controlled via free TASCAM Control software
- Software control of faders, routing, effects, and phase invert
- Up to 24-bit/192 kHz sample resolution
- Sampling Frequency : 44.1k / 48k / 88.2k / 96k / 176.4k / 192k Hz
- Mic Amp EIN : -129dBu or lower
- Signal-to-Noise Ratio : MIC/LINE IN 109dB (GAIN knob at minimum, 20k SPCL LPF+A-Weight)
- Crosstalk : 100dB or higher (MIC/LINE IN thru LINE OUT, 1kHz sine wave, Gain knob at minimum)
- Power : DC 12V (AC Adapter PS-P1220E included)
- Power consumption : 7.2 W
- Dimensions（W×H×D） : 186 × 65 × 160 mm
- Weight : 1.1 kg
