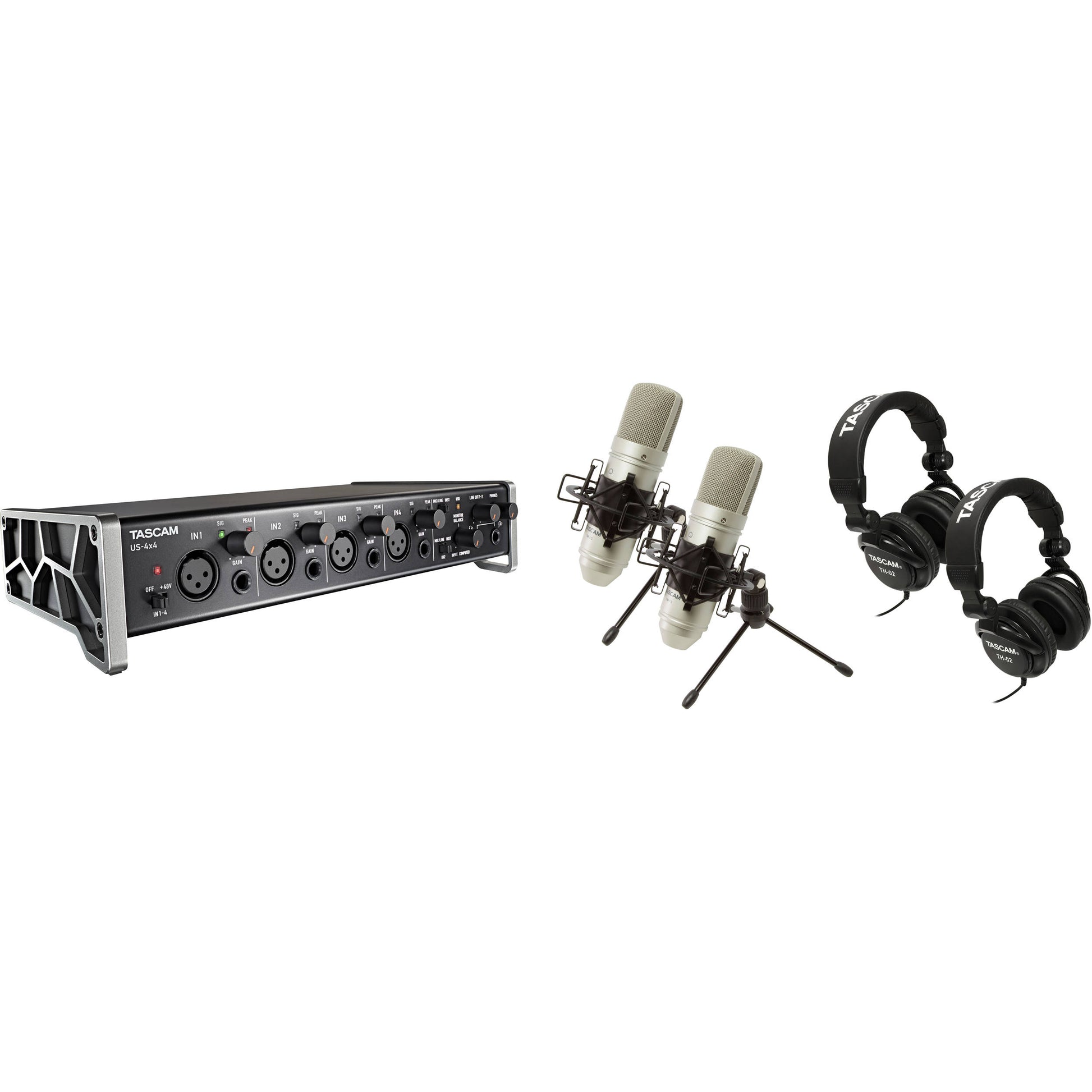

The TASCAM TRACKPACK 4x4 offers an environment in which multi-microphone recording can be easily done with vivid results by setting up an audio interface, two condenser microphones, and two headphones compatible with multi-microphone recording.
| Product Name | Tascam TRACKPACK 4x4 - Complete Recording Studio for Acoustic Instruments |
|---|---|
| Brand | Tascam |
| Condition | Pre-Owned |
| MPN | US-4X4TP |
| UPC | 043774031993 |
| Shipping Option | Free Shipping on orders over $94.72 |
What's in the Box?
- Tascam TRACKPACK 4x4 - Complete Recording Studio for Acoustic Instruments
- US-4x4 USB Audio/MIDI Interface
- 2 x TASCAM TH-02 Studio Headphones
- 2 x TASCAM TM-80 Large-Diaphragm Cardioid Condenser Microphone
- USB Cable
- 2 x Shockmounts
- 2 x 6' (1.8 m) Microphone Cables
- Microphone Mini Desk Stand
- Software Licenses
US-4x4 USB Audio/MIDI Interface
- Ultra-HDDA (High Definition Discrete Architecture) mic preamps with −127dBu EIN
- Four Ultra-HDDA mic preamplifiers
- Four XLR or TRS (MIC/LINE) inputs with full +48V phantom power
- NE5532 op-amps used at the audio input and output stages
- Up to 96kHz/24-bit recording
- Support for Windows and Macintosh
- USB 2.0 computer connection
- Connect with iPads and other iOS devices
- +48V phantom power for all inputs
- High-impedance inputs available
- Input level specifications boast a range of 57 dB for using dynamic mics
- Direct monitoring function for zero-latency monitoring
- Tough all-metal casing for durability
- Angled design provides excellent usability on a desktop
- Balanced analog four TRS output jacks suitable for connection to powered monitors
- Two headphone outputs that has 40mW/ch output power
- Separate controls for line and headphones output volumes
- MIDI input and output
- Output sources can be selected in the setting panel
- Input sound monitoring can be set to stereo or mono
- Input muting function eliminates noise from unused inputs
- USB class compliant 2.0 support
- License cards included for SONAR X3 LE/Ableton Live Lite9
- Confirmed operation with major DAW software（SONAR, ProTools, Cubase, Live, Studio One, Garage Band）
- RoHS certified
- Dedicated AC adapter is included
TH-02 Stereo Monitor Headphones
- Foldable design for compact storage and transport
- Tightly-stitched, padded headband and ear pads for stylish comfort
- Closed-back dynamic design featuring rich bass response and crisp highs
- Snap-on 1/8" (3.5mm) to 1/4" (6.3mm) adapter
- Driver diameter: 50mm
- Impedance: 32 Ohms
- Sensitivity: 98 dB +/- 3dB
- Frequency response: 18 Hz to 22 kHz
- Max input power: 600 mW
- Cable length: 9.8ft (3m) when fully extended
- Dimension (W×H×D) : 180mm×240mm×90mm / 7.1 inch×9.5 inch×3.5 inch
- Weight : 298g / 0.7 lb
TM-80 Condenser Microphone
- Condenser microphone utilizes precisely designed electronic circuitry.
- Microphone capsule assembly features an 18mm pure aluminum diaphragm
- Cardioid polar pattern
- Frequency response: 20Hz to 20kHz
- Sensitivity : -38dB +/-2dB (0dB=1V/Pa at 1kHz)
- Phantom power requirement: 9 - 48V DC
- Output impedance : 200ohm +/-30% (at 1kHz)
- Load impedance : >1k ohm
- Max SPL : 136dB (at 1kHz=1% THD)
- S/N ratio : 77dB
- Housing : Die cast zinc
- Dimensions (W×H×D) : 48mm×165mm×48mm / 1.9 inch×6.5 inch×1.9 inch
- Includes : shock mount, mini desk stand, mic cable (1.8m XLRM – XLRF)
Tascam TRACKPACK 4x4 - Complete Recording Studio for Acoustic Instruments
Details
The TASCAM TRACKPACK 4x4 offers an environment in which multi-microphone recording can be easily done with vivid results by setting up an audio interface, two condenser microphones, and two headphones compatible with multi-microphone recording.
| Product Name | Tascam TRACKPACK 4x4 - Complete Recording Studio for Acoustic Instruments |
|---|---|
| Brand | Tascam |
| Condition | Pre-Owned |
| MPN | US-4X4TP |
| UPC | 043774031993 |
What's in the Box?
- Tascam TRACKPACK 4x4 - Complete Recording Studio for Acoustic Instruments
- US-4x4 USB Audio/MIDI Interface
- 2 x TASCAM TH-02 Studio Headphones
- 2 x TASCAM TM-80 Large-Diaphragm Cardioid Condenser Microphone
- USB Cable
- 2 x Shockmounts
- 2 x 6' (1.8 m) Microphone Cables
- Microphone Mini Desk Stand
- Software Licenses
Features
US-4x4 USB Audio/MIDI Interface
- Ultra-HDDA (High Definition Discrete Architecture) mic preamps with −127dBu EIN
- Four Ultra-HDDA mic preamplifiers
- Four XLR or TRS (MIC/LINE) inputs with full +48V phantom power
- NE5532 op-amps used at the audio input and output stages
- Up to 96kHz/24-bit recording
- Support for Windows and Macintosh
- USB 2.0 computer connection
- Connect with iPads and other iOS devices
- +48V phantom power for all inputs
- High-impedance inputs available
- Input level specifications boast a range of 57 dB for using dynamic mics
- Direct monitoring function for zero-latency monitoring
- Tough all-metal casing for durability
- Angled design provides excellent usability on a desktop
- Balanced analog four TRS output jacks suitable for connection to powered monitors
- Two headphone outputs that has 40mW/ch output power
- Separate controls for line and headphones output volumes
- MIDI input and output
- Output sources can be selected in the setting panel
- Input sound monitoring can be set to stereo or mono
- Input muting function eliminates noise from unused inputs
- USB class compliant 2.0 support
- License cards included for SONAR X3 LE/Ableton Live Lite9
- Confirmed operation with major DAW software（SONAR, ProTools, Cubase, Live, Studio One, Garage Band）
- RoHS certified
- Dedicated AC adapter is included
TH-02 Stereo Monitor Headphones
- Foldable design for compact storage and transport
- Tightly-stitched, padded headband and ear pads for stylish comfort
- Closed-back dynamic design featuring rich bass response and crisp highs
- Snap-on 1/8" (3.5mm) to 1/4" (6.3mm) adapter
- Driver diameter: 50mm
- Impedance: 32 Ohms
- Sensitivity: 98 dB +/- 3dB
- Frequency response: 18 Hz to 22 kHz
- Max input power: 600 mW
- Cable length: 9.8ft (3m) when fully extended
- Dimension (W×H×D) : 180mm×240mm×90mm / 7.1 inch×9.5 inch×3.5 inch
- Weight : 298g / 0.7 lb
TM-80 Condenser Microphone
- Condenser microphone utilizes precisely designed electronic circuitry.
- Microphone capsule assembly features an 18mm pure aluminum diaphragm
- Cardioid polar pattern
- Frequency response: 20Hz to 20kHz
- Sensitivity : -38dB +/-2dB (0dB=1V/Pa at 1kHz)
- Phantom power requirement: 9 - 48V DC
- Output impedance : 200ohm +/-30% (at 1kHz)
- Load impedance : >1k ohm
- Max SPL : 136dB (at 1kHz=1% THD)
- S/N ratio : 77dB
- Housing : Die cast zinc
- Dimensions (W×H×D) : 48mm×165mm×48mm / 1.9 inch×6.5 inch×1.9 inch
- Includes : shock mount, mini desk stand, mic cable (1.8m XLRM – XLRF)
