Tascam US-16×08 USB Audio/MIDI Interface

The TASCAM US-16x08 captures 16 mic and line inputs to your computer with Eight Ultra-HDDA microphone preamps delivering the cleanest and quietest operation in their class while delivering up to 56dB of gain. An additional eight line inputs are provided, two of them switchable to instrument level for direct guitar or bass recording. Eight balanced line outputs are also available, two with a level control on the front panel for monitoring. Built into the US-16x08 is a DSP Mixer for low-latency digital mixing. Each channel has four-band EQ and compression for polished-sounding monitor mixes. Whether using the ergonomically designed angled desktop stand or mounting with the included rack ears, the US-16x08 includes analog I/O for almost any music recording application.

16 Analog Inputs for Freedom of Recording, Using HDDA Preamps - TASCAM's Ultra-HDDA (High Definition Discrete Architecture) mic preamp design is based on discrete components, just like classic professional gear. A gain range of 56dB makes them ideal for any type of mic – dynamic, condenser, or ribbon. They achieve an incredible EIN rating of -125 dBu, meaning their noise level is practically below the range of hearing. Other impressive specs include a signal-to-noise ratio of 100 dB, out-spec’ing anything in its price range. With preamp performance well beyond any interfaces in their price range, the Ultra-HDDA preamps on the US-16x08 makes your tracks sound like a record.

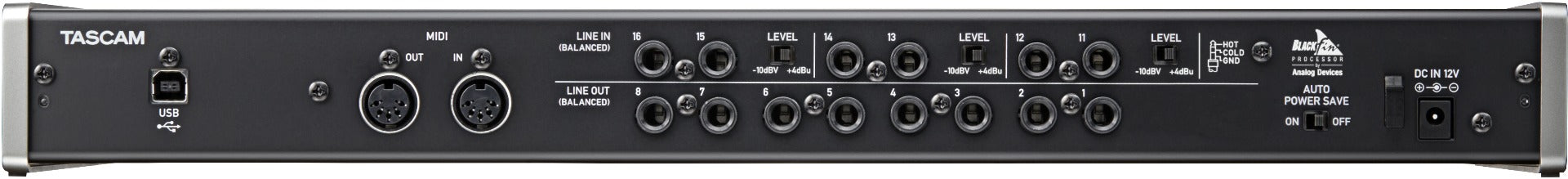

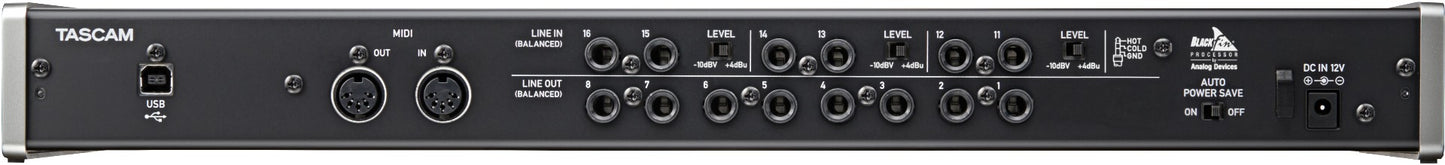

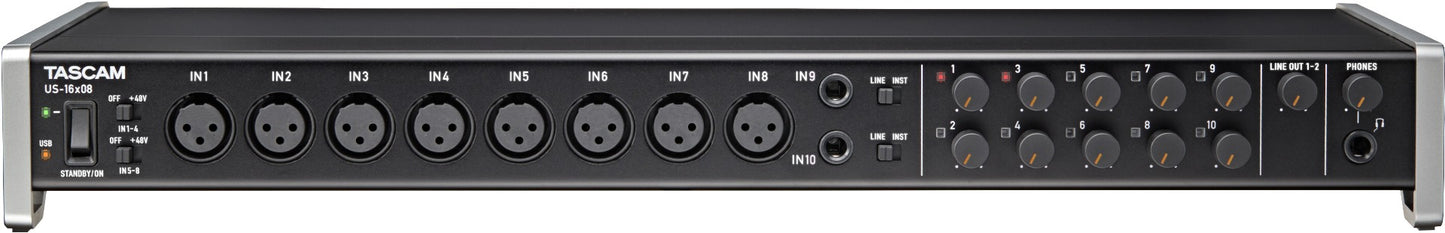

Eight XLR mic inputs and eight TRS inputs can be used simultaneously for 16-track live recordings as well as switchable +48V phantom power to use up to 8 condenser mics at the same time. The two front panel TRS line inputs are switchable between instrument level and line level input with adjustable gain. An additional six TRS line ins on the rear of the unit are switchable between -10dB and +4dB. All of the jacks support balanced or unbalanced 1/4" signals. The first two channels can be switched to direct guitar inputs. They're ideal for direct recording of electric and acoustic guitar and bass without the need for a preamp. Use them with amp modeling software, like the TH2 effect included with SONAR X3.

When powered on with out a USB connection, the US-16x08 functions as an 8-channel microphone preamp. Mics pass through the Ultra-HDDA preamps to the eight balanced line outputs on the rear panel. Use the interface to add additional high-quality mic inputs to a mixer and another audio interface.

DSP Mixer and New Drivers - The DSP Mixer includes processing for a polished-sounding headphone mix without latency delay from your DAW software, fueled by a Blackfin DSP processor. And new drivers, re-written from the ground up, provide better compatibility and performance on Mac, Windows and IPad recording systems. The converters and electronics on the US-16x08 allow you to record at audio resolutions up to 96kHz/24-bit for detailed acoustic productions. The US-16x08 will also work with USB 3.0 jacks on your computer.

Powered by an Analog Devices BlackFin DSP processor, the US-16x08 includes an advanced digital mixer for monitor mixing. Each input includes 4-band EQ, a low-cut filer, and compressor. The DSP mixer can store up to 10 snapshots as scenes - making it easy to recall mixer settings. An additional tab opens a digital patch bay to route signals to any output.

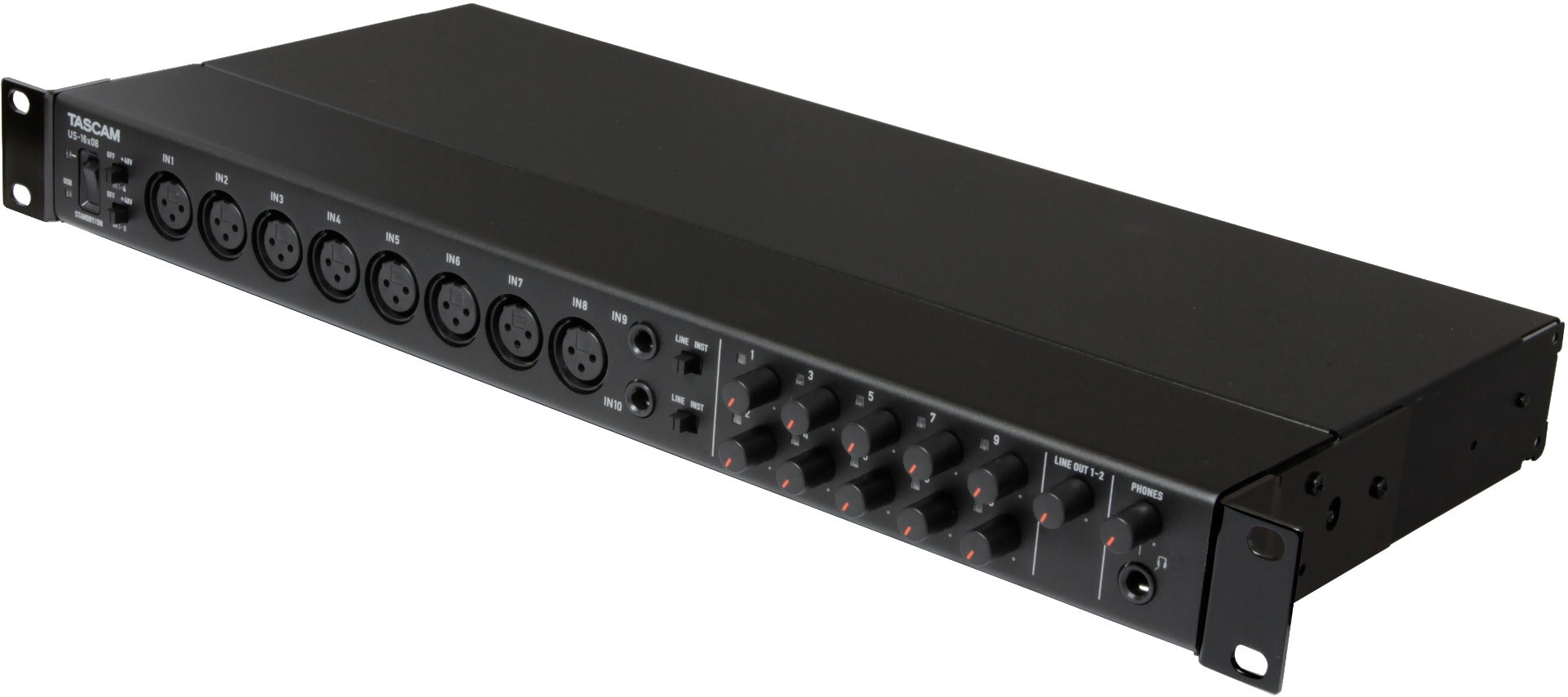

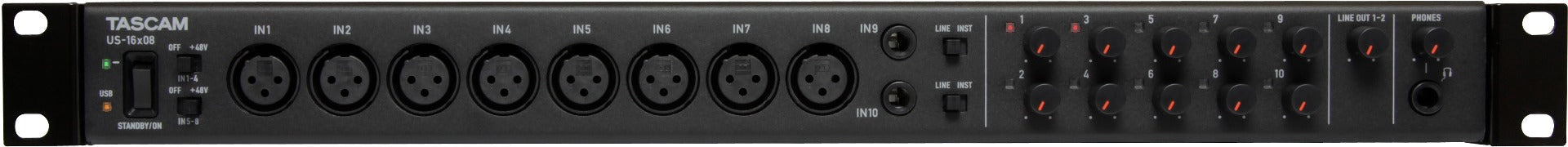

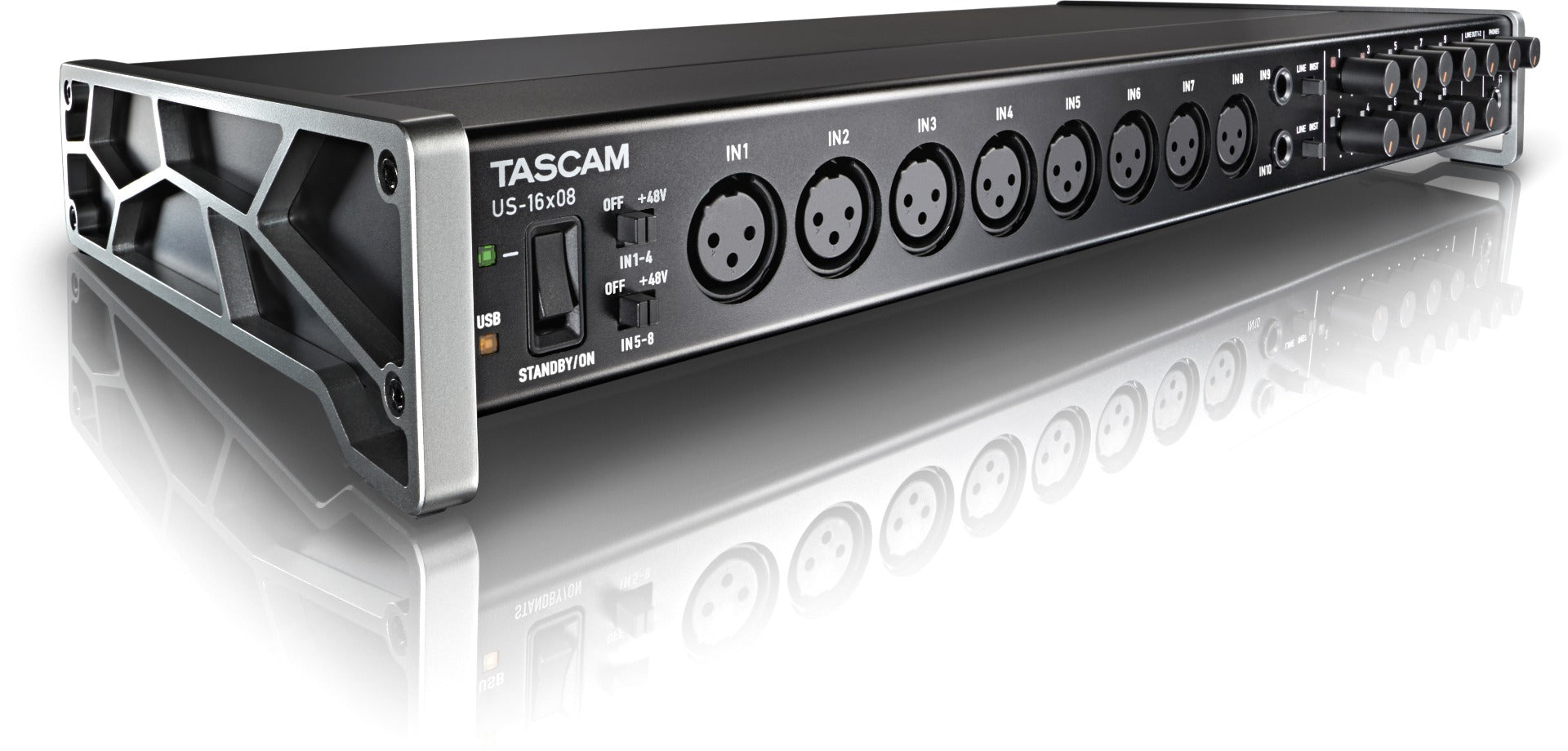

Sleek Industrial and Creative Design - The durable metal jacket is employed for heavy-duty use. The angled design makes desktop viewing and operation much more comfortable for tabletop use. All other interfaces have their controls on the front or the top of the device, causing you to crane your neck to read the knobs and switches. The US-16x08 is at a natural angle, making operation easier to keep you creative. Pair of rack ears are also included for use in a standard 19" equipment rack.

Class Compliance - The US-16x08 is built with class-compliant drivers built into the units. Not only does this mean that they can be used with many computers without first installing a driver, they also open the possibilities of with tablets such as Apple's iPad. Use Apple's Camera Connection Kit to connect the US-16x08 to an iPad or other iOS device. Utilize the multichannel audio and MIDI functions with any of the thousands of iOS audio apps, like Garage Band or TASCAM's Portastudio app.

* Apple's Camera Connection Kit is not included with this product.
* When connected, the US-16x08 will not provide power to the iOS device.
