4 XLR mic inputs and 4 TRS line inputs (IN 1-2 guitar input support) audio interface with implemented MIDI IN/OUT ports. Equipped loopback function and OBS support makes this interface an excellent choice for podcasts and live streaming. The new US-4x4HR offers simple and intuitive operation, sophisticated looks, a rich assortment of software bundles, and improved audio performance with 192 kHz support, thanks to the newly enhanced audio circuit.
| Product Name | Tascam US-4X4HR USB-C Audio/MIDI Interface |
|---|---|
| Brand | Tascam |
| Condition | Repack |
| MPN | US-4X4HR |
| UPC | 043774034680 |
| Shipping Option | Free Shipping on orders over $94.72 |
What's in the Box?
- US-4x4HR
- AC adapter PS-P1220E
- USB cable (Type-A to Type-C)
- DAW software installation guide
- DAW plug-in software installation guide set
- Owner's manual（warranty card included)
- 4-in/4-out USB audio interface
- Supports up to 24-bit/ 192kHz audio formats
- Improved TASCAM driver with selectable buffer size from 4 samples provides low-latency and stability (Windows: TASCAM native driver)
- 4 XLR/TRS combo inputs equipped with Ultra HDDA mic preamps and +48V phantom power
- Combo TRS line inputs with guitar input support on IN1-2
- TRS line outputs 1-2/3-4
- Two headphone outputs
- Equipped with MIDI IN/OUT terminals
- USB Type-C connection (USB Type-A to Type-C cable included)
- Powered by USB bus power
* 48V phantom power requires PC power supply via USB-C connection. - Zero-latency direct monitoring
- Compatible with iPad and other iOS devices
- Extensive line-up of bundled software
- Steinberg Cubase LE, Cubasis LE 3
- IK Multimedia Sample Tank 4 SE
- Antares AUTO-TUNE UNLIMITED (available free of charge up to 3 months)
- Compatible with mainstream DAW software (Pro Tools, Live, Cubase, Studio One, GarageBand, Logic Pro)
- Stereo/mono selectable loopback function (Windows, Mac, iOS, iPad OS)
- OBS support
- Sampling Frequency : 44.1k/48k/88.2k/96k/176.4k/192k Hz
- Mic amp EIN (equivalent input noise) : -128dBu or lower
- THD + N : 0.0013% (MIC IN, 1kHz sine wave, -5dBFS input, GAIN knob at minimum, 20kHz SPCL LPF)
- S/N ratio : 110dB (MIC IN, GAIN knob at minimum, 20kHz SPCL LPF+A-Weight)
- Power consumption : 2.25W
- Dimensions : 296(W) × 65(H) × 160(D)mm (including protrusions)
- Weight : 1.6kg

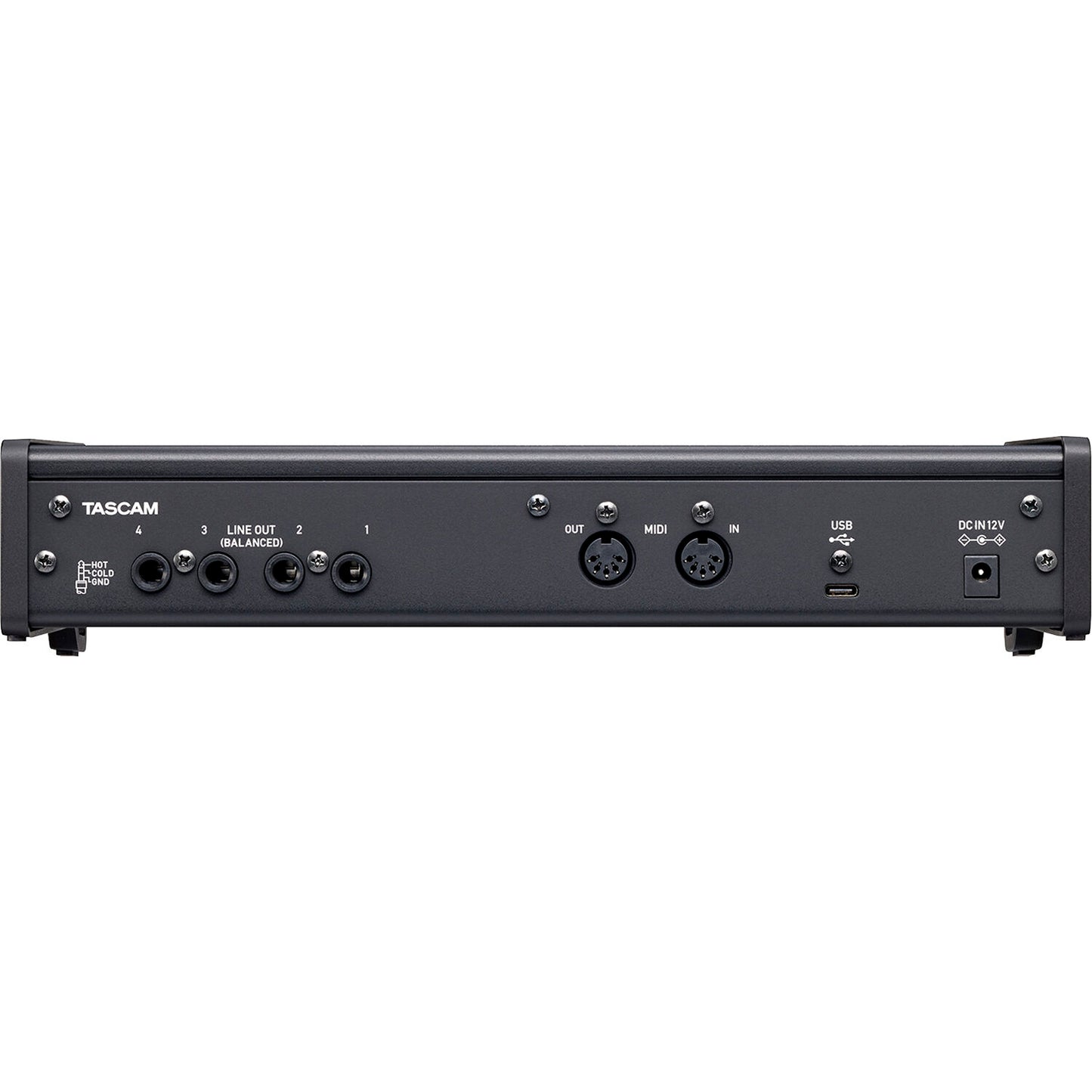

Tascam US-4X4HR USB-C Audio/MIDI Interface
Details
4 XLR mic inputs and 4 TRS line inputs (IN 1-2 guitar input support) audio interface with implemented MIDI IN/OUT ports. Equipped loopback function and OBS support makes this interface an excellent choice for podcasts and live streaming. The new US-4x4HR offers simple and intuitive operation, sophisticated looks, a rich assortment of software bundles, and improved audio performance with 192 kHz support, thanks to the newly enhanced audio circuit.
| Product Name | Tascam US-4X4HR USB-C Audio/MIDI Interface |
|---|---|
| Brand | Tascam |
| Condition | Repack |
| MPN | US-4X4HR |
| UPC | 043774034680 |
What's in the Box?
- US-4x4HR
- AC adapter PS-P1220E
- USB cable (Type-A to Type-C)
- DAW software installation guide
- DAW plug-in software installation guide set
- Owner's manual（warranty card included)
Features
- 4-in/4-out USB audio interface
- Supports up to 24-bit/ 192kHz audio formats
- Improved TASCAM driver with selectable buffer size from 4 samples provides low-latency and stability (Windows: TASCAM native driver)
- 4 XLR/TRS combo inputs equipped with Ultra HDDA mic preamps and +48V phantom power
- Combo TRS line inputs with guitar input support on IN1-2
- TRS line outputs 1-2/3-4
- Two headphone outputs
- Equipped with MIDI IN/OUT terminals
- USB Type-C connection (USB Type-A to Type-C cable included)
- Powered by USB bus power
* 48V phantom power requires PC power supply via USB-C connection. - Zero-latency direct monitoring
- Compatible with iPad and other iOS devices
- Extensive line-up of bundled software
- Steinberg Cubase LE, Cubasis LE 3
- IK Multimedia Sample Tank 4 SE
- Antares AUTO-TUNE UNLIMITED (available free of charge up to 3 months)
- Compatible with mainstream DAW software (Pro Tools, Live, Cubase, Studio One, GarageBand, Logic Pro)
- Stereo/mono selectable loopback function (Windows, Mac, iOS, iPad OS)
- OBS support
Tech Specs
- Sampling Frequency : 44.1k/48k/88.2k/96k/176.4k/192k Hz
- Mic amp EIN (equivalent input noise) : -128dBu or lower
- THD + N : 0.0013% (MIC IN, 1kHz sine wave, -5dBFS input, GAIN knob at minimum, 20kHz SPCL LPF)
- S/N ratio : 110dB (MIC IN, GAIN knob at minimum, 20kHz SPCL LPF+A-Weight)
- Power consumption : 2.25W
- Dimensions : 296(W) × 65(H) × 160(D)mm (including protrusions)
- Weight : 1.6kg
