Naturally no piece of equipment can replace your ears, but precise metering allows you to visually confirm specific details about your mix, making the process of setting optimum signal levels both quicker and easier.
With the Clarity M you get a wealth of dedicated meters, that can greatly help you improve your mix - and with the 7" high-resolution screen, you are sure to always get maximum precision and definition in the readouts.
By providing you with both that quick overview and the ever-important fine points at a glance, the precision meters of the Clarity M is perfectly suited for any mixing or mastering job - whether it's for music, picture or drama.
Most plug-ins, like reverbs and compressors, you only fire up a few times during a session; you adjust the appropriate parameters and close the plug-in once you're done in order to save precious screen real-estate.
Your metering tools, however, need to be in plain sight at all times. The Clarity M connects seamlessly with your DAW workflow via a USB connection and allows you to get precise readouts from any output, you need.
With the visual feedback of your mix pushed to a permanent screen, you no longer need to move plug-in windows around to have both your sequencer, effects and meters visible. Clarity M is quite simply the perfect integration of two worlds.
Product Name | TC Electronic Clarity M - Desktop Audio Meter |
---|---|
Brand | TC Electronic |
Condition | New |
MPN | claritym |
UPC | 748252171047 |
Shipping Option | Free Shipping to the Continental U.S. |
- Professional stereo and 5.1 audio meter for mixing, mastering and post production
- Compliant with all major broadcast standards including ITU BS.1770-4, ATSC A/85, EBU R128, TR-B32 and OP-59
- State-of-the-art True-Peak Meter identifies clipping in DACs, CODECs and downstream filters
- 7" high resolution LCD display for precision metering in all studio environments
- 6 input channels of unbalanced AES3 digital audio on 75 Ohm BNC connectors for broadcast-grade 5.1 metering
- Downmix compliance meter based on TC ELECTRONICs industry-standard loudness measurement algorithms
- USB connection for hassle-free VST, Audio Units and AAX plug-in metering

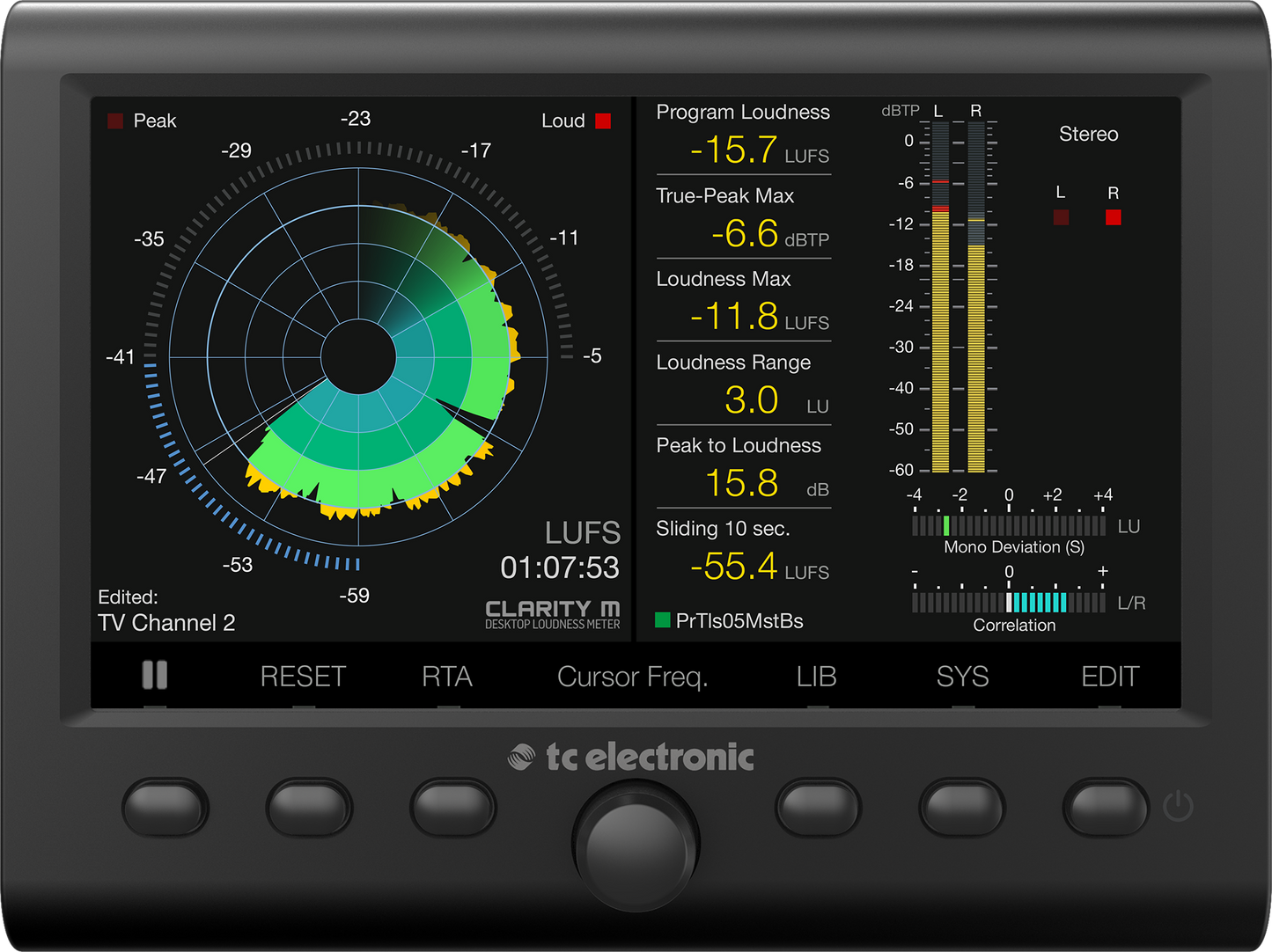

- Legendary LM6 Loudness Radar Meter provides all essential loudness monitoring information on a single screen
- High accuracy real time analyzer with 1/3 octave resolution and individual band zoom
- Digital Audio Inputs:
- Input 1 - BNC (AES3id, S/PDIF)
- Input 2 - BNC (AES3id, S/PDIF)
- Input 3 - BNC (AES3id, S/PDIF)
- Input 4 - TOSLINK (EIAJ optical)
- GPIO:
- 2 external switch inputs, 1 relay output (100 mA max, optically isolated)
- 1/8" mono female (GPO)
- 1/4" stereo female (2x GPI)
- USB: USB 2.0 (Micro type B)
- User control:
- Rotary encoder
- 6 selection buttons
- Display:
- 7" TFT (color)
- 800 x 480 pixels
- Power consumption: 12 V DC, 0.5 A
TC Electronic Clarity M - Desktop Audio Meter
Naturally no piece of equipment can replace your ears, but precise metering allows you to visually confirm specific details about your mix, making the process of setting optimum signal levels both quicker and easier.
With the Clarity M you get a wealth of dedicated meters, that can greatly help you improve your mix - and with the 7" high-resolution screen, you are sure to always get maximum precision and definition in the readouts.
By providing you with both that quick overview and the ever-important fine points at a glance, the precision meters of the Clarity M is perfectly suited for any mixing or mastering job - whether it's for music, picture or drama.
Most plug-ins, like reverbs and compressors, you only fire up a few times during a session; you adjust the appropriate parameters and close the plug-in once you're done in order to save precious screen real-estate.
Your metering tools, however, need to be in plain sight at all times. The Clarity M connects seamlessly with your DAW workflow via a USB connection and allows you to get precise readouts from any output, you need.
With the visual feedback of your mix pushed to a permanent screen, you no longer need to move plug-in windows around to have both your sequencer, effects and meters visible. Clarity M is quite simply the perfect integration of two worlds.
Product Name | TC Electronic Clarity M - Desktop Audio Meter |
---|---|
Brand | TC Electronic |
Condition | New |
MPN | claritym |
UPC | 748252171047 |
Shipping Option | Free Shipping to the Continental U.S. |
- Professional stereo and 5.1 audio meter for mixing, mastering and post production
- Compliant with all major broadcast standards including ITU BS.1770-4, ATSC A/85, EBU R128, TR-B32 and OP-59
- State-of-the-art True-Peak Meter identifies clipping in DACs, CODECs and downstream filters
- 7" high resolution LCD display for precision metering in all studio environments
- 6 input channels of unbalanced AES3 digital audio on 75 Ohm BNC connectors for broadcast-grade 5.1 metering
- Downmix compliance meter based on TC ELECTRONICs industry-standard loudness measurement algorithms
- USB connection for hassle-free VST, Audio Units and AAX plug-in metering
- Legendary LM6 Loudness Radar Meter provides all essential loudness monitoring information on a single screen
- High accuracy real time analyzer with 1/3 octave resolution and individual band zoom
- Digital Audio Inputs:
- Input 1 - BNC (AES3id, S/PDIF)
- Input 2 - BNC (AES3id, S/PDIF)
- Input 3 - BNC (AES3id, S/PDIF)
- Input 4 - TOSLINK (EIAJ optical)
- GPIO:
- 2 external switch inputs, 1 relay output (100 mA max, optically isolated)
- 1/8" mono female (GPO)
- 1/4" stereo female (2x GPI)
- USB: USB 2.0 (Micro type B)
- User control:
- Rotary encoder
- 6 selection buttons
- Display:
- 7" TFT (color)
- 800 x 480 pixels
- Power consumption: 12 V DC, 0.5 A
