Telefunken ELA M 260 Master Stereo Set Small Diaphragm Vacuum Tube Microphones

Telefunken ELA M 260 Master Stereo Set Small Diaphragm Vacuum Tube Microphones

Limited quantities available!

View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

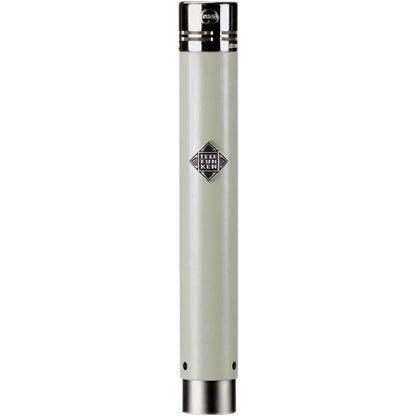

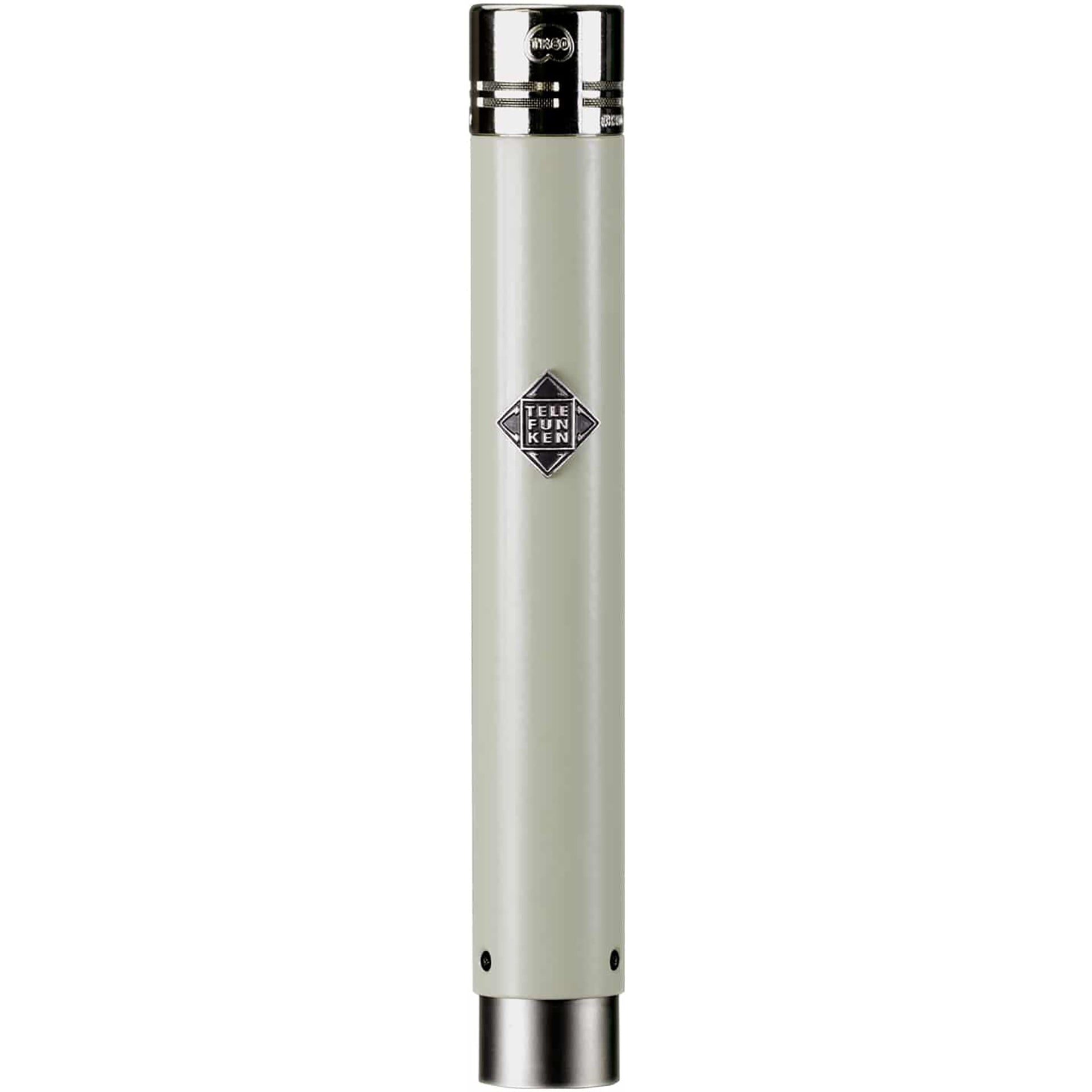

The small diaphragm ELA M 260 has become a staple for use in a multitude of recording applications due to its natural presence and high level of detail and clarity, especially in acoustic and classical applications. Keeping this in mind, TELEFUNKEN Elektroakustik is now offering the ELA M 260 Master (three capsule) system as a matched stereo set.

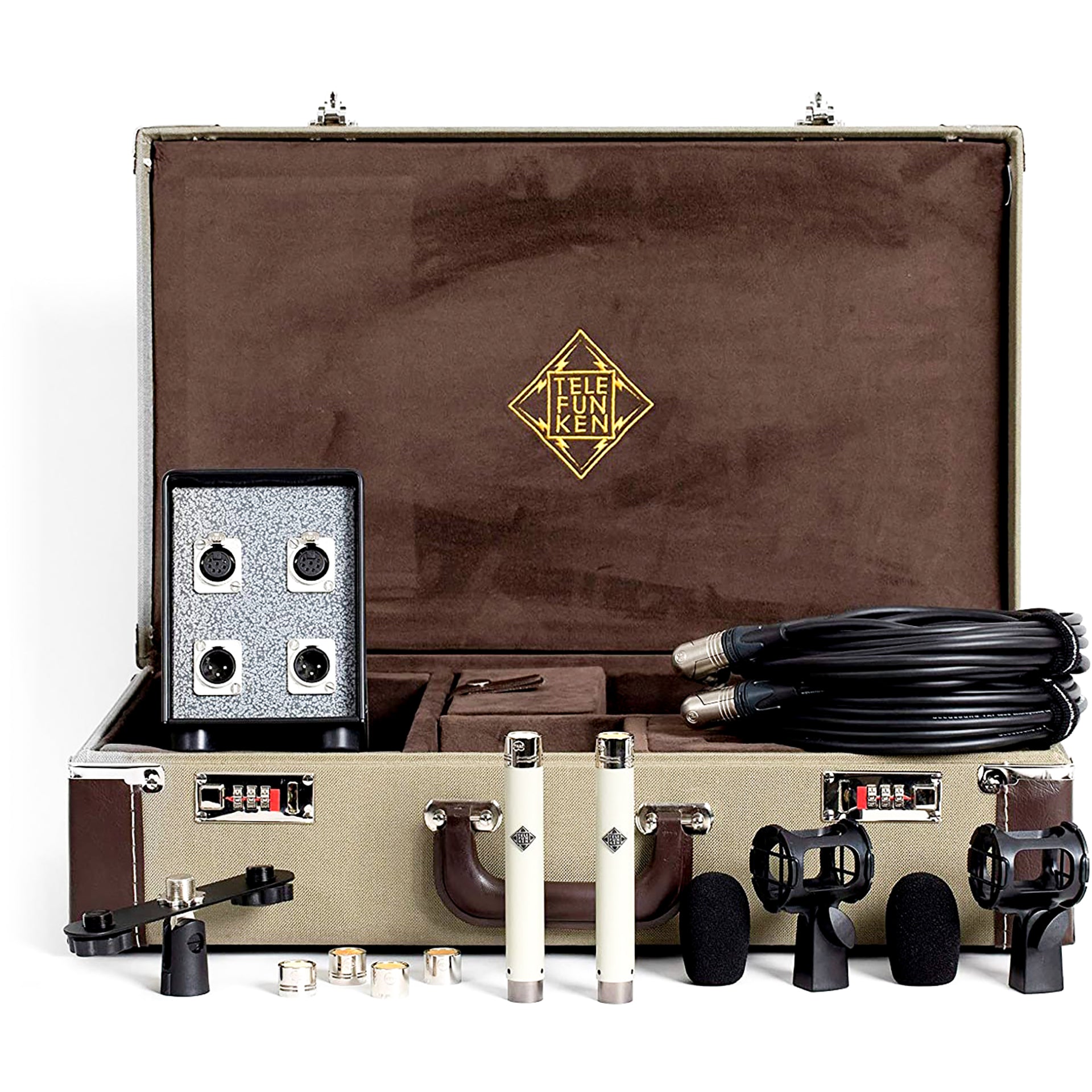

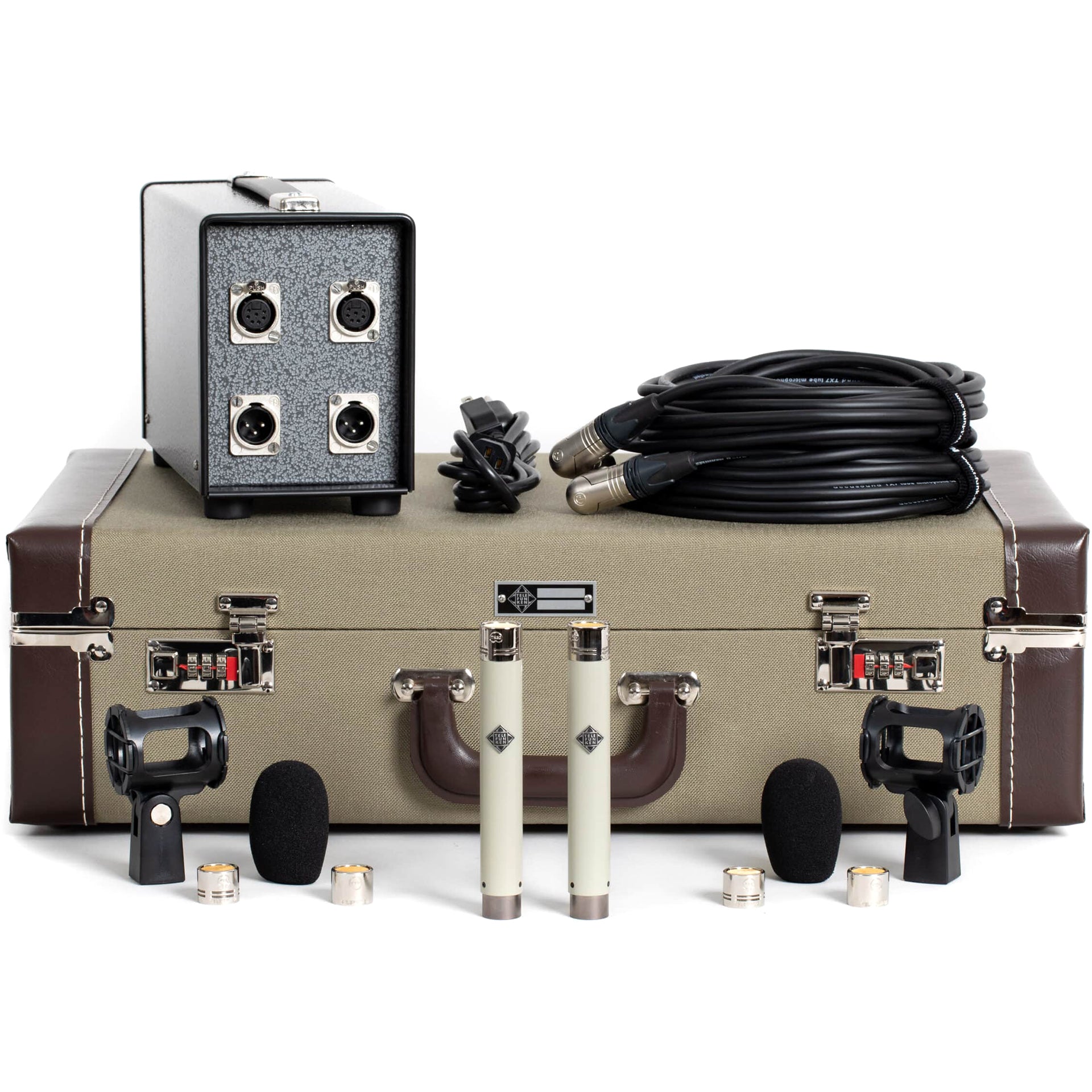

The matched ELA M 260 Stereo Set comes in a custom locking flight case that carries both M 860 cables, M 761 shock mounts, microphones, and an American-made dual-channel M 960S power supply unit. This power supply is fully regulated and will power one or both microphones simultaneously, and features a slow-ramping heater voltage to ensure vacuum tube longevity.

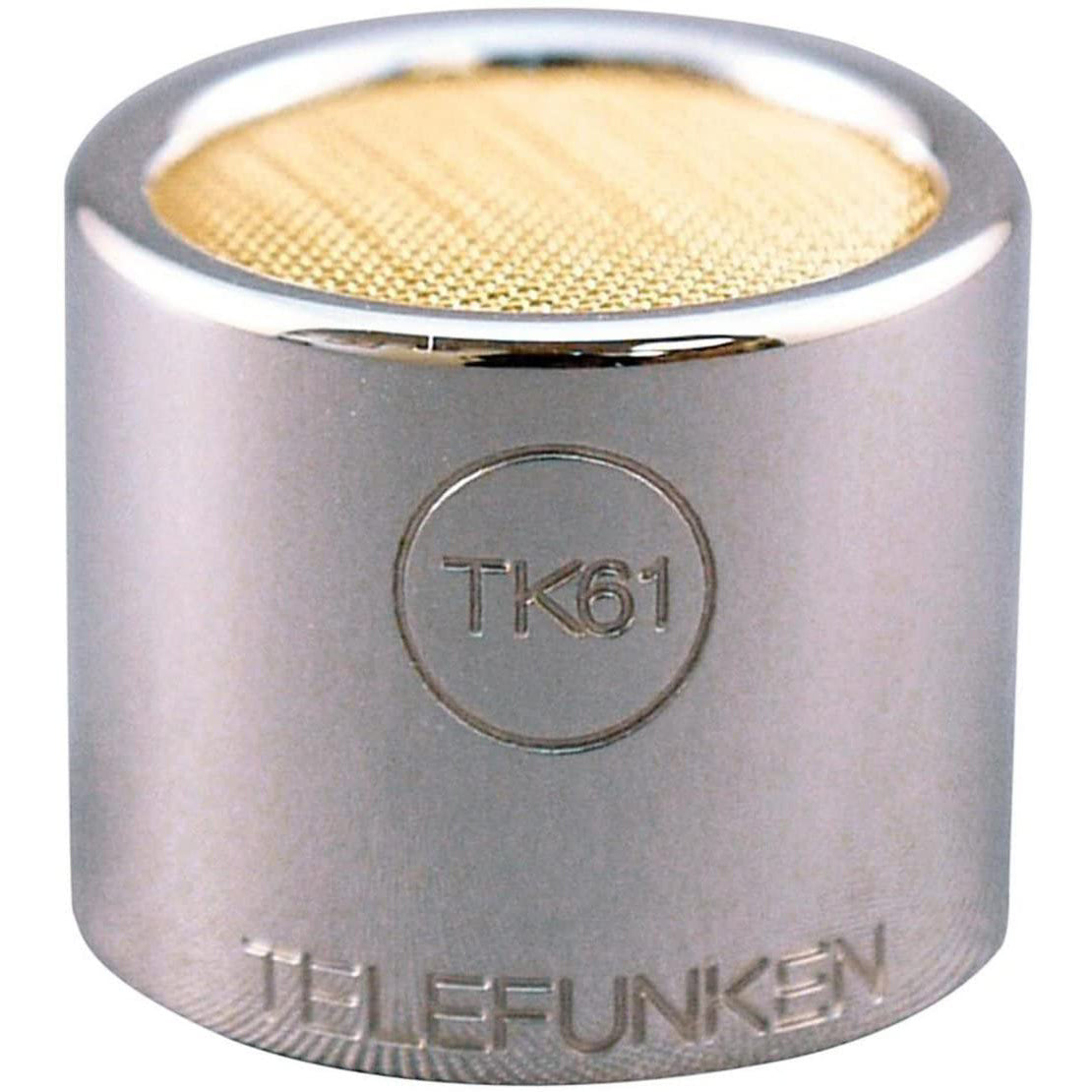

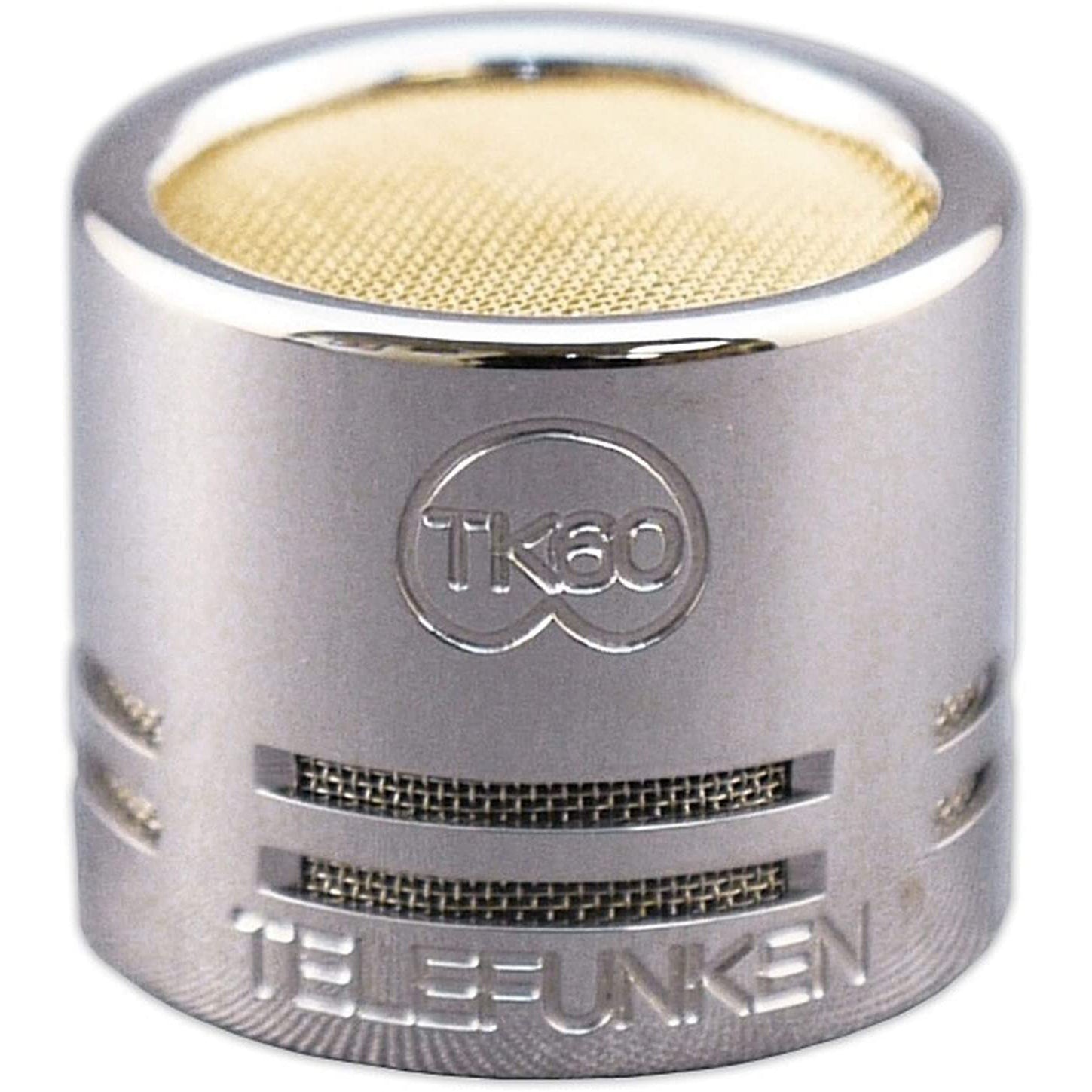

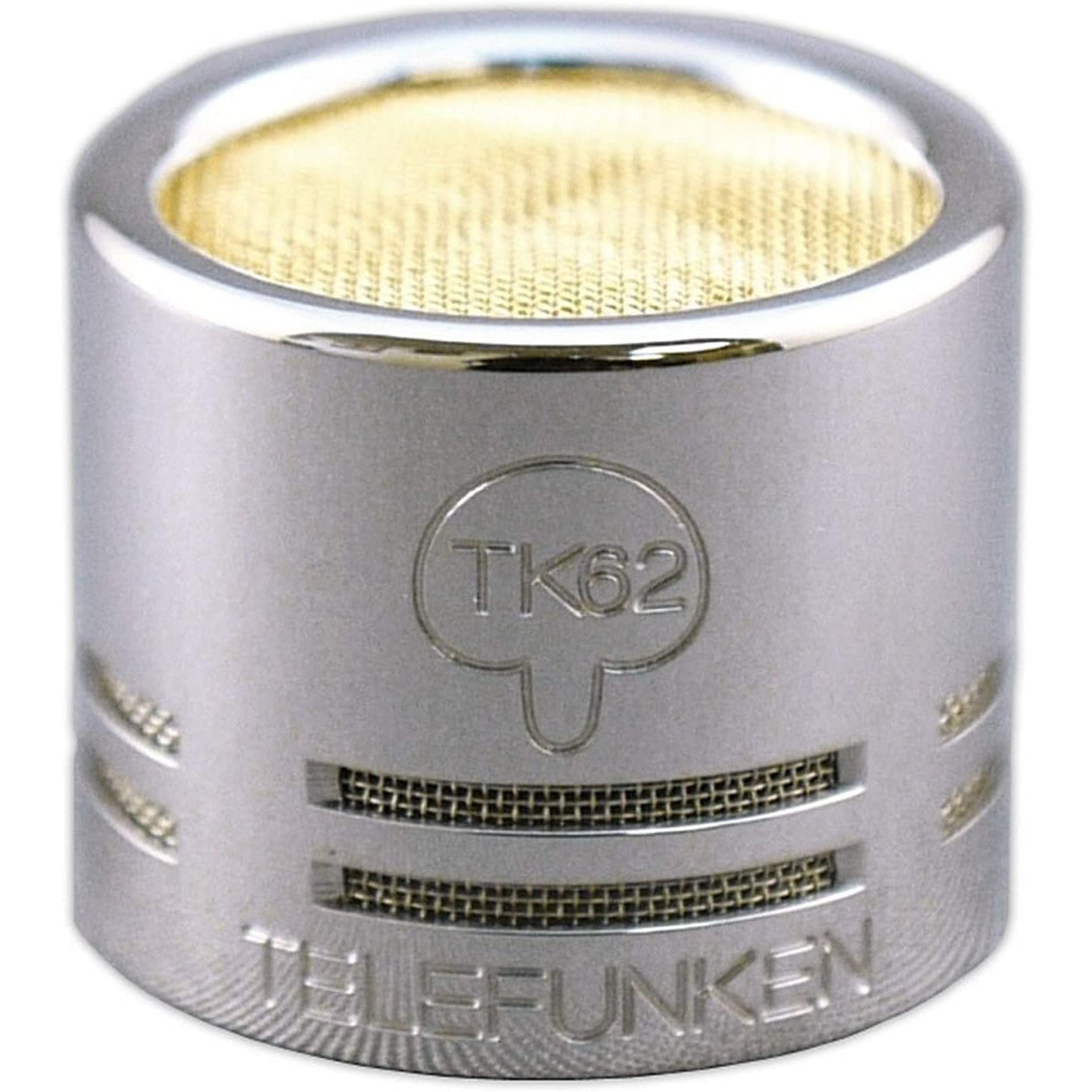

The ELA M 260 Stereo Sets also features interchangeable capsules: the TK60 Cardioid, TK61 Omnidirectional, and TK62 Hypercardioid, so the user can have the flexibility to record their source material in any way they wish. The ELA M 260 Stereo Set offers the user the knowledge and comfort that the tools they are using will give identical responses for their most important stereo recording.

More Information
Product Name Telefunken ELA M 260 Master Stereo Set Small Diaphragm Vacuum Tube Microphones
Brand Telefunken
Condition New
MPN ELAM260MASTERSTEREOSET
UPC 899051002053
Shipping Option Free Shipping to the Continental U.S.

What's in the Box?

  • 2x TK60 cardioid capsules
  • 2x TK61 omnidirectional capsules
  • 2x TK62 hyperardioid capsules
  • 1x M 960S dual power supply,
  • 2x M 801 25’ dual-shielded tube microphone cable with right angle female XLR connector
  • 2x M761 elastic shock mounts and
  • 1x locking flight case
  • A brilliant combination of tube warmth and small-diaphragm precision
  • Flattering tone and open top end complements most acoustic instruments
  • Thread-on TK6x Series capsules provide Cardioid, Hypercardioid, and Omni polar patterns
  • Vintage-inspired 5840W vacuum tube-based amplifier
  • Designed and hand assembled in the USA
  • Recommended Applications: Acoustic Guitar, Violin, Mandolin, Drum Overheads

Microphone Specifications

Type Vacuum Tube Condenser
Polar Pattern Cardioid, Omnidirectional, Hypercardioid
Frequency Range 20 Hz – 20 kHz, ±3 dB
Power Source External Power Supply
Capsule TK60, TK61, TK62 – Edge Terminated Small Diaphragm, Thread-on
Tube NOS Philips 5840W
Transformer TELEFUNKEN Elektroakustik T60
Sensitivity 16.5 mV/Pa, ±1 dB
THD at 1kHz at 1Pa (Amplifier) < 0.15%
Output Impedance 200 Ω
Maximum SPL (for 1% THD) 135 dB
S/N Ratio 83 dBA
Self Noise (Amplifier) 11 dBA
Dimensions 140 mm L x 20 mm Dia
Weight 116 g
Included Accessories Tube Mic Cable, Power Supply, Shock Mount, Foam Windscreen, Carrying Case

Telefunken ELA M 260 Master Stereo Set Small Diaphragm Vacuum Tube Microphones

Details

The small diaphragm ELA M 260 has become a staple for use in a multitude of recording applications due to its natural presence and high level of detail and clarity, especially in acoustic and classical applications. Keeping this in mind, TELEFUNKEN Elektroakustik is now offering the ELA M 260 Master (three capsule) system as a matched stereo set.

The matched ELA M 260 Stereo Set comes in a custom locking flight case that carries both M 860 cables, M 761 shock mounts, microphones, and an American-made dual-channel M 960S power supply unit. This power supply is fully regulated and will power one or both microphones simultaneously, and features a slow-ramping heater voltage to ensure vacuum tube longevity.

The ELA M 260 Stereo Sets also features interchangeable capsules: the TK60 Cardioid, TK61 Omnidirectional, and TK62 Hypercardioid, so the user can have the flexibility to record their source material in any way they wish. The ELA M 260 Stereo Set offers the user the knowledge and comfort that the tools they are using will give identical responses for their most important stereo recording.

More Information
Product Name Telefunken ELA M 260 Master Stereo Set Small Diaphragm Vacuum Tube Microphones
Brand Telefunken
Condition New
MPN ELAM260MASTERSTEREOSET
UPC 899051002053
Shipping Option Free Shipping to the Continental U.S.

What's in the Box?

  • 2x TK60 cardioid capsules
  • 2x TK61 omnidirectional capsules
  • 2x TK62 hyperardioid capsules
  • 1x M 960S dual power supply,
  • 2x M 801 25’ dual-shielded tube microphone cable with right angle female XLR connector
  • 2x M761 elastic shock mounts and
  • 1x locking flight case
Features
  • A brilliant combination of tube warmth and small-diaphragm precision
  • Flattering tone and open top end complements most acoustic instruments
  • Thread-on TK6x Series capsules provide Cardioid, Hypercardioid, and Omni polar patterns
  • Vintage-inspired 5840W vacuum tube-based amplifier
  • Designed and hand assembled in the USA
  • Recommended Applications: Acoustic Guitar, Violin, Mandolin, Drum Overheads
Tech Specs

Microphone Specifications

Type Vacuum Tube Condenser
Polar Pattern Cardioid, Omnidirectional, Hypercardioid
Frequency Range 20 Hz – 20 kHz, ±3 dB
Power Source External Power Supply
Capsule TK60, TK61, TK62 – Edge Terminated Small Diaphragm, Thread-on
Tube NOS Philips 5840W
Transformer TELEFUNKEN Elektroakustik T60
Sensitivity 16.5 mV/Pa, ±1 dB
THD at 1kHz at 1Pa (Amplifier) < 0.15%
Output Impedance 200 Ω
Maximum SPL (for 1% THD) 135 dB
S/N Ratio 83 dBA
Self Noise (Amplifier) 11 dBA
Dimensions 140 mm L x 20 mm Dia
Weight 116 g
Included Accessories Tube Mic Cable, Power Supply, Shock Mount, Foam Windscreen, Carrying Case
