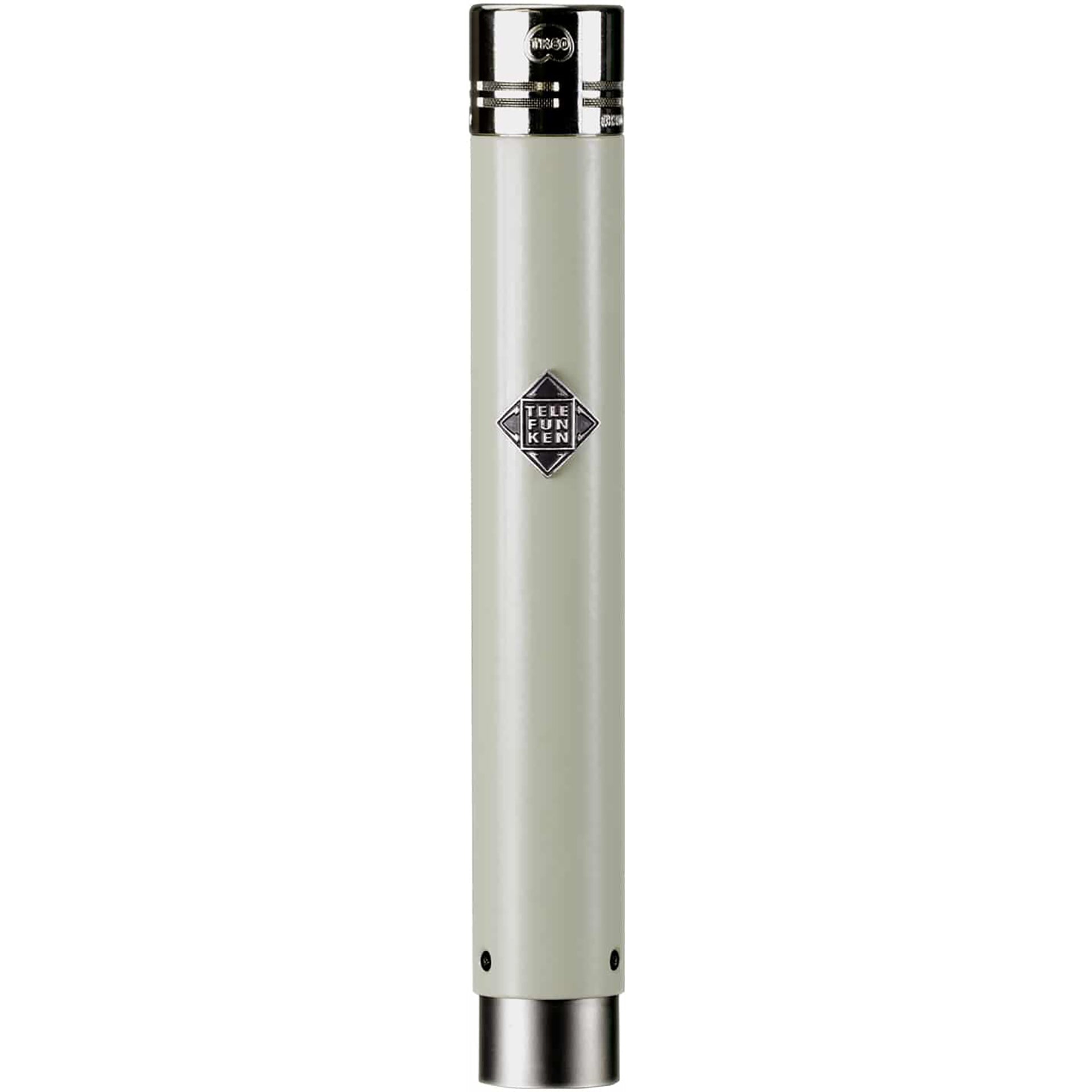

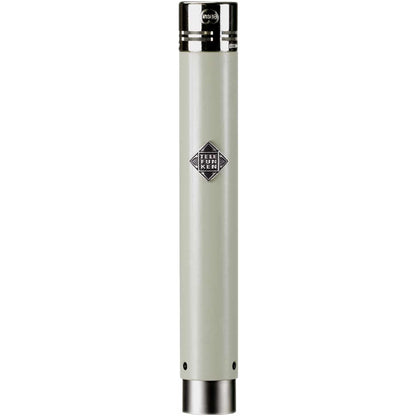

The small diaphragm ELA M 260 has become a staple for use in a multitude of recording applications due to its natural presence and high level of detail and clarity, especially in acoustic and classical applications. Keeping this in mind, TELEFUNKEN Elektroakustik is now offering the ELA M 260 Cardioid as a matched stereo set.

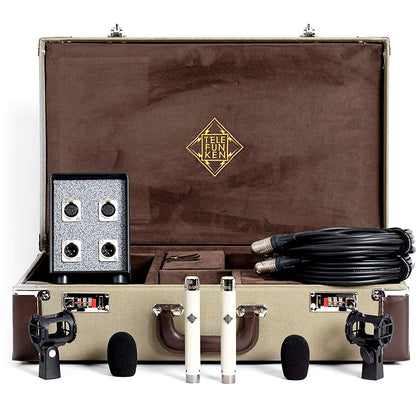

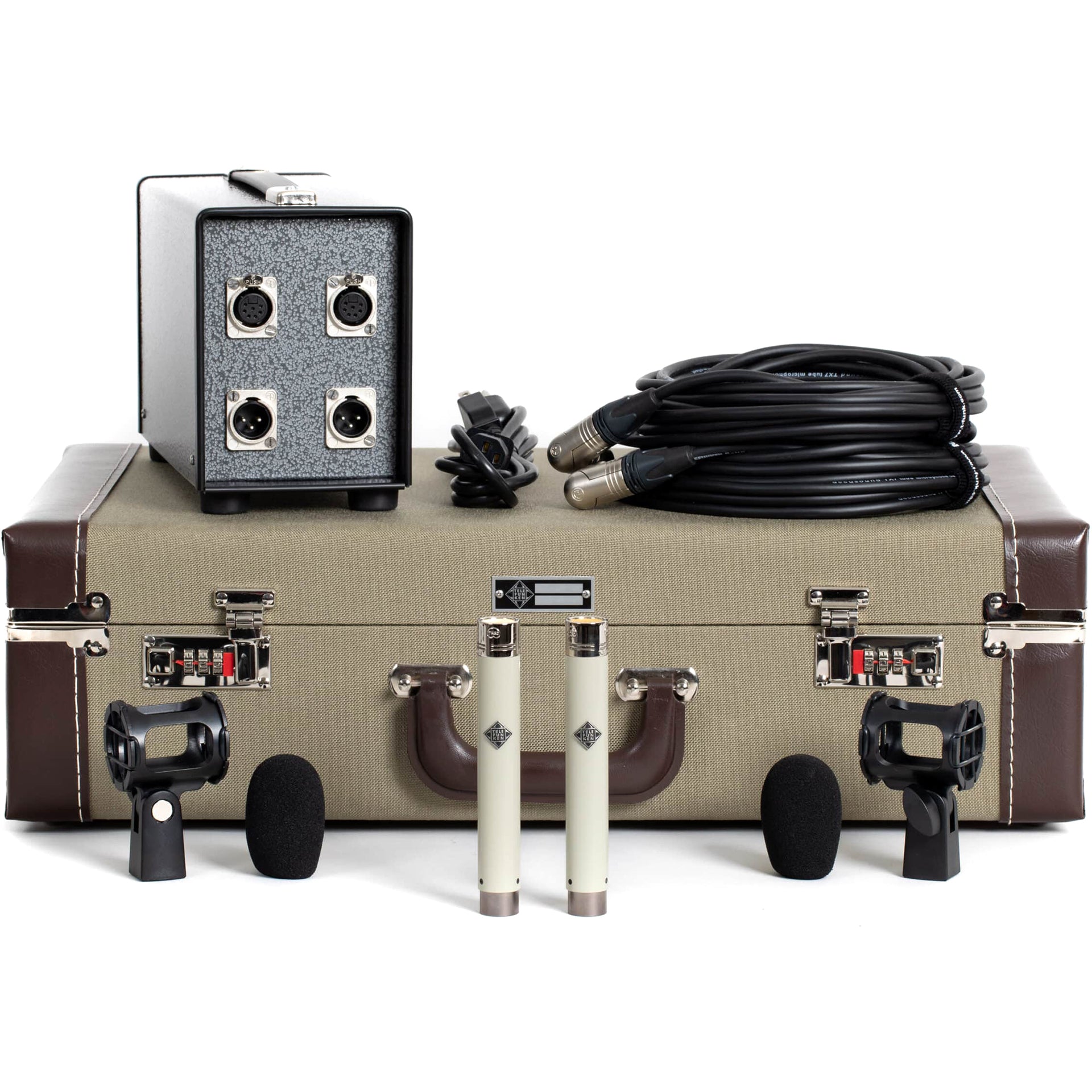

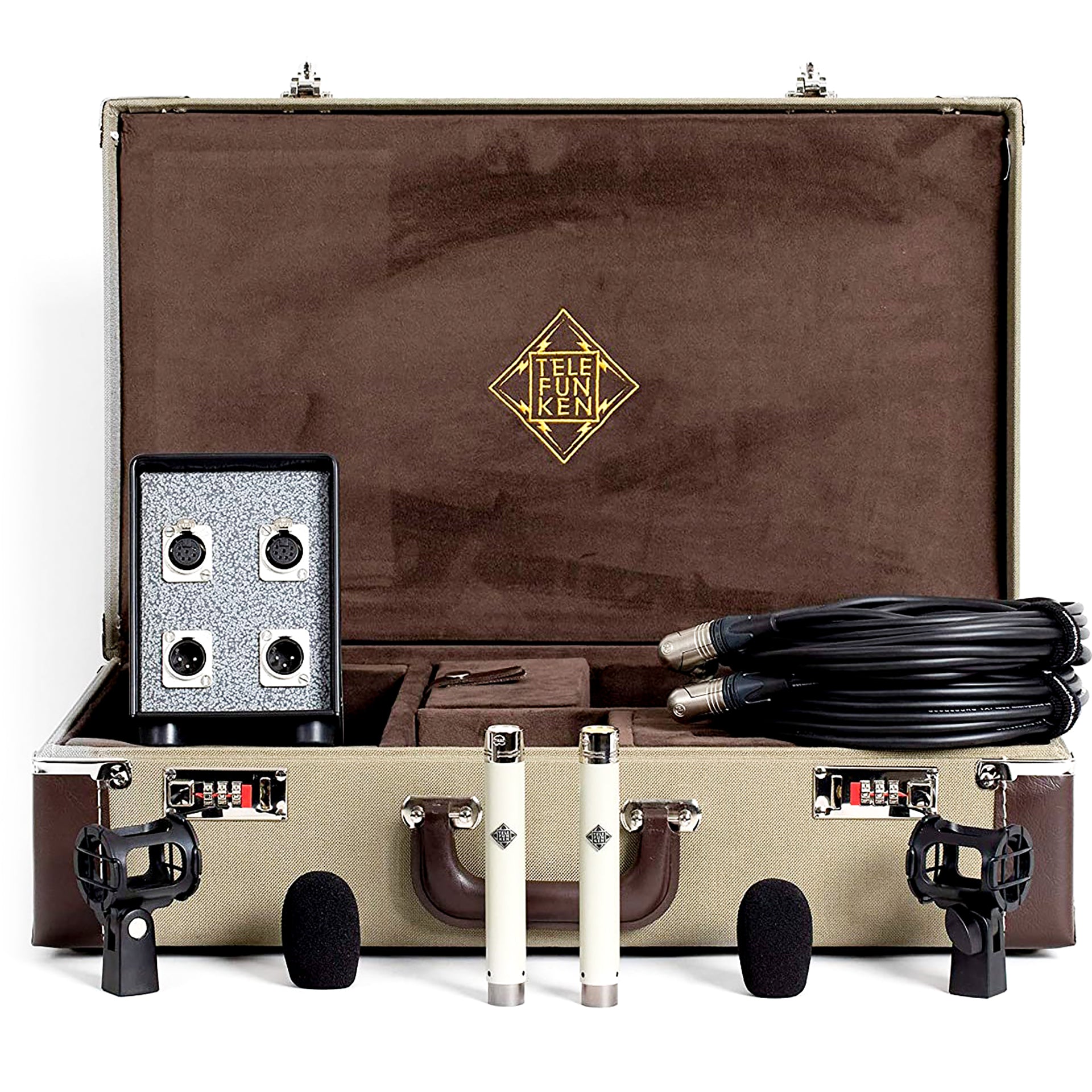

The matched ELA M 260 Stereo Set comes in a custom locking flight case that carries both M 860 cables, M 761 shock mounts, microphones, and an American-made dual-channel M 960S power supply unit. This power supply is fully regulated and will power one or both microphones simultaneously, and features a slow-ramping heater voltage to ensure vacuum tube longevity.

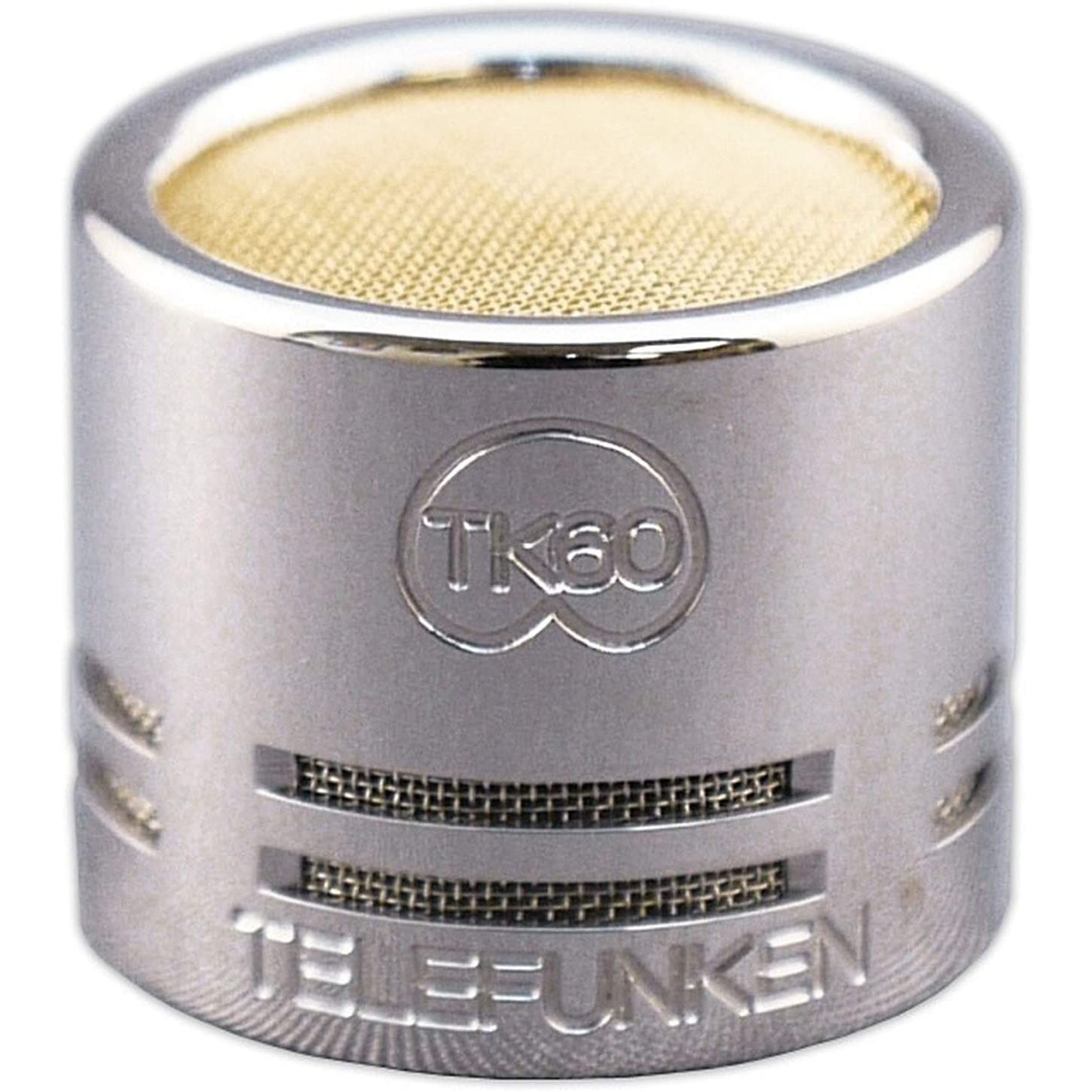

The ELA M 260 Stereo Sets also features interchangeable capsules: the TK60 Cardioid, TK61 Omnidirectional, and TK62 Hypercardioid, so the user can have the flexibility to record their source material in any way they wish. The ELA M 260 Stereo Set offers the user the knowledge and comfort that the tools they are using will give identical responses for their most important stereo recording.
Product Name | Telefunken ELA M 260 Cardioid Stereo Set Small Diaphragm Vacuum Tube Microphones |
---|---|
Brand | Telefunken |
Condition | New |
MPN | ELAM260CARDIOIDSTEREOSET |
UPC | 810047032977 |
Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- 2x M 260 Tube Microphones
- 2x TK60 Cardioid Capsules
- M 960S Power Supply
- 2x M 860 Right Angle 7-Pin XLR Tube Microphone Cable – 7m
- 2x M 761 Elastic Shock Mounts
- 2x WS20 20mm Foam Windscreen
- FC60S Locking Flight Case
- A brilliant combination of tube warmth and small-diaphragm precision
- Flattering tone and open top end complements most acoustic instruments
- Thread-on TK6x Series capsules provide Cardioid, Hypercardioid, and Omni polar patterns
- Vintage-inspired 5840W vacuum tube-based amplifier
- Designed and hand assembled in the USA
- Recommended Applications: Acoustic Guitar, Violin, Mandolin, Drum Overheads
Microphone Specifications |
|
Type | Vacuum Tube Condenser |
Polar Pattern | Cardioid, Omnidirectional, Hypercardioid |
Frequency Range | 20 Hz – 20 kHz, ±3 dB |
Power Source | External Power Supply |
Capsule | TK60, TK61, TK62 – Edge Terminated Small Diaphragm, Thread-on |
Tube | NOS Philips 5840W |
Transformer | TELEFUNKEN Elektroakustik T60 |
Sensitivity | 16.5 mV/Pa, ±1 dB |
THD at 1kHz at 1Pa (Amplifier) | < 0.15% |
Output Impedance | 200 Ω |
Maximum SPL (for 1% THD) | 135 dB |
S/N Ratio | 83 dBA |
Self Noise (Amplifier) | 11 dBA |
Dimensions | 140 mm L x 20 mm Dia |
Weight | 116 g |
Included Accessories | Tube Mic Cable, Power Supply, Shock Mount, Foam Windscreen, Carrying Case |
Telefunken ELA M 260 Cardioid Stereo Set Small Diaphragm Vacuum Tube Microphones
The small diaphragm ELA M 260 has become a staple for use in a multitude of recording applications due to its natural presence and high level of detail and clarity, especially in acoustic and classical applications. Keeping this in mind, TELEFUNKEN Elektroakustik is now offering the ELA M 260 Cardioid as a matched stereo set.
The matched ELA M 260 Stereo Set comes in a custom locking flight case that carries both M 860 cables, M 761 shock mounts, microphones, and an American-made dual-channel M 960S power supply unit. This power supply is fully regulated and will power one or both microphones simultaneously, and features a slow-ramping heater voltage to ensure vacuum tube longevity.
The ELA M 260 Stereo Sets also features interchangeable capsules: the TK60 Cardioid, TK61 Omnidirectional, and TK62 Hypercardioid, so the user can have the flexibility to record their source material in any way they wish. The ELA M 260 Stereo Set offers the user the knowledge and comfort that the tools they are using will give identical responses for their most important stereo recording.
Product Name | Telefunken ELA M 260 Cardioid Stereo Set Small Diaphragm Vacuum Tube Microphones |
---|---|
Brand | Telefunken |
Condition | New |
MPN | ELAM260CARDIOIDSTEREOSET |
UPC | 810047032977 |
Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- 2x M 260 Tube Microphones
- 2x TK60 Cardioid Capsules
- M 960S Power Supply
- 2x M 860 Right Angle 7-Pin XLR Tube Microphone Cable – 7m
- 2x M 761 Elastic Shock Mounts
- 2x WS20 20mm Foam Windscreen
- FC60S Locking Flight Case
- A brilliant combination of tube warmth and small-diaphragm precision
- Flattering tone and open top end complements most acoustic instruments
- Thread-on TK6x Series capsules provide Cardioid, Hypercardioid, and Omni polar patterns
- Vintage-inspired 5840W vacuum tube-based amplifier
- Designed and hand assembled in the USA
- Recommended Applications: Acoustic Guitar, Violin, Mandolin, Drum Overheads
Microphone Specifications |
|
Type | Vacuum Tube Condenser |
Polar Pattern | Cardioid, Omnidirectional, Hypercardioid |
Frequency Range | 20 Hz – 20 kHz, ±3 dB |
Power Source | External Power Supply |
Capsule | TK60, TK61, TK62 – Edge Terminated Small Diaphragm, Thread-on |
Tube | NOS Philips 5840W |
Transformer | TELEFUNKEN Elektroakustik T60 |
Sensitivity | 16.5 mV/Pa, ±1 dB |
THD at 1kHz at 1Pa (Amplifier) | < 0.15% |
Output Impedance | 200 Ω |
Maximum SPL (for 1% THD) | 135 dB |
S/N Ratio | 83 dBA |
Self Noise (Amplifier) | 11 dBA |
Dimensions | 140 mm L x 20 mm Dia |
Weight | 116 g |
Included Accessories | Tube Mic Cable, Power Supply, Shock Mount, Foam Windscreen, Carrying Case |
