Telefunken M60 FET Cardioid Small-Diaphragm Condenser Microphone
Telefunken M60 FET Cardioid Small-Diaphragm Condenser Microphone
+ Free Shipping
![Blink Image](https://cdn.shopify.com/s/files/1/0750/9049/3723/files/blink-2020-sq-scaled.png?v=1695807695")
Limited quantities available!
Couldn't load pickup availability
- Details
- Features
- Tech Specs
- Reviews

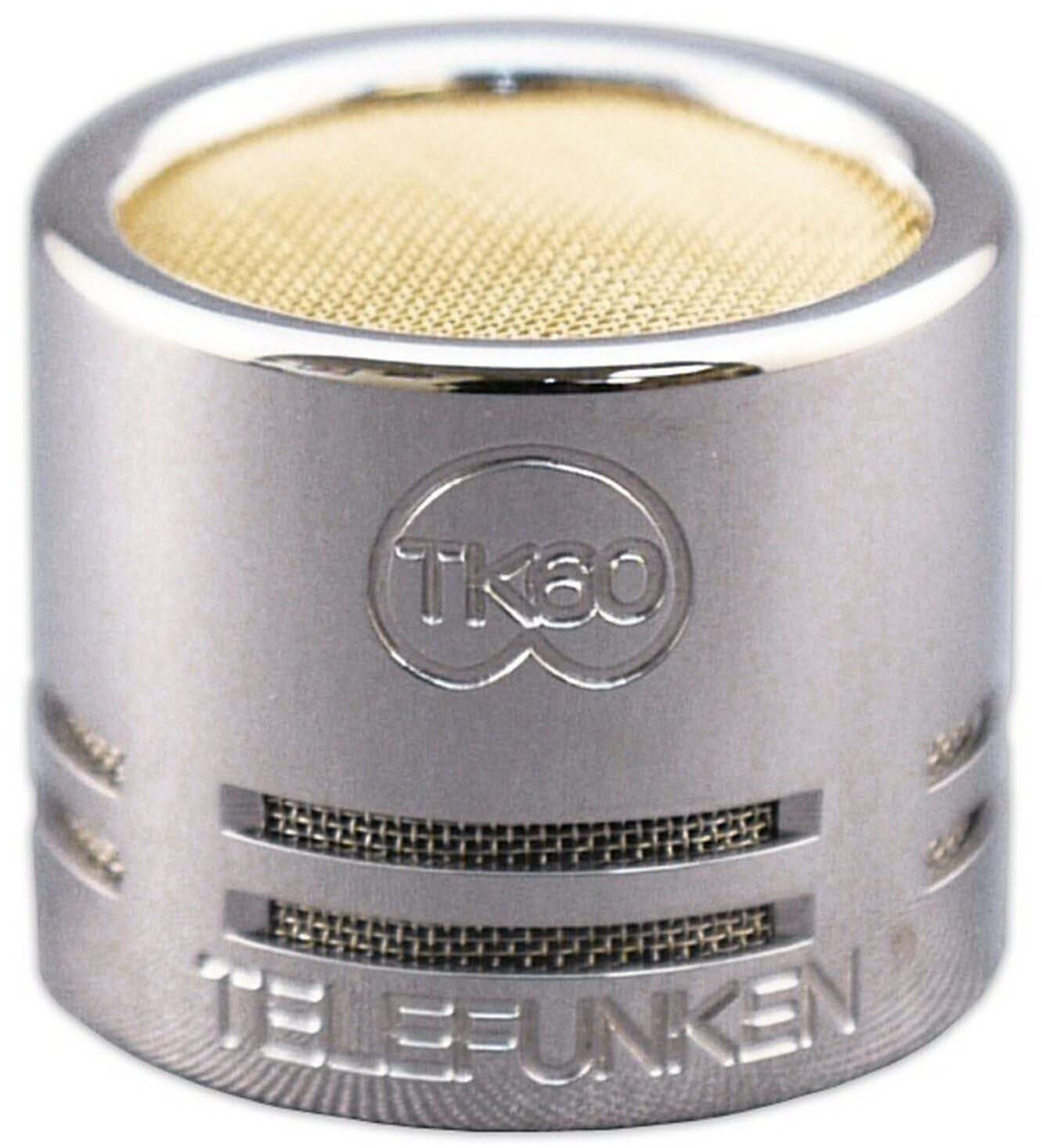

The M60 FET Cardioid package includes one M60 amplifier paired with a TK60 cardioid polar pattern capsule. The TK60 features a 6-micron gold-sputtered membrane measuring 15mm in diameter, with a surprisingly full low end, and a quick and accurate transient response. The frequency response is flat from 150 Hz to 7 kHz, with a smooth, airy presence peak at 8 kHz making it ideal for drum overheads, hi-hat and ride cymbals, piano, acoustic guitar, and other acoustic instruments.
| Product Name | Telefunken M60 FET Cardioid Small-Diaphragm Condenser Microphone |
|---|---|
| Brand | Telefunken |
| Condition | New |
| MPN | M60 |
| UPC | 858513005032 |
| Shipping Option | Free Shipping to the Continental U.S. |

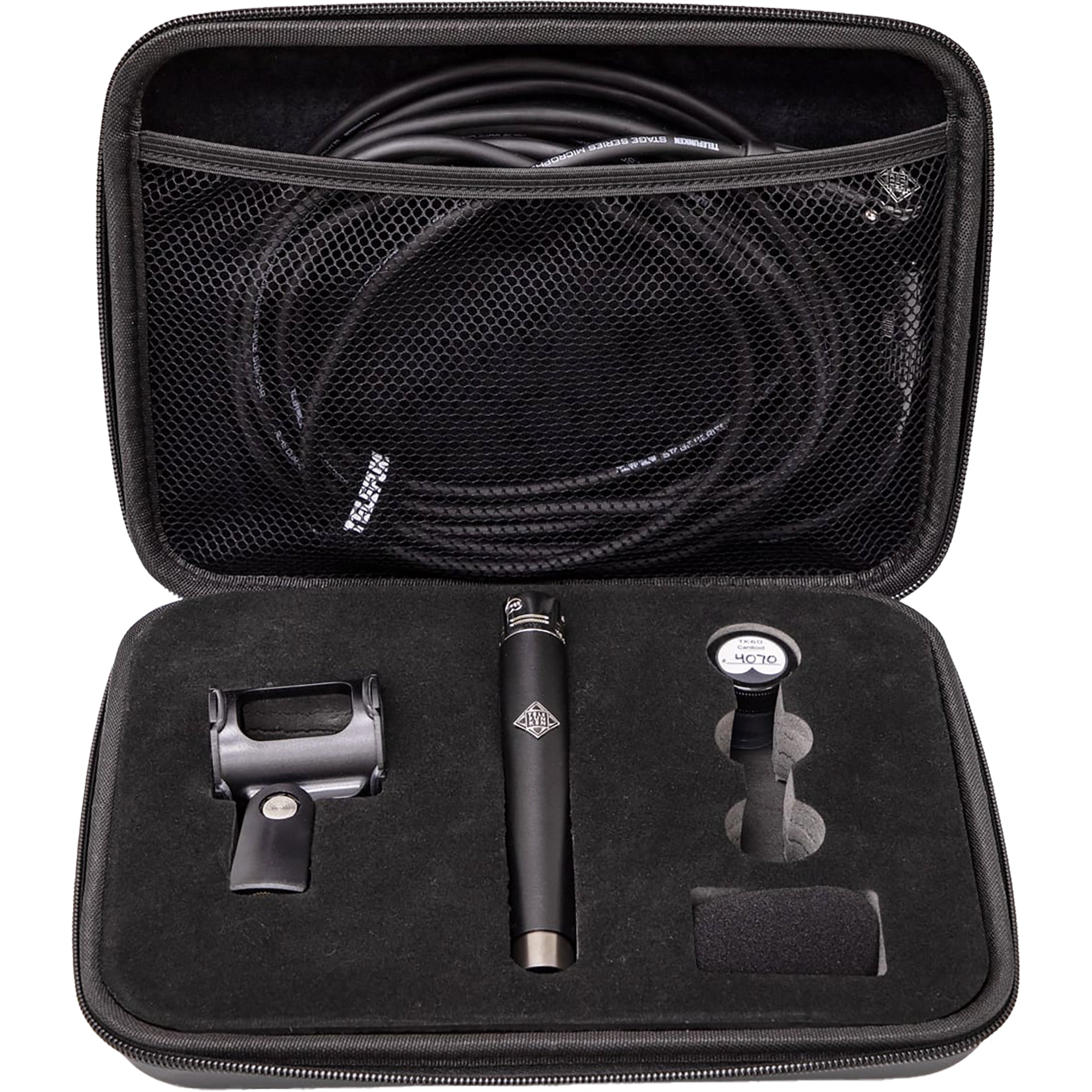

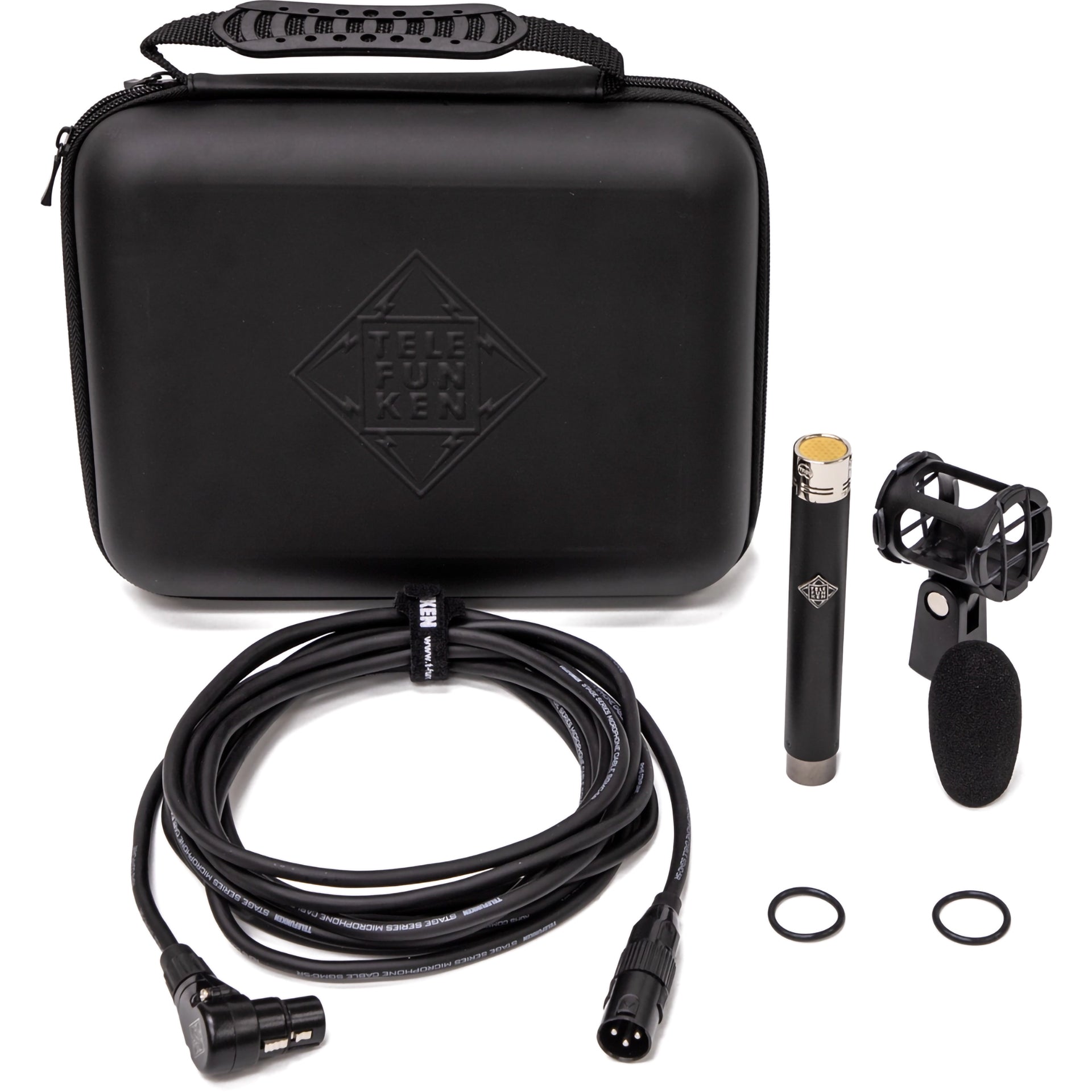

What's in the Box?
- M60 Microphone
- TK60 Cardioid Capsule
- SGMC-5R Right-Angle XLR Cable – 5m

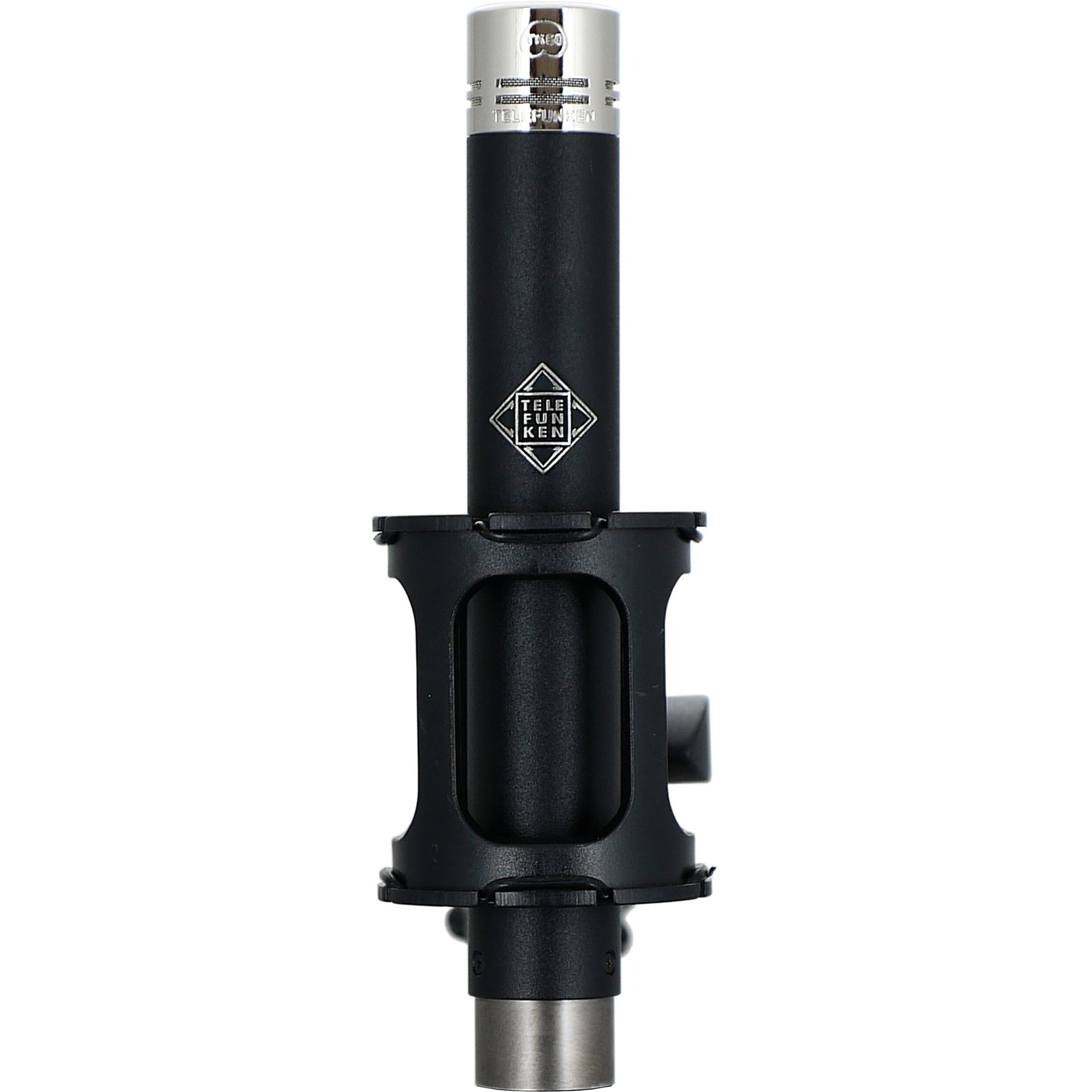

- M 761 Elastic Shock Mount
- WS20 20mm Foam Windscreen
- ZC61 Zipper Carrying Case
- Punchy tone with extended high frequency clarity and low frequency definition
- Ultra fast transient response and extended frequency range
- Thread-on TK6x Series capsules provide Cardioid, Hypercardioid, and Omni polar patterns
- High headroom, low-noise phantom-powered FET amplifier
- Designed and hand assembled in the USA
- Recommended Applications: Acoustic Guitar, Drums, Percussion, Live Sound
| Type | FET Condenser |
|---|---|
| Polar Pattern | Cardioid |
| Frequency Range | 20 Hz - 20 kHz, ±3 dB |
| Power Source | +48V Phantom Power |
| Capsule | TK60 - Edge Terminated Small Diaphragm, Thread-on |
| Transformer | TELEFUNKEN Elektroakustik T61CT |
| Sensitivity | 8.6 mV/Pa, ±1 dB |
| THD at 1kHZ at 1Pa (Amplifier) | < 0.01% |
| Output Impedance | 120 dB |
| Maximum SPL (for 1% THD) | > 130 dB |
| S/N Ratio | 89 dBA |
| Self Noise (Amplifier) | 5 dBA |
| Dimensions | 140 mm L x 20 mm Dia |
| Weight | 110 g |
| Included Accessories | Right Angle XLR Cable, Shock Mount, Foam Windscreen, Carrying Case |
Telefunken M60 FET Cardioid Small-Diaphragm Condenser Microphone
The M60 FET Cardioid package includes one M60 amplifier paired with a TK60 cardioid polar pattern capsule. The TK60 features a 6-micron gold-sputtered membrane measuring 15mm in diameter, with a surprisingly full low end, and a quick and accurate transient response. The frequency response is flat from 150 Hz to 7 kHz, with a smooth, airy presence peak at 8 kHz making it ideal for drum overheads, hi-hat and ride cymbals, piano, acoustic guitar, and other acoustic instruments.
| Product Name | Telefunken M60 FET Cardioid Small-Diaphragm Condenser Microphone |
|---|---|
| Brand | Telefunken |
| Condition | New |
| MPN | M60 |
| UPC | 858513005032 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- M60 Microphone
- TK60 Cardioid Capsule
- SGMC-5R Right-Angle XLR Cable – 5m
- M 761 Elastic Shock Mount
- WS20 20mm Foam Windscreen
- ZC61 Zipper Carrying Case
- Punchy tone with extended high frequency clarity and low frequency definition
- Ultra fast transient response and extended frequency range
- Thread-on TK6x Series capsules provide Cardioid, Hypercardioid, and Omni polar patterns
- High headroom, low-noise phantom-powered FET amplifier
- Designed and hand assembled in the USA
- Recommended Applications: Acoustic Guitar, Drums, Percussion, Live Sound
| Type | FET Condenser |
|---|---|
| Polar Pattern | Cardioid |
| Frequency Range | 20 Hz - 20 kHz, ±3 dB |
| Power Source | +48V Phantom Power |
| Capsule | TK60 - Edge Terminated Small Diaphragm, Thread-on |
| Transformer | TELEFUNKEN Elektroakustik T61CT |
| Sensitivity | 8.6 mV/Pa, ±1 dB |
| THD at 1kHZ at 1Pa (Amplifier) | < 0.01% |
| Output Impedance | 120 dB |
| Maximum SPL (for 1% THD) | > 130 dB |
| S/N Ratio | 89 dBA |
| Self Noise (Amplifier) | 5 dBA |
| Dimensions | 140 mm L x 20 mm Dia |
| Weight | 110 g |
| Included Accessories | Right Angle XLR Cable, Shock Mount, Foam Windscreen, Carrying Case |
