The M62 FET Hypercardioid Stereo Set includes two identical M60 FET amplifiers paired with a matched set of TK62 hypercardioid polar pattern capsules.

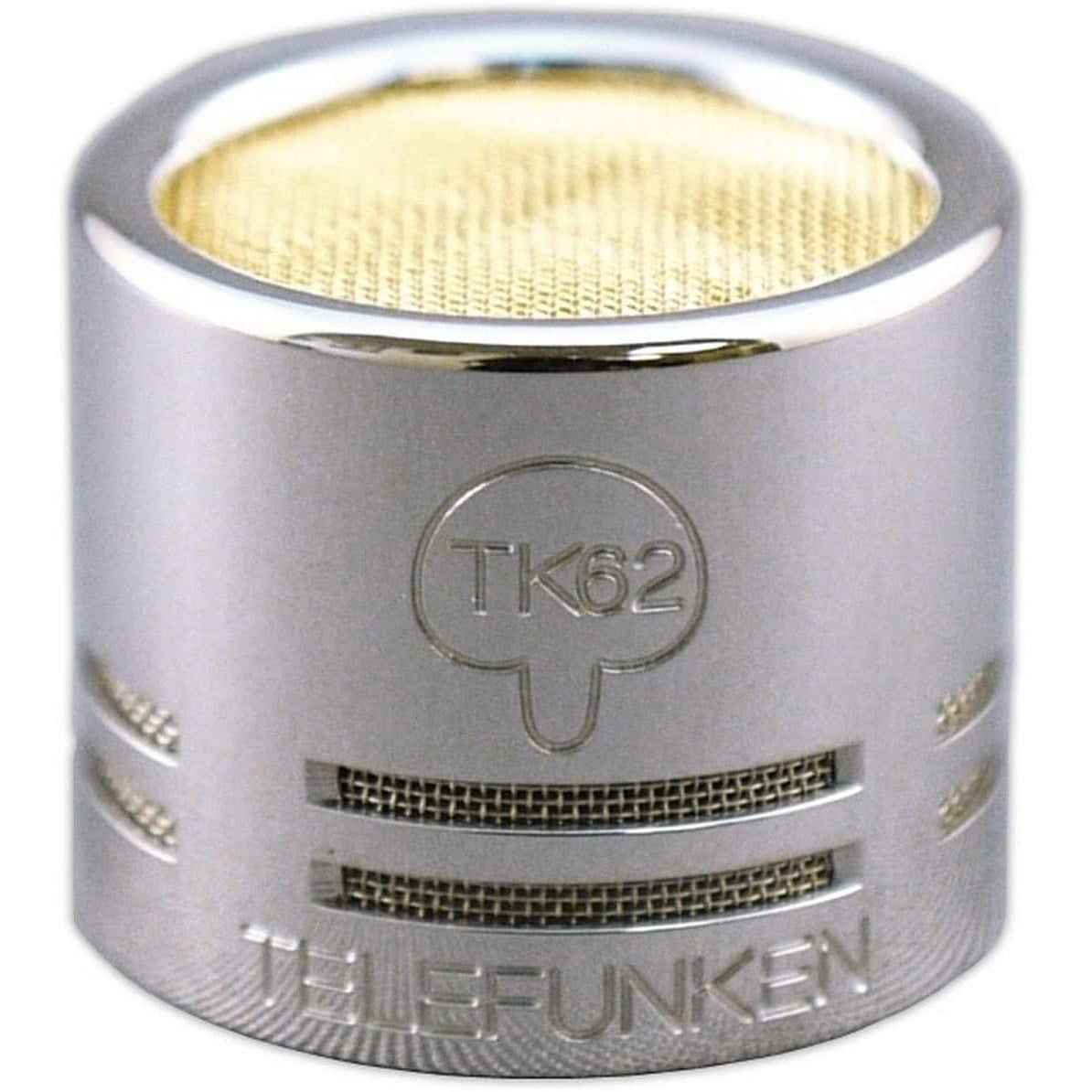

The TK62 features a 6-micron gold-sputtered membrane measuring 15mm in diameter, with a surprisingly full low end, and a quick and accurate transient response. The TK62 provides a hypercardioid pattern flat in response from 150 Hz to 3 kHz, with a dip at 6 kHz and a smooth, airy presence peak at 8 kHz.
This tightened polar pattern is great for use on cymbals, percussion, and as a stereo pair for live performance recording.
| Product Name | Telefunken M62 Hypercardioid Stereo Set FET Small Diaphragm Microphones |
|---|---|
| Brand | Telefunken |
| Condition | New |
| MPN | M62-SS |
| UPC | 858513005094 |
| Shipping Option | Free Shipping to the Continental U.S. |

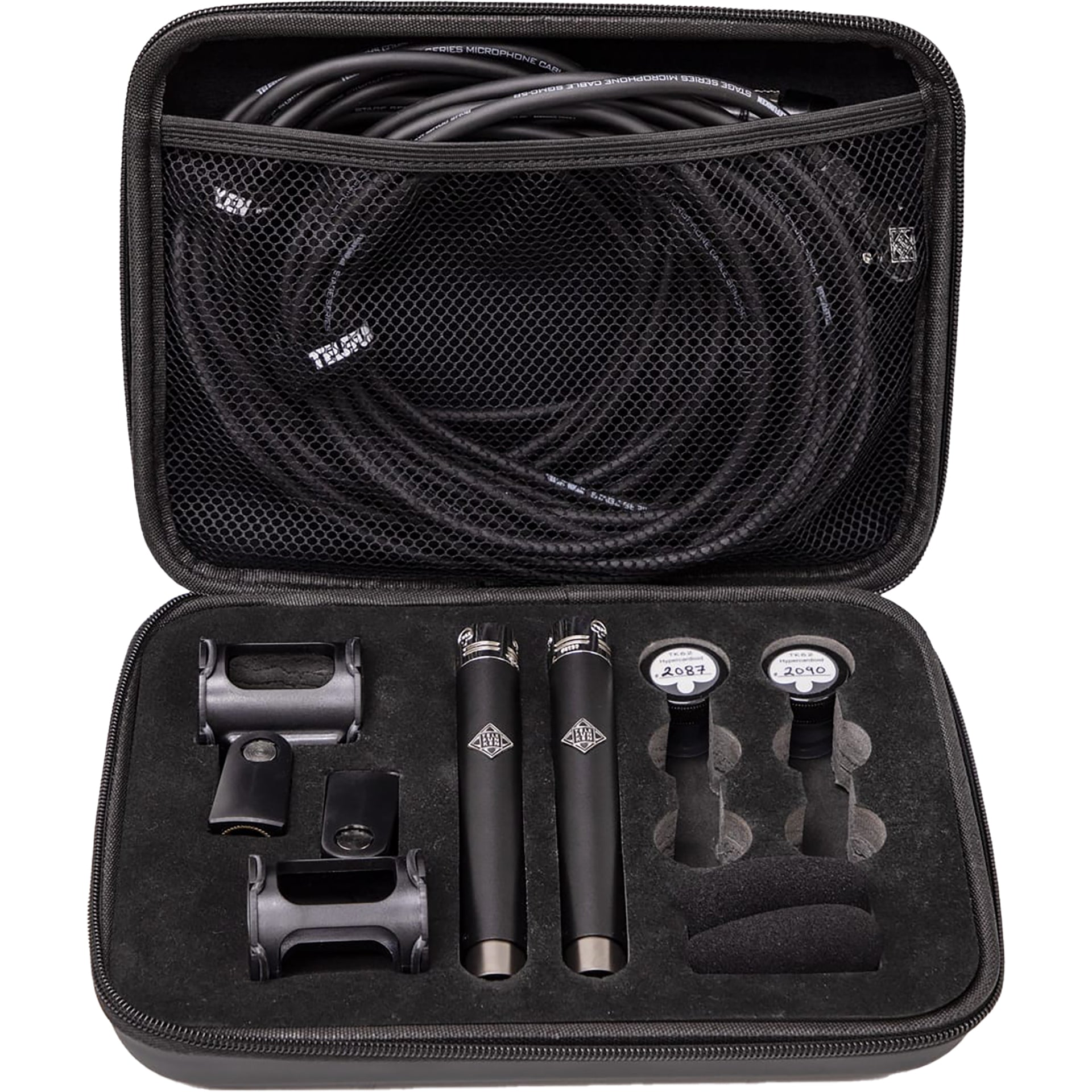

What's in the Box?
- 2x M60 Microphones
- 2x TK62 Hypercardioid Capsules
- SGMC-5R Right-Angle XLR Cable – 5m
- 2x M 761 Elastic Shock Mounts
- 2x WS20 20mm Foam Windscreens
- ZC62 Zipper Carrying Case
- Punchy tone with extended high frequency clarity and low frequency definition
- Ultra fast transient response and extended frequency range
- Thread-on TK6x Series capsules provide Cardioid, Hypercardioid, and Omni polar patterns
- High headroom, low-noise phantom-powered FET amplifier
- Designed and hand assembled in the USA
- Recommended Applications: Acoustic Guitar, Drums, Percussion, Live Sound
| Type | FET Condenser |
| Polar Pattern | Cardioid, Omnidirectional, Hypercardioid |
| Frequency Range | 20 Hz – 20 kHz, ±3 dB |
| Power Source | +48V Phantom Power |
| Capsule | TK60, TK61, TK62 – Edge Terminated Small Diaphragm, Thread-on |
| Transformer | TELEFUNKEN Elektroakustik T61CT |
| Sensitivity | 10 mV/Pa, ±1 dB |
| THD at 1 kHz at 1 Pa (Amplifier) | < 0.01% |
| Output Impedance | 120 Ω |
| Maximum SPL (for 1% THD) | > 135 dB |
| S/N Ratio | 89 dBA |
| Self Noise (Amplifier) | 5 dBA |
| Dimensions | 140 mm L x 20 mm Dia |
| Weight | 110 g |
| Included Accessories | Right Angle XLR Cable, Shock Mount, Foam Windscreen, Carrying Case |
Telefunken M62 Hypercardioid Stereo Set FET Small Diaphragm Microphones
The M62 FET Hypercardioid Stereo Set includes two identical M60 FET amplifiers paired with a matched set of TK62 hypercardioid polar pattern capsules.
The TK62 features a 6-micron gold-sputtered membrane measuring 15mm in diameter, with a surprisingly full low end, and a quick and accurate transient response. The TK62 provides a hypercardioid pattern flat in response from 150 Hz to 3 kHz, with a dip at 6 kHz and a smooth, airy presence peak at 8 kHz.
This tightened polar pattern is great for use on cymbals, percussion, and as a stereo pair for live performance recording.
| Product Name | Telefunken M62 Hypercardioid Stereo Set FET Small Diaphragm Microphones |
|---|---|
| Brand | Telefunken |
| Condition | New |
| MPN | M62-SS |
| UPC | 858513005094 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- 2x M60 Microphones
- 2x TK62 Hypercardioid Capsules
- SGMC-5R Right-Angle XLR Cable – 5m
- 2x M 761 Elastic Shock Mounts
- 2x WS20 20mm Foam Windscreens
- ZC62 Zipper Carrying Case
- Punchy tone with extended high frequency clarity and low frequency definition
- Ultra fast transient response and extended frequency range
- Thread-on TK6x Series capsules provide Cardioid, Hypercardioid, and Omni polar patterns
- High headroom, low-noise phantom-powered FET amplifier
- Designed and hand assembled in the USA
- Recommended Applications: Acoustic Guitar, Drums, Percussion, Live Sound
| Type | FET Condenser |
| Polar Pattern | Cardioid, Omnidirectional, Hypercardioid |
| Frequency Range | 20 Hz – 20 kHz, ±3 dB |
| Power Source | +48V Phantom Power |
| Capsule | TK60, TK61, TK62 – Edge Terminated Small Diaphragm, Thread-on |
| Transformer | TELEFUNKEN Elektroakustik T61CT |
| Sensitivity | 10 mV/Pa, ±1 dB |
| THD at 1 kHz at 1 Pa (Amplifier) | < 0.01% |
| Output Impedance | 120 Ω |
| Maximum SPL (for 1% THD) | > 135 dB |
| S/N Ratio | 89 dBA |
| Self Noise (Amplifier) | 5 dBA |
| Dimensions | 140 mm L x 20 mm Dia |
| Weight | 110 g |
| Included Accessories | Right Angle XLR Cable, Shock Mount, Foam Windscreen, Carrying Case |
