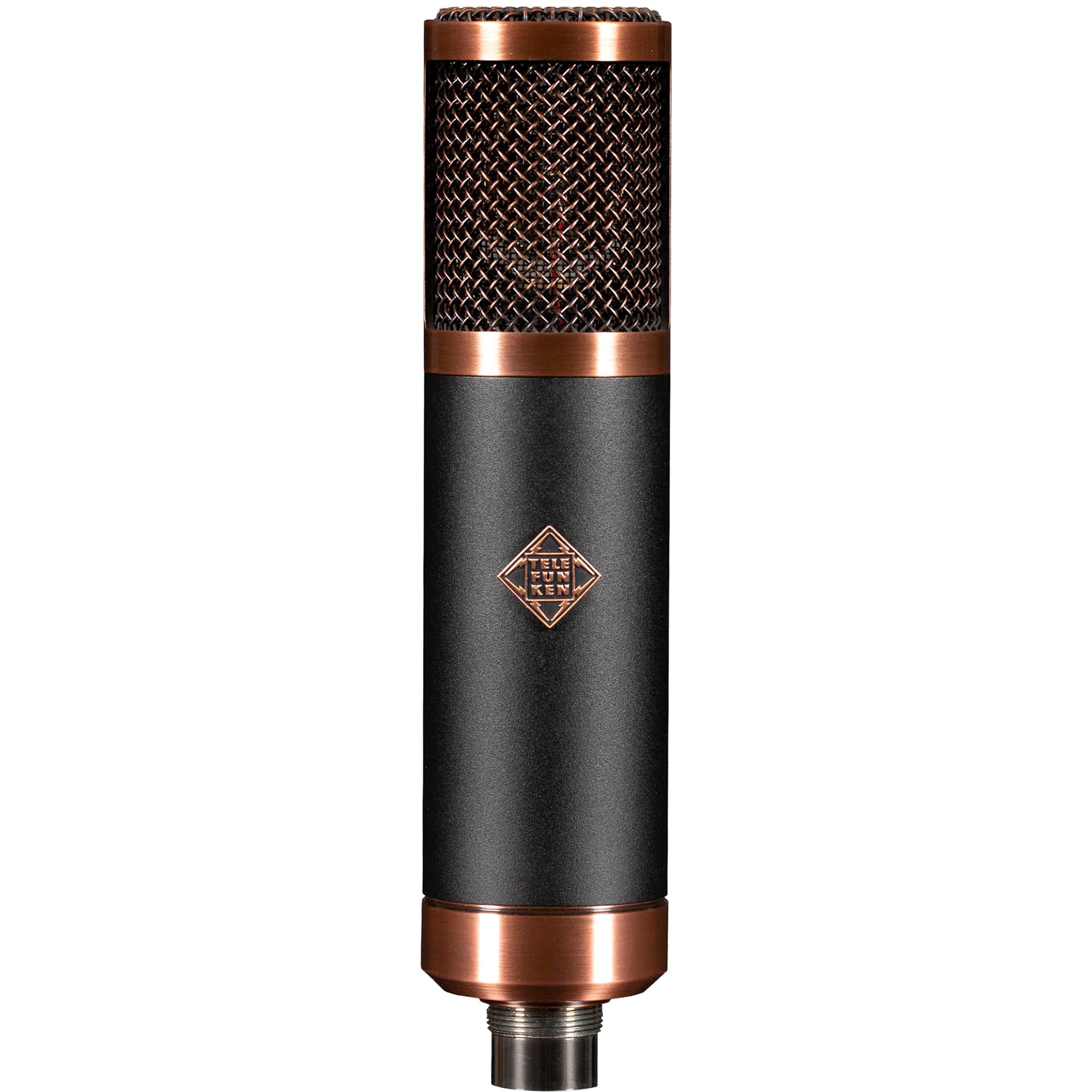

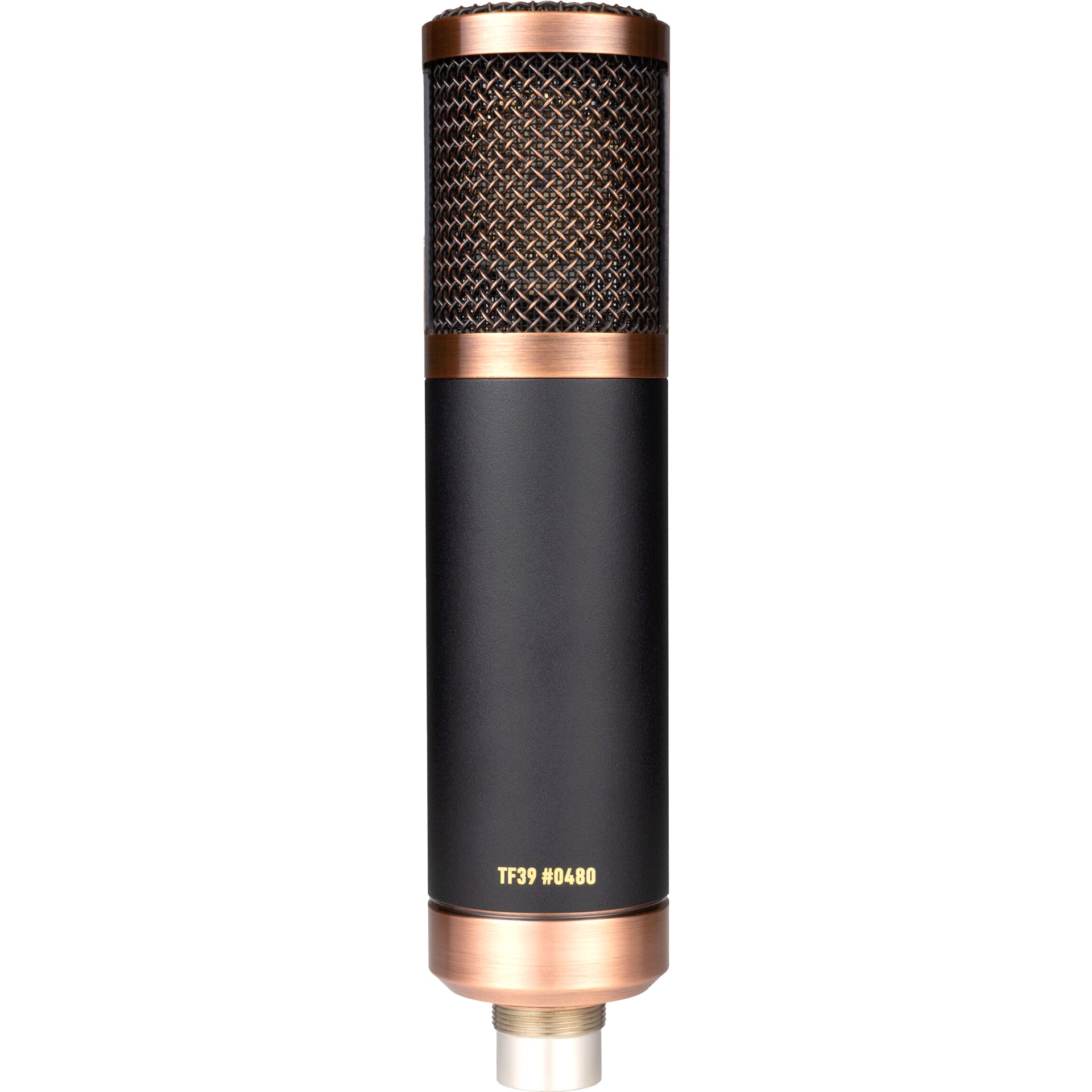

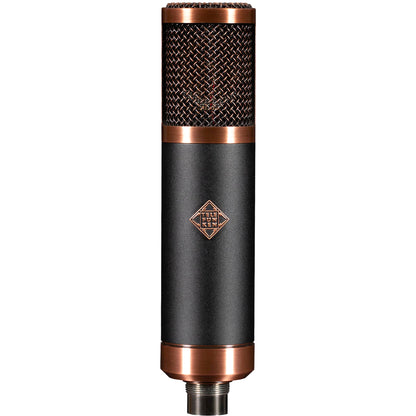

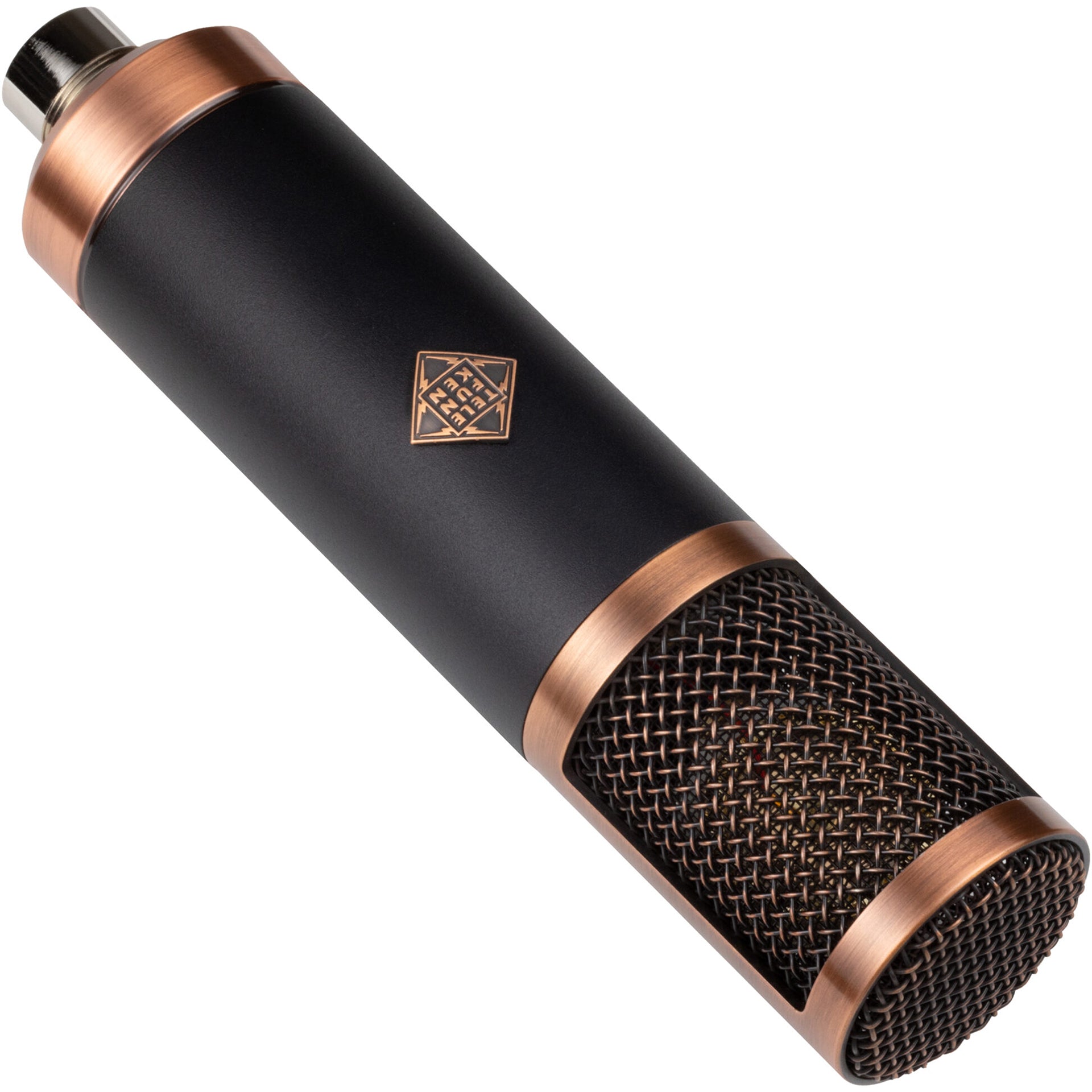

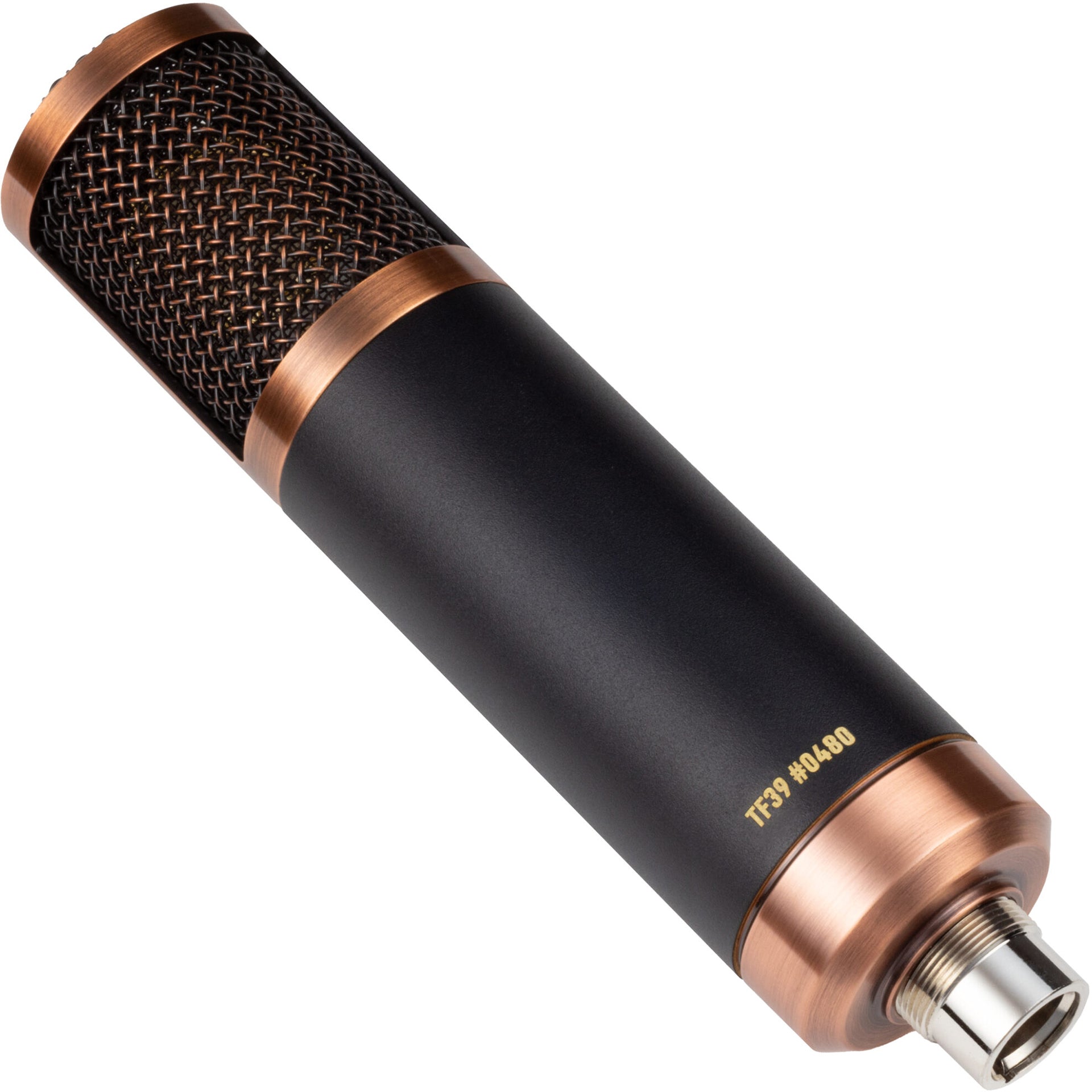

The TF39 Copperhead Deluxe is an expansion of the “Copperhead” sound with the addition of a dual membrane K67-style capsule, allowing for 3-pattern selection between cardioid, omnidirectional, and figure-8. This added feature set gives the TF39 greater flexibility and options in the studio. Sonically and component-wise, the two microphones are otherwise the same.
The TF39 features a new old stock American-made 5654W vacuum tube, all-brass K67-style capsule, and a premium Swedish-made Lundahl output transformer. These components create a balanced frequency response and natural tonality, making the TF39 a trusty go-to choice.
Applications
- Natural vocals, bluegrass, folk, and Americana styles
- Electric guitar
- Drums: Kick Out, Overheads, & Room
- Saxophone
- Upright piano
- Banjo
| Product Name | Telefunken TF39 Copperhead Deluxe Large-Diaphragm Tube Condenser Microphone |
|---|---|
| Brand | Telefunken |
| Condition | New |
| MPN | TF39 |
| UPC | 810047032755 |
| Shipping Option | Free Shipping to the Continental U.S. |

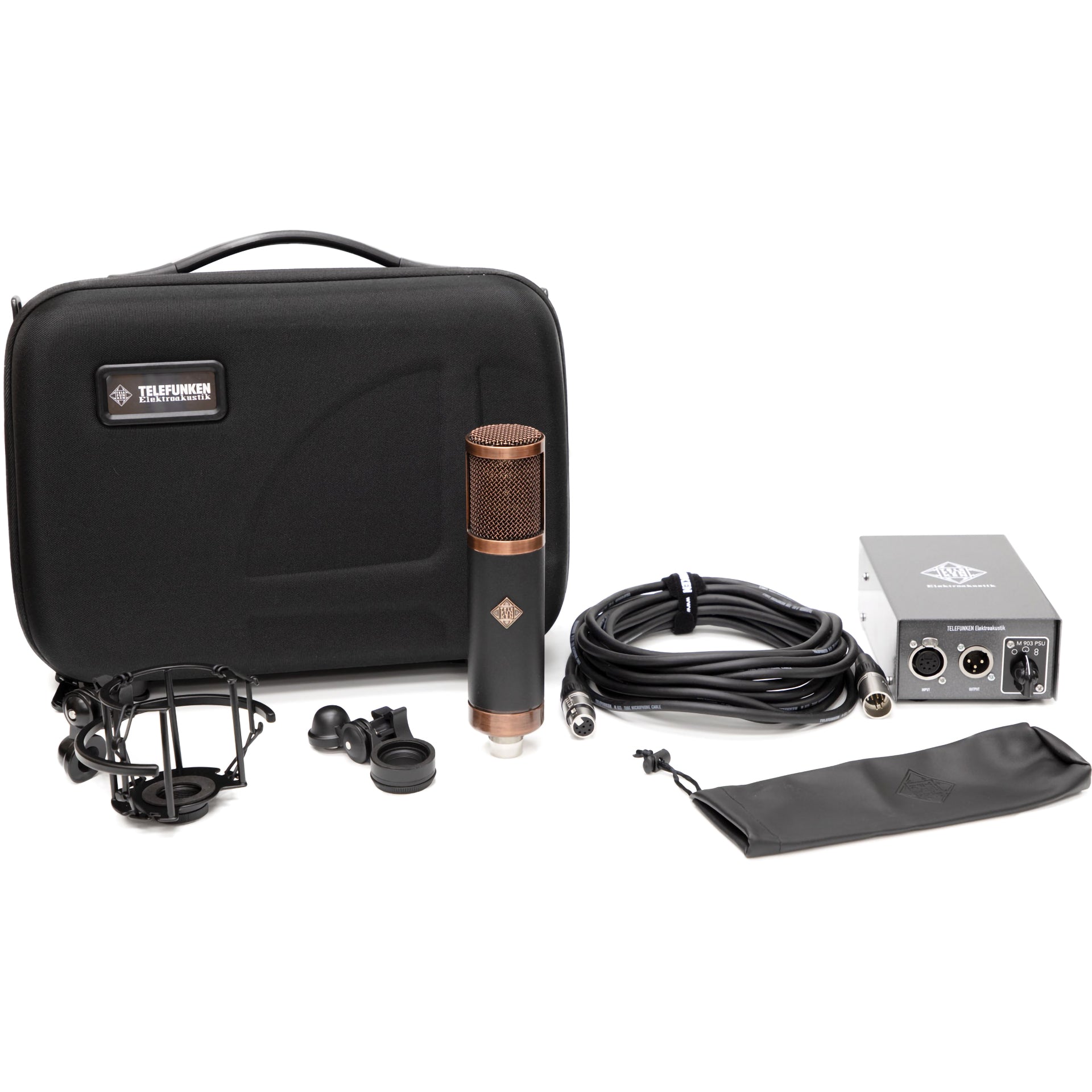

What's in the Box?
- Telefunken TF39 Large-Diaphragm Tube Condenser Microphone

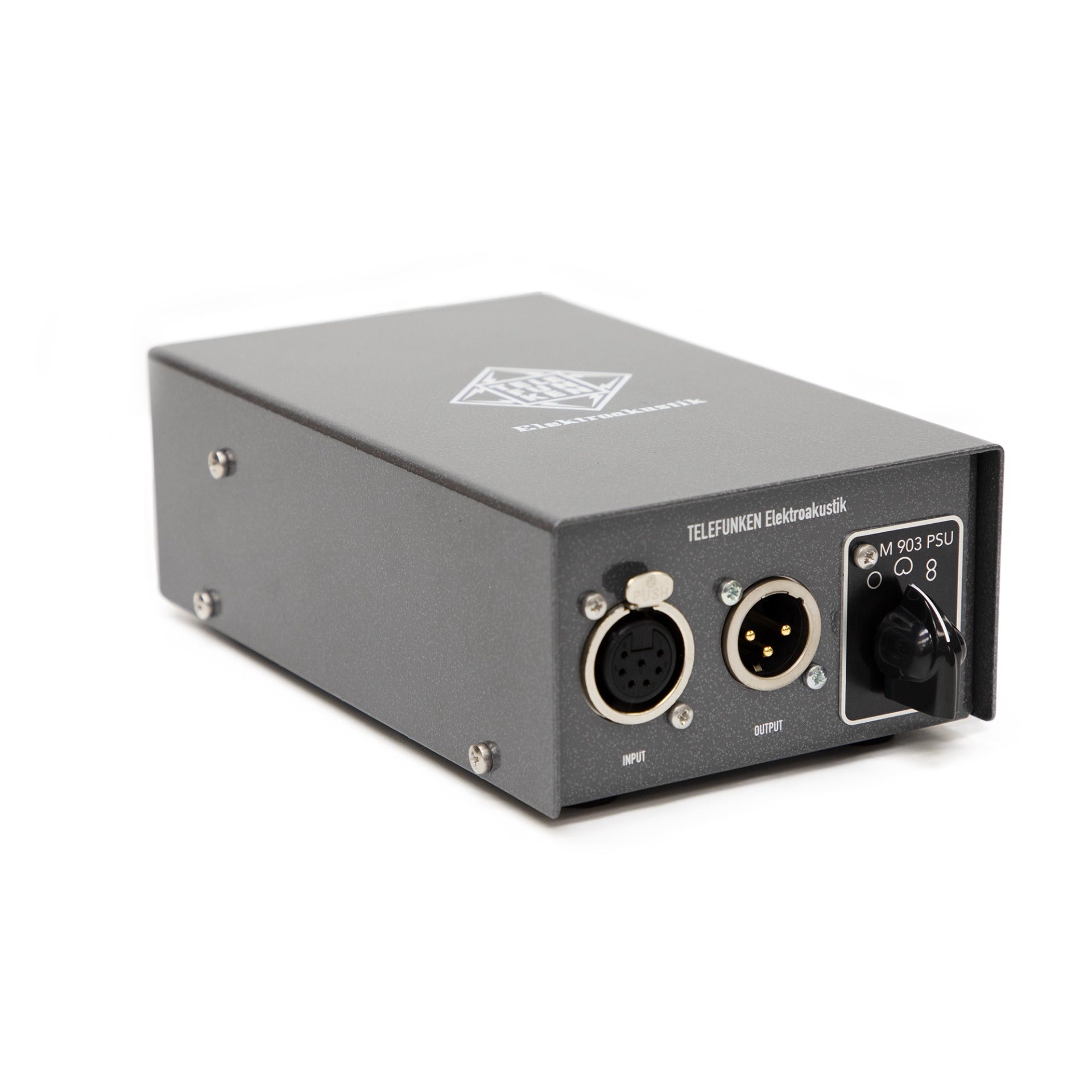

- M 903 Power Supply

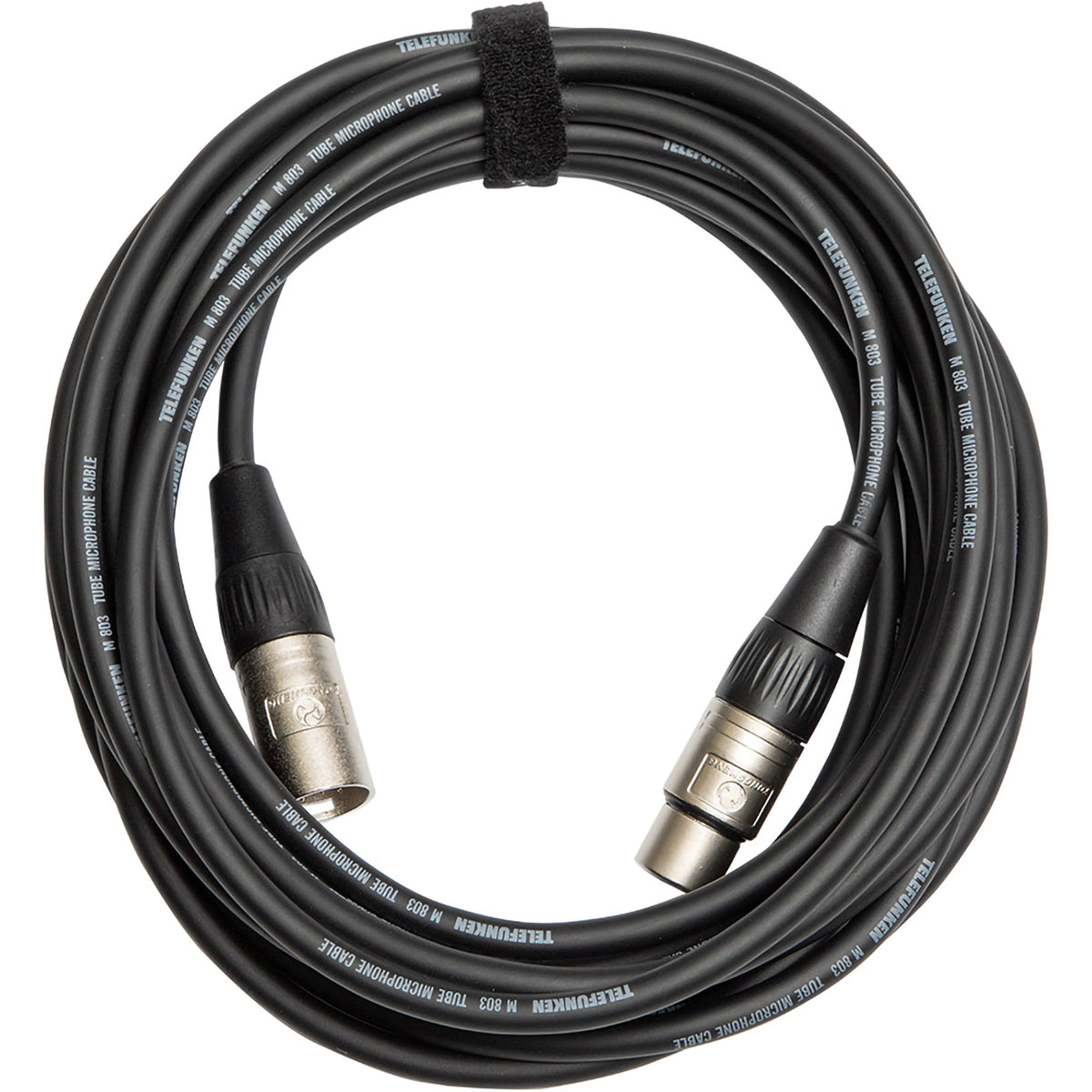

- M 803 Tube Microphone Cable

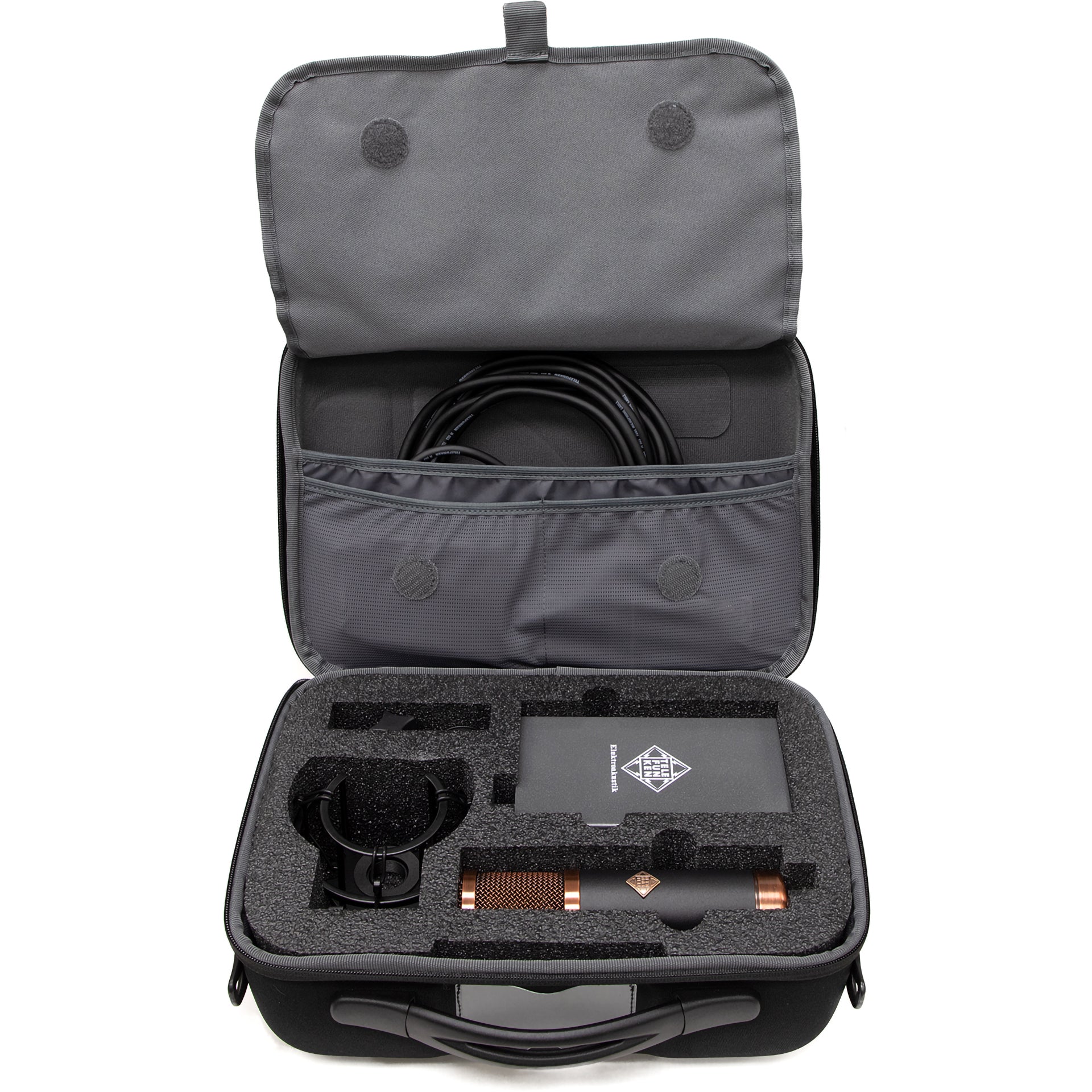

- ZC03 Shell Case

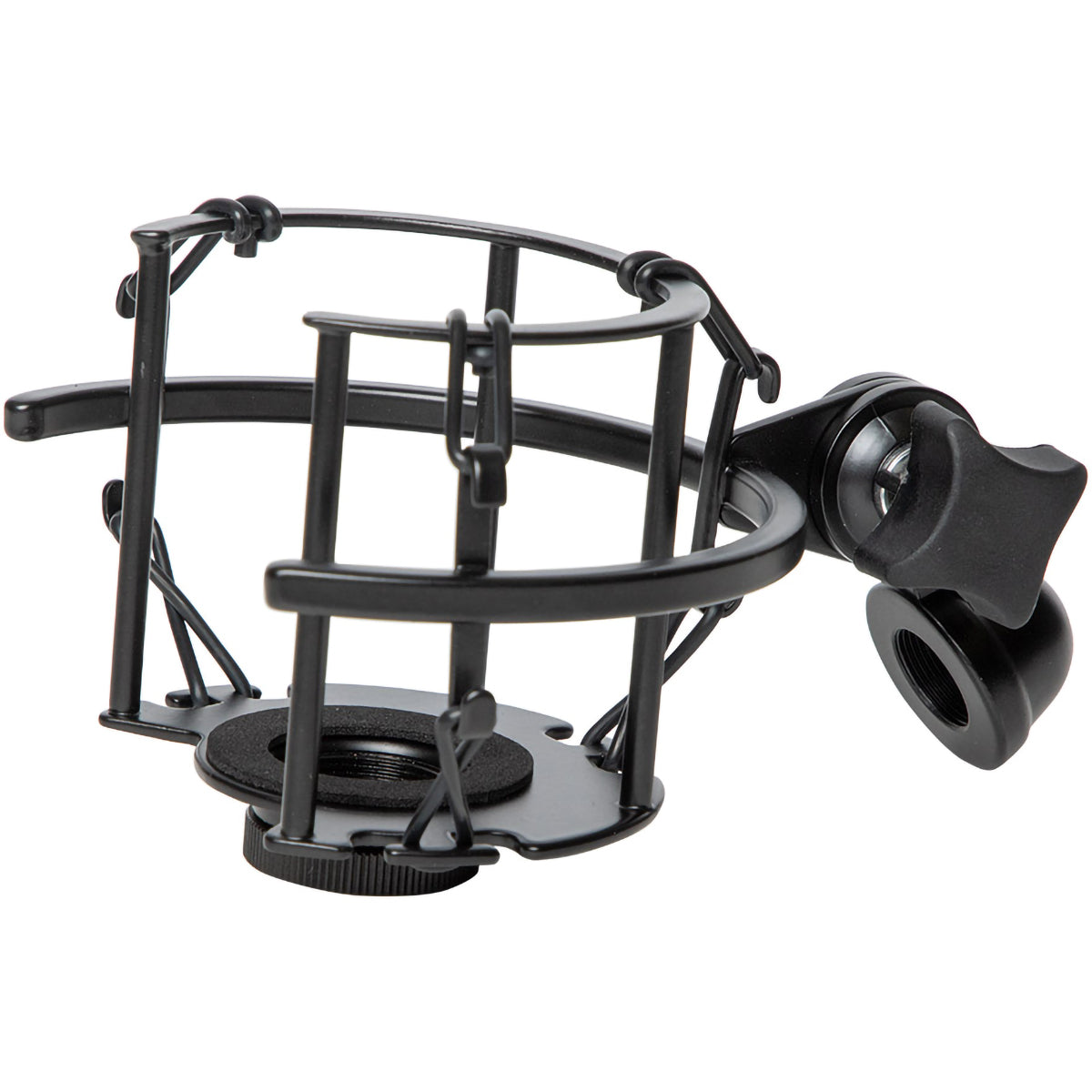

- M 703 Shock Mount

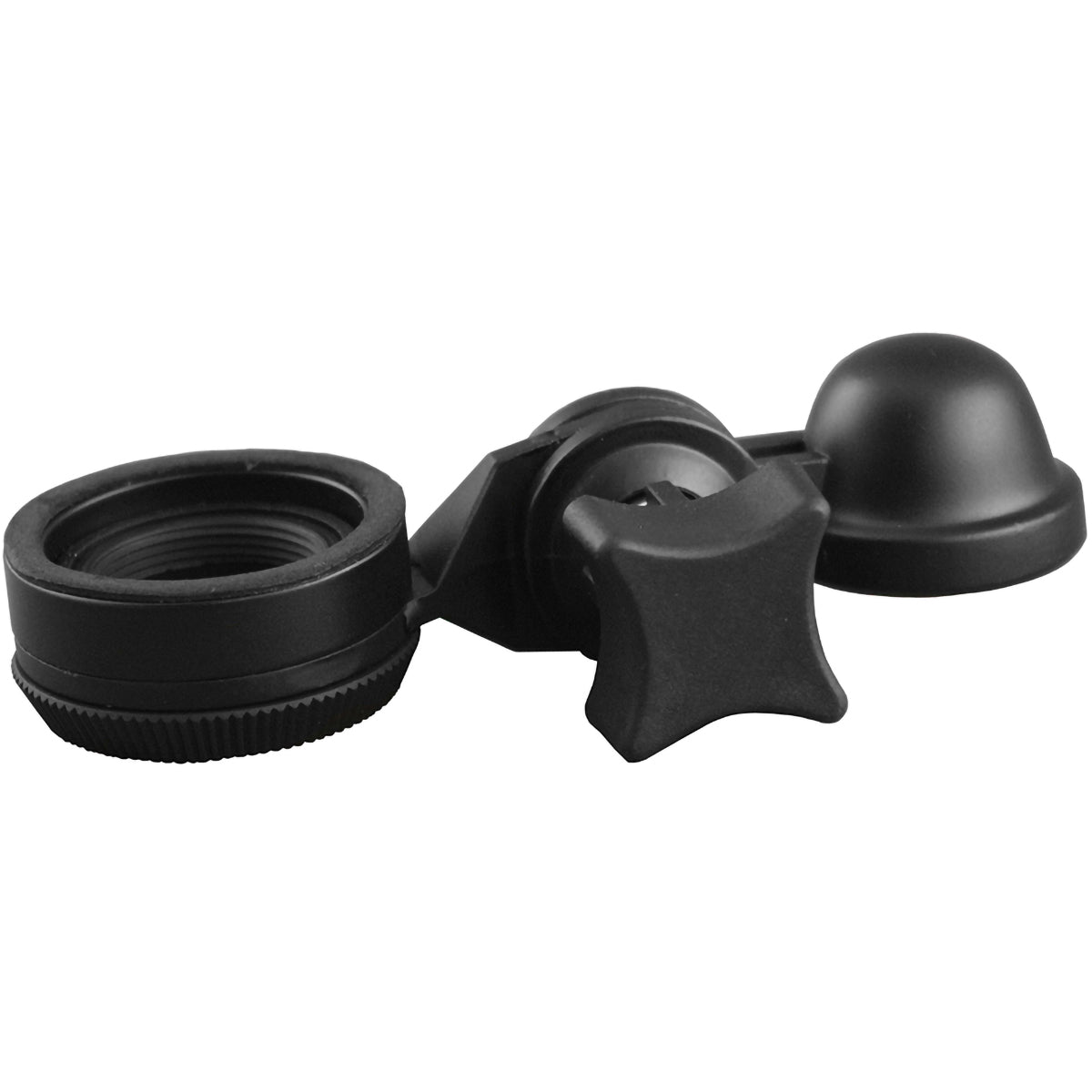

- M 782 Stand Mount
- Microphone Sleeve
- Balanced, natural midrange and high end
- Extended low frequency response
- Cardioid, Omni, and Figure 8 polar pattern selection
- Premium Swedish-made Lundahl output transformer
- New Old Stock General Electric 5654W vacuum tube
- Designed and hand assembled in the USA
- Recommended Applications: Vocals, Guitar Amps, Saxophone, Drum Overheads
| Type | Vacuum Tube Condenser |
| Polar Pattern | Cardioid, Omnidirectional, Figure-8 |
| Frequency Range | 20 Hz – 20 kHz, ±3 dB |
| Power Source | External Power Supply |
| Capsule | TK67 Center Terminated Large Diaphragm |
| Tube | NOS GE 5654W |
| Transformer | Lundahl LL1935 |
| Sensitivity | 17 mV/Pa, ±1 dB |
| THD at 1kHZ at 1Pa (Amplifier) | < 0.3% |
| Output Impedance | < 300 Ω |
| Maximum SPL (for 1% THD) | 130 dB |
| S/N Ratio | 87 dBA |
| Self Noise (Amplifier) | 7 dBA |
| Dimensions | 200 mm L x 46 mm Dia |
| Weight | 650 g |
| Included Accessories | Tube Mic Cable, Power Supply, Shock Mount, Stand Mount, Mic Sleeve, Carrying Case |
The TF39 Copperhead Deluxe is an expansion of the “Copperhead” sound with the addition of a dual membrane K67-style capsule, allowing for 3-pattern selection between cardioid, omnidirectional, and figure-8. This added feature set gives the TF39 greater flexibility and options in the studio. Sonically and component-wise, the two microphones are otherwise the same.
The TF39 features a new old stock American-made 5654W vacuum tube, all-brass K67-style capsule, and a premium Swedish-made Lundahl output transformer. These components create a balanced frequency response and natural tonality, making the TF39 a trusty go-to choice.
Applications
- Natural vocals, bluegrass, folk, and Americana styles
- Electric guitar
- Drums: Kick Out, Overheads, & Room
- Saxophone
- Upright piano
- Banjo
| Product Name | Telefunken TF39 Copperhead Deluxe Large-Diaphragm Tube Condenser Microphone |
|---|---|
| Brand | Telefunken |
| Condition | New |
| MPN | TF39 |
| UPC | 810047032755 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- TF39 Microphone
- M 903 Power Supply
- M 803 Tube Microphone Cable – 7m
- ZC03 Zipper Case
- M 703 Shock Mount
- M 782 Stand Mount
- MS01 Microphone Sleeve
- Balanced, natural midrange and high end
- Extended low frequency response
- Cardioid, Omni, and Figure 8 polar pattern selection
- Premium Swedish-made Lundahl output transformer
- New Old Stock General Electric 5654W vacuum tube
- Designed and hand assembled in the USA
- Recommended Applications: Vocals, Guitar Amps, Saxophone, Drum Overheads
| Type | Vacuum Tube Condenser |
| Polar Pattern | Cardioid, Omnidirectional, Figure-8 |
| Frequency Range | 20 Hz – 20 kHz, ±3 dB |
| Power Source | External Power Supply |
| Capsule | TK67 Center Terminated Large Diaphragm |
| Tube | NOS GE 5654W |
| Transformer | Lundahl LL1935 |
| Sensitivity | 17 mV/Pa, ±1 dB |
| THD at 1kHZ at 1Pa (Amplifier) | < 0.3% |
| Output Impedance | < 300 Ω |
| Maximum SPL (for 1% THD) | 130 dB |
| S/N Ratio | 87 dBA |
| Self Noise (Amplifier) | 7 dBA |
| Dimensions | 200 mm L x 46 mm Dia |
| Weight | 650 g |
| Included Accessories | Tube Mic Cable, Power Supply, Shock Mount, Stand Mount, Mic Sleeve, Carrying Case |
