Telefunken TF51 Three-Pattern Large Diaphragm Microphone System
Telefunken TF51 Three-Pattern Large Diaphragm Microphone System
+ Free Shipping
![Blink Image](https://cdn.shopify.com/s/files/1/0750/9049/3723/files/blink-2020-sq-scaled.png?v=1695807695")
Limited quantities available!
Couldn't load pickup availability
- Details
- Features
- Tech Specs
- Reviews
The TF51 is a fresh take on the “Austrian” microphone sound associated with the Telefunken ELA M 251E and C12. The TF51 continues this legacy, exhibiting a smooth midrange and airy top end, capturing every nuance in pleasant detail. This is a reliable first choice for stand out vocals, acoustic instruments, and percussion.
This lifelike fidelity is created with high quality components based off these inspirations. The 6072A vacuum tube (also found in our ELA M 251E and C12) is mated with an edge-terminated style capsule similar to the historic CK12. The output transformer is a custom German-made Haufe transformer, the original manufacturer for TELEFUNKEN. This attention to detail gives the TF51 a beautifully open and smooth sonic profile.
Applications
- Female vocals, Pop vocals
- Acoustic guitar
- Drum overheads
- Violin
- Mandolin
- Grand piano
| Product Name | Telefunken TF51 Three-Pattern Large Diaphragm Microphone System |
|---|---|
| Brand | Telefunken |
| Condition | New |
| MPN | TF51 |
| UPC | 810047032779 |
| Shipping Option | Free Shipping to the Continental U.S. |

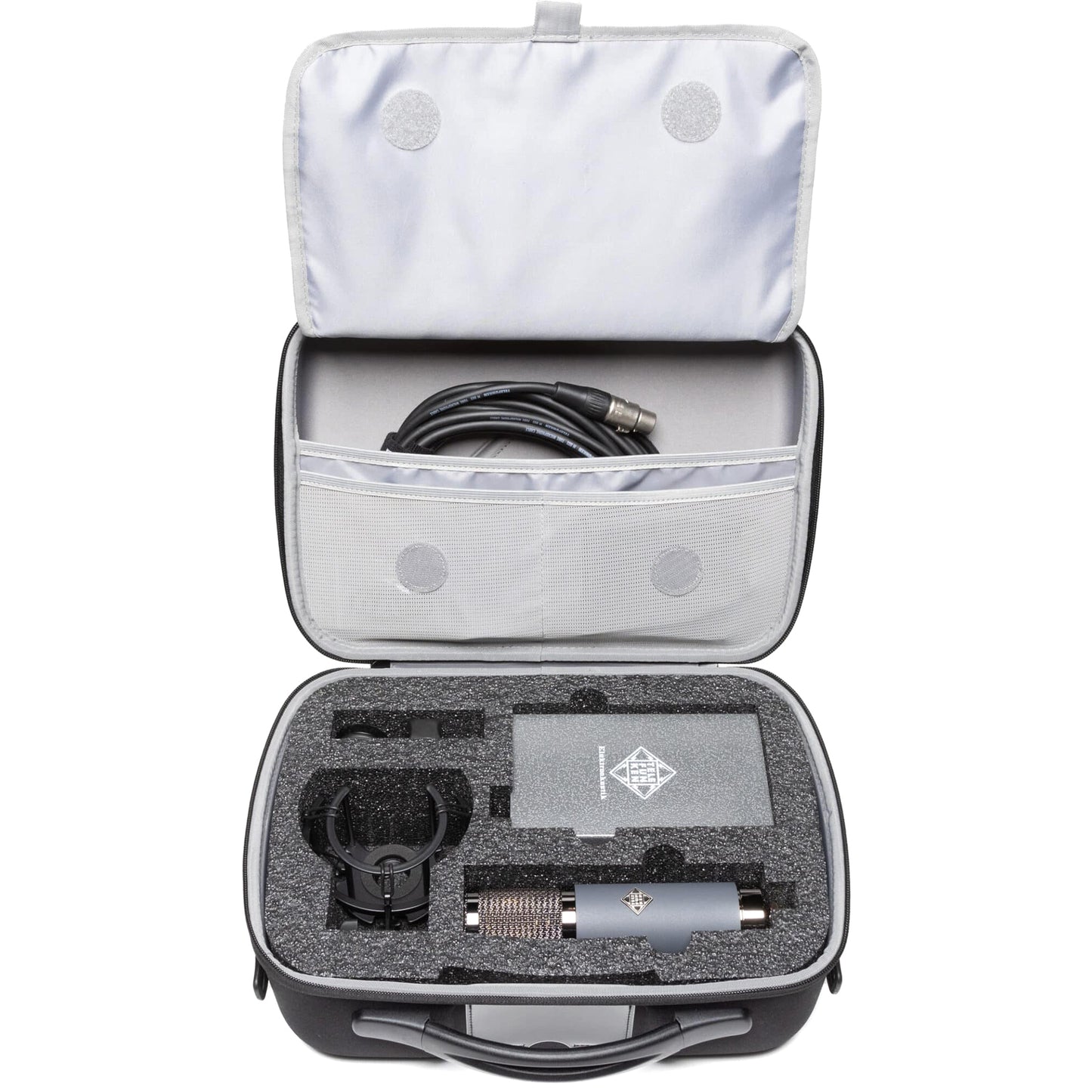

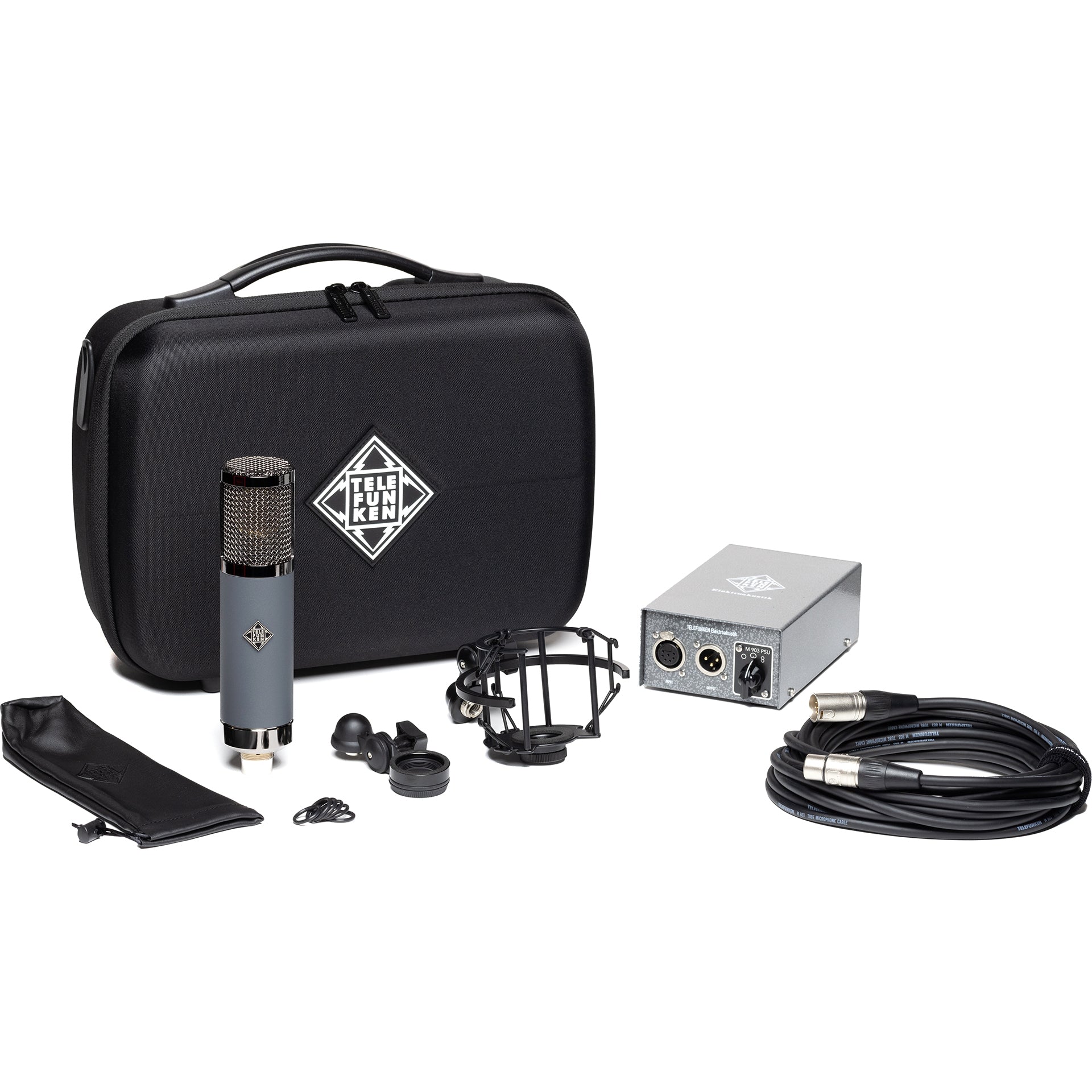

What's in the Box?
- TF51 Microphone
- M 903 Power Supply
- M 803 Tube Microphone Cable – 7m
- ZC03 Zipper Case
- M 703 Shock Mount
- M 782 Stand Mount
- MS01 Microphone Sleeve
- Airy and open top end, reminiscent of the ELA M 251E
- Balanced low end and natural midrange
- Cardioid, Omni, and Figure 8 polar pattern selection
- CK12-style capsule and German-made Haufe transformer
- TELEFUNKEN Elektroakustik 6072A vacuum tube
- Designed and hand assembled in the USA
- Recommended Applications: Vocals, Acoustic Guitar, Violin, Drum Overheads
| Type | Vacuum Tube Condenser |
| Polar Pattern | Cardioid, Omnidirectional, Figure-8 |
| Frequency Range | 20 Hz – 20 kHz, ±3 dB |
| Power Source | External Power Supply |
| Capsule | TK51 Edge Terminated Large Diaphragm |
| Tube | TELEFUNKEN Elektroakustik 6072A |
| Transformer | Haufe T31 |
| Sensitivity | 19 mV/Pa, ±1 dB |
| THD at 1kHZ at 1Pa (Amplifier) | < 0.4% |
| Output Impedance | < 300 Ω |
| Maximum SPL (for 1% THD) | 128 dB |
| S/N Ratio | 86 dBA |
| Self Noise (Amplifier) | 8 dBA |
| Dimensions | 200 mm L x 46 mm Dia |
| Weight | 615 g |
| Included Accessories | Tube Mic Cable, Power Supply, Shock Mount, Stand Mount, Mic Sleeve, Carrying Case |
Telefunken TF51 Three-Pattern Large Diaphragm Microphone System
The TF51 is a fresh take on the “Austrian” microphone sound associated with the Telefunken ELA M 251E and C12. The TF51 continues this legacy, exhibiting a smooth midrange and airy top end, capturing every nuance in pleasant detail. This is a reliable first choice for stand out vocals, acoustic instruments, and percussion.
This lifelike fidelity is created with high quality components based off these inspirations. The 6072A vacuum tube (also found in our ELA M 251E and C12) is mated with an edge-terminated style capsule similar to the historic CK12. The output transformer is a custom German-made Haufe transformer, the original manufacturer for TELEFUNKEN. This attention to detail gives the TF51 a beautifully open and smooth sonic profile.
Applications
- Female vocals, Pop vocals
- Acoustic guitar
- Drum overheads
- Violin
- Mandolin
- Grand piano
| Product Name | Telefunken TF51 Three-Pattern Large Diaphragm Microphone System |
|---|---|
| Brand | Telefunken |
| Condition | New |
| MPN | TF51 |
| UPC | 810047032779 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- TF51 Microphone
- M 903 Power Supply
- M 803 Tube Microphone Cable – 7m
- ZC03 Zipper Case
- M 703 Shock Mount
- M 782 Stand Mount
- MS01 Microphone Sleeve
- Airy and open top end, reminiscent of the ELA M 251E
- Balanced low end and natural midrange
- Cardioid, Omni, and Figure 8 polar pattern selection
- CK12-style capsule and German-made Haufe transformer
- TELEFUNKEN Elektroakustik 6072A vacuum tube
- Designed and hand assembled in the USA
- Recommended Applications: Vocals, Acoustic Guitar, Violin, Drum Overheads
| Type | Vacuum Tube Condenser |
| Polar Pattern | Cardioid, Omnidirectional, Figure-8 |
| Frequency Range | 20 Hz – 20 kHz, ±3 dB |
| Power Source | External Power Supply |
| Capsule | TK51 Edge Terminated Large Diaphragm |
| Tube | TELEFUNKEN Elektroakustik 6072A |
| Transformer | Haufe T31 |
| Sensitivity | 19 mV/Pa, ±1 dB |
| THD at 1kHZ at 1Pa (Amplifier) | < 0.4% |
| Output Impedance | < 300 Ω |
| Maximum SPL (for 1% THD) | 128 dB |
| S/N Ratio | 86 dBA |
| Self Noise (Amplifier) | 8 dBA |
| Dimensions | 200 mm L x 46 mm Dia |
| Weight | 615 g |
| Included Accessories | Tube Mic Cable, Power Supply, Shock Mount, Stand Mount, Mic Sleeve, Carrying Case |
