Telefunken U47 Matched Stereo Set Tube Condenser Microphones

Telefunken U47 Matched Stereo Set Tube Condenser Microphones

On order with the manufacturer!

View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

TELEFUNKEN Elektroakustik is proud to offer matched stereo sets of the U47 microphones. Each system features a custom dual power supply capable of powering both microphones at one time, and a special locking flight case that will carry both sets of microphones, cables, wooden boxes, and the dual power supply.

In keeping with the long standing tradition, TELEFUNKEN Elektroakustik have given a nod back to 1958 when both the U47 and U48 were offered in 3 unique packages. The U47 and U48 were both offered in what was called a "Stereo Set" that featured a sequentially serial numbered pair of U47 or U48 microphones with a dual [two microphone capable] power supply, and the "Studio Set," which was a single U47 that was matched to a U48.

Stereo microphone techniques are often used for recording classical music and large signal sources like orchestra, choirs, and large chamber groups. They can also effectively be used on drum overheads, acoustic guitars, piano, and percussion.

The TELEFUNKEN U47 Stereo Set will allow versed recording engineers a variety of stereo recording techniques, including X/Y coincidental pairs when utilizing the mics in their cardioid patterns, or A/B spaced pairs while using the mics in either cardioid or omni.

Every component in each of the two TELEFUNKEN U47 microphones is hand-selected, allowing as close a match as is possible between each system. Capsules are tuned to each other; transformers and tube are tested for matched gain and frequency response. These sets offer the user the knowledge and comfort that the tools they are using will give identical responses for their most important stereo recording.

Included Accessories

Each U47 Stereo Set comes complete with a dual M 940S power supply, two M 840 25’ dual-shielded Somner tube microphone cables, two WB40 wooden microphone boxes and a FC40S locking flight case.

More Information
Product Name Telefunken U47 Matched Stereo Set Tube Condenser Microphones
Brand Telefunken
Condition New
MPN U47STEREOSET
UPC 899051002718
Shipping Option Free Shipping to the Continental U.S.

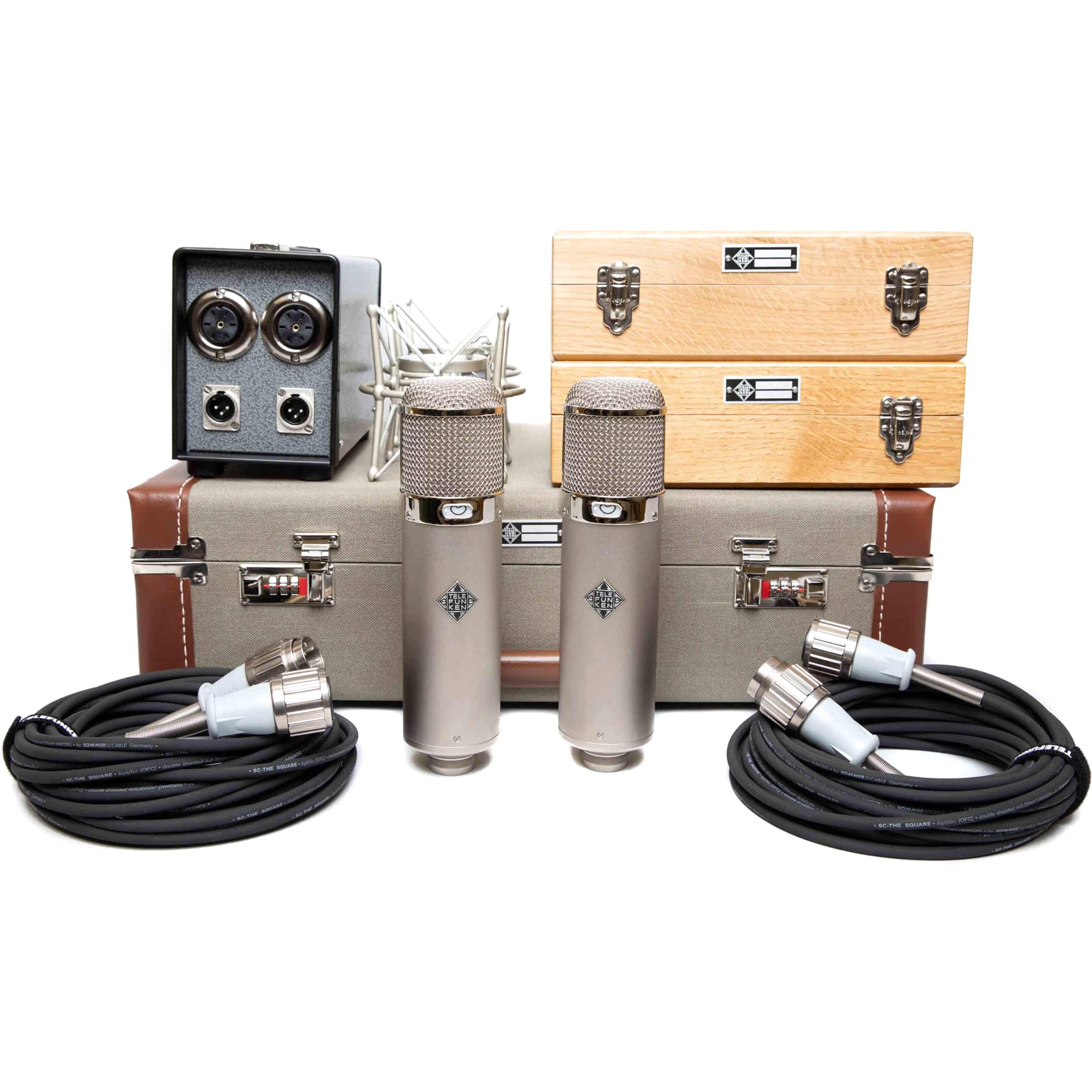

What's in the Box?

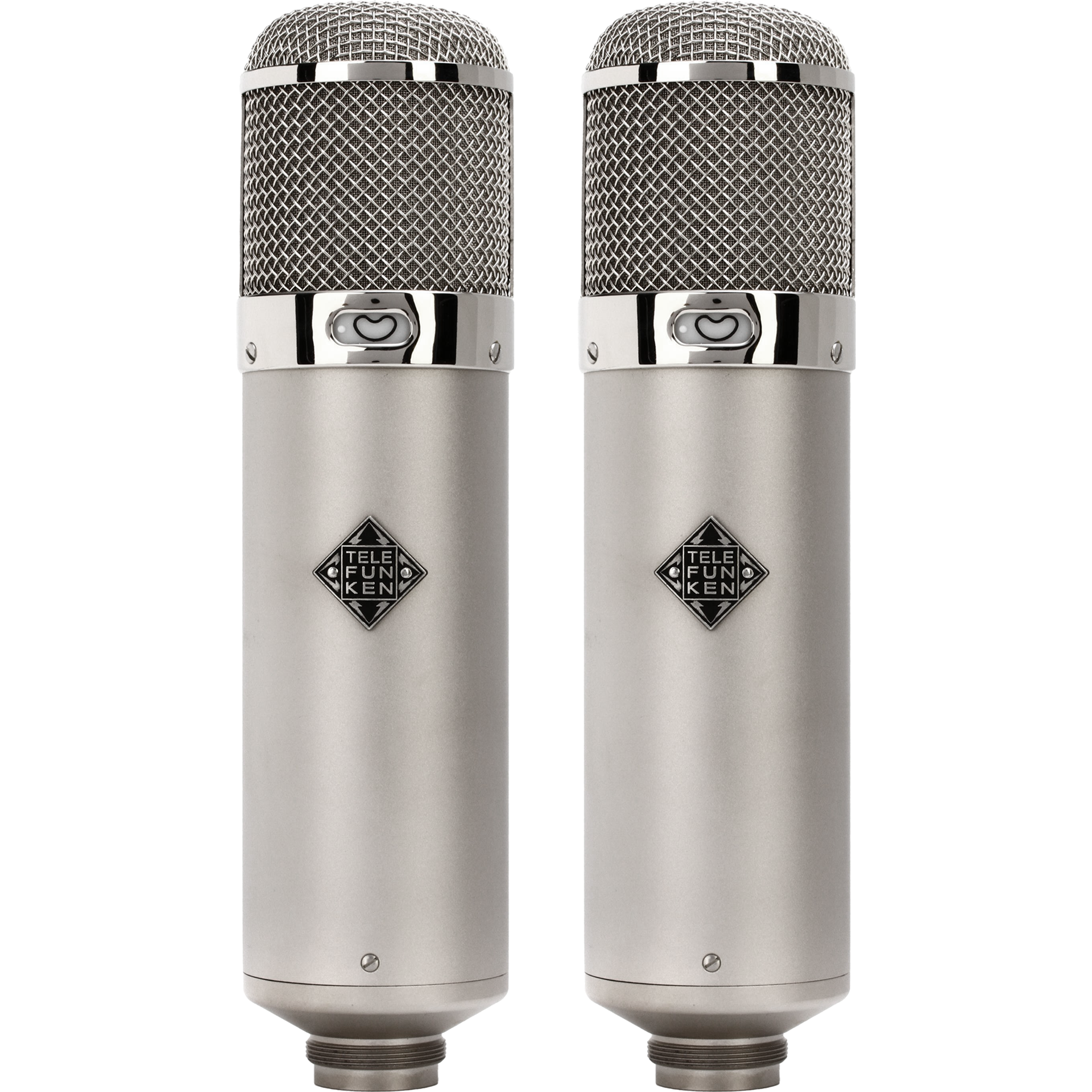

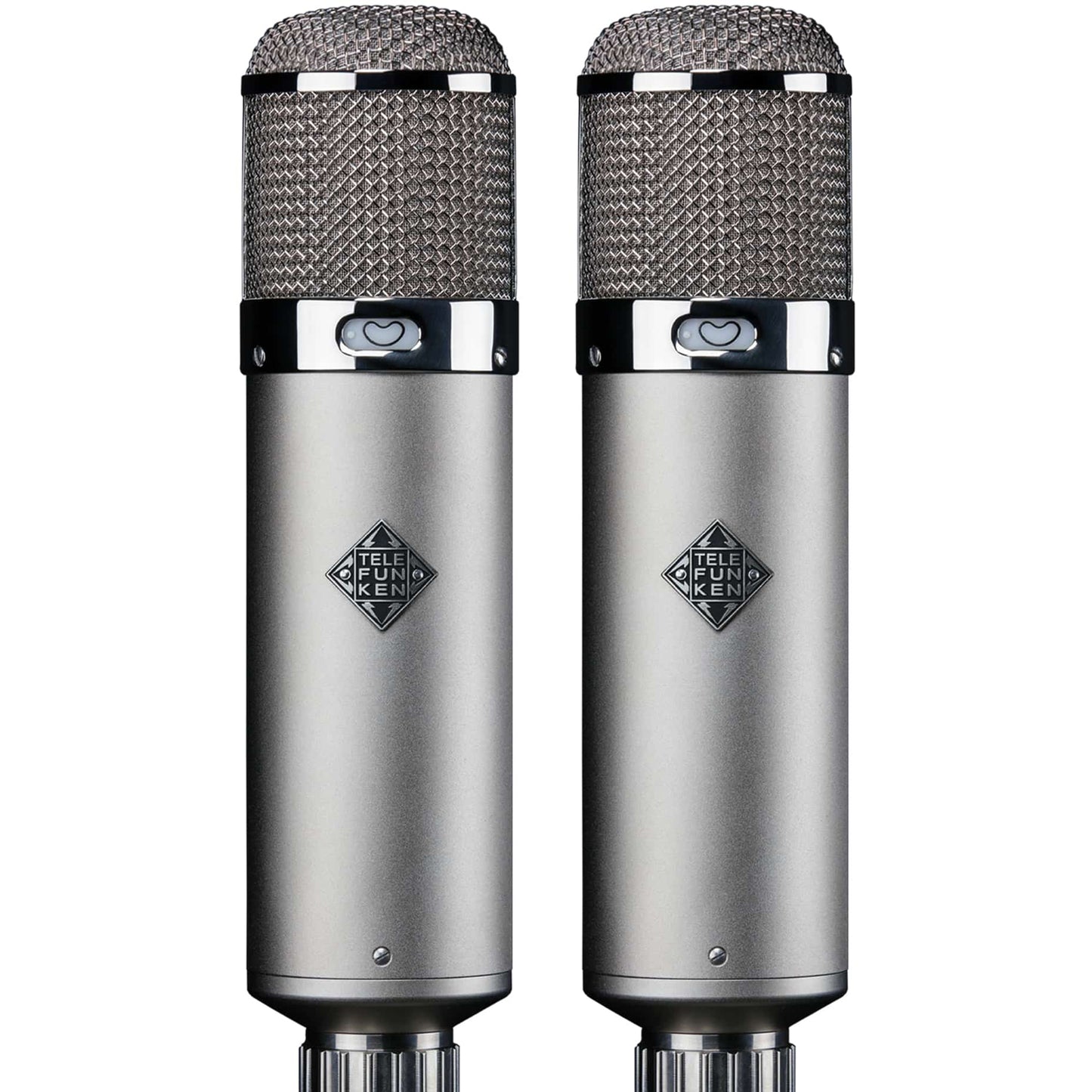

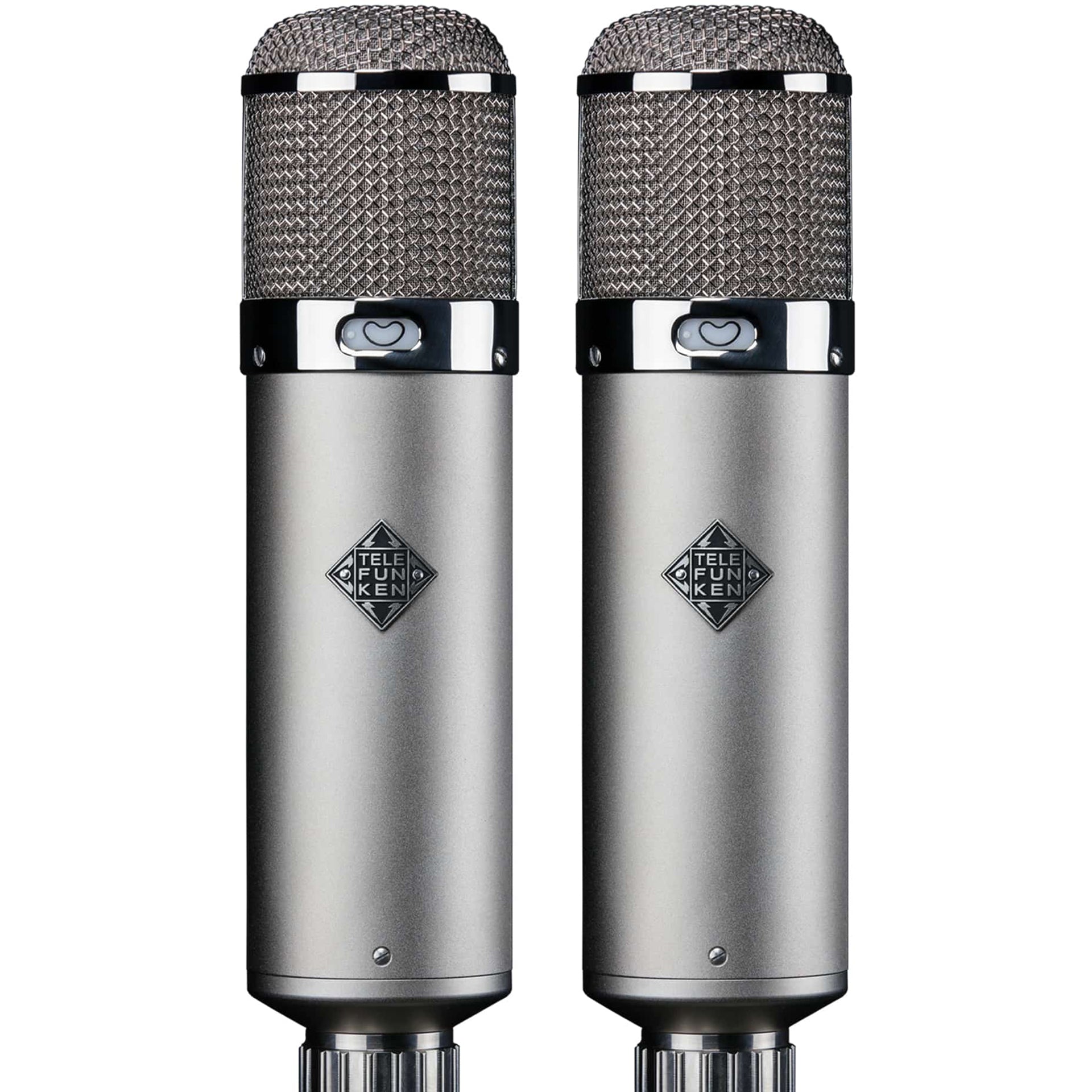

  • 2x Matched U47 Microphones

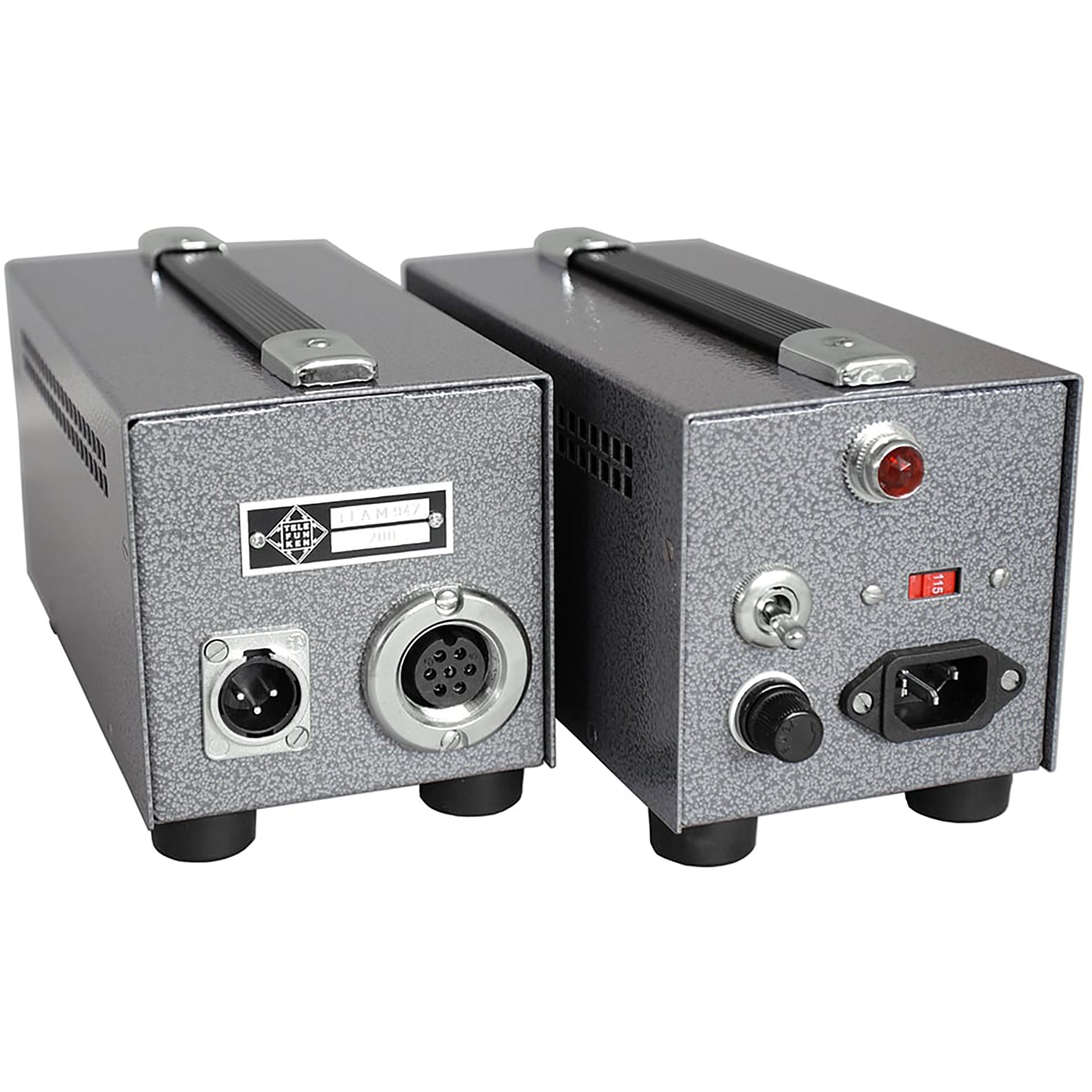

  • M 940HS Power Supply
  • 2x M 840TH Sommer Tube Microphone Cables – 10m

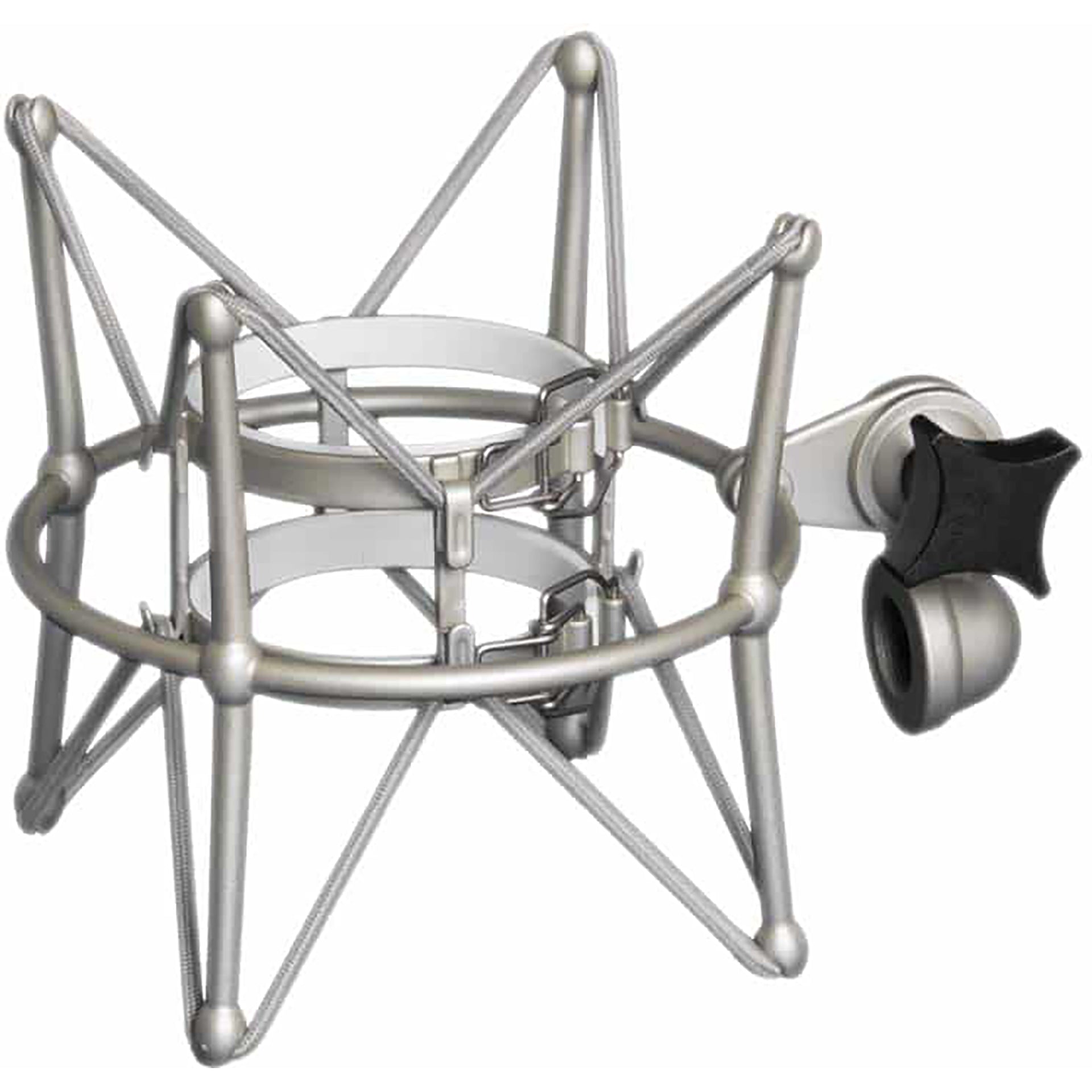

  • 2x M 740 Shock Mounts
  • FC40S Locking Flight Case
  • 2x WB40 Wooden Microphone Boxes
  • Classic punchy, mid-forward sound with pleasing bite
  • Legendary extended low frequency response
  • Cardioid and Omni polar pattern selection
  • US-made historically accurate M7 center-terminated capsule
  • TELEFUNKEN Elektroakustik VF14k vacuum tube
  • Point-to-point wired in the USA true to the original design
  • Includes American-made vintage-compatible cable and fully regulated power supply
Type Vacuum Tube Condenser
Polar Pattern Cardioid, Omnidirectional
Frequency Range 20 Hz – 20 kHz, ±3 dB
Power Source External Power Supply
Capsule TELEFUNKEN Elektroakustik M7 – Center Terminated Large Diaphragm
Tube TELEFUNKEN Elektroakustik VF14K
Transformer TELEFUNKEN Elektroakustik BV8
Sensitivity 24.5 mV/Pa, ±1 dB
THD at 1kHZ at 1Pa (Amplifier) < 0.3%
Output Impedance 200 Ω
Maximum SPL (for 1% THD) 127 dB
S/N Ratio 85 dBA
Self Noise (Amplifier) 9 dBA
Dimensions 240 mm L x 60 mm Dia
Weight 620 g
Included Accessories Tube Mic Cable, Power Supply, Shock Mount, Wooden Box, Flight Case

Telefunken U47 Matched Stereo Set Tube Condenser Microphones

Details

TELEFUNKEN Elektroakustik is proud to offer matched stereo sets of the U47 microphones. Each system features a custom dual power supply capable of powering both microphones at one time, and a special locking flight case that will carry both sets of microphones, cables, wooden boxes, and the dual power supply.

In keeping with the long standing tradition, TELEFUNKEN Elektroakustik have given a nod back to 1958 when both the U47 and U48 were offered in 3 unique packages. The U47 and U48 were both offered in what was called a "Stereo Set" that featured a sequentially serial numbered pair of U47 or U48 microphones with a dual [two microphone capable] power supply, and the "Studio Set," which was a single U47 that was matched to a U48.

Stereo microphone techniques are often used for recording classical music and large signal sources like orchestra, choirs, and large chamber groups. They can also effectively be used on drum overheads, acoustic guitars, piano, and percussion.

The TELEFUNKEN U47 Stereo Set will allow versed recording engineers a variety of stereo recording techniques, including X/Y coincidental pairs when utilizing the mics in their cardioid patterns, or A/B spaced pairs while using the mics in either cardioid or omni.

Every component in each of the two TELEFUNKEN U47 microphones is hand-selected, allowing as close a match as is possible between each system. Capsules are tuned to each other; transformers and tube are tested for matched gain and frequency response. These sets offer the user the knowledge and comfort that the tools they are using will give identical responses for their most important stereo recording.

Included Accessories

Each U47 Stereo Set comes complete with a dual M 940S power supply, two M 840 25’ dual-shielded Somner tube microphone cables, two WB40 wooden microphone boxes and a FC40S locking flight case.

More Information
Product Name Telefunken U47 Matched Stereo Set Tube Condenser Microphones
Brand Telefunken
Condition New
MPN U47STEREOSET
UPC 899051002718
Shipping Option Free Shipping to the Continental U.S.

What's in the Box?

  • 2x Matched U47 Microphones
  • M 940HS Power Supply
  • 2x M 840TH Sommer Tube Microphone Cables – 10m
  • 2x M 740 Shock Mounts
  • FC40S Locking Flight Case
  • 2x WB40 Wooden Microphone Boxes
Features
  • Classic punchy, mid-forward sound with pleasing bite
  • Legendary extended low frequency response
  • Cardioid and Omni polar pattern selection
  • US-made historically accurate M7 center-terminated capsule
  • TELEFUNKEN Elektroakustik VF14k vacuum tube
  • Point-to-point wired in the USA true to the original design
  • Includes American-made vintage-compatible cable and fully regulated power supply
Tech Specs
Type Vacuum Tube Condenser
Polar Pattern Cardioid, Omnidirectional
Frequency Range 20 Hz – 20 kHz, ±3 dB
Power Source External Power Supply
Capsule TELEFUNKEN Elektroakustik M7 – Center Terminated Large Diaphragm
Tube TELEFUNKEN Elektroakustik VF14K
Transformer TELEFUNKEN Elektroakustik BV8
Sensitivity 24.5 mV/Pa, ±1 dB
THD at 1kHZ at 1Pa (Amplifier) < 0.3%
Output Impedance 200 Ω
Maximum SPL (for 1% THD) 127 dB
S/N Ratio 85 dBA
Self Noise (Amplifier) 9 dBA
Dimensions 240 mm L x 60 mm Dia
Weight 620 g
Included Accessories Tube Mic Cable, Power Supply, Shock Mount, Wooden Box, Flight Case
