The BC1-S provides smooth bus compression that applies for both mixing and tracking.
Engineers call it “The Magic Glue” when the BC1-S’ transparent compression strengthens mixes without compromising clarity. The built-in blend control makes it easy to apply parallel compression by adjusting the blend of dry and compressed signal. A switchable sidechain filter can be applied at 150Hz which makes the BC1-S less responsive to low frequency energy. Smooth and transparent compression will never go out of fashion.
Engineers call it “The Magic Glue” when the BC1-S’ transparent compression strengthens mixes without compromising clarity. The built-in blend control makes it easy to apply parallel compression by adjusting the blend of dry and compressed signal. A switchable sidechain filter can be applied at 150Hz which makes the BC1-S less responsive to low frequency energy. Smooth and transparent compression will never go out of fashion.
| Product Name | TK Audio BC1-S Stereo Bus Compressor |
|---|---|
| Brand | TK Audio |
| Condition | New |
| MPN | BC1-S |
| Shipping Option | Free Shipping on orders over $94.72 |
- Threshold: -20dB to +20dB
- Ratio: 1.5:1 / 2:1 / 4:1 / 10:1 / Hard
- HP Filter: 150Hz, -6dB octave
- External sidechain: in/out
- Dual or single sidechain detectors
- Attack: UF(ultrafast)/0.1/0.3/0.6/1/3/10/30/60/120mS
- Release: 50mS/100mS/300mS/600mS/1.2S/Auto
- Gainreduction meter
- Make-up: 0 to +20dB
- Compression in/out
- Straight signal mute
- Blendcontrol: from dry to compressed
- External sidechain input: unbalanced TRS jacks
- Internal, regulated powersupply with a toroidal transformer
- 115 or 230V, selectable
Noise floor: below -104dBm
Frequency response: 20Hz to 20kHz less than -0,025dB
Frequency response: 20Hz to 80kHz less than -0,3dB
Frequency response: 20Hz to 20kHz less than -0,025dB
Frequency response: 20Hz to 80kHz less than -0,3dB
Blend control fully CW (dry)
THD+N @ 0dBu: less than 0,0045%
THD @ 0dBu: less than 0,001%
THD+N @ +26dBu: less than 0,02%
THD @ +26dBu: less than 0,02%
Blend control fully CCW (straight)
THD+N @ 0dBu: less than 0,00045%
THD+N @ +26dBu: less than 0,0003%
Input impedance: 40kohm
Output impedance: 50ohm
Max input level: +26dBu
Max output level: +27dBu @ 600ohms load

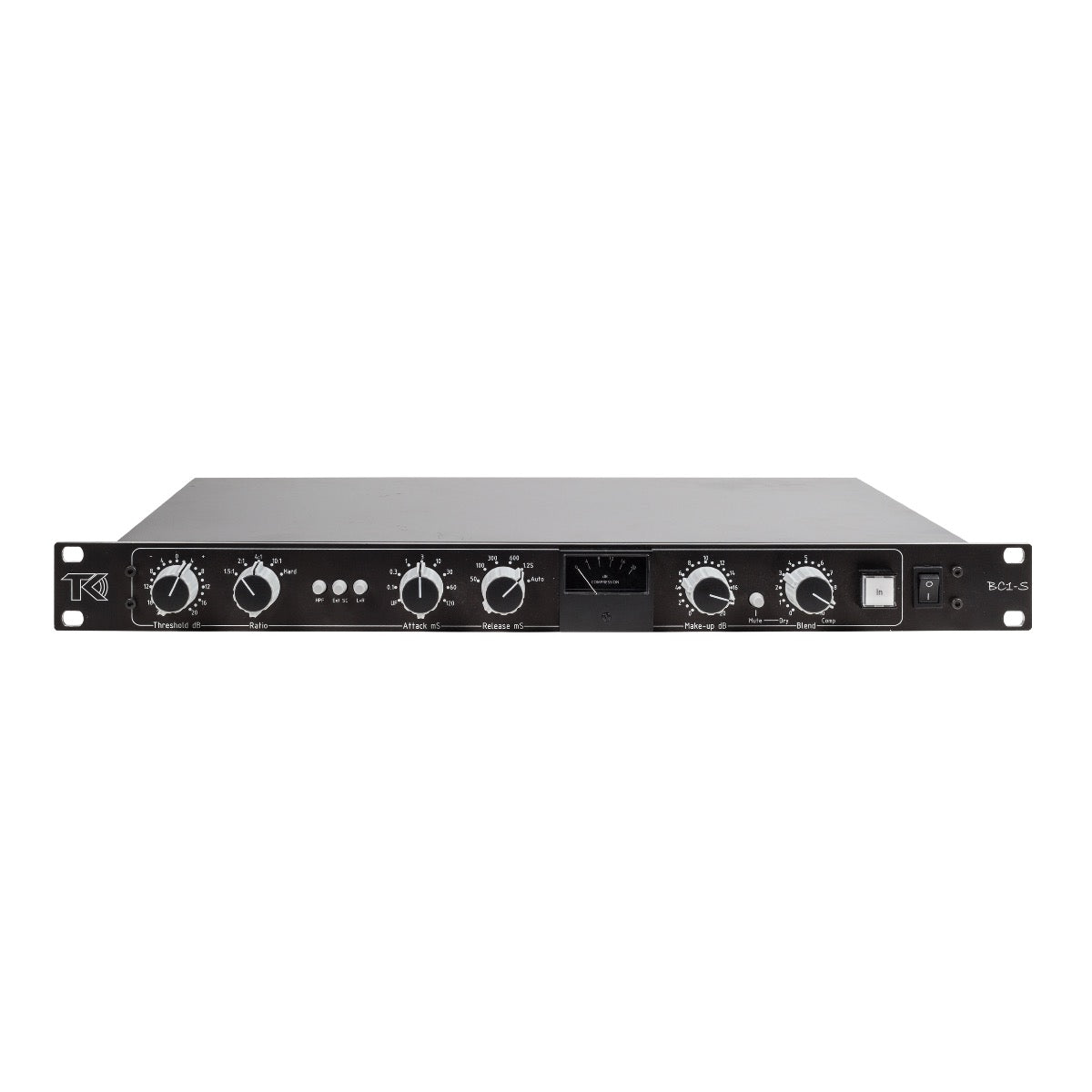

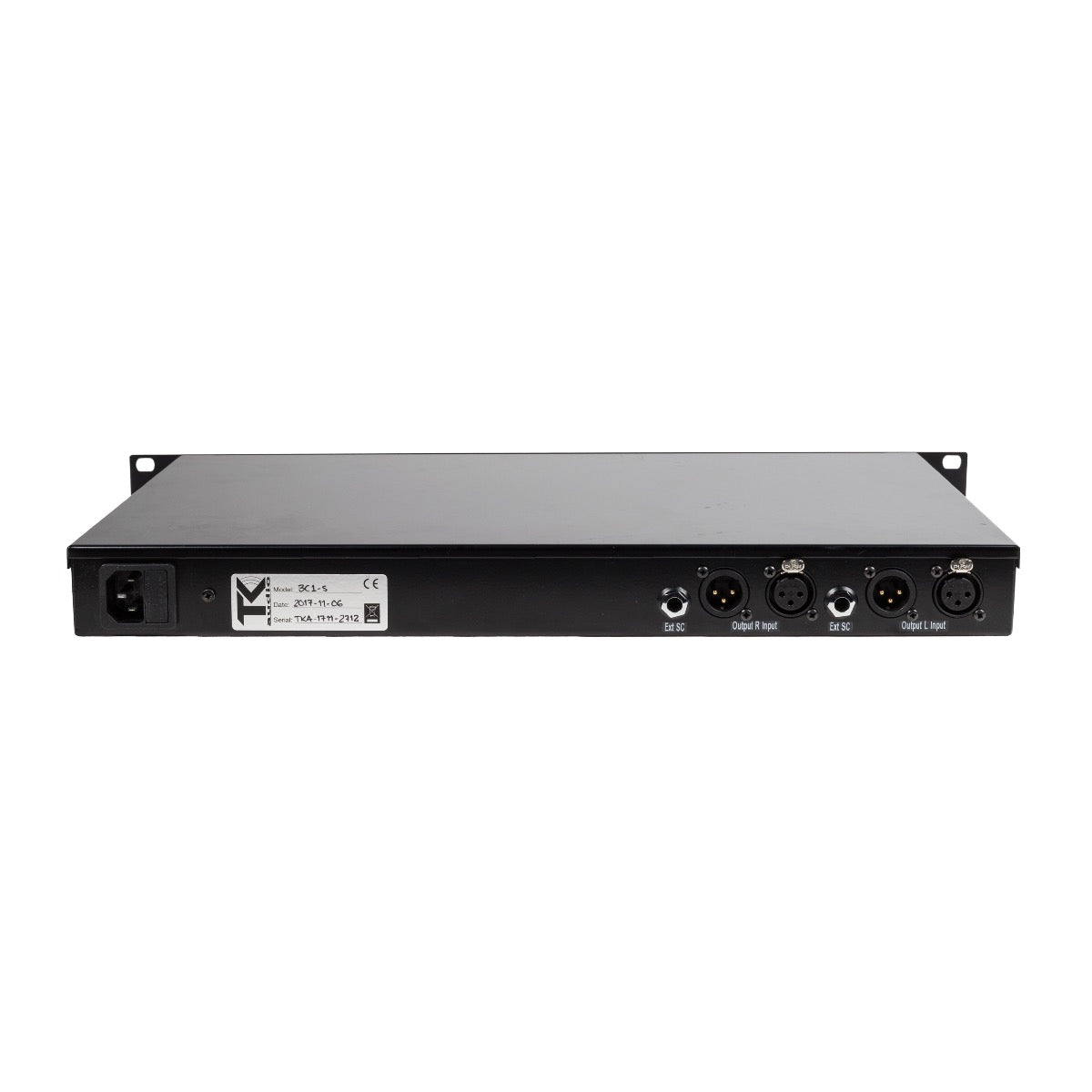

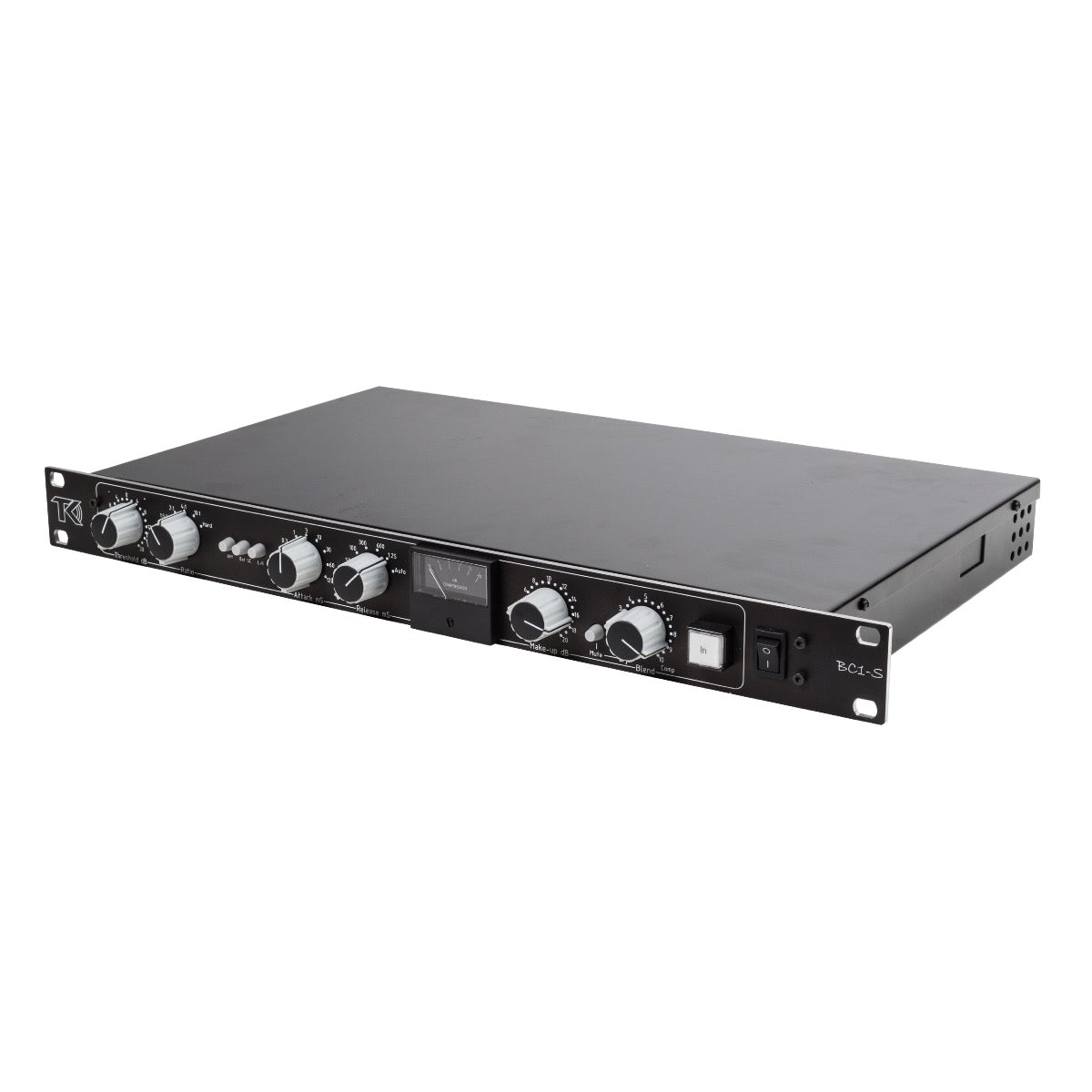

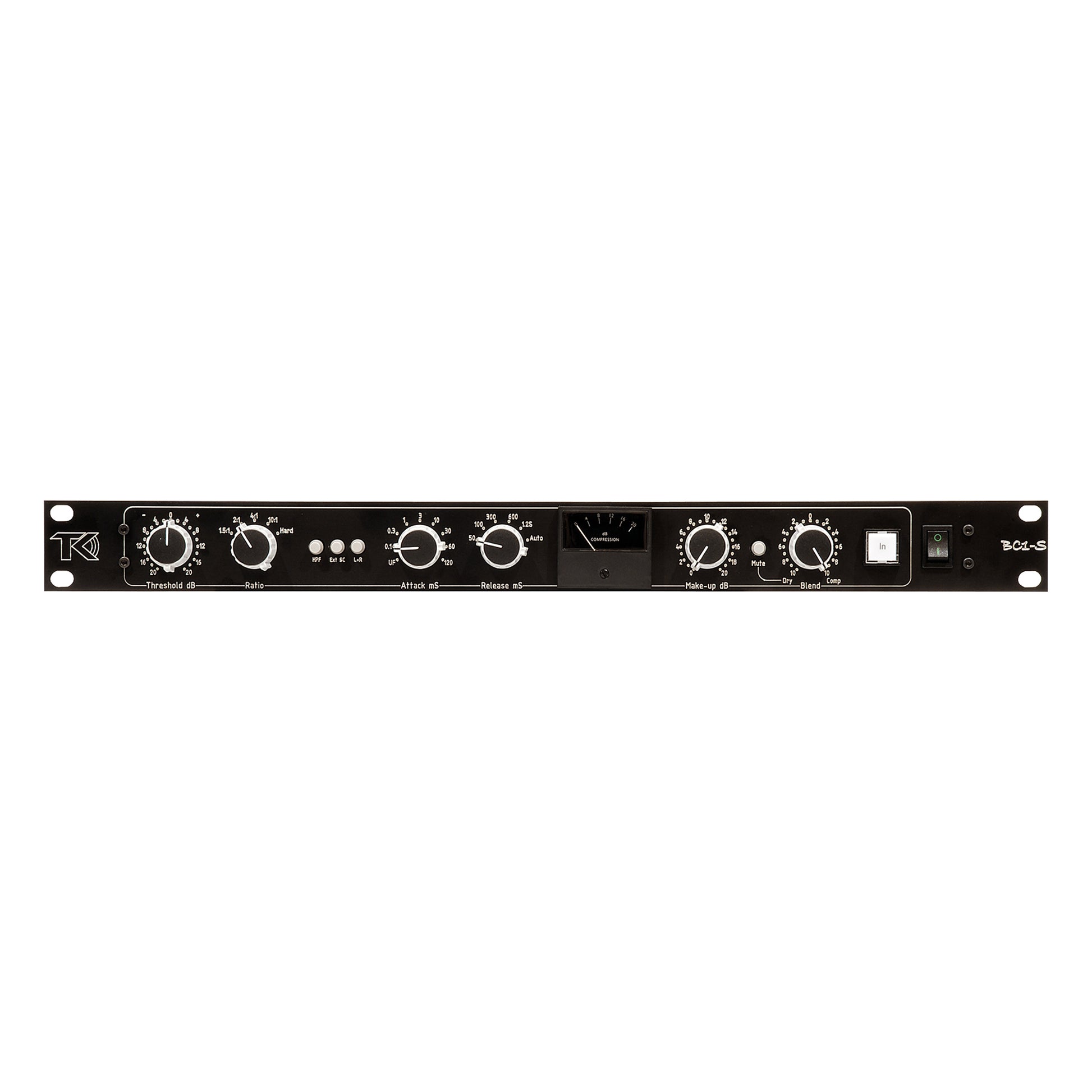

TK Audio BC1-S Stereo Bus Compressor
Details
The BC1-S provides smooth bus compression that applies for both mixing and tracking.
Engineers call it “The Magic Glue” when the BC1-S’ transparent compression strengthens mixes without compromising clarity. The built-in blend control makes it easy to apply parallel compression by adjusting the blend of dry and compressed signal. A switchable sidechain filter can be applied at 150Hz which makes the BC1-S less responsive to low frequency energy. Smooth and transparent compression will never go out of fashion.
Engineers call it “The Magic Glue” when the BC1-S’ transparent compression strengthens mixes without compromising clarity. The built-in blend control makes it easy to apply parallel compression by adjusting the blend of dry and compressed signal. A switchable sidechain filter can be applied at 150Hz which makes the BC1-S less responsive to low frequency energy. Smooth and transparent compression will never go out of fashion.
| Product Name | TK Audio BC1-S Stereo Bus Compressor |
|---|---|
| Brand | TK Audio |
| Condition | New |
| MPN | BC1-S |
| Shipping Option | Free Shipping on orders over $94.72 |
Features
- Threshold: -20dB to +20dB
- Ratio: 1.5:1 / 2:1 / 4:1 / 10:1 / Hard
- HP Filter: 150Hz, -6dB octave
- External sidechain: in/out
- Dual or single sidechain detectors
- Attack: UF(ultrafast)/0.1/0.3/0.6/1/3/10/30/60/120mS
- Release: 50mS/100mS/300mS/600mS/1.2S/Auto
- Gainreduction meter
- Make-up: 0 to +20dB
- Compression in/out
- Straight signal mute
- Blendcontrol: from dry to compressed
- External sidechain input: unbalanced TRS jacks
- Internal, regulated powersupply with a toroidal transformer
- 115 or 230V, selectable
Tech Specs
Noise floor: below -104dBm
Frequency response: 20Hz to 20kHz less than -0,025dB
Frequency response: 20Hz to 80kHz less than -0,3dB
Frequency response: 20Hz to 20kHz less than -0,025dB
Frequency response: 20Hz to 80kHz less than -0,3dB
Blend control fully CW (dry)
THD+N @ 0dBu: less than 0,0045%
THD @ 0dBu: less than 0,001%
THD+N @ +26dBu: less than 0,02%
THD @ +26dBu: less than 0,02%
Blend control fully CCW (straight)
THD+N @ 0dBu: less than 0,00045%
THD+N @ +26dBu: less than 0,0003%
Input impedance: 40kohm
Output impedance: 50ohm
Max input level: +26dBu
Max output level: +27dBu @ 600ohms load
