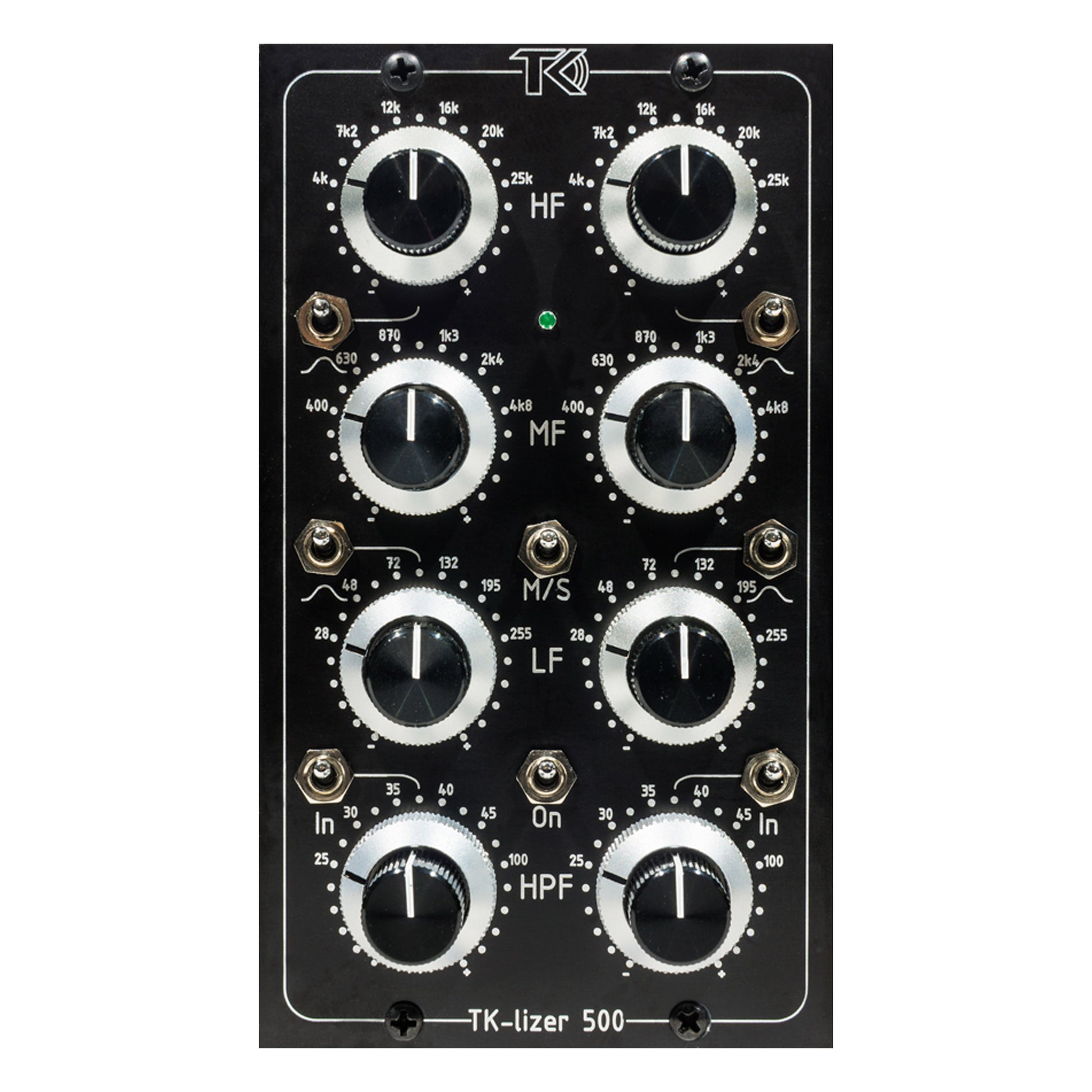

TK AUDIO TK-LIZER 500 Series Equalizer

TK AUDIO TK-LIZER 500 Series Equalizer

$1,299.00
$1,299.00
Sale Sold out

Blink Image Blink Image

Limited quantities available!

View full details
  • Details
  • Features
  • Tech Specs
  • Reviews
The TK-lizer 500 features all the power of the TK Audio’s flagship TK-lizer, including the M/S functionality that has made it such a staple in studios all over the world.
The three bands have a cut/boost range of +/-8dB in 41 steps. The low and high bands can be switched between peak or shelving mode. A high pass filter with a 12dB slope is also provided, and each channel has it’s own level control with a range from infinity to +6dB.
Using the built in M/S function, you can adjust the middle and side signals separately before it is decoded back to a normal L/R signal. In M/S mode you can also adjust the stereo width using the level controls.
More Information
Product Name TK AUDIO TK-LIZER 500 Series Equalizer
Brand TK Audio
Condition New
MPN TKLIZER500
UPC 7350097200122
Shipping Option Free Shipping on orders over $94.72

  • Low band:
    • Frequency: 28Hz, 48Hz, 72Hz, 132Hz, 195Hz, 255Hz
    • Boost/cut: +/-8dB
    • Peak or Shelf
  • Mid Band:
    • Frequency: 400Hz, 630Hz, 870Hz, 1.3kHz, 2.4kHz, 4.8kHz
    • Boost/cut: +/-8dB
  • High Band:
    • Frequency: 4kHz, 7.2kHz, 12kHz, 16kHz, 20kHz, 25kHz
    • Boost/cut: +/-8dB
    • Peak or Shelf
  • High Pass Filter
    • Frequency: 25Hz, 30Hz, 35Hz, 40Hz, 45Hz, 100Hz, 12dB / octave
    • In/Out
  • Level: Infinity to +6dB (Unity gain at 12’o lock)
  • EQ in/out. (LED red for out, green for in)
  • M/S in/out

  • Power requirement: +190mA / -80mA (extended over two slots)
  • Frequency response: 20Hz to 50kHz +/-0.2dB
  • THD @ +4dBu less than 0.0006%
  • THD+N @ +26dBu is less than 0.001%
  • Signal to noise ratio: 95dB
  • Cross talk: -89dB
  • Input impedance: 24kohm
  • Output impedance: 50ohm
  • Max input level: +26dBu
  • Max output level: +27dBu
  • Q~0.5

TK AUDIO TK-LIZER 500 Series Equalizer
Details
The TK-lizer 500 features all the power of the TK Audio’s flagship TK-lizer, including the M/S functionality that has made it such a staple in studios all over the world.
The three bands have a cut/boost range of +/-8dB in 41 steps. The low and high bands can be switched between peak or shelving mode. A high pass filter with a 12dB slope is also provided, and each channel has it’s own level control with a range from infinity to +6dB.
Using the built in M/S function, you can adjust the middle and side signals separately before it is decoded back to a normal L/R signal. In M/S mode you can also adjust the stereo width using the level controls.
More Information
Product Name TK AUDIO TK-LIZER 500 Series Equalizer
Brand TK Audio
Condition New
MPN TKLIZER500
UPC 7350097200122
Shipping Option Free Shipping on orders over $94.72
Features

  • Low band:
    • Frequency: 28Hz, 48Hz, 72Hz, 132Hz, 195Hz, 255Hz
    • Boost/cut: +/-8dB
    • Peak or Shelf
  • Mid Band:
    • Frequency: 400Hz, 630Hz, 870Hz, 1.3kHz, 2.4kHz, 4.8kHz
    • Boost/cut: +/-8dB
  • High Band:
    • Frequency: 4kHz, 7.2kHz, 12kHz, 16kHz, 20kHz, 25kHz
    • Boost/cut: +/-8dB
    • Peak or Shelf
  • High Pass Filter
    • Frequency: 25Hz, 30Hz, 35Hz, 40Hz, 45Hz, 100Hz, 12dB / octave
    • In/Out
  • Level: Infinity to +6dB (Unity gain at 12’o lock)
  • EQ in/out. (LED red for out, green for in)
  • M/S in/out

Tech Specs
  • Power requirement: +190mA / -80mA (extended over two slots)
  • Frequency response: 20Hz to 50kHz +/-0.2dB
  • THD @ +4dBu less than 0.0006%
  • THD+N @ +26dBu is less than 0.001%
  • Signal to noise ratio: 95dB
  • Cross talk: -89dB
  • Input impedance: 24kohm
  • Output impedance: 50ohm
  • Max input level: +26dBu
  • Max output level: +27dBu
  • Q~0.5
