Universal Audio Apollo x4 Thunderbolt 3 Audio Interface

Universal Audio Apollo x4 Thunderbolt 3 Audio Interface

Limited quantities available!

Desktop 12 x 18 Thunderbolt 3 Audio Interface w/ Realtime UAD-2 QUAD Core Processing and Four Unison™ Mic Preamps — for Mac and Windows.
View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

A Special Edition of Universal Audio's Acclaimed Apollo x4 Interface and a Bundled UAD Plug-In Package Worth over $2,400.

Apollo Twin X Heritage Edition has all the benefits of the acclaimed Apollo Twin X, including elite-class A/D and D/A conversion, QUAD Core realtime UAD plug-in processing, Unison-enabled mic preamps, and full LUNA Recording System integration. And it goes a step further, with a software suite of 5 award-winning UAD plug-in titles, featuring Collections from Teletronix,® Pultec,® and UA.

Elite Audio Conversion and Four Unison Preamps on your Desktop.

Apollo x4 delivers elite-class A/D and D/A conversion, four Unison-enabled preamps, and QUAD Core realtime UAD plug-in processing — all in a sleek desktop Thunderbolt 3 audio interface for Mac and Windows.

Built upon Universal Audio's 60-year heritage of audio craftsmanship, Apollo x4 easily outshines everything in its class, with 127 dB D/A dynamic range and an included bundle of acclaimed UAD analog emulation plug-ins, giving you a fully-stocked analog studio, right on your desktop.

Four Unison Preamps: Get the Sound of Neve, Helios, API, Manley & More

Apollo x4 features four Unison-enabled mic preamps, letting you track through exacting mic preamp emulations from Neve, Helios, API, Manley, UA and many more. Unison technology nails the tone of these sought-after tube and solid state mic pres — including their input impedance, gain stage “sweet spots,” and the component-level circuit behaviors of the original hardware.

Based on Unison's proprietary hardware-software integration, Apollo x4 lets you record at near-zero latency through emulations like the included UA 610-B Tube Preamp & EQ, for authentic analog sound unmatched by other interfaces. Unison technology is also found on Apollo x4's two front-panel Hi-Z instrument inputs, providing dead-on impedance and gain matching for guitar and bass amp models from Fender, Marshall, Ampeg, and more.

Elite-Class A/D and D/A Conversion

With thousands of hit songs and hundreds of Grammy-winning albums under their belt, Apollo desktop interfaces are used to create exceptional-sounding records every day. To improve upon the previous generation, UA engineers designed the Apollo x4’s audio conversion to deliver a striking 127 dB dynamic range and and -117 dB THD+N, giving Apollo x4 a spacious, organic sound that easily rivals dedicated high-end converters costing much more.

Realtime UAD Processing — a Studio Full of Analog Sounds

Building upon the Apollo tradition, Apollo x4 reveals a stunning range of classic analog tones and color via its Realtime UAD Processing. With powerful UAD-2 QUAD Core processing onboard, Apollo x4 lets you record through the full range of UAD Powered Plug-Ins — at near-zero latency — including authentic titles from Neve, Studer, Helios, API, Lexicon, Manley, Fender, Capitol Studios, and more.*

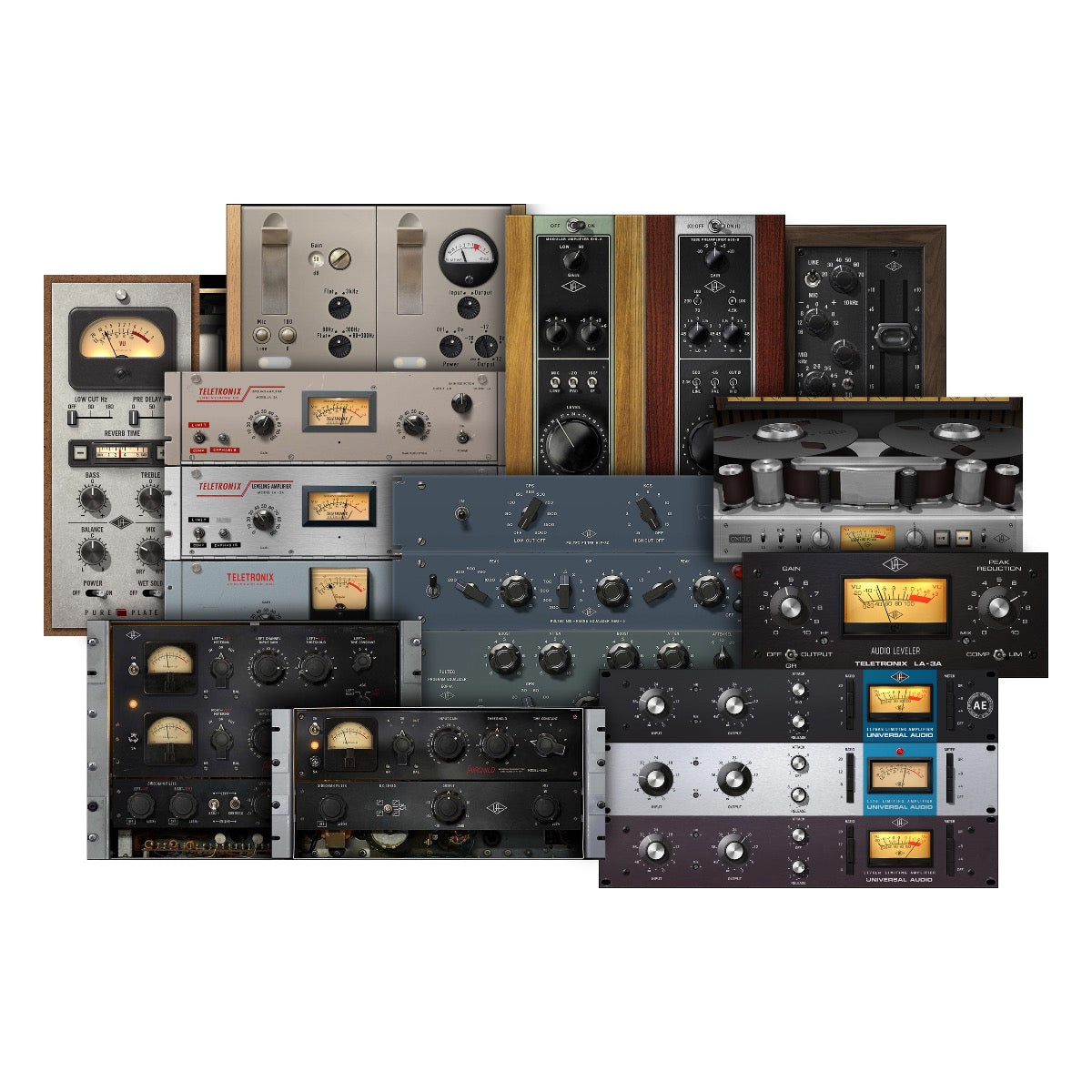

Right out of the box, the Apollo x4 includes the “Realtime Analog Classics Plus” suite of UAD plug-ins — the UA 610-B Tube Preamp & EQ, Teletronix LA-2A and 1176 compressors, Marshall® Plexi Classic Guitar Amp, Ampeg® SVT-VR Classic Bass Amp, Pultec EQs, and more — so you have a rack full of bonafide audio classics already onboard.

Expanded I/O & Built-in Talkback Mic

In addition to its four Unison-equipped preamps, Apollo x4 offers two independent headphone outs and two Hi-Z instrument inputs — letting you collaborate easily. Plus, with a total of four line outs, optical ADAT/SPDIF input and output, dedicated monitor remote controls, and a built-in Talkback mic, the 12 x 18 Apollo x4 can serve as the powerful centerpiece of your professional desktop studio.

Professional Performance and Scalability

Users of Apollo x4 can combine up to four Thunderbolt Apollos and six total UAD-2 devices — adding I/O and DSP as your studio grows. Once you expand your studio with an Apollo X rackmount unit, you can use Apollo x4 as a desktop monitor control with additional I/O and DSP power.

More Information
Product Name Universal Audio Apollo x4 Thunderbolt 3 Audio Interface
Brand Universal Audio
Condition New
MPN APX4
UPC 819937003097
Shipping Option Free Shipping to the Continental U.S.
  • A special edition of UA's acclaimed Apollo x4 interface — with a premium suite of 10 award-winning plug-in titles from Helios,® Fairchild,® Teletronix,® Pultec,® UA, and more — a $2,400 value
  • Elite-class A/D and D/A conversion derived from the Apollo X rackmount interfaces
  • 4 Unison mic preamps offer stunning models of classic tube and transformer-based mic preamps and guitar amps
  • UAD QUAD Core Processing for tracking through vintage compressors, EQs, tape machines, mic preamps, and guitar amp plug-ins with near-zero latency
  • Produce with LUNA Recording System — a fully-integrated recording application made for Apollo (Mac only)
  • Runs UAD Powered Plug-Ins via VST, AU, and AAX 64 in all major DAWs
  • Compatible with Logic Pro, Pro Tools, Cubase, Ableton Live, and more
  • Dual front-panel Unison-enabled Hi-Z instrument inputs and headphone outs
  • Built-in Talkback mic for communication with studio talent and recording slate cues
  • Dedicated monitor functionality including monitor remote functions and Mono, Mute, DIM, and ALT monitor controls
  • Up to 8 channels of additional digital input via optical ADAT/SPDIF
  • Also includes “Realtime Analog Classics Plus” UAD plug-in bundle featuring UA 610-B Tube Preamp, Legacy Pultec EQ, additional LA-2A and 1176 compressors, Marshall Plexi Classic, Ampeg SVT-VR Classic, and more
  • Uncompromising analog design, superior components, and premium build quality
  • Free, industry-leading technical support — on the phone and online — from knowledgeable audio engineers
  • Computer Connectivity: Thunderbolt 3
  • Form Factor: Desktop
  • Simultaneous I/O: 12 x 18
  • A/D Resolution: 24-bit/192kHz
  • Built In DSP/FX: UAD-2 Quad Core Processing, Realtime UAD Powered Plug-ins
  • Number of Preamps: 4 x mic, 2 x instrument
  • Phantom Power: Yes
  • Analog Inputs: 4 x XLR-1/4" combo (mic/line), 2 x 1/4" (Hi-Z)
  • Analog Outputs: 2 x 1/4" (monitor), 4 x 1/4" (line out)
  • Digital Inputs: 1 x Optical Toslink (ADAT, S/PDIF)
  • Digital Outputs: 1 x Optical Toslink (ADAT, S/PDIF)
  • Headphones: 2 x 1/4" TRS
  • Thunderbolt: 1 x USB-C (Thunderbolt 3)
  • Software: UAD Realtime Analog Classics Plus plug-ins (VST3, AU, AAX 64), 10 Heritage Edition plug-ins (VST3, AAX, AU)
  • OS Requirements - Mac: macOS 10.15 or later, Quad Core i7 Processor or higher
  • OS Requirements - PC: Windows 10 Anniversary update or later, Quad Core i7 Processor or higher, Thunderbolt 3 port required
  • Power Supply: 12V DC power supply (included)
  • Height: 2.60"
  • Width: 9.17"
  • Depth: 6.17"
  • Weight: 3.2 lbs.
