Mint Condition with 6 Month Alto Music Warranty
Combining ten inputs, ten outputs, and eight VS PREAMPS with transparent 24-bit/192 kHz audio quality, the Roland OCTA-CAPTURE sets a new standard for portable USB 2.0 audio interfaces. High-level audio production is made possible with this fusion of premium components, Roland-quality engineering, and proprietary preamp and streaming technology. OCTA-CAPTURE is not only a great interface for multi-channel computer-based production, but also a perfect solution for expanding the I/O capability of the V-STUDIO™ 700 and V-STUDIO™ 100.
Eight Premium Mic Preamps
OCTA-CAPTURE boasts eight premium-grade digitally controlled mic preamps (VS PREAMPS), built with the same high-grade components as the preamps in the V-STUDIO 700 and M-400 V-Mixer. Eight XLR inputs are provided for the preamps, plus independent phantom power, low-cut filter, phase invert, and digital compression for each channel.
Auto Input Level Adjustment
Simply activate the AUTO-SENS feature with the push of a button, play your connected instruments, and OCTA-CAPTURE automatically sets the ideal recording level for each input. It's great for quick, fail-safe audio capture when recording either a fully mic'd drum kit or an entire band.
Extreme Low-Latency Driver
OCTA-CAPTURE offers stability and industry-leading low-latency USB performance via Roland's proprietary VS STREAMING technology. All current Mac and PC DAW platforms are supported through ASIO 2.0/WDM (Windows) and Core Audio (Mac) drivers. Thanks to VS STREAMING, you can use multiple devices (two OCTA-CAPTURE units or one OCTA-CAPTURE plus a V-STUDIO 100 or V-STUDIO 700) on the same USB bus without compromising stability, performance, or audio quality.
Four Flexible Monitor Mixes
OCTA-CAPTURE offers four independent Direct Mixers for creating software-controlled monitor mixes. Each mix can be routed to any of the analog outputs and can take advantage of the internal 40-bit DSP processing — perfect for sending custom monitor mixes to headphones, speakers, or recording devices.
Features
Eight premium mic preamps built in (VS PREAMP)
AUTO-SENS function intelligently sets optimal input levels for all preamps
Extremely stable low-latency VS STREAMING driver
Four independent software-controlled Direct Mixers for creating custom monitor mixes
Supports all major DAW platforms on Mac or PC, including OSX 10.6 and Windows 7, through ASIO 2.0/WDM (Windows) and Core Audio (Mac) drivers
Rackmount ears included
Number of Audio Record/Playback Channels:
44.1/48/96 kHz
Record: 12 channels
Playback: 10 channels
192 kHz
Record: 4 channels
Playback: 4 channels
Signal Processing:
PC interface
24 bits
AD/DA Conversion
24 bits
Internal
40 bits
Sampling Frequency:
AD/DA Conversion
44.1/48/96/192 kHz
DIGITAL (IN/OUT)
44.1/48/96 kHz
Nominal Input Level:
Input Jack 1—6 (XLR type)
-56 to -6 dBu
Input Jack 7—8 (XLR type)
-50 to +0 dBu
Input Jack 1—8 (1/4 inch TRS phone type)
-46 to +4 dBu
Nominal Output Level:
OUTPUT 1—8
+0 dBu (balanced)
Head Room:
16 dB
Input Impedance:
Input Jack 1—6 (XLR type)
5 k ohms (balanced)
Input Jack 7—8 (XLR type)
10 k ohms (balanced)
Input Jack 1—8 (1/4 inch TRS phone type)
17 k ohms (balanced)
Output Impedance:
OUTPUT 1—8
1.8 k ohms (balanced)
PHONES
47 ohms
Frequency Response:
192.0 kHz
20 Hz to 90 kHz (+0/-8 dB)
20 Hz to 60 kHz (+0/-2 dB)
96.0 kHz
20 Hz to 40 kHz (+0/-2 dB)
48.0 kHz
20 Hz to 22 kHz (+0/-2 dB)
44.1 kHz
20 Hz to 20 kHz (+0/-2 dB)
Residual Noise Level:
MAIN OUT
-87 dBu typ. (GAIN:min., INPUT 1 — 2 terminated with 600 ohms , IHF-A)
* Internal Direct Monitor Mixer setting
Stereo Link: ON, Input channel fader: Unity
Dynamic Range:
AD block
INPUT 1—8: 104 dB typ. (GAIN: min.)
DA block
OUTPUT 1—8: 113 dB typ.
Display:
128 x 64 dots Graphic LCD (backlit LCD)
Connectors:
Input Jacks 1—8 (XLR type / 1/4 inch TRS phone type)
XLR type (balanced / phantom power +48 V)
1/4 inch TRS phone type (balanced)
Coaxial Input Connector
Coaxial Output Connector
Headphones Jack (Stereo 1/4 inch phone type)
Output Jack 1—8 (1/4 inch TRS phone type (balanced))
MIDI Connectors (In, Out)
USB Connector
Others:
Power Supply
DC 9 V (AC adaptor)
Current Draw
1.45 A
Accessories
Rack Mount Angle x 2
Owner's Manual
Cakewalk Production Plus Pack DVD-ROM
Driver CD-ROM
AC Adaptor
USB cable
Size and Weight:
Width
284 mm
11-3/16 inches
Depth
158 mm
6-1/4 inches
Height
50 mm
2 inches
Weight
1.3 kg
2 lbs. 15 oz.
| Product Name | Roland UA1010 Octa-Capture 10x10 USB Audio Interface (UA1010) |
|---|---|
| Brand | Roland |
| MPN | UA1010 |
| UPC | 761294412961 |
| Shipping Option | Free Shipping to the Continental U.S. |

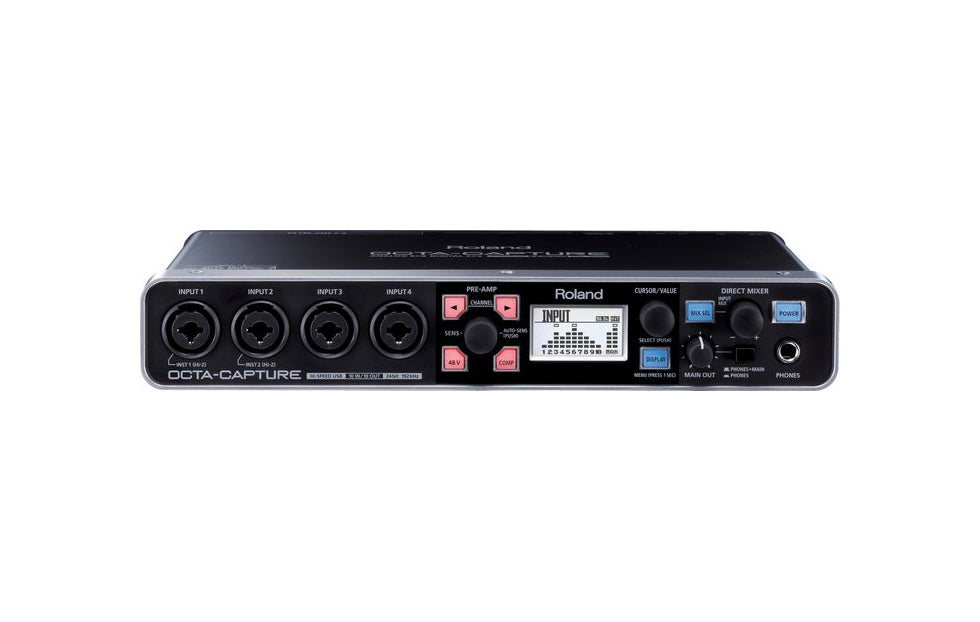

Roland UA1010 Octa-Capture 10x10 USB Audio Interface (UA1010)
Details
Mint Condition with 6 Month Alto Music Warranty
Combining ten inputs, ten outputs, and eight VS PREAMPS with transparent 24-bit/192 kHz audio quality, the Roland OCTA-CAPTURE sets a new standard for portable USB 2.0 audio interfaces. High-level audio production is made possible with this fusion of premium components, Roland-quality engineering, and proprietary preamp and streaming technology. OCTA-CAPTURE is not only a great interface for multi-channel computer-based production, but also a perfect solution for expanding the I/O capability of the V-STUDIO™ 700 and V-STUDIO™ 100.
Eight Premium Mic Preamps
OCTA-CAPTURE boasts eight premium-grade digitally controlled mic preamps (VS PREAMPS), built with the same high-grade components as the preamps in the V-STUDIO 700 and M-400 V-Mixer. Eight XLR inputs are provided for the preamps, plus independent phantom power, low-cut filter, phase invert, and digital compression for each channel.
Auto Input Level Adjustment
Simply activate the AUTO-SENS feature with the push of a button, play your connected instruments, and OCTA-CAPTURE automatically sets the ideal recording level for each input. It's great for quick, fail-safe audio capture when recording either a fully mic'd drum kit or an entire band.
Extreme Low-Latency Driver
OCTA-CAPTURE offers stability and industry-leading low-latency USB performance via Roland's proprietary VS STREAMING technology. All current Mac and PC DAW platforms are supported through ASIO 2.0/WDM (Windows) and Core Audio (Mac) drivers. Thanks to VS STREAMING, you can use multiple devices (two OCTA-CAPTURE units or one OCTA-CAPTURE plus a V-STUDIO 100 or V-STUDIO 700) on the same USB bus without compromising stability, performance, or audio quality.
Four Flexible Monitor Mixes
OCTA-CAPTURE offers four independent Direct Mixers for creating software-controlled monitor mixes. Each mix can be routed to any of the analog outputs and can take advantage of the internal 40-bit DSP processing — perfect for sending custom monitor mixes to headphones, speakers, or recording devices.
Features
Eight premium mic preamps built in (VS PREAMP)
AUTO-SENS function intelligently sets optimal input levels for all preamps
Extremely stable low-latency VS STREAMING driver
Four independent software-controlled Direct Mixers for creating custom monitor mixes
Supports all major DAW platforms on Mac or PC, including OSX 10.6 and Windows 7, through ASIO 2.0/WDM (Windows) and Core Audio (Mac) drivers
Rackmount ears included
Number of Audio Record/Playback Channels:
44.1/48/96 kHz
Record: 12 channels
Playback: 10 channels
192 kHz
Record: 4 channels
Playback: 4 channels
Signal Processing:
PC interface
24 bits
AD/DA Conversion
24 bits
Internal
40 bits
Sampling Frequency:
AD/DA Conversion
44.1/48/96/192 kHz
DIGITAL (IN/OUT)
44.1/48/96 kHz
Nominal Input Level:
Input Jack 1—6 (XLR type)
-56 to -6 dBu
Input Jack 7—8 (XLR type)
-50 to +0 dBu
Input Jack 1—8 (1/4 inch TRS phone type)
-46 to +4 dBu
Nominal Output Level:
OUTPUT 1—8
+0 dBu (balanced)
Head Room:
16 dB
Input Impedance:
Input Jack 1—6 (XLR type)
5 k ohms (balanced)
Input Jack 7—8 (XLR type)
10 k ohms (balanced)
Input Jack 1—8 (1/4 inch TRS phone type)
17 k ohms (balanced)
Output Impedance:
OUTPUT 1—8
1.8 k ohms (balanced)
PHONES
47 ohms
Frequency Response:
192.0 kHz
20 Hz to 90 kHz (+0/-8 dB)
20 Hz to 60 kHz (+0/-2 dB)
96.0 kHz
20 Hz to 40 kHz (+0/-2 dB)
48.0 kHz
20 Hz to 22 kHz (+0/-2 dB)
44.1 kHz
20 Hz to 20 kHz (+0/-2 dB)
Residual Noise Level:
MAIN OUT
-87 dBu typ. (GAIN:min., INPUT 1 — 2 terminated with 600 ohms , IHF-A)
* Internal Direct Monitor Mixer setting
Stereo Link: ON, Input channel fader: Unity
Dynamic Range:
AD block
INPUT 1—8: 104 dB typ. (GAIN: min.)
DA block
OUTPUT 1—8: 113 dB typ.
Display:
128 x 64 dots Graphic LCD (backlit LCD)
Connectors:
Input Jacks 1—8 (XLR type / 1/4 inch TRS phone type)
XLR type (balanced / phantom power +48 V)
1/4 inch TRS phone type (balanced)
Coaxial Input Connector
Coaxial Output Connector
Headphones Jack (Stereo 1/4 inch phone type)
Output Jack 1—8 (1/4 inch TRS phone type (balanced))
MIDI Connectors (In, Out)
USB Connector
Others:
Power Supply
DC 9 V (AC adaptor)
Current Draw
1.45 A
Accessories
Rack Mount Angle x 2
Owner's Manual
Cakewalk Production Plus Pack DVD-ROM
Driver CD-ROM
AC Adaptor
USB cable
Size and Weight:
Width
284 mm
11-3/16 inches
Depth
158 mm
6-1/4 inches
Height
50 mm
2 inches
Weight
1.3 kg
2 lbs. 15 oz.
| Product Name | Roland UA1010 Octa-Capture 10x10 USB Audio Interface (UA1010) |
|---|---|
| Brand | Roland |
| MPN | UA1010 |
| UPC | 761294412961 |
| Shipping Option | Free Shipping to the Continental U.S. |
