The original VOX Continental was ‘the’ go-to sound for performers in the ‘60s. Today’s VOX Continental embodies that heritage and delivers a comprehensive performance synthesizer with sounds that all modern musicians need.

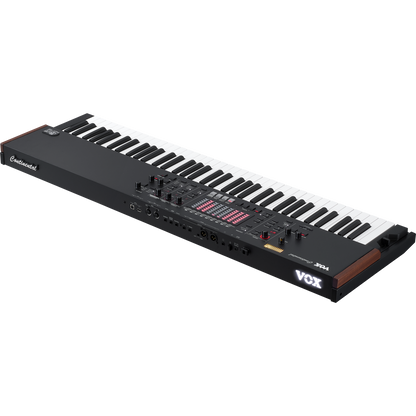

The VOX Continental 73 BK stage keyboard offers the sounds you need the most, all in one unit: PIANO, E. PIANO, ORGAN, and KEY/LAYER (including brass, strings and more). The front panel controls have been designed around these four parts, so first-time players can easily pick it up. With its simple and intuitive layout, players have instant access to master effects, EQ, and the Nutube vacuum tube-powered valve drive.
The unit is manufactured using metal components for a sturdy design, while still being easy to play with its light-touch waterfall keyboard, all packaged in a slim, compact, and lightweight body. With its excellent portability, this is the perfect companion for keyboardists who want an instrument that’s easy to play wherever you go.
The VOX Continental 73 BK features a part select button that makes it easy to switch between the E. PIANO, PIANO, KEY/LAYER and ORGAN parts to use the sounds you need right away. Individual front panel controls for each part let you select the variations, set the levels and more. Settings for these four parts are saved together in a single scene. Press both part select buttons at the same time to layer and play both parts together.
E. PIANO part
Three electric piano sound engines are provided. TINE is the most representative electric piano sound. Along with TINE, REED is used in many famous songs. FM features the metallic sound often heard in songs from the 1980’s. This is an electric piano with a high-definition FM sound, that was carefully created to be rich in harmonics, using a realistic sound generator model with amp and cabinet modeling.
PIANO part
Features three sound categories, including the GRAND with a high-grade sampled grand piano, an UPRIGHT sound that’s easy to use in settings like pop music, and an E.GRAND sound that’s often heard in music from the 1970’s. The GRAND and UPRIGHT sounds go all the way with non-looped, high-resolution sampled sounds in stereo across the entire key range to recreate the delicate and powerful sounds of the piano.
KEY/LAYER part
This part features six categories of sounds including KEY (clavinet, pipe organ and so on), BRASS (brass and woodwind sounds), STRINGS (strings and choir), LEAD, SYNTH and OTHER. These sounds give you the power to handle a wide range of genres with this instrument alone, offering sounds and can be layered with piano and other parts.
ORGAN part
This part features three different sound engines. The CX-3 tonewheel organ sound engine models the sound of the KORG CX-3 combo organ and works well for any genre from rock to popular music. The VOX transistor organ sound engine features a unique high-end sound and perfectly reproduces every detail of the original VOX Continental from the 1960s. The COMPACT transistor organ sound generator offers a characteristically cheap sound, recreating the sound of this compact organ that came out around the same time as the VOX organ. These sounds offer “touch control” that lets you use your fingers to control the harmony and tone, much like real drawbars.
The CX-3 and VOX let you switch between upper (the upper part of the keyboard) and lower (the lower side of the keyboard) or create a split with the touch of a button. You can also connect an external MIDI keyboard to play the upper part on this keyboard and the lower part with an external MIDI keyboard, like using two manuals (levels) on an organ. Of course, you can also use vibrato/chorus and the rotary speaker simulation, and you can use the bend lever to on the side of the keyboard to change the speed of the rotary speaker effect when you play.
The nine-line LED display to the left of the panel makes it easy to see the setting status, and it also works as a controller. Three control targets are selectable using this touch sensor, and when ORGAN is selected, this mainly works as a drawbar to shape that sound. When KEY/LAYER is selected, this is used to make the filter and EG settings. When EQ is selected, you can control the overall tonal balance over nine bands.
This unit features a vacuum tube distortion effect that works especially well with organ and electric piano sounds. The Nutube vacuum tube-powered valve drive lets you create rich harmonics that are impossible to create using modeling, for a warm vacuum tube sound with smooth distortion. You can use the dedicated button to turn valve drive on/off. The amount of effect used can be adjusted in detail using the knob, and you can see how much effect is applied by looking at the brightness of the LED that lights the Nutube.
Nutube: the new vacuum tube
Adding stunning presence and warm valve drive sound, the Nutube is a new type of vacuum tube developed by KORG in conjunction with Noritake Itron Corporation. As with conventional vacuum tubes, the vacuum tube is constructed with an anode grid filament, and operates as a complete triode tube. Further, the Nutube offers the characteristically rich harmonics that create the vacuum tube sound. The tube construction utilizes technology from vacuum fluorescent displays to create a vacuum tube that uses far less power than previous vacuum tubes, with a more compact design and better quality.
The balance between your key touch and the sound generated determines how the instrument responds to what you play on the keyboard. Your preferences will vary considerably depending on whether you play jazz music (which requires a delicate touch with expressiveness) or rock music (which calls for loud volumes with a strong key press), a gap that’s difficult to fill using only the velocity curve settings. For this reason, this unit features a DYNAMICS knob that gives you even more detailed control over the volume and how the sound changes according to how hard or soft you play the keys. Turn the knob counterclockwise to get the full range of inflection with velocity, and turn the knob clockwise for a stronger sound with more uniformity in volume. This makes it easy to choose the setting you want according to your playing style.
The VOX Continental 73 BK features a light-touch keyboard with waterfall keys that are suitable for playing glissandos. The keyboard is also semi-weighted, giving the keys a stable playing feel when using piano or electric piano sounds, offering for a superior key touch. Owing Due to its keyboard and lightweight body design, the instrument weighs 8.4 kg (excluding the included wooden side panels), which brings it under the 10 kg class while still being a 73-key stage keyboard. This instrument can be easily carried with the SC-Continental 73 soft case, (sold separately).
The VOX Continental 73 BK lets you register up to 64 scenes (4 scenes × 4 banks × 4), which include combinations of sounds in four parts, the master effect and settings for the EQ and so on. These scenes can be easily recalled using the buttons at the bottom of the touch control. You can also connect a USB flash drive (commercially available) to the USB port on the back of this instrument to save and load up to 100 sets of scenes, so you can always use the same settings by bringing the USB flash drive to the place where you’ll be performing with the VOX Continental 73 BK.
Three series of master effects plus EQ are available. The first stage is an insert effect to the master, with six selectable types including chorus, phaser and wah. You can turn the effects on/off and make basic adjustments to the parameters. The second-stage delay and reverb are sends from the master, with four types of delay and five types of reverb. The third stage includes a nine-band EQ that can be set using the touch controller. The final stage features a valve drive circuit with Nutube, these settings can all be saved to the scene memory. The final stage features a valve drive circuit with Nutube. All of these settings can all be saved to the scene memory.
A volume/expression pedal (V861) is provided for use with this keyboard. The V861 features a compact, sturdy aluminum housing with a high-class black anodized aluminum finish, and is equipped with two INPUT/OUTPUT jacks and one EXPRESSION jack for controlling the volume or wah effect.
The Leather texture black body of this instrument perfectly matches any stage, and the instrument comes with a set of dark brown wooden side panels. Attach these panels onto the keyboard according to your preferences. The body is made of sturdy sheet metal and many lightweight aluminum. These materials offer a slim and compact product design with superior durability and portability.
| Product Name | VOX Continental V2.0 73-key Performance Keyboard, Black |
|---|---|
| Brand | Vox |
| Condition | New |
| MPN | CONTINENTAL73BK |
| UPC | 4959112141568 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Intuitive user interface that emphasizes playability on stage
- ORGAN part that meticulously models three vintage organs
- High-quality E.PIANO part with attention paid to every detail
- Rich PIANO part powered by high-capacity samples
- KEY/LAYER part with a wide range of variations
- Intuitive and powerful effects that are optimized for live use
- Touch sensor that can control a variety of parameters
- Nine-band EQ that allows detailed control of your sound
- Real valve drive sound powered by Nutube, the new vacuum tube
- Newly developed waterfall keyboard provides excellent playability
- Dynamics knob lets you freely customize the playing feel of the keyboard
- Scene memories let you instantly switch between settings
- Lightweight and compact body is built of sturdy sheet metal and aluminum
- Carries on the scarlet color that's traditional for VOX organs
Semi-weighted waterfall(velocity sensitive is supported, after touch is not supported)
- 73 keys: E1 ─ E7 (transposable in the range of [E-1…C5] ─ [E3…E9]), velocity sensitive E1 to E7
Sound Generator
Maximum Polyphony
- Modeling tonewheel organ sound generator: 128 voices
- Modeling transistor organ sound generator: 100 voices
- Modeling electric piano sound generator: 80 voices
- High-definition Piano sound generator: 60 dual stereo notes (equivalent to 240 voices max)
- Modeling analog synthesizer sound generator: 36voices
- PCM sound generator: 64 stereo notes (equivalent to 128 voices max)
- Actual maximum polyphony will vary depending on oscillator settings such as stereo multisamples and velocity crossfade.
PCM Memory
- Approx. 10.5 GB(in case of 48 kHz, 16-bit Linear PCM converted)
ORGAN Part
- 3 types (CX-3, VOX, COMPACT)
- Draw bar, Percussion ON/OFF, Split function, Vibrato/Chorus ON/OFF, Rotary Speaker ON/OFF)
E.PIANO Part
- 3 types (TINE, REED, FM)
PIANO Part
- 3 types (GRAND, UPRIGHT, E.GRAND)
KEY/LAYER Part
- 6 types (KEY, BRASS, STRINGS, LEAD, SYNTH, OTHER)
Preset variations
- 150
Scene
- 16 (4 x 4)
- It is available to save 100 sets to external USB
Effects
Insert Effects
- EFFECT: CHORUS, PHASER, FLANGER, COMP, DRIVE, WAH (control via pedal)
Master Effects
- DELAY: 1. DELAY, 2. CROSS, 3. TAPE, 4. MOD DLY
- REVERB: 1. HALL1, 2. HALL2, 3. ROOM1, 4. ROOM2, 5. SPRING
EQ
- 9-band stereo input/output
VALVE DRIVE
- Vacuum tube Nutube 6P1
DYNAMICS
- Control the amount of change in volume and tone produced by your keyboard playing dynamics.
Controllers
Bend Lever
- ORGAN: Rotary Slow/Fast
- E.PIANO: Tremolo ON/OFF
- KEY/LAYER: Pitch bend
Touch sensors (electrostatic capacitance type)
- ORGAN: Drawbars
- KEY/LAYER: Sound controls
- EQ: 9 band equalizer
Audio Characteristics
Frequency Characteristics
- 20Hz ─ 22kHz ±1.0dB 10k Ω load
THD+N
- 20Hz ─ 22 kHz 0.005% (standard) 10k Ω load
S/N Ratio
- 105dB (standard)

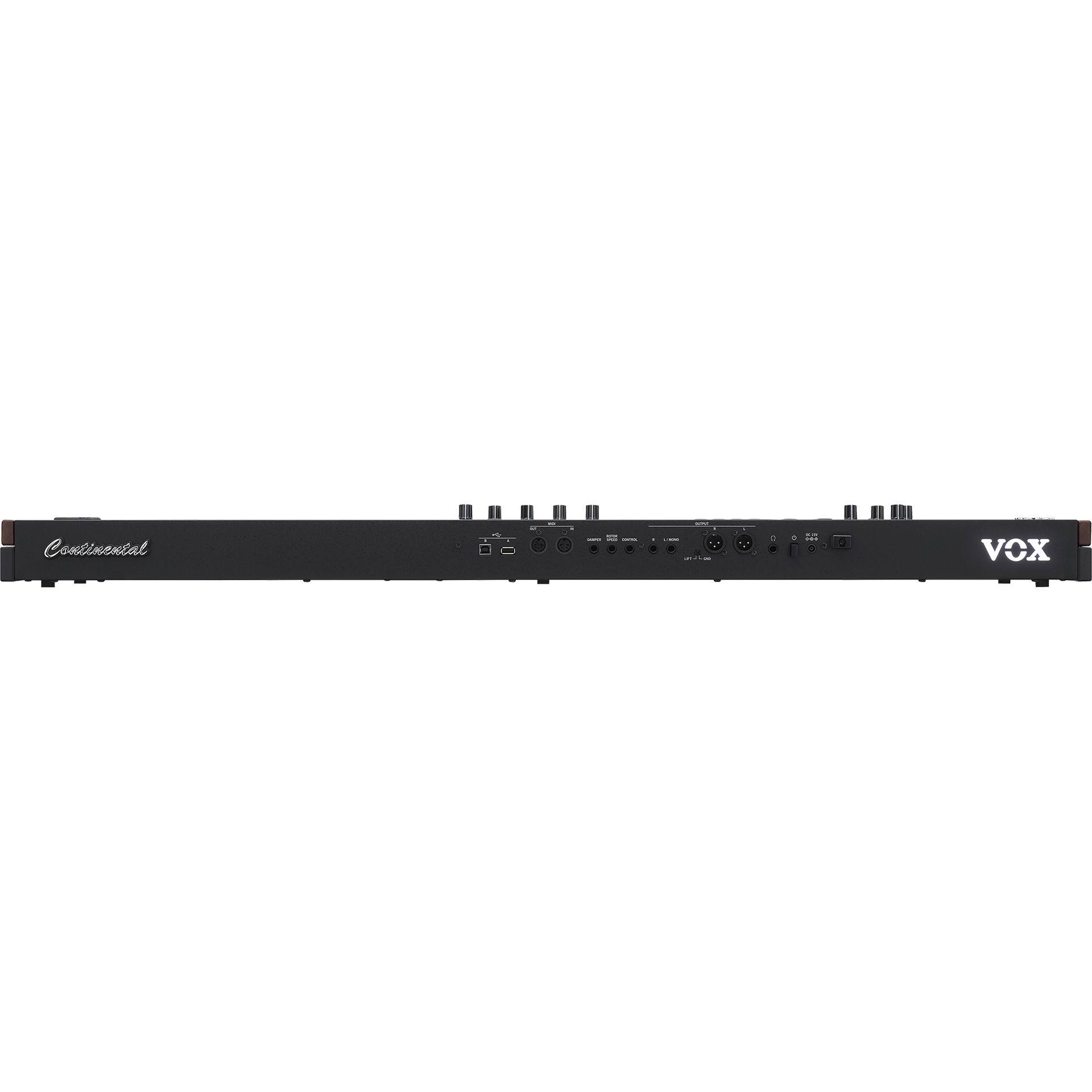

Audio Output
OUTPUT L/MONO, R
- Connector: 6.3 mm (1/4") monaural phone jack, unbalanced
- Output impedance: 1.1 Ω (when outputting in stereo), 600 Ω (L/Mono jack, when outputting in mono)
- Maximum level: +16.0 dBu
- Load impedance: 10k Ω or more
OUTPUT L, R
- Connector: XLR-3-32 type (balanced) + LIFT - GND switch
- Output impedance: 350 [Ω] (when outputting in stereo)
- Maximum level: +16.0 [dBu]
- Load impedance: 10k Ω or more
HEADPHONES
- Connector: 6.3 mm (1/4") stereo phone jack
- Output impedance: 50 Ω
- Maximum level: 150 + 150 mW @32 Ω
Control Inputs
DAMPER
- KORG DS-1H damper pedal (supports half-damper), PS-1 and PS-3 pedal switches
ROTOR SPEED
- KORG PS-1 and PS-3 pedal switches
CONTROL
- V861 VOL/EXP pedal volume/expression pedalV861
Other Sounds
MIDI
- IN, OUT
USB
- USB A (TYPE A): Saving/loading scene data
- USB B (TYPE B): MIDI interfaces: 1 (16 ch) in/1 (16 ch) out
- Complies with USB specification Ver. 2.0, High speed (up to 480 Mbps)
Main Specifications
Power
- AC adapter connector (DC 15 V), power button
Dimensions (W x D x H)
- 73-key model: 1,103 mm x 350 mm × 86 mm/ 43.43" × 13.78" × 3.39"
Weight
- 73-key model: 8.4 kg / 18.52 lbs
Power Consumption
- 16W

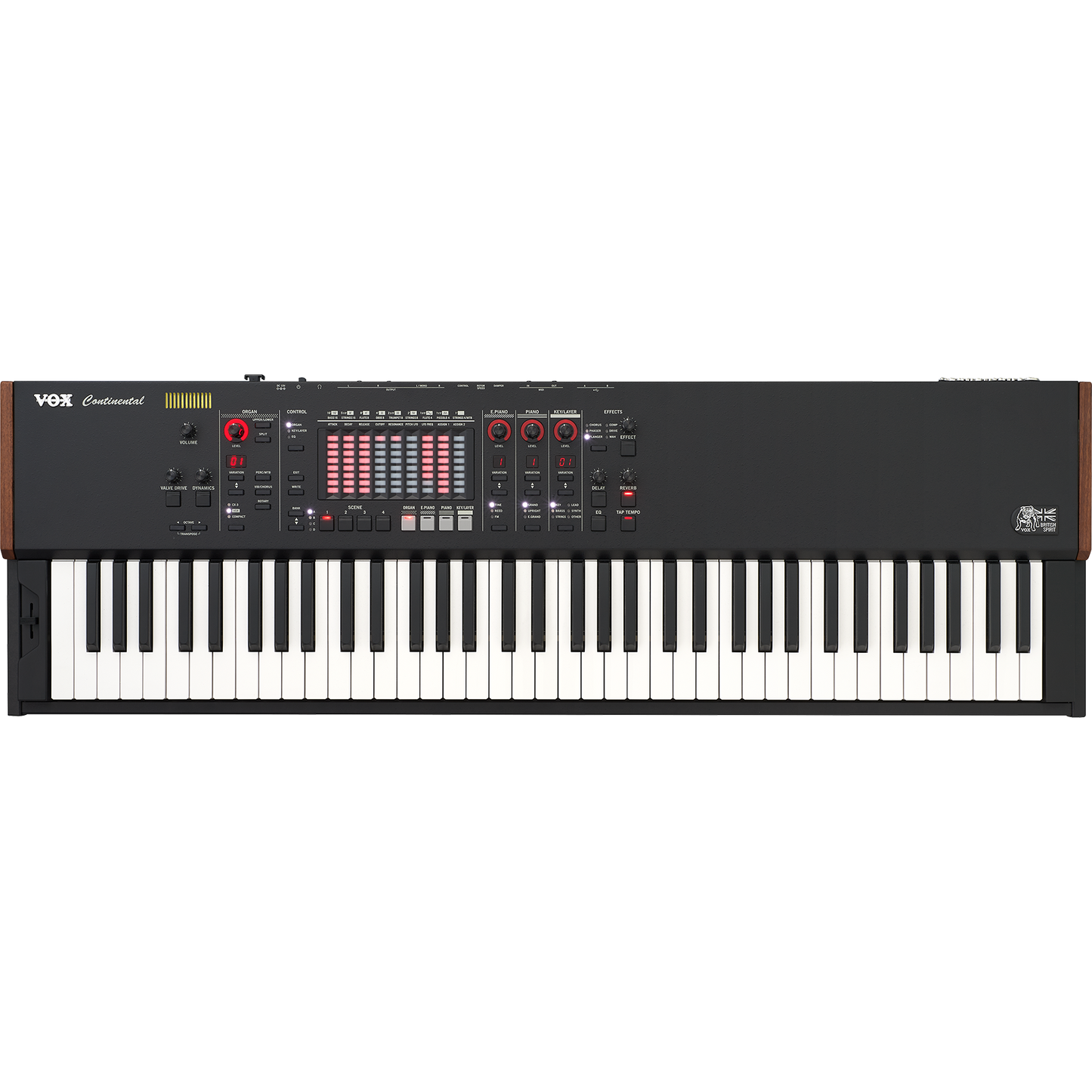

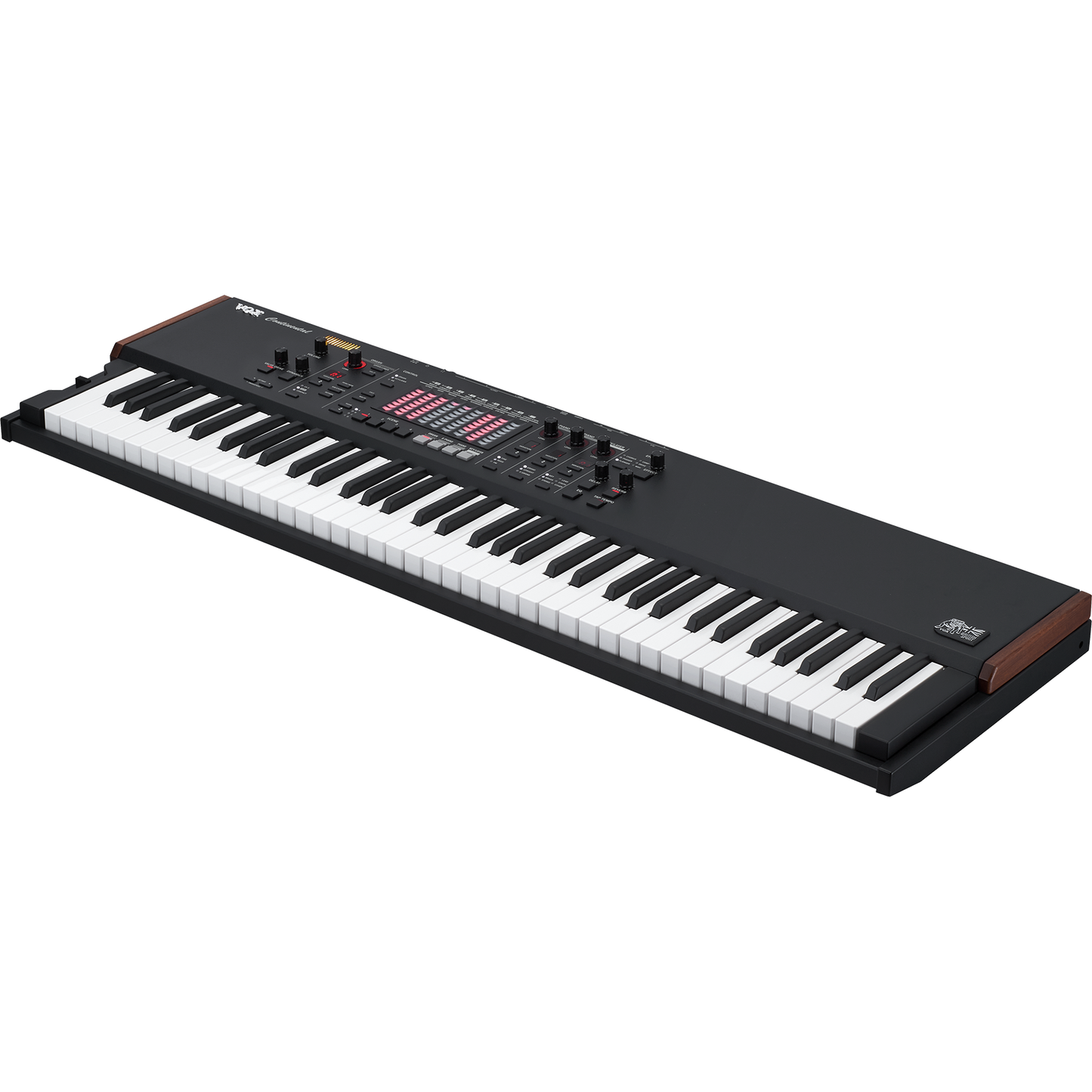

VOX Continental V2.0 73-key Performance Keyboard, Black

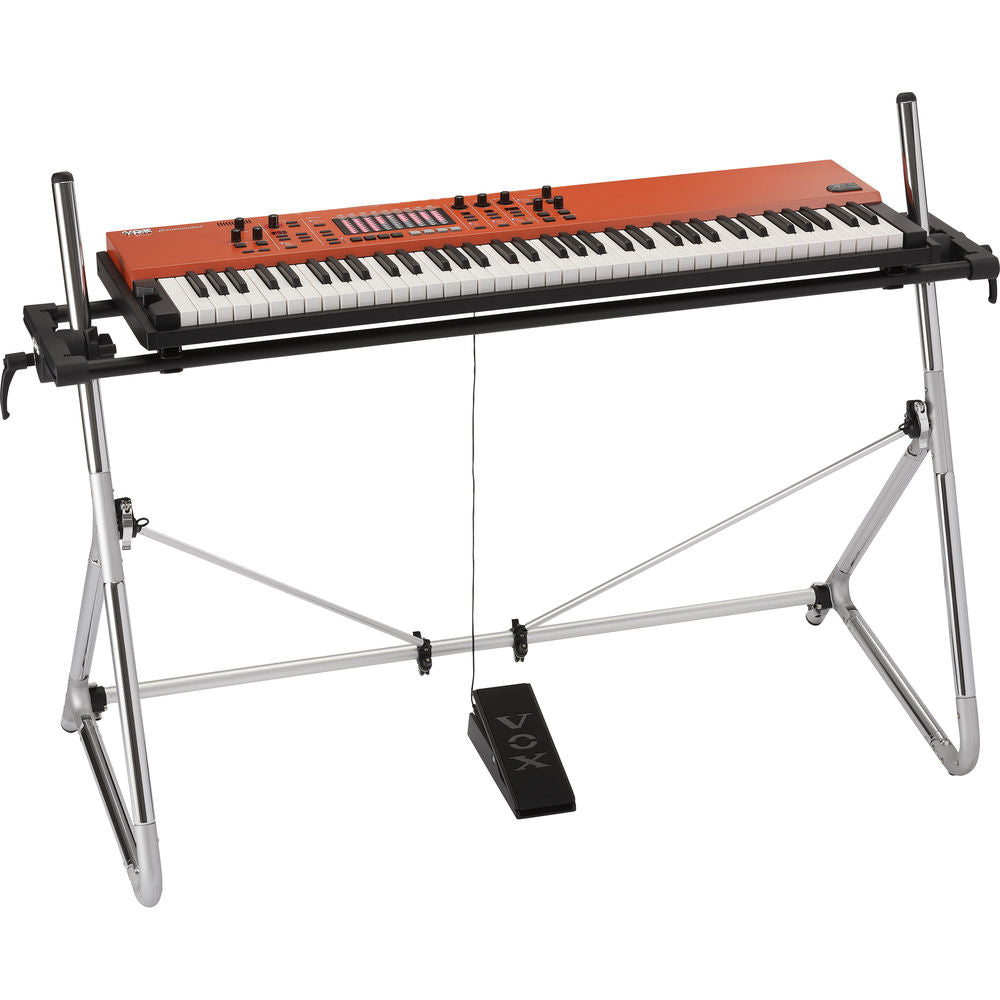

*Stand available upon request, ships separately.
The VOX Continental uses a simple and intuitive interface that allows quick accessibility of every function. The high-quality sound engine section is centered on organ, electric piano, and acoustic piano, and provides a wealth of stage-ready sounds. In addition, the Continental features a powerful effects section to enhance these sounds, and even analog valve drive powered by Nutube, the cutting-edge vacuum tube. It's an instrument that perfectly fits your live performance requirements for a variety of styles including rock, pop, jazz, and more.
The air of tradition that emanates from VOX organs, together with the innovation of decades of research, down to the illuminated VOX logo shows the new VOX Continental is a fusion of both, redefining the existence of the modern stage keyboard.
Pursuing on-stage playability
A live stage environment is a demanding performance space for a keyboardist. With an intuitive interface that's designed for on-stage playability, the VOX Continental gives you instant access to all functions from its front panel.
The easily-understandable panel layout independently places the four parts (ORGAN, E.PIANO, PIANO, KEY/LAYER) and lets you instantly switch them between on, off, and layer states. Scene memories let you quickly recall programs and effects settings. You can use the touch sensors to control a variety of parameters in addition to the organ drawbars. All of this functionality is designed for players who performs daily on stage.
An array of four sound parts delivers high-quality sounds for live use
With approximately 10 GB of high-capacity memory, the VOX Continental has 150 built-in programs carefully selected for live use, powered by its high-quality PCM sound engine and its sophisticated vintage sound modeling engine.
ORGAN part meticulously models three vintage organs
The ORGAN part contains three different sound engines. The VOX transistor organ sound engine perfectly reproduces the sound of the original VOX Continental that went on sale in the 1960s. The COMPACT reproduces every detail of another compact transistor organ from the same era as the VOX Continental. The CX-3 tonewheel organ sound engine faithfully models KORG's classic combo organ. These organ sounds let you use the revolutionary touch drawbars to freely control the harmonics and tone.
The VOX and the CX-3 also let you switch between upper (upper keyboard) and lower (lower keyboard) and split at a single touch of a button. It goes without saying that the CX-3 provides percussion to create an attack sound, and the COMPACT is equipped with an MTB (multi-tone booster) that lets you create everything from sweet and mellow tones to a distinctively sharp sound.
Furthermore, every sound allows vibrato/chorus and the rotary speaker simulation to be quickly switched on/off at a touch. Vintage effects are also included, letting you immerse yourself in the rich history of organ performance.
High-quality E.PIANO part pays attention to every detail
Three electric piano sound engines are provided: TINE gives you the sounds produced by striking a metal bar, REED models the vintage electric pianos that strike a vibrating reed, and FM creates the iconic electric piano sounds of the 80's. You'll enjoy high-quality e-piano sounds with realistically simulated amp and cabinet modeling, and carefully sampled overtones.
Rich PIANO part delivered by high-capacity samples
Three types of piano are provided: GRAND with its peerless resonance, UPRIGHT which provides the uniquely sophisticated depth of an upright piano, and E.GRAND which gives you an electric grand that's ideal for pop music. GRAND and UPRIGHT lavishly feature non-looped stereo samples for every key, bringing you richly expressive piano sounds that are both delicate and powerful.
KEY/LAYER part with rich variety
This part contains a variety of practical sounds that will be immediately useful in your band or ensemble, organized into the six categories of KEY, BRASS, STRINGS, LEAD, SYNTH, and OTHER. These will perfectly cover the keys part of any musical style.
Intuitive and powerful effects optimized for live use
Designed for the same ease-of-use as the sound parts, the effects section is optimized for live performance. Six powerful EFFECT types (CHORUS, PHASER, FLANGER, COMP, DRIVE, WAH), four types of DELAY, five types of REVERB, and EQ; each provide dedicated knobs and switches to allow versatile and rapid control of your sound.
From EQ to EG, touch sensors allow versatile control
The greatest distinction of the VOX Continental's interface is its revolutionary LED-equipped touch bars that shift function according to the situation.
- When you're playing an ORGAN part, they function as touch drawbars that you can control directly with your fingertips.
- When you're playing a KEY/LAYER part, they function as sliders that control parameters such as EG and filter.
- When the EQ is on, they function as a nine-band graphic master EQ.
These are electrostatic touch sensors that smoothly respond to a light touch of your fingertips; they provide the graphical operability of drawbars, together with the programmability that users expect from today's technology. Their concave shape facilitates smooth movement of your fingertips, and also allows you to sense intuitively how far the control has been raised or lowered, without requiring you to glance at the controller during performance. These are not the commonly-seen physical sliders, nor are they buttons; rather, these touch sensors are precisely matched to the player's senses, delivering a revolutionary ease of use.
As an additional controller, a bend lever is also provided. You can use this to freely control the speed of the rotary speaker simulation, tremolo, or pitch bend.
Real valve sound powered by Nutube, the new vacuum tube
Adding stunning presence and the warmth of vacuum tubes, KORG's Nutube is a new type of vacuum tube that powers valve drive sound, smooth distortion, and a dense and fat sound that cannot be obtained by modeling. The nuances of drive can be intuitively controlled by a dedicated switch and knob even while you perform. The light emanated by the Nutube circuit adds a visual element to its audible effect.
*What is Nutube?
Nutube is a new type of vacuum tube that was developed by KORG Inc. and Noritake Itron Corporation utilizing vacuum fluorescent display technology. Like a conventional vacuum tube, Nutube has an anode grid filament structure, and operates as a complete triode vacuum tube. Like a conventional vacuum tube, it generates the warm overtones and response that are distinctive of vacuum tubes.
Semi-weighted waterfall keyboard is optimized for performing a variety of sounds
A newly designed light-touch waterfall keyboard is featured. Performance techniques distinctive of the organ, such as glissandi and trills, can be reproduced perfectly. Semi-weighted design means that playing feel is also excellent for piano or electric piano performance. Even when you're playing complex chords or difficult phrases, sensitive velocity control is assured.
Freely customize the playing feel of the keyboard
The dynamics knob lets you control the way in which your playing dynamics (velocity) affect changes in volume and sound. Turning the knob toward the left gives you a wide range of expression from pianissimo to fortissimo, allowing the richly emotional performance that you need for a solo or for singer-instrumentalist playing. Turning the knob toward the right will make the loudness of the sound consistent regardless of your keyboard playing dynamics, ensuring that your keyboard backing will not be buried in the sound of your band or ensemble.
Use scene memories to instantly switch settings
Favorite sounds or frequently-used variations can be registered as one of 16 scenes (4 scenes x 4 banks) and recalled instantly while you perform. You can also use a USB flash drive to save and load up to 100 sets of 16 scenes. For the keyboard player who works with multiple bands, this feature allows sets of scene memories to be managed without confusion for easy access to the sounds you need.
A true stage keyboard that shines in live performance
The design and features of the VOX Continental are optimized for live performance. The body sports the distinctive scarlet color that's traditional for VOX organs, and is made of sturdy sheet metal and lightweight aluminum to ensure durability, and its slim and compact design guarantees excellent portability. The OUTPUT jacks provide XLR balanced output to preserve the quality of the audio output without having to use D.I. The rear panel VOX logo is fully illuminated; along with the bulldog badge, this makes a bold on-stage assertion of this instrument's English heritage.
