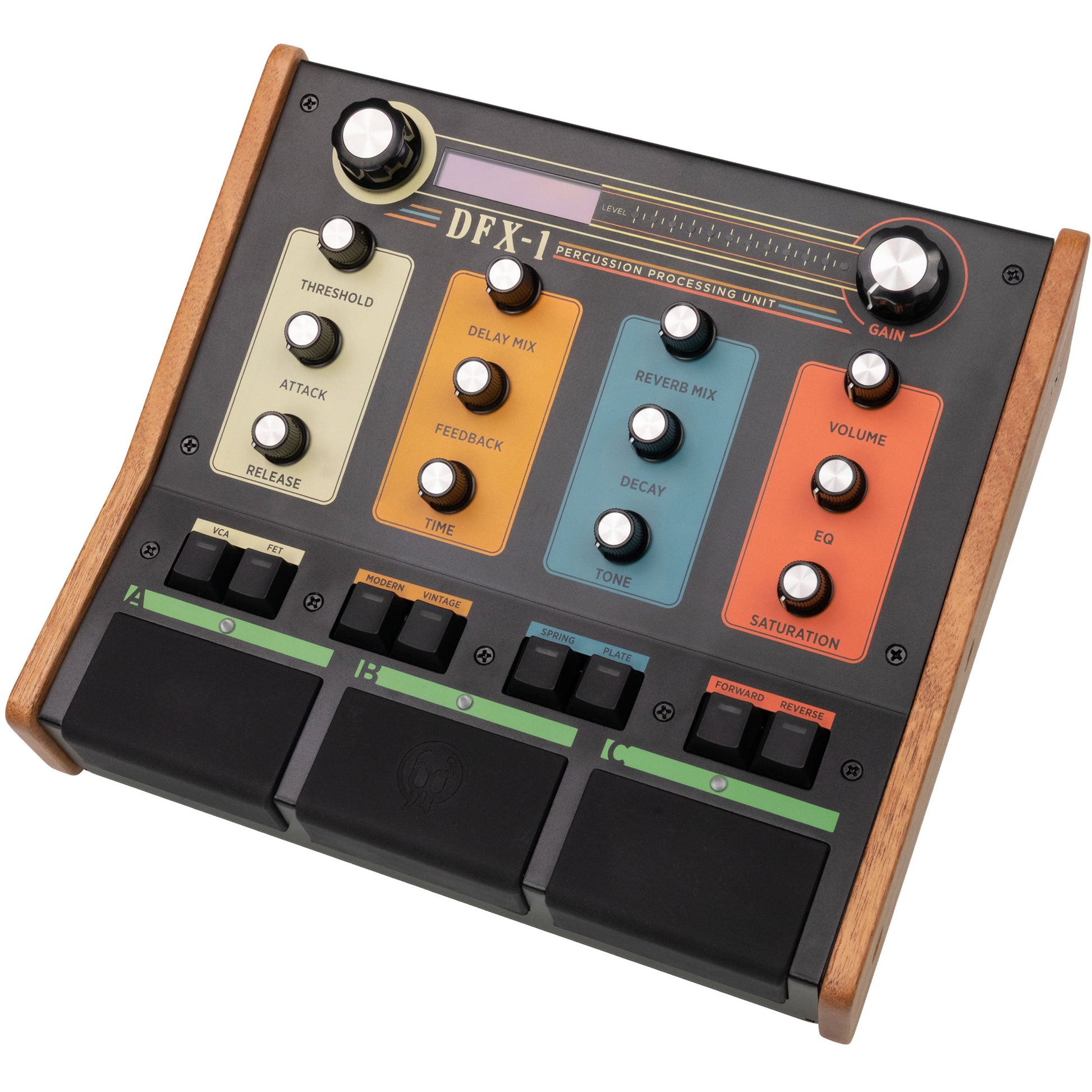

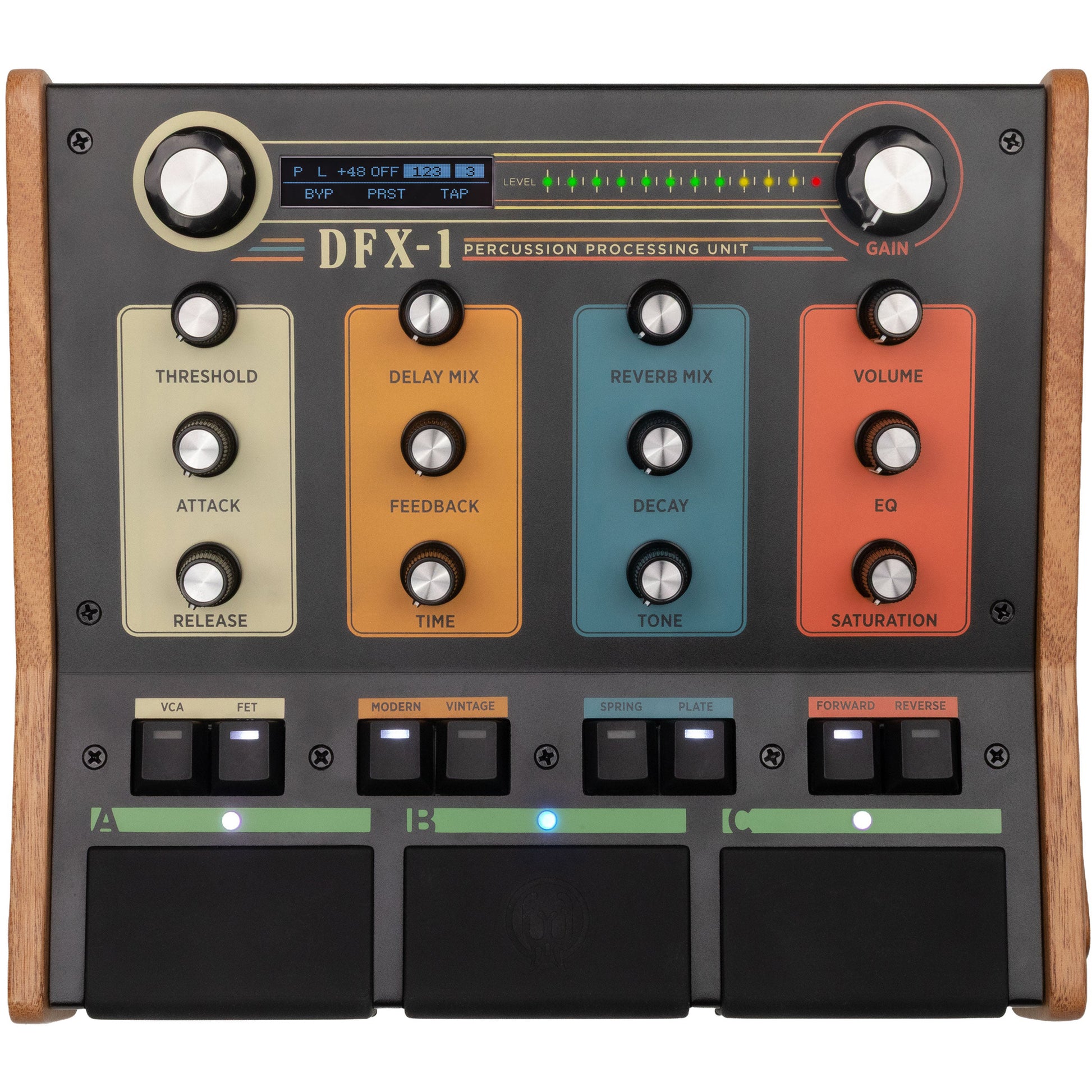

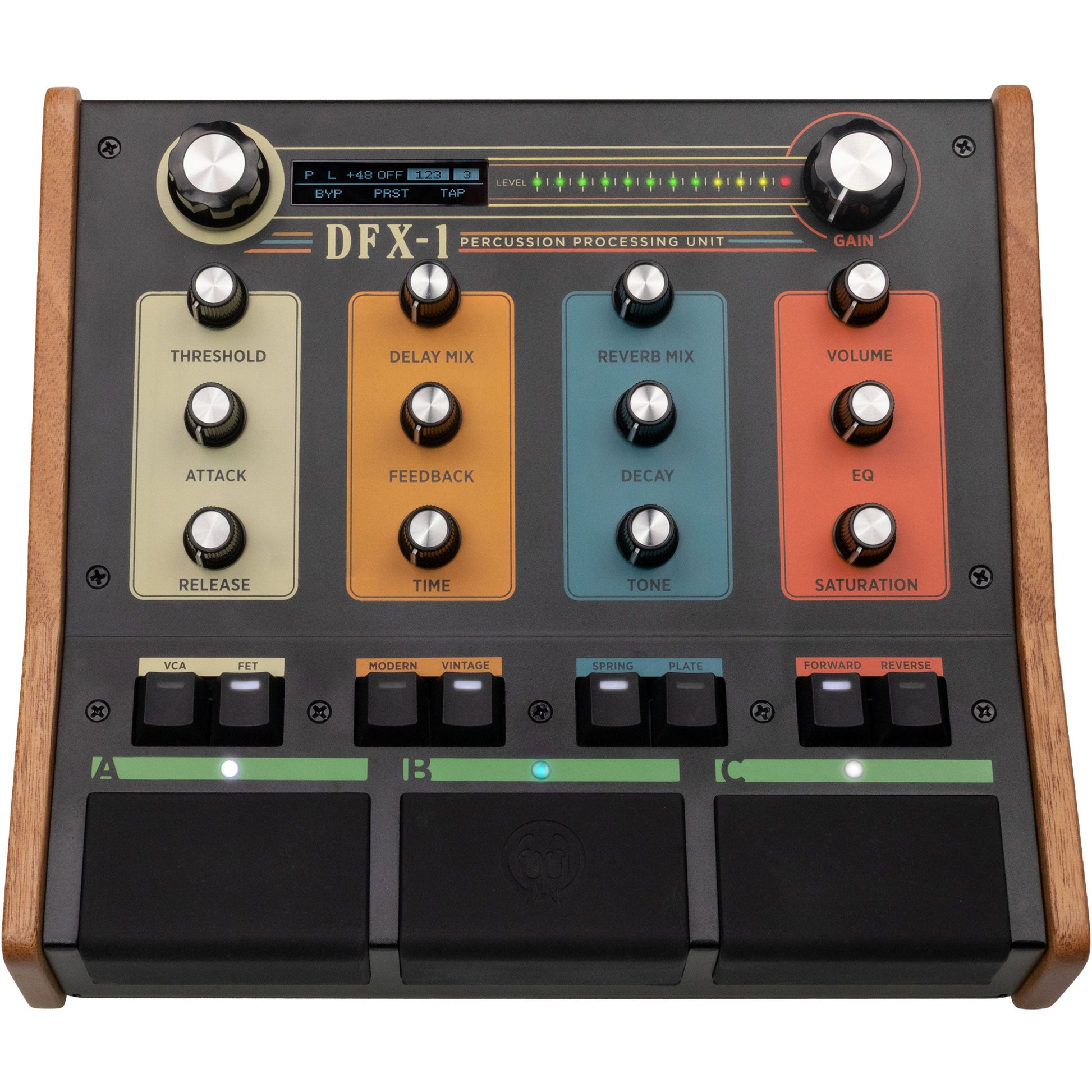

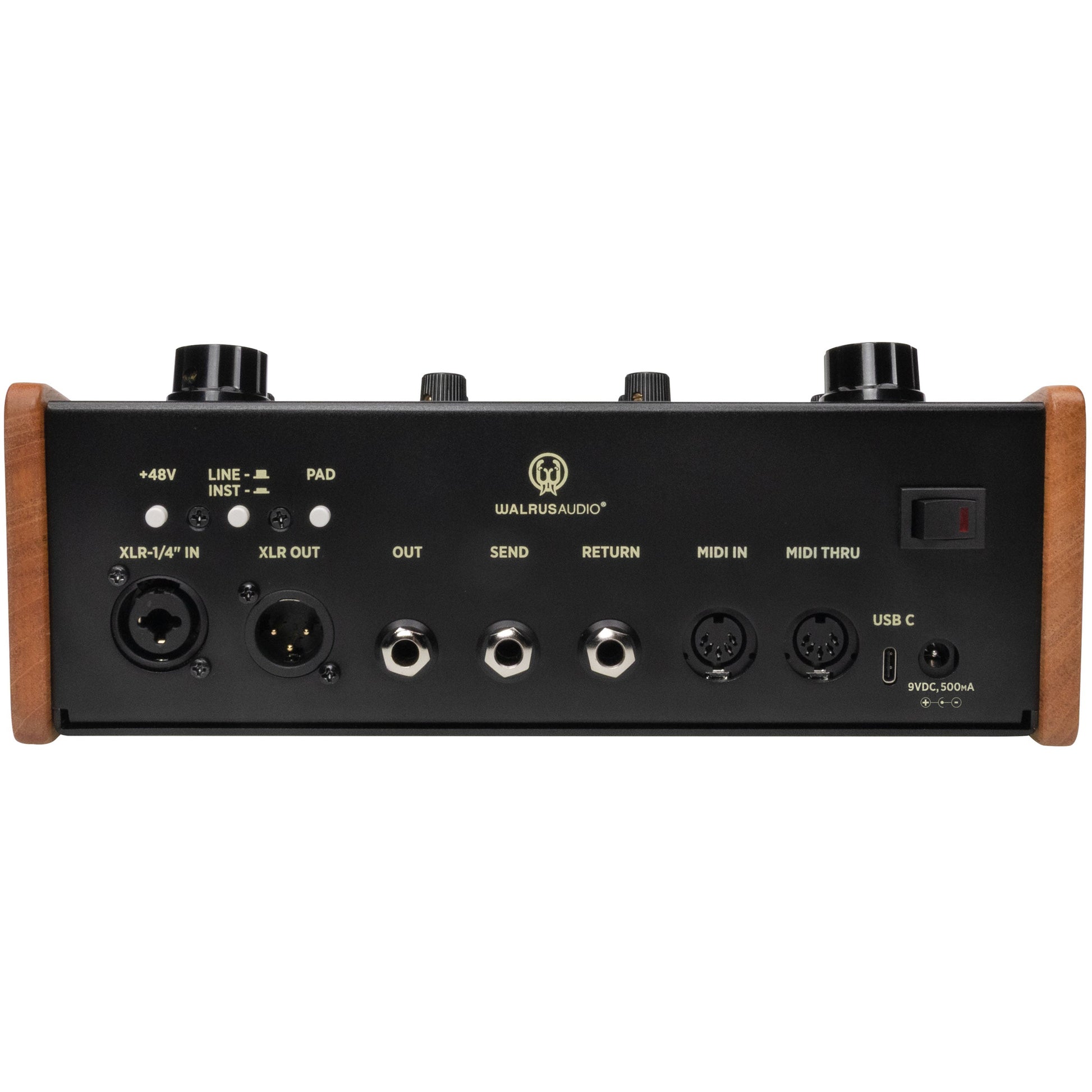

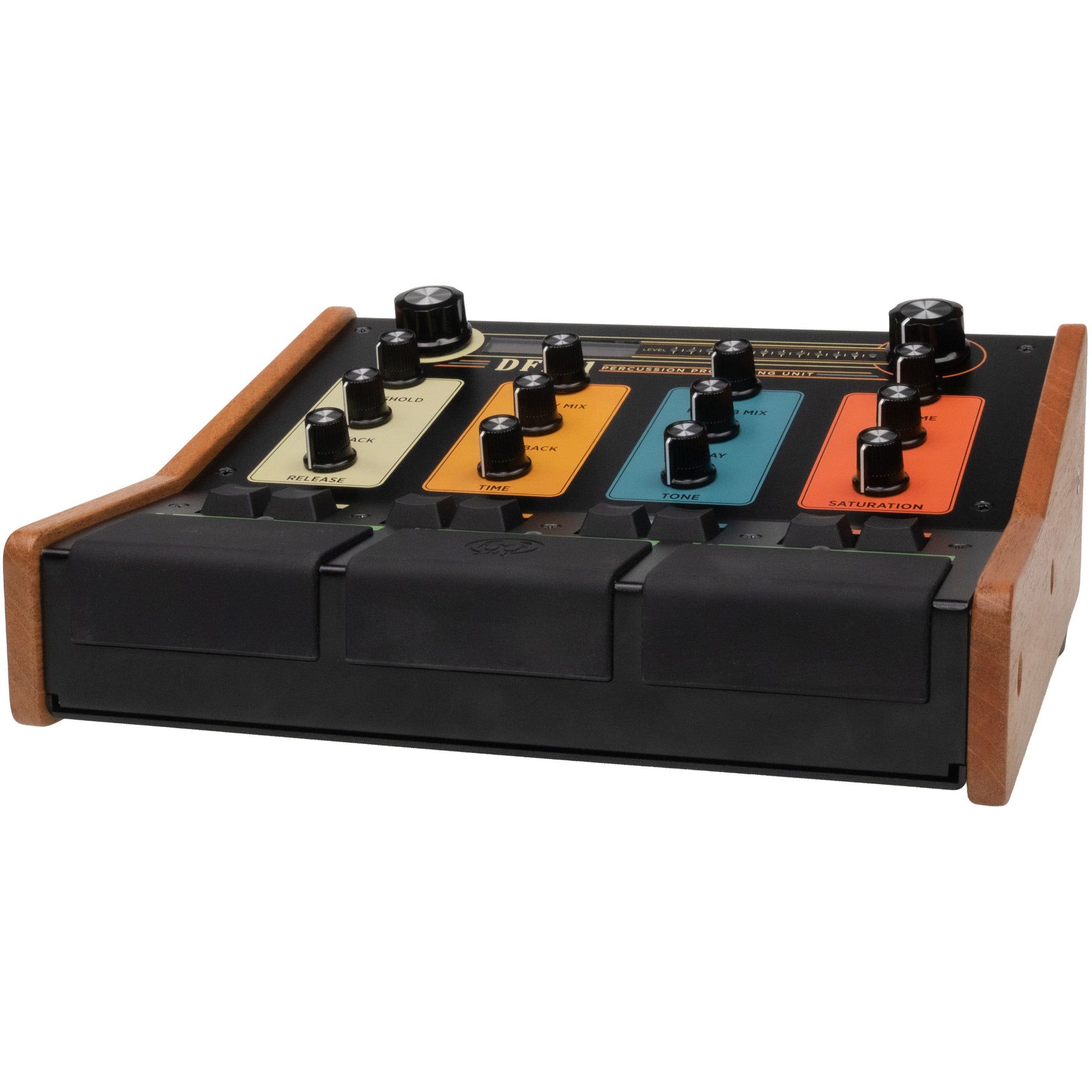

The DFX-1 is a multi-effect processing unit designed in collaboration with Aaron Sterling to add musical character and punch to any acoustic drum or percussion source. Craft everything from subtle to in-your-face drum sounds with studio-grade VCA & FET compression, two flavors each of Delay and Reverb, plus Saturation, Gating, an FX loop with customizable routing, and a flexible EQ. Use the DFX-1 anywhere on your kit with any microphone, whether it’s a squashed, spacious room mic, a tight, gated snare, or even routed outboard for processing in post. With a high-performance microphone preamp with phantom power, an effects loop to connect external outboard equipment, MIDI connectivity, and presets, a whole new world of sonic creativity becomes available right at your drum set.
| Product Name | Walrus Audio DFX-1 Percussion Processing Unit |
|---|---|
| Brand | Walrus Audio |
| Condition | New |
| MPN | DFX-1 |
| UPC | 810424037595 |
| Shipping Option | Free Shipping to the Continental U.S. |
| Power | 9V DC, 500mA minimum |
| Frequency Response | 20Hz–20kHz |
| Sample Rate | 44.1kHz |
| Bit Depth | 24-bit |
| Unbalanced Performance |
SNR: 98dB @ 1kHz +4dBu A-weight THD+N: 0.0032% @ 1kHz +4dBu A-weight Dynamic Range: 101dB @ 1kHz +4dBu A-weight |
| Balanced Performance |
SNR: 99dB @ 1kHz +4dBu A-weight THD+N: 0.0025% @ 1kHz +4dBu A-weight Dynamic Range: 102dB @ 1kHz +4dBu A-weight |
| Total Latency | 2.9ms |
| Preamp Gain | +60dB |
| XLR Input Impedance | 6.8kΩ |
| 1/4" Line Input Impedance | 24kΩ |
| 1/4" Instrument Input Impedance | 1MΩ |
| FX Loop Send Impedance | 220Ω |
| FX Loop Return Impedance | 1MΩ |
| XLR Output Impedance | 220Ω |
| 1/4" Output Impedance | 220Ω |
| Note | The XLR and 1/4" outputs are not discrete; they share the same source for your preferred connection type. |
| Unit Weight | 3.8 lb (1.72 kg) |
| Unit Dimensions (including knobs) | 262 mm x 232 mm x 97 mm (10.3" x 9.1" x 3.8") |
Walrus Audio DFX-1 Percussion Processing Unit
The DFX-1 is a multi-effect processing unit designed in collaboration with Aaron Sterling to add musical character and punch to any acoustic drum or percussion source. Craft everything from subtle to in-your-face drum sounds with studio-grade VCA & FET compression, two flavors each of Delay and Reverb, plus Saturation, Gating, an FX loop with customizable routing, and a flexible EQ. Use the DFX-1 anywhere on your kit with any microphone, whether it’s a squashed, spacious room mic, a tight, gated snare, or even routed outboard for processing in post. With a high-performance microphone preamp with phantom power, an effects loop to connect external outboard equipment, MIDI connectivity, and presets, a whole new world of sonic creativity becomes available right at your drum set.
| Product Name | Walrus Audio DFX-1 Percussion Processing Unit |
|---|---|
| Brand | Walrus Audio |
| Condition | New |
| MPN | DFX-1 |
| UPC | 810424037595 |
| Shipping Option | Free Shipping to the Continental U.S. |
| Power | 9V DC, 500mA minimum |
| Frequency Response | 20Hz–20kHz |
| Sample Rate | 44.1kHz |
| Bit Depth | 24-bit |
| Unbalanced Performance |
SNR: 98dB @ 1kHz +4dBu A-weight THD+N: 0.0032% @ 1kHz +4dBu A-weight Dynamic Range: 101dB @ 1kHz +4dBu A-weight |
| Balanced Performance |
SNR: 99dB @ 1kHz +4dBu A-weight THD+N: 0.0025% @ 1kHz +4dBu A-weight Dynamic Range: 102dB @ 1kHz +4dBu A-weight |
| Total Latency | 2.9ms |
| Preamp Gain | +60dB |
| XLR Input Impedance | 6.8kΩ |
| 1/4" Line Input Impedance | 24kΩ |
| 1/4" Instrument Input Impedance | 1MΩ |
| FX Loop Send Impedance | 220Ω |
| FX Loop Return Impedance | 1MΩ |
| XLR Output Impedance | 220Ω |
| 1/4" Output Impedance | 220Ω |
| Note | The XLR and 1/4" outputs are not discrete; they share the same source for your preferred connection type. |
| Unit Weight | 3.8 lb (1.72 kg) |
| Unit Dimensions (including knobs) | 262 mm x 232 mm x 97 mm (10.3" x 9.1" x 3.8") |
