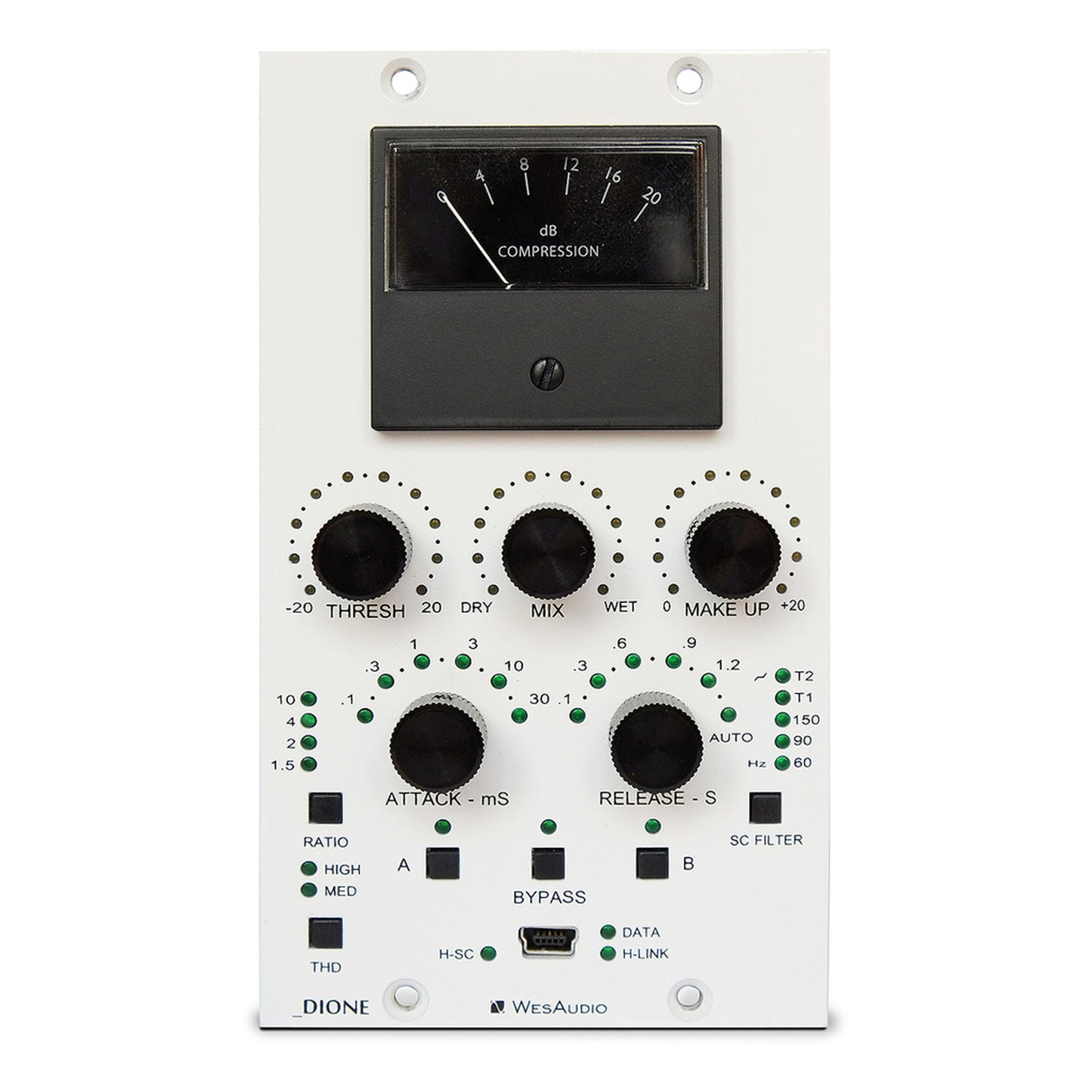

WesAudio DIONE Analog 500-Series Bus Compressor with Digital Recall

WesAudio DIONE Analog 500-Series Bus Compressor with Digital Recall

$959.20
$1,199.00 $959.20
Sale Sold out

+ Free Shipping

Blink Image Blink Image

On order with the manufacturer!
View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

Legendary sound of Stereo Bus compressor has been true companion on countless recordings since 40 years. Often recognized as “mixbus glue”, this particular compression sound have become industry standard. We present _DIONE – fully analog, legendary VCA compressor with digital recall.

More Information
Product Name WesAudio DIONE Analog 500-Series Bus Compressor with Digital Recall
Brand WesAudio
Condition New
MPN DIONE
UPC 590666029906
Shipping Option Free Shipping to the Continental U.S.
  • 100% analog device with +24dBu of headroom powered by QUAD VCA THAT 2181
  • MIX KNOB FOR PARALLEL COMPRESSION
  • THD – harmonic distortion with two modes (Medium & High)
  • SIDE CHAIN FILTERS – 3 high pass filters at 60,90 and 150 Hz, and 2 tilt filters which are special “curve” designed filters
  • FOUR RATIO SETTINGS – 1.5:1 and 2:1 for gentle mixbus processing, and 4:1 and 10:1 for large variety of applications
  • 500 SERIES and ng500 (e.g. _TITAN) SERIES COMPATIBLE
  • TOTAL RECALL AND PLUGIN CONTROL compatible with most DAWs
  • ANALOG AUTOMATION in DAW
  • Fully digitally controlled and isolated analog circuit
  • Digital recall can be acheived by connecting unit directly through front panel mini USB socket, or using it inside _TITAN chassis,
  • Digital sidechain – it is possible to send any track from your DAW as side chain signal to the compressor – It is enough to configure side chain feature in connected plugin
  • 3 touch sensitive encoders allow record automation of particular parameters (Threshold, Mix, Make Up) in DAW
  • True bypass
  • Accurate analogue GR meter and its precise simulation implemented in the plug-in itself
  • Free software and firmware upgrades
  • Frequency response: 20Hz-20kHz (0.1dB)
  • THD+N (WET): 0.008% (1kHz,0dBu)
  • THD+N (DRY): 0.004% (1kHz,0dBu)
  • Input impedance: 10kohm
  • Output impedance: <100ohm
  • Max gain: 21dB
  • Crosstalk: < -90dB
  • Attack: 0.1,0.3,1,3,10,30 (ms)
  • Release: 0.1,0.3,0.6,0.9,1.2,Auto (s)
  • Ratio: 1.5,2.4.10
  • SC Filter: 60,90,150,T1,T2
  • THD (MID switch): 1%
  • THD (HIGH switch): 4%

WesAudio DIONE Analog 500-Series Bus Compressor with Digital Recall
Details

Legendary sound of Stereo Bus compressor has been true companion on countless recordings since 40 years. Often recognized as “mixbus glue”, this particular compression sound have become industry standard. We present _DIONE – fully analog, legendary VCA compressor with digital recall.

More Information
Product Name WesAudio DIONE Analog 500-Series Bus Compressor with Digital Recall
Brand WesAudio
Condition New
MPN DIONE
UPC 590666029906
Shipping Option Free Shipping to the Continental U.S.
Features
  • 100% analog device with +24dBu of headroom powered by QUAD VCA THAT 2181
  • MIX KNOB FOR PARALLEL COMPRESSION
  • THD – harmonic distortion with two modes (Medium & High)
  • SIDE CHAIN FILTERS – 3 high pass filters at 60,90 and 150 Hz, and 2 tilt filters which are special “curve” designed filters
  • FOUR RATIO SETTINGS – 1.5:1 and 2:1 for gentle mixbus processing, and 4:1 and 10:1 for large variety of applications
  • 500 SERIES and ng500 (e.g. _TITAN) SERIES COMPATIBLE
  • TOTAL RECALL AND PLUGIN CONTROL compatible with most DAWs
  • ANALOG AUTOMATION in DAW
  • Fully digitally controlled and isolated analog circuit
  • Digital recall can be acheived by connecting unit directly through front panel mini USB socket, or using it inside _TITAN chassis,
  • Digital sidechain – it is possible to send any track from your DAW as side chain signal to the compressor – It is enough to configure side chain feature in connected plugin
  • 3 touch sensitive encoders allow record automation of particular parameters (Threshold, Mix, Make Up) in DAW
  • True bypass
  • Accurate analogue GR meter and its precise simulation implemented in the plug-in itself
  • Free software and firmware upgrades
Tech Specs
  • Frequency response: 20Hz-20kHz (0.1dB)
  • THD+N (WET): 0.008% (1kHz,0dBu)
  • THD+N (DRY): 0.004% (1kHz,0dBu)
  • Input impedance: 10kohm
  • Output impedance: <100ohm
  • Max gain: 21dB
  • Crosstalk: < -90dB
  • Attack: 0.1,0.3,1,3,10,30 (ms)
  • Release: 0.1,0.3,0.6,0.9,1.2,Auto (s)
  • Ratio: 1.5,2.4.10
  • SC Filter: 60,90,150,T1,T2
  • THD (MID switch): 1%
  • THD (HIGH switch): 4%
