The third generation of the DXR Series builds on the trusted DXR legacy with enhanced functionality and refined sonic performance, delivering greater output, smarter control through the D‑Remote app, and expanded versatility for professionals. From wedding and corporate event DJs to live performers and rental companies, DXR mk3 provides consistent, reliable sound in any environment. Engineered for clarity and power, DXR mk3 features newly developed transducers, refined porting, and a powerful 2kW amplifier with increased headroom. With intuitive onboard tools, a powerful control app, and advanced processing, DXR mk3 delivers confident results night after night—offering next‑generation performance and unmatched value.

Enhanced High-Frequency Directivity and Optimized Low-Frequency Response
The large-diameter horn secures directivity control across a wide frequency range. Optimized port positioning also reduces standing wave effects, resulting in smoother and more accurate low-frequency response.

Yamaha Proprietary High-Durability LF/HF Speaker Units

All DXR mk3 loudspeakers use Yamaha’s high‑durability custom LF/HF units. The LF driver provides symmetrical movement for linear bass, while the HF polyimide diaphragm reduces distortion and increases reliability. The redesigned cabinet also relocates sound ports to optimize airflow and enhance acoustic performance under demanding use conditions, ensuring consistent sonic fidelity across any application.

Lightweight, High-Performance Molded Enclosure

Utilizing a lightweight, high-strength, form-injection molded enclosure, the design achieves both weight reduction and attenuation of cabinet resonance that can result in bass loss. The ergonomically designed enclosure offers not only aesthetic appeal but also outstanding usability.

Highly Visible, User-Friendly LCD Panel & Encoder

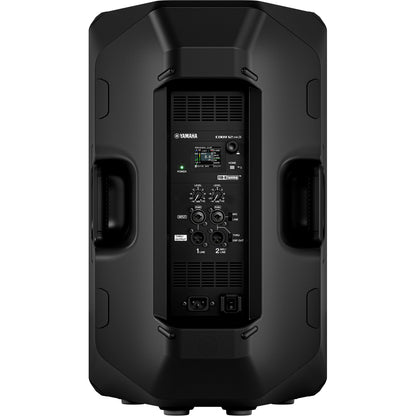

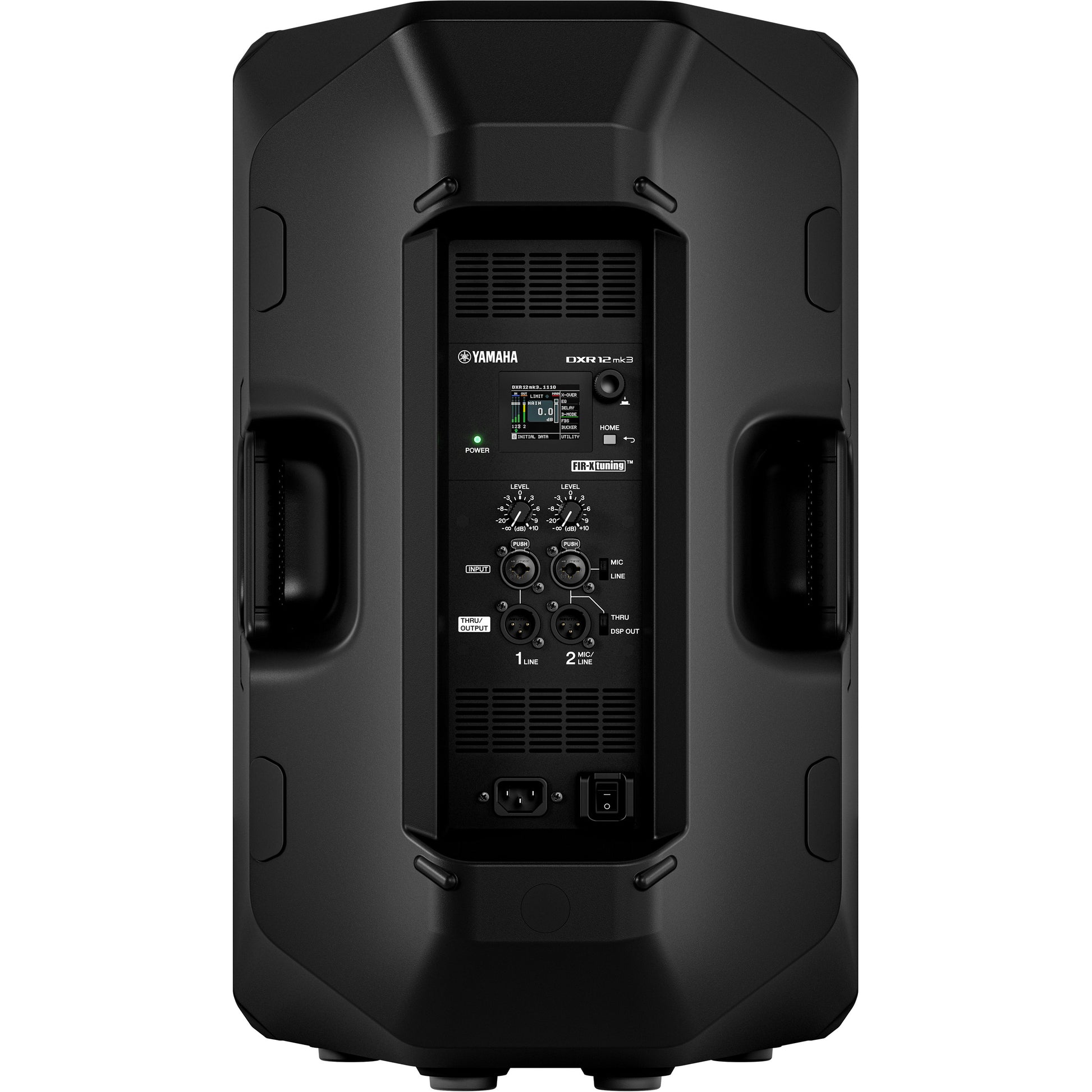

An LCD panel is mounted on the rear, allowing for fast and easy control of parameters such as preset loading, precise PEQ adjustments, delay, and routing. Up to eight user presets can be stored, and factory presets optimized for combined use with the DXSmk3 series can also be recalled.

Advanced DSP for Sophisticated Signal Processing

Featuring a 96kHz internal DSP processor, the DXRmk3 series delivers high output performance and high-resolution sound quality with low latency. The crossover network employs Yamaha’s proprietary “Advanced FIR-X Tuning” technology, combining linear-phase FIR filters for network and correction EQ, achieving exceptionally smooth phase characteristics and clear, distortion-free sound.

Newly Developed 2000W Class-D High-Power Amplifier

DXRmk3 series loudspeakers are equipped with a newly developed, highly efficient 2000W Class-D high-power amplifier, as well as a newly designed high-efficiency switching power supply that ensures smooth and stable operation.

DSP Mode with AUTO V/H POSITION Function

The DXRmk3 offers DSP modes tailored for specific configurations or applications: FOH/MAIN and MONITOR. FOH/MAIN boosts high and low frequencies for main speaker use, and is the default setting. MONITOR ensures clarity for floor monitor use, suppressing excessive bass that can occur when placed on the floor. An internal accelerometer detects speaker orientation, enabling automatic mode setting (can be disabled), streamlining setup and reducing workload on site.

The DXRmk3 series also features optimized presets for a range of applications―such as DJ performance, live band sound, and speech― developed in collaboration with Yamaha by the team at our group company NEXO, who possess deep expertise in loudspeaker design and technology.

Intelligent Feedback Suppressor

Equipped with a powerful, intelligent feedback suppressor, the system automatically suppresses feedback in real time for handheld microphones (DYNAMIC mode) and detects and sets feedback-prone points for fixed microphones (FIXED mode). These modes can be used independently or in combination to dramatically reduce unpleasant feedback caused by sound looping from speaker to microphone.

“D-Remote” Control App

“D-Remote” is a dedicated application for remote control of your DXR/DXSmk3 via iOS/Android devices over Bluetooth. It enables control of all parameters including level, delay, EQ, crossover, FBS, ducker, identification, panel lock, and scene save/recall. Additionally, it monitors speaker limiting and temperature, displays error alerts, and allows log review. Up to ten devices can be connected simultaneously, with grouping for unified level and mute control.

Drive Motion Calibration

The "Drive Motion Calibration" featured in the DXRmk3 series utilizes a proprietary DSP algorithm to correct speaker movement, delivering low-distortion, high-quality sound in the LF range that surpasses conventional limitations. This technology ensures that the speaker's behavior accurately follows the input signal, enabling more linear low-frequency reproduction. As a result, it achieves outstanding reliability and acoustic performance, making it a reliable choice for a range of professional environments.

Usability Pursued to the Utmost Symmetrical design

The design supports mirror placement for all models when floor-mounted, allowing symmetrical HF positioning for precise stage monitoring.
