*Please note -- This pre-owned item may show signs of use. Please see photos for details of the product.
Ever since the 1970's the iconic white woofer and signature sound of Yamaha's nearfield reference monitors have become a genuine industry standard for a reason - their accuracy. Unlike studio monitors with added bass or treble frequencies which may sound more flattering at first, HS Series speakers were designed to give you the most honest, precise reference possible, providing an ideal sonic platform to build on throughout the mixing process. By combining acquired knowledge and expertise with state-of-the-art sound technologies, Yamaha's speaker engineering team have examined, then optimized, every aspect that has contributed to making these monitors the most trusted in the business. The second generation HS Series also adds a new 6.5" model to the lineup, bringing its exceptional accuracy to an even greater variety of recording environments.
| Product Name | Yamaha HS5 Powered Studio Monitor |
|---|---|
| Brand | Yamaha |
| Condition | Pre-Owned |
| MPN | HS5 |
| UPC | 086792974675 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Yamaha HS5 Powered Studio Monitor
- 2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter
- 54Hz - 30kHz frequency response
- 45W LF plus 25W HF bi-amp system for high-performance 70W power amplification
- ROOM CONTROL and HIGH TRIM response controls
- XLR and TRS phone jack inputs accept balanced or unbalanced signals
| Monitor Type & Configuration | Active 2-Way |
| Total Power Output | 70 W |
| Tweeter | 1x 1" / 25.4 mm Dome |
| Woofer | 1x 5" / 12.7 cm Cone |
| Frequency Range | 74 Hz to 24 kHz (-3 dB) 54 Hz to 30 kHz (-10 dB) |
| Audio I/O | 1x XLR 3-Pin Balanced Input (10 Kilohms) 1x 1/4" TRS Balanced Input (10 Kilohms) |
| Digital Audio I/O | No |
| Network I/O | No |
| Wireless | No |
| Number of Included Monitors | Single Monitor |
| Enclosure | Bass-Reflex/Ported |
| Amplifiers | LF: 45 W Class-D HF: 25 W Class-D |
| Analog Input Sensitivity/Gain | -10 dBu |
| EQ | 1x LF Shelf: -4 to 0 dB at 500 Hz (2 dB Increments) 1x HF Shelf: -2 to +2 dB at 2 kHz (2 dB Increments) |
| Filters | No |
| Crossover Frequency | 2 kHz |
| Phase Adjustment | No |
| USB | No |
| AC Input Power | Not Specified by Manufacturer |
| Power Consumption | 45 W |
| Color | Black |
| Monitor Orientation | Vertical |
| Enclosure Material | MDF |
| Mounting Points | No |
| Dimensions (W x H x D) | 6.7 x 11.2 x 8.7" / 17 x 28.5 x 22.2 cm |
| Weight | 11.7 lb / 5.3 kg |

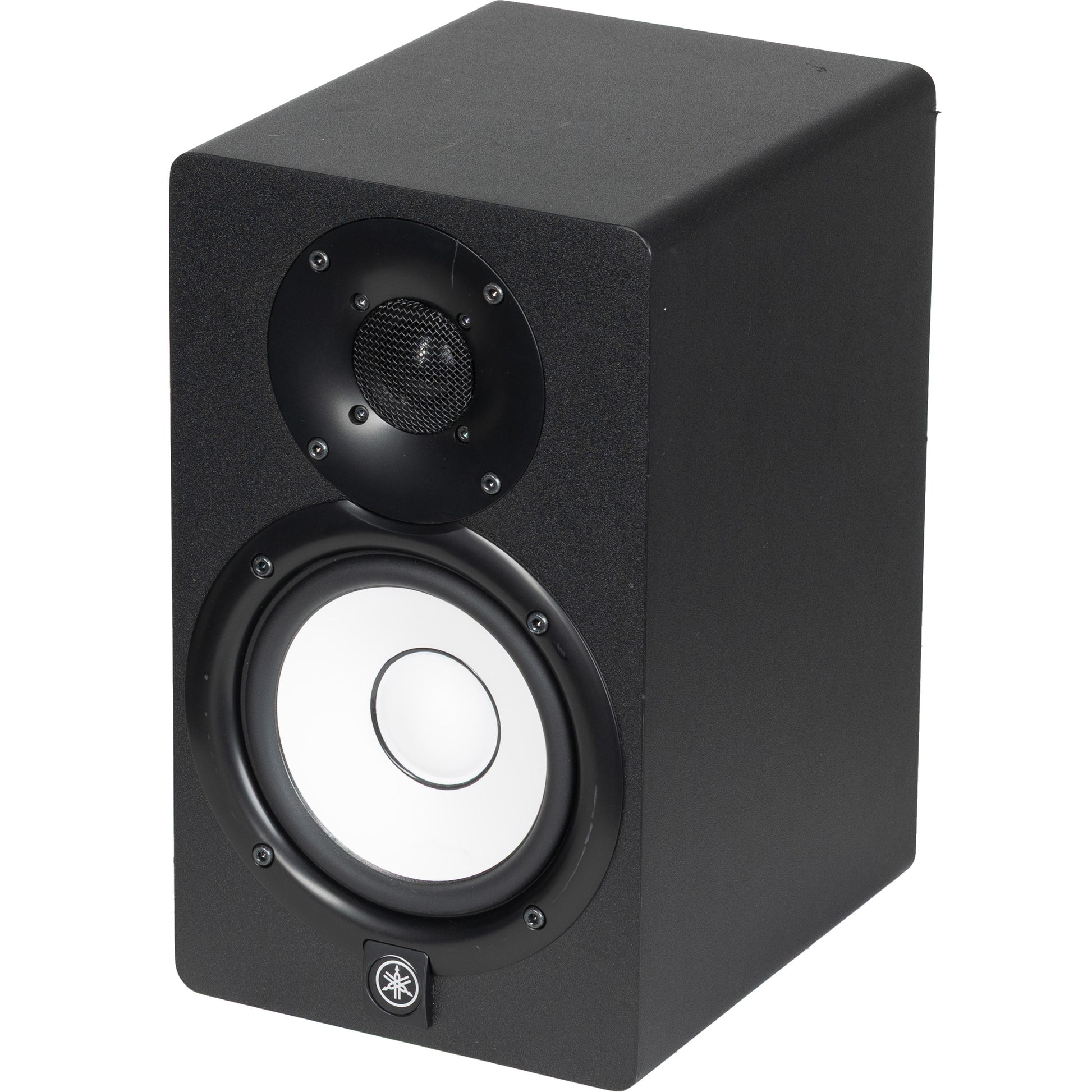

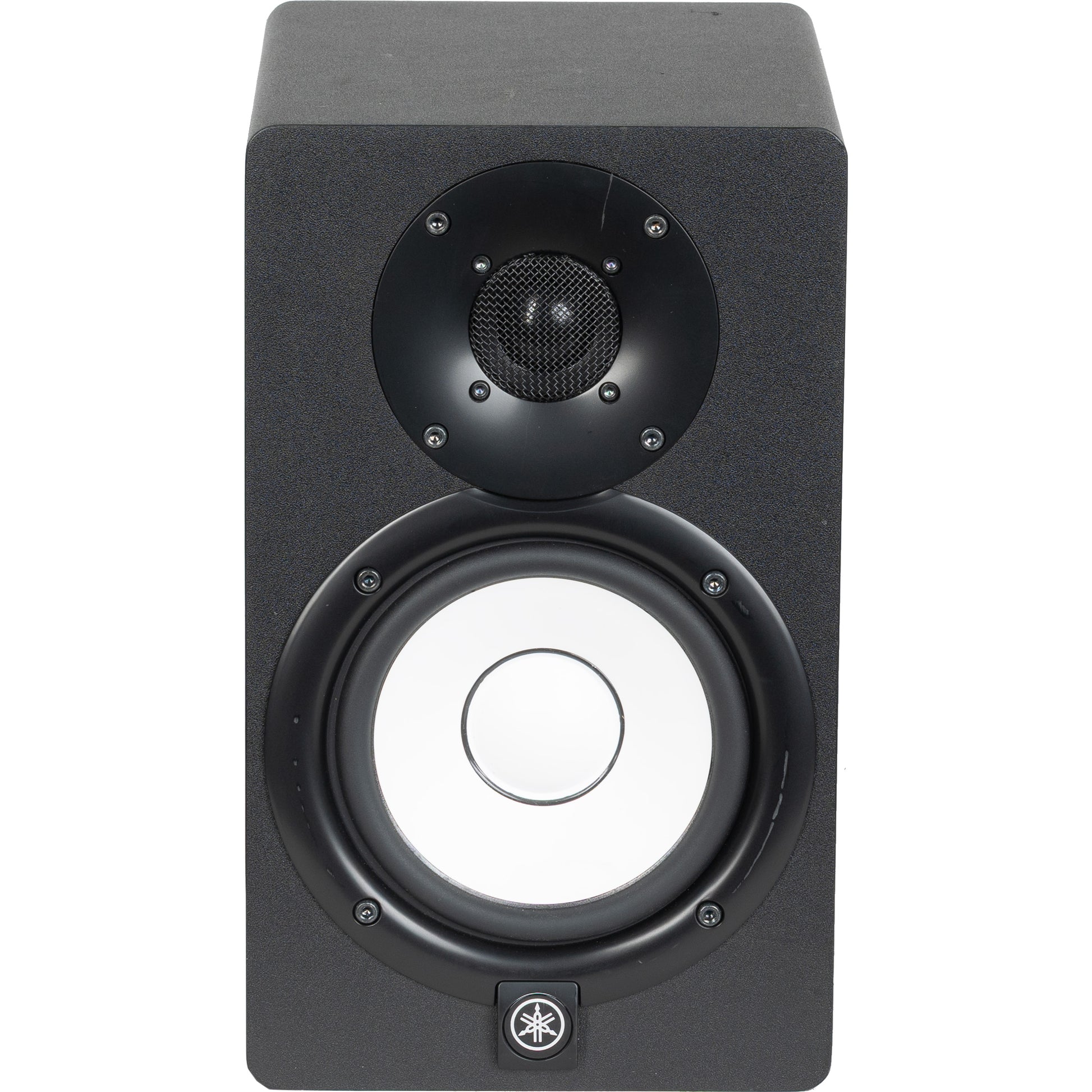

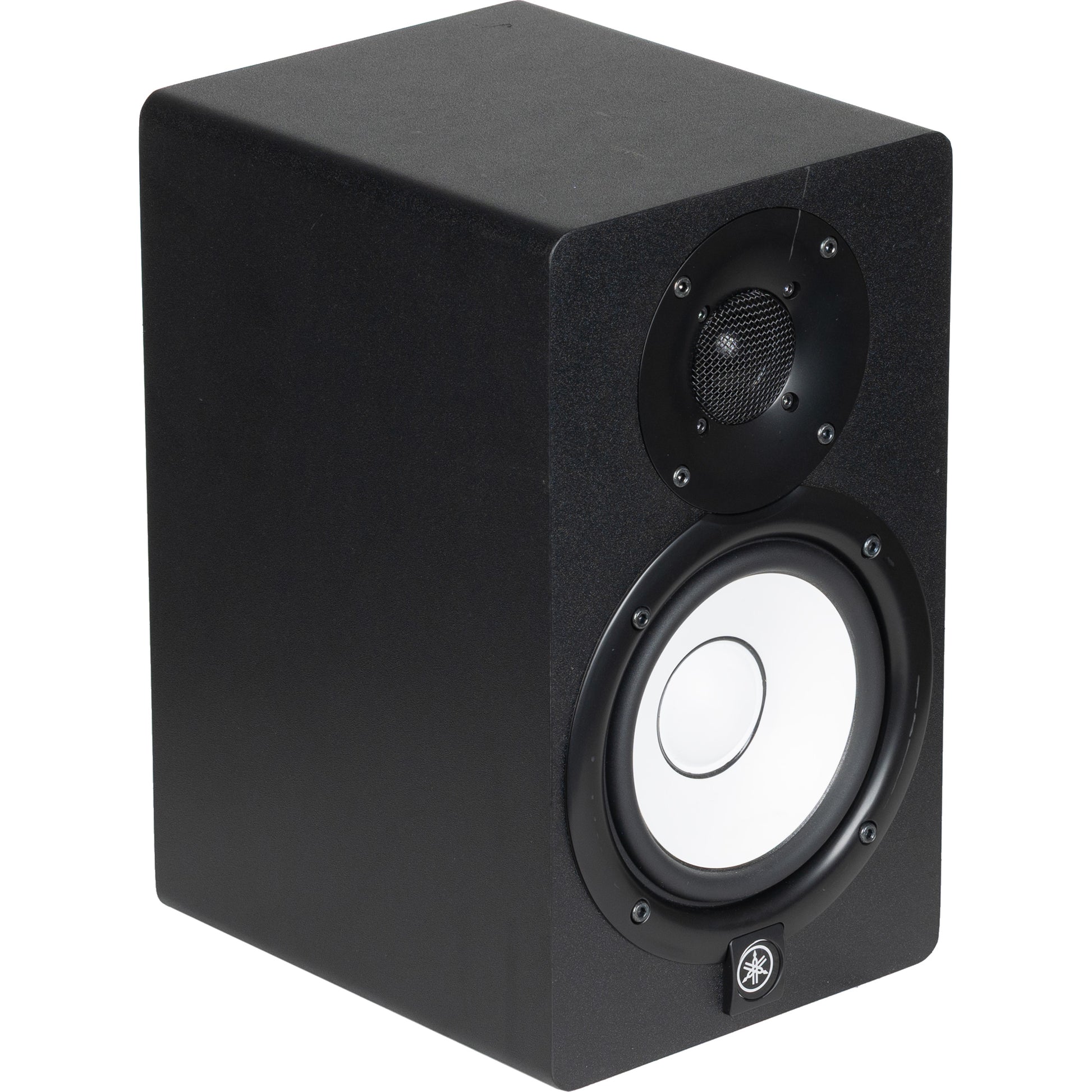

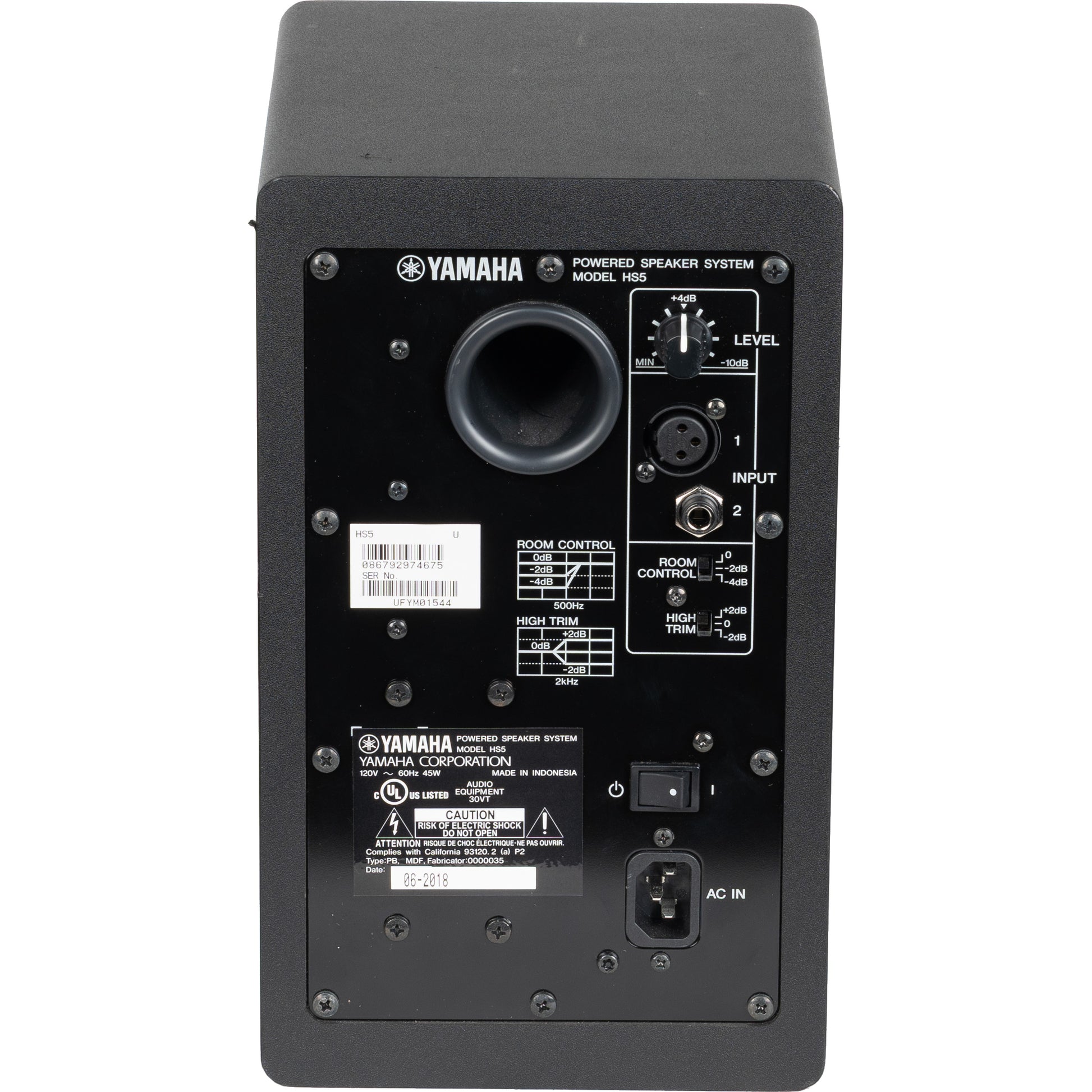

Yamaha HS5 Powered Studio Monitor
