Building on the legacy of Yamaha's MG Series—already established as a global standard in mixing consoles—MGX digital mixing consoles deliver a perfect blend of flexibility, performance, and premium sound quality, excelling in a versatile range of live and installed sound, podcast/live streaming, music production, and recording applications.

In addition to the essential features and versatility you expect from a professional mixer, the MGX16V also integrates an HDMI-USB audio/video interface with capture and pass-through functionality. This enables users not only to mix and output audio in a variety of ways, but also to simultaneously capture video to a PC and record or stream it together with the audio.

For musicians, sound engineers, producers, as well as artists, streamers and content creators, the ability to seamlessly integrate high-definition video into their workflow opens up new creative possibilities in a wider range of environments. In any application that involves content with both audio and video, the MGX16V will elevate your production quality and captivate your audience.

Versatility and Professional Sound You Can Count On

An audio mixer is expected to offer considerable versatility to accommodate a wide range of applications—such as live sound, podcast and live streaming, and recording—while delivering audio quality that satisfies the audience, the musicians and performers on stage, and you, the one who supports and shapes the entire experience.

The MGX features carefully selected physical I/O and extensive mixing capacity that enables flexible sound creation. Onboard DSP effects further enhance audio processing power, delivering a refined, professional sound for any application.

All the Essentials

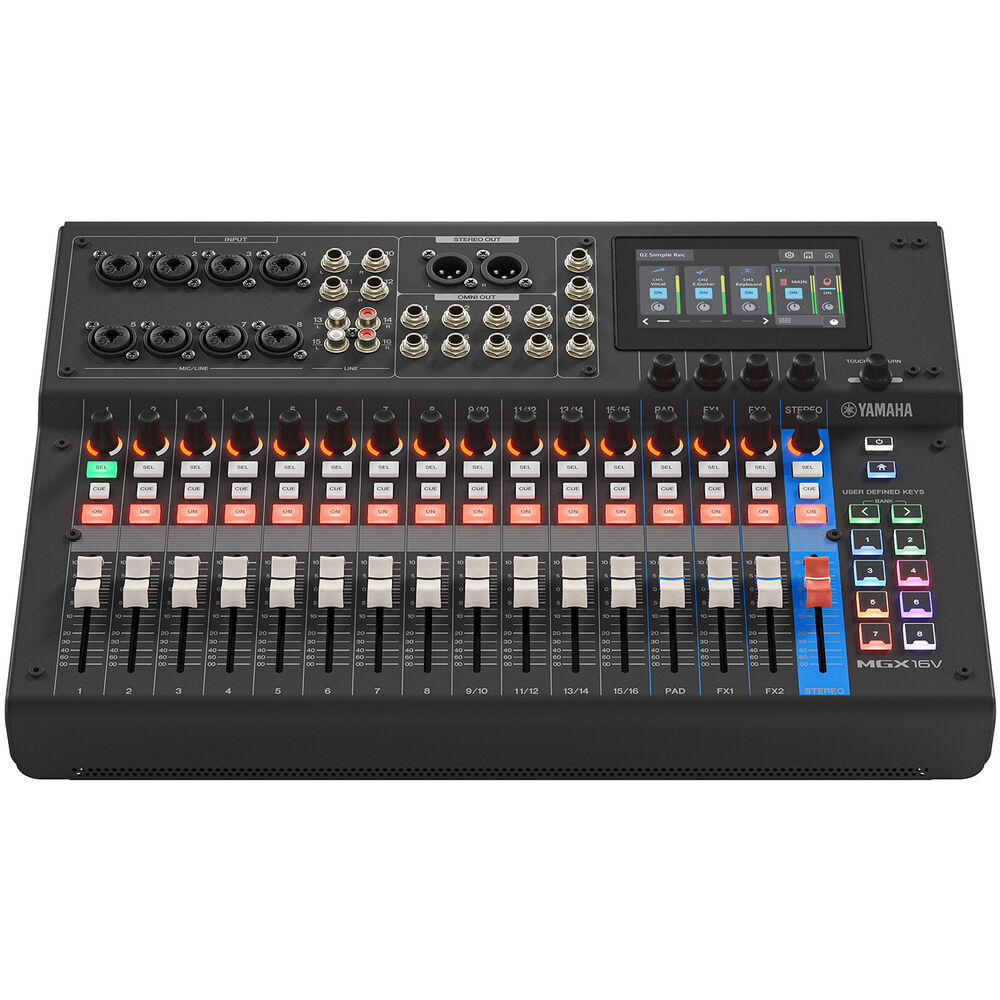

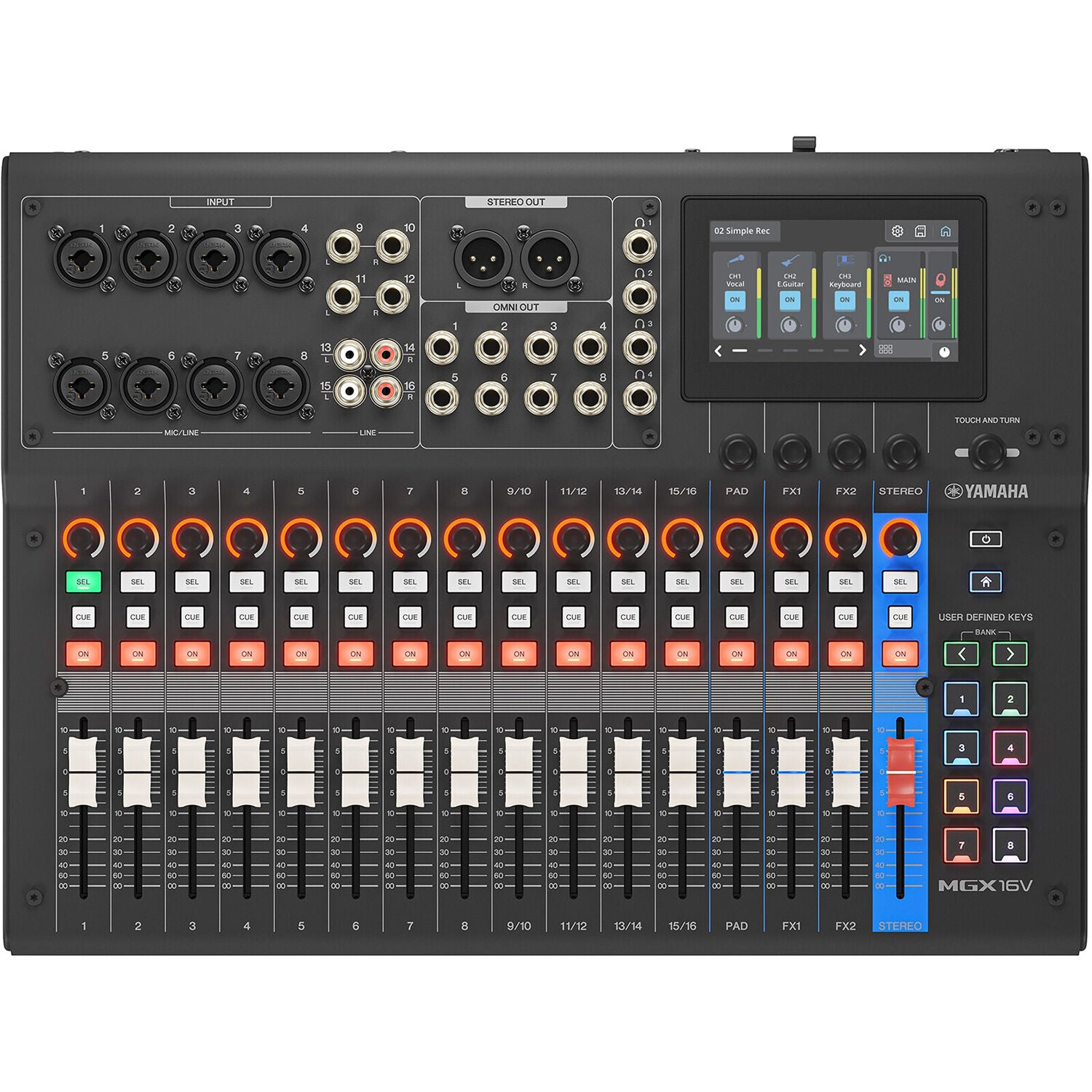

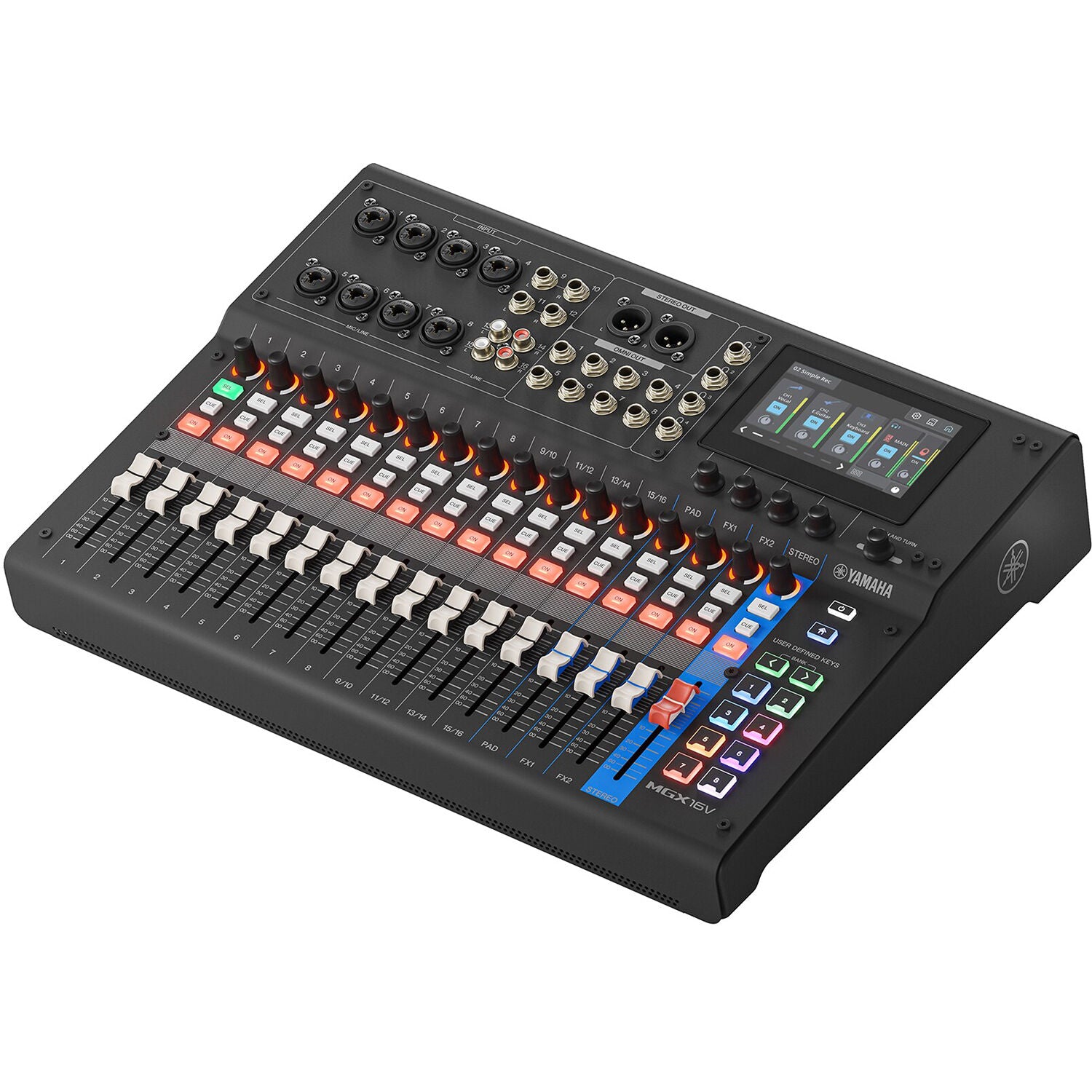

The MGX16V is equipped with 8 premium-quality MGX mic preamps on Mic/Line combo inputs, along with 8 Line inputs, 2 XLR outs, 8 TRS OMNI outs, and 4 headphone ports, enabling smooth collaboration and versatile monitoring.

Power. Capability. Versatility.

It also delivers extensive mixing capacity with 8 mono channels, 4 stereo channels, a dedicated Sound Pad, and 2 FX channels, supported by a bus architecture comprising 8 MIX buses, 2 FX buses, 1 CUE bus, and 1 STEREO bus.

Professional, True Sound

By pursuing Yamaha’s “True Sound” philosophy and utilizing high-performance AD/DA converters, the MGX mic preamps achieve an impressive 86 dB gain range with ultra-low distortion, and a 125 dB dynamic range at stereo output. Every nuance of your vocal and instrumental performance will be captured and reproduced with stunning accuracy.

This refined professional sound is guaranteed to satisfy not only discerning engineers, but also musicians, performers, and audiences alike.

Hone Your Vision

MGX also offers creative tools like Gate, Compressor, EQ, Reverb, Amp Simulator, and Voice Changer, letting you shape your sound exactly as you imagine. And with clear, comfortable monitoring—on stage, in the studio, or streaming—every moment you capture will resonate with beauty.

Wherever You Go

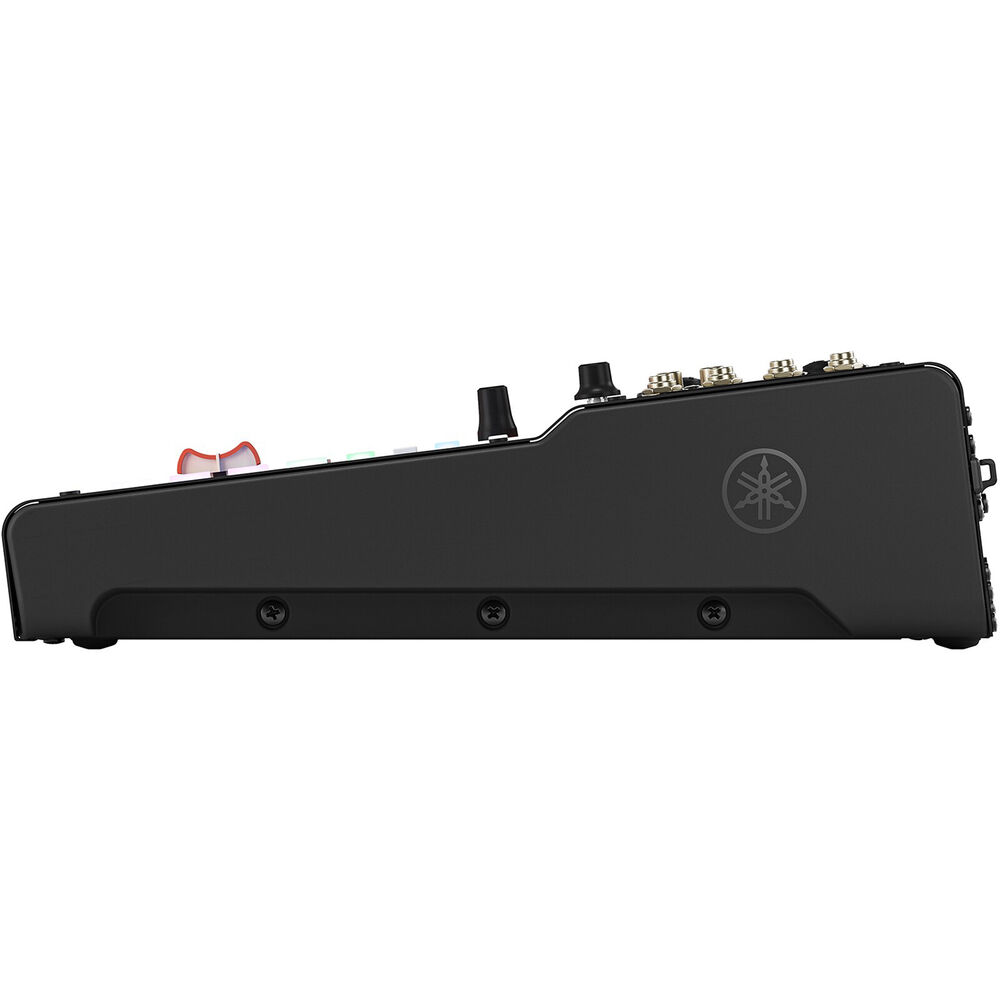

Despite offering a wide range of features, the MGX16V achieves an impressively low weight of just 10.8 lbs through meticulous engineering and careful material selection. Without compromising durability, its rugged build is more than ready to handle a variety of environments with confidence.

Flexible Power, Unrivaled Performance

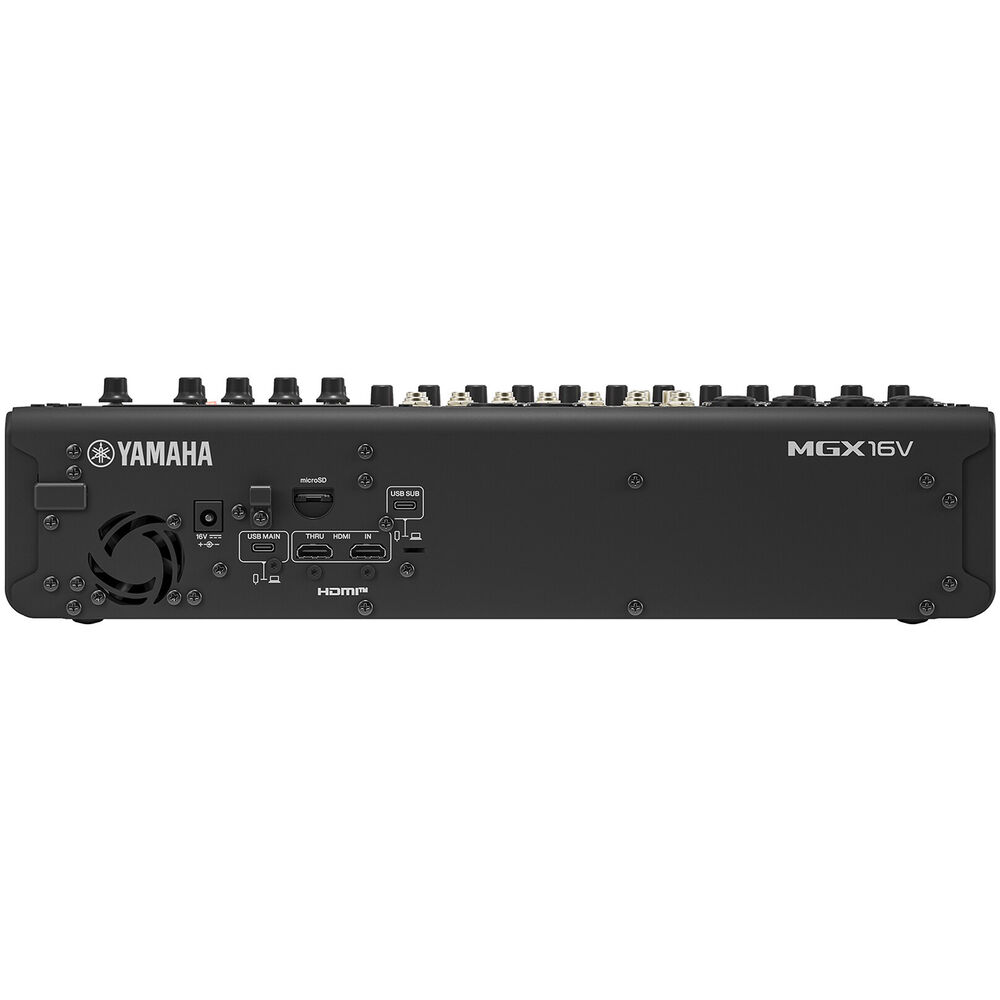

In today’s world, traditional applications such as live or installed sound, podcasting and live streaming, and recording production continue to diversify and evolve. Hybrid live events that combine live performances with simultaneous streaming are becoming more common, as are applications that handle both audio and video signals. To meet this broad range of demands with greater flexibility, the MGX is designed not only as a versatile mixer but also as a multifunctional hub, equipped with a powerful USB interface, Bluetooth audio connectivity, sound pads, microSD card recording/playback, and HDMI-USB audio/video interface function—all packed into a compact, portable body.
