16-channel Multi-format I/O via a Single Slot
The MY16AT Mini-YGDAI Digital I/O card can be used with Yamaha's DM2000, 02R96, DM1000, 01V96VCM, 01V96 and future digital consoles to provide up to 16 channels of simultaneous ADAT-format (optical) I/O via a single expansion slot. All 16 channels can be used independently at sample rates up to 48-kHz, or the MY16AT card can be used for 'double channel' connection to 96-kHz recorders providing 8 channels of I/O at 88.2 or 96-kHz.
Connection with 96-kHz recorders
Although the DM2000, DM1000 and 02R96 handle 96-kHz audio as standard, most of the currently available digital recorders can handle 96- kHz audio only in double channel mode (using 2 tracks to make one). In this configuration the DM2000, DM1000 and 02R96 use one channel for one (96-kHz) track, but twice the number of I/O connections must be used. The newly introduced MY16-AT/TD/AE cards can handle 16 channels of 44.1/48-kHz audio or up to 8 channels of 96-kHz audio in double channel mode.
| Product Name | Yamaha MY16AT 16-Channel ADAT Card |
|---|---|
| Brand | Yamaha |
| Condition | New |
| MPN | MY16AT |
| UPC | 86792656137 |
| Shipping Option | Free Shipping to the Continental U.S. |
- I/O:
Input x 16
Output x 16 - Format:
Alesis Proprietary Multichannel Optical Digital Interface - Connector:
TOS LINK x 4 - Resolution:
24-bit - Sampling Frequency:
I/O per card 6 slots (DM2000) 4 slots (02R96) 2 slots (DM1000)
44.1, 48-kHz 16ch 96ch 64ch* 32ch
88.2, 96-kHz 8ch 48ch 32ch 16ch
* 02R96 has 56 mixing channels. - Shipping Weight: 1 lbs
- Shipping Dimensions: 9 x 7 x 4 in

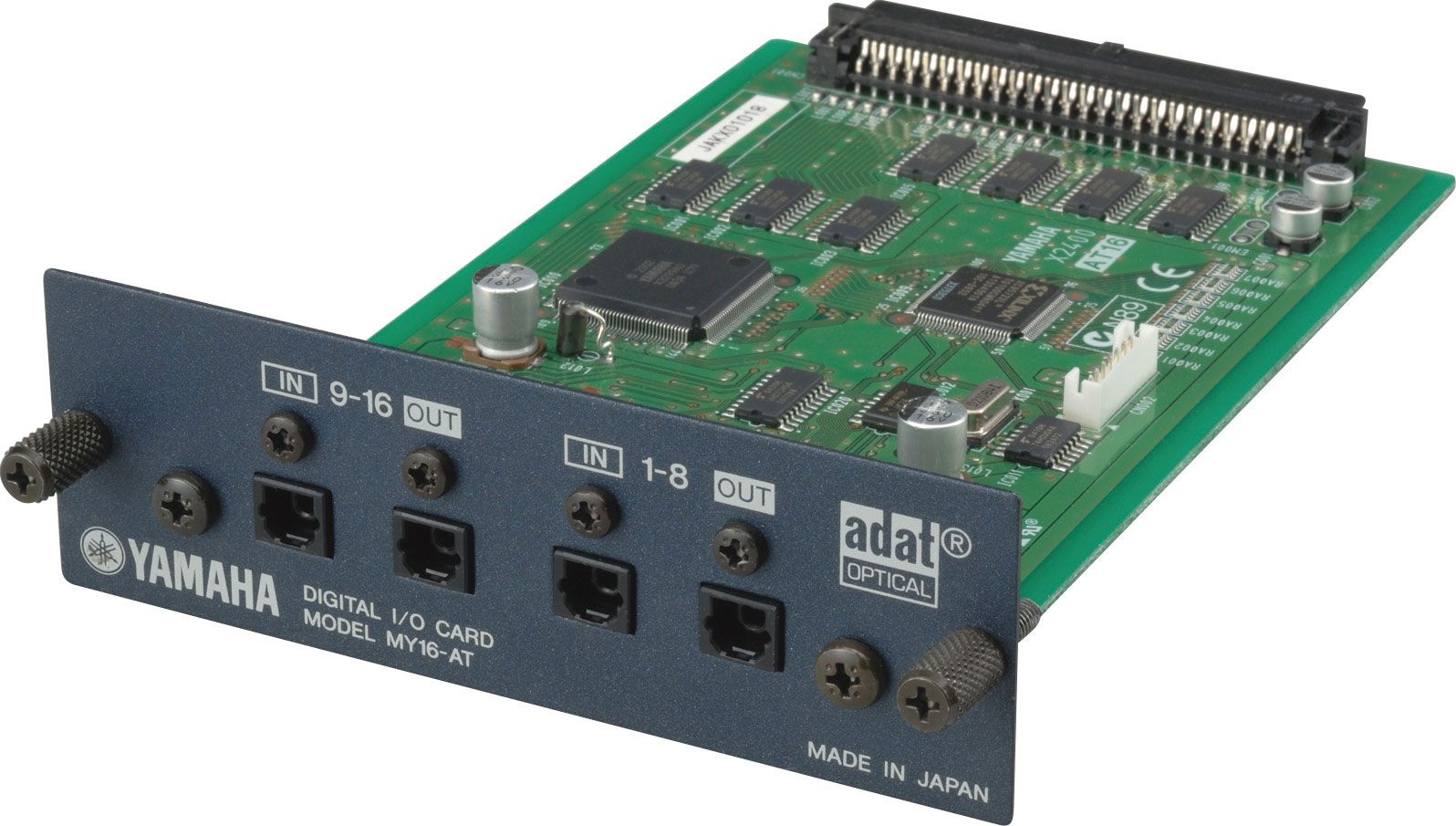

Yamaha MY16AT 16-Channel ADAT Card
16-channel Multi-format I/O via a Single Slot
The MY16AT Mini-YGDAI Digital I/O card can be used with Yamaha's DM2000, 02R96, DM1000, 01V96VCM, 01V96 and future digital consoles to provide up to 16 channels of simultaneous ADAT-format (optical) I/O via a single expansion slot. All 16 channels can be used independently at sample rates up to 48-kHz, or the MY16AT card can be used for 'double channel' connection to 96-kHz recorders providing 8 channels of I/O at 88.2 or 96-kHz.
Connection with 96-kHz recorders
Although the DM2000, DM1000 and 02R96 handle 96-kHz audio as standard, most of the currently available digital recorders can handle 96- kHz audio only in double channel mode (using 2 tracks to make one). In this configuration the DM2000, DM1000 and 02R96 use one channel for one (96-kHz) track, but twice the number of I/O connections must be used. The newly introduced MY16-AT/TD/AE cards can handle 16 channels of 44.1/48-kHz audio or up to 8 channels of 96-kHz audio in double channel mode.
| Product Name | Yamaha MY16AT 16-Channel ADAT Card |
|---|---|
| Brand | Yamaha |
| Condition | New |
| MPN | MY16AT |
| UPC | 86792656137 |
| Shipping Option | Free Shipping to the Continental U.S. |
- I/O:
Input x 16
Output x 16 - Format:
Alesis Proprietary Multichannel Optical Digital Interface - Connector:
TOS LINK x 4 - Resolution:
24-bit - Sampling Frequency:
I/O per card 6 slots (DM2000) 4 slots (02R96) 2 slots (DM1000)
44.1, 48-kHz 16ch 96ch 64ch* 32ch
88.2, 96-kHz 8ch 48ch 32ch 16ch
* 02R96 has 56 mixing channels. - Shipping Weight: 1 lbs
- Shipping Dimensions: 9 x 7 x 4 in
