The ES18P is a modern-day update of our flagship 'giant killer', the LS801P. The cabinet dimensions have been altered to offer better mobility, but the punch is still there. We've also added a little-brother to the family, by scaling down the 18" subwoofer design into a 15" platform. The ES15P design dials up the watts and incorporates a custom engineered 15" woofer to produce an astonishing amount of low end output in a 15" subwoofer.
| Product Name | Yorkville ES18P Elite Series 18" Powered Subwoofer |
|---|---|
| Brand | Yorkville |
| Condition | New |
| MPN | ES18P |
| UPC | 840402044826 |
| Shipping Option | This product does not qualify for free shipping |
- Next Generation Rear Horn Loaded Powered Subwoofer Design
- Class Leading Output and Bass Response
- Astonishing Output for a 'Car Friendly' 18-inch Subwoofer
- Custom Designed Long Excursion Cast Frame 18-inch Driver with 4-inch Voicecoil
- Proprietary DSP Based Limiters for Increased Output, Improved Sonic Quality and Greater Long Term Reliability
- Three DSP Based Preset Modes for Increased Flexibility in Any Live Sound or Club Application (Punchy, Smooth or Deep Response Curves)
- iOS and Android App for Added Subwoofer Control (Coming Soon)
- Made in Canada
| System Type | Rear Horn Loaded Subwoofer |
| Active or Passive | Active |
| Program Power (Watts) | 1600 Watts (3200 Watts Peak) |
| Max SPL (dB) | 140dB Peak (134dB Continuous) |
| Frequency Response (Hz +/- 3dB) | 43 - 150 (Hz +/- 3dB) |
| LF Driver(s) | 18-inch Cast Frame Woofer w/4-inch Voicecoil |
| Power Consumption (typ/max) | 120V (4A /4.5A), 230V (2A / 2.3A) |
| In / Out Connections | 1 x XLR Input 1 x XLR Mono Blend Input 1 x ¼-inch Link Input 1 x ¼-inch Link Output 1 x XLR Link Output |
| Level Controls | Master |
| LED Indicators | Power, Activity, Protection (Clip, X-Max, Temp) & |
| Other Controls / Features | Active Controls: Mode - 1 Punchy, 2 Smooth, 3 Deep High Frequency Roll-off - 80Hz to 150 Hz |
| Bar Handles | 2 x top, 2 x bottom |
| Pole Mount Adapter (1 3/8"-3.5cm) | 1 (Top) (1 3/8"-3.5cm) |
| Enclosure Materials | 15mm (5/8inch) 11-ply Russian Birch |
| Covering / Finish | Black Ultrathane Paint |
| Dimensions (DWH xbackW, inches) | 24.1 x 22.84 x 34.65 |
| Dimensions (DWH xbackW, cm) | 61 x 58 x 88 |
| Weight (lbs/kg) | 137 / 62 |

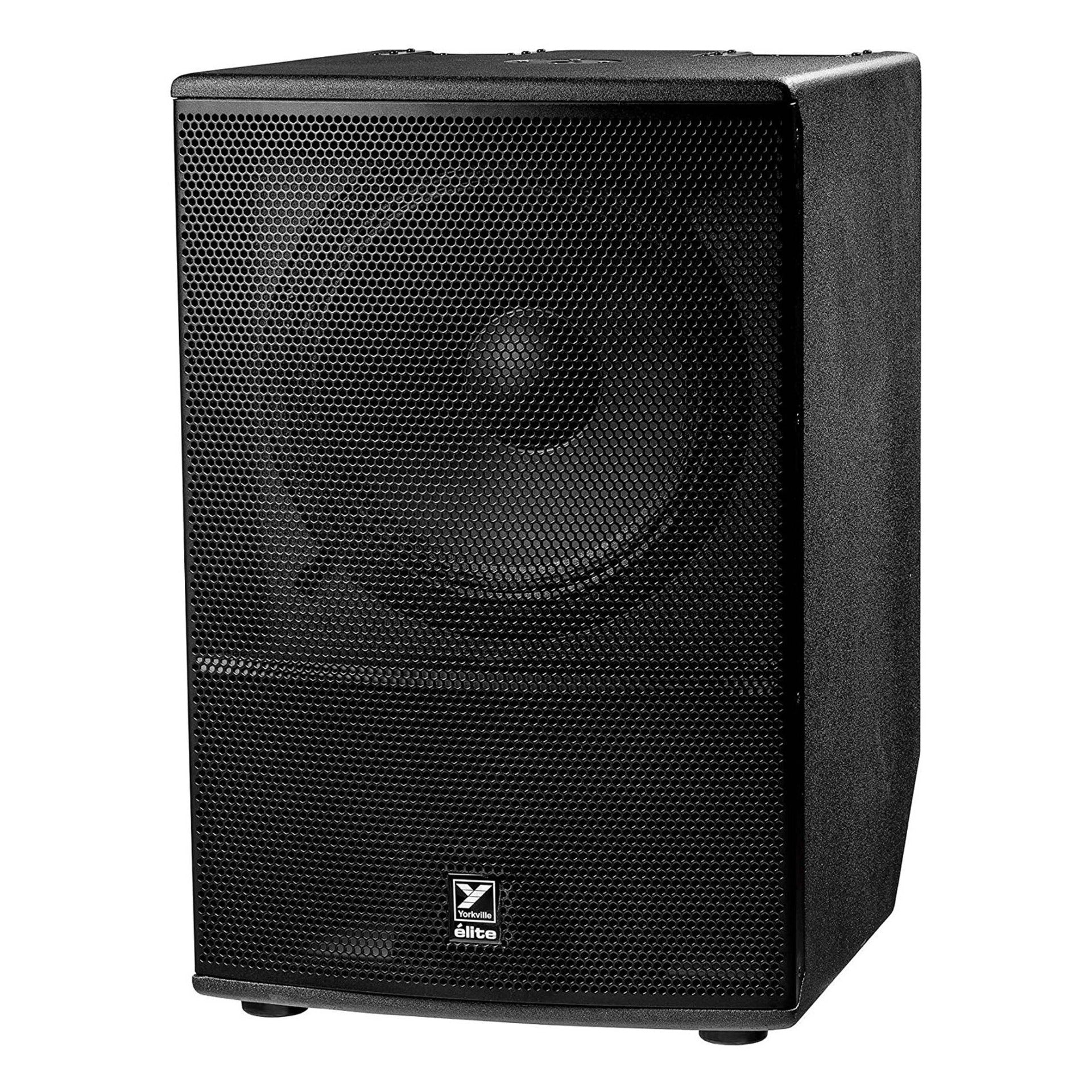

Yorkville ES18P Elite Series 18" Powered Subwoofer
Details
The ES18P is a modern-day update of our flagship 'giant killer', the LS801P. The cabinet dimensions have been altered to offer better mobility, but the punch is still there. We've also added a little-brother to the family, by scaling down the 18" subwoofer design into a 15" platform. The ES15P design dials up the watts and incorporates a custom engineered 15" woofer to produce an astonishing amount of low end output in a 15" subwoofer.
| Product Name | Yorkville ES18P Elite Series 18" Powered Subwoofer |
|---|---|
| Brand | Yorkville |
| Condition | New |
| MPN | ES18P |
| UPC | 840402044826 |
| Shipping Option | This product does not qualify for free shipping |
Features
- Next Generation Rear Horn Loaded Powered Subwoofer Design
- Class Leading Output and Bass Response
- Astonishing Output for a 'Car Friendly' 18-inch Subwoofer
- Custom Designed Long Excursion Cast Frame 18-inch Driver with 4-inch Voicecoil
- Proprietary DSP Based Limiters for Increased Output, Improved Sonic Quality and Greater Long Term Reliability
- Three DSP Based Preset Modes for Increased Flexibility in Any Live Sound or Club Application (Punchy, Smooth or Deep Response Curves)
- iOS and Android App for Added Subwoofer Control (Coming Soon)
- Made in Canada
Tech Specs
| System Type | Rear Horn Loaded Subwoofer |
| Active or Passive | Active |
| Program Power (Watts) | 1600 Watts (3200 Watts Peak) |
| Max SPL (dB) | 140dB Peak (134dB Continuous) |
| Frequency Response (Hz +/- 3dB) | 43 - 150 (Hz +/- 3dB) |
| LF Driver(s) | 18-inch Cast Frame Woofer w/4-inch Voicecoil |
| Power Consumption (typ/max) | 120V (4A /4.5A), 230V (2A / 2.3A) |
| In / Out Connections | 1 x XLR Input 1 x XLR Mono Blend Input 1 x ¼-inch Link Input 1 x ¼-inch Link Output 1 x XLR Link Output |
| Level Controls | Master |
| LED Indicators | Power, Activity, Protection (Clip, X-Max, Temp) & |
| Other Controls / Features | Active Controls: Mode - 1 Punchy, 2 Smooth, 3 Deep High Frequency Roll-off - 80Hz to 150 Hz |
| Bar Handles | 2 x top, 2 x bottom |
| Pole Mount Adapter (1 3/8"-3.5cm) | 1 (Top) (1 3/8"-3.5cm) |
| Enclosure Materials | 15mm (5/8inch) 11-ply Russian Birch |
| Covering / Finish | Black Ultrathane Paint |
| Dimensions (DWH xbackW, inches) | 24.1 x 22.84 x 34.65 |
| Dimensions (DWH xbackW, cm) | 61 x 58 x 88 |
| Weight (lbs/kg) | 137 / 62 |
