AMS-24 | 2-In, 4-Out


The AMS-24 is perfect for solo streams and multi-instrument sessions. It features two XLR/TRS combo inputs along with Zoom’s low-noise preamps. Also included are two headphone outputs and two TRS outputs for external monitors.

Quick Control

With their onboard hardware switches, the AMS-24 is designed to simplify common streaming challenges without the need for additional software

Little Switch, Big Streams

Toggle from recording to livestreaming with the Music / Streaming Switch. When in Music mode, each input acts independently with individual gain control. It also sends separate mixes to each headphone output.

When in Streaming mode all inputs are combined into one signal to work seamlessly with your streaming software

Onboard Monitoring

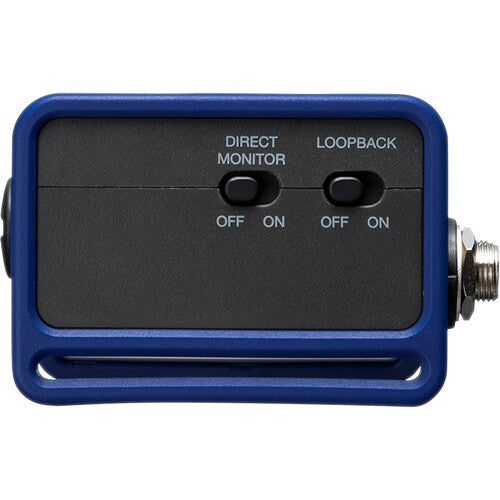

Use the Direct Monitor Switch to send the input signal directly to your headphones while routing the same signal to your DAW or streaming software.

Loop It Back

The Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software. This is perfect for adding background music to your stream or singing live with an instrumental track.

MIC / LINE GUITAR

Switch Input 1 from mic or line level to guitar level (Hi-Z).

STEREO LINK

Links two inputs for stereo recording or streaming, and allows you to control both inputs with one gain knob.

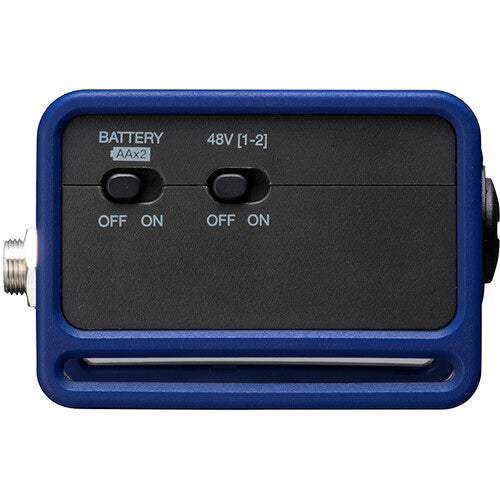

PHANTOM POWER

Provides +48V phantom power for condenser microphones.
