Pro Audio Everytime You Press Record
The H6studio features large-diaphragm XY microphones, four studio-grade preamps, and 32-bit float recording with dedicated gain knobs. Built with F-Series technology, it’s the most advanced Handy Recorder to date.
The Power of F-Series Preamps
The H6studio’s F-series preamps deliver ultra-clean audio (-127 dBu EIN). Paired with dual A/D converters and 32-bit float recording, they provide 132 dB of dynamic range capturing every nuance.
Capture Bigger Sound
The H6studio’s 19.4mm microphones capture a rich, flat-response with 123 dB of dynamic range and can withstand 140 dB SPL, enough for a jet engine.
A Perfect Pair
The H6studio’s mics are stacked at a 90º angle to form a perfect X/Y pair.
This minimizes phase cancellation commonly experienced with AB and other mic arrangements that can result in hollow sound.
Switch Formats, Not Recorders
32-bit float and 16/24-bit formats each have their advantages. 32-bit float prevents clipping but requires post-production. 16/24-bit eliminates the need for post-processing but requires gain adjustment to prevent clipping.
The H6studio offers the best of both worlds with 32-bit float and dedicated gain knobs—no clipping and no need for post-production. And with the dedicated format switch, you can adapt your workflow quickly.
6 Tracks + Stereo Mix
The H6studio supports sampling rates from 44.1 to 192 kHz. Capture up to 8 tracks* at once - 6 individual tracks plus a stereo mix.
*Up to 8 tracks (6 inputs + 2 stereo mixes) at 96kHZ
Up to 6 tracks (6 inputs) at 192kHZ
The Noise Stops Here
Carefully designed RF shielding blocks interference from smartphones and Wi-Fi. The mics on the XYH-5s capsule use shock mounting to reduce handling noise.
Limiters That Think Ahead
The H6studio’s advanced “look-ahead” limiters catch peaks early to prevent distortion, avoiding clipping in 16/24-bit and removes the need for post-recording adjustments when using 32-bit float.
Four XLR/TRS Inputs + Stereo Mini Jack
The H6studio includes four locking XLR/TRS inputs with +48V phantom power and +4dBu line-level support, plus a stereo mini jack*.
*supports plug-in powered mics.
| Product Name | Zoom H6Studio Handheld Recorder |
|---|---|
| Brand | Zoom |
| Condition | New |
| MPN | ZH6STUDIO |
| UPC | 4515260030385 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Zoom H6Studio Handheld Recorder
Inputs |
|
|---|---|
| Mic Capsule | 90° XY stereo format, unidirectional, sensitivity –41 dB/Pa at 1 kHz |
| Maximum Sound Pressure Input (XYH-5s) | 140 dB SPL |
| Connector (XYH-5s) | 1 stereo mini jack |
| Input Gain (XYH-5s) | −∞ to +60 dB |
| Input Impedance (XYH-5s) | 2 kΩ or more |
| MIC/LINE (Mono) | 4 × XLR/TRS combo jacks (XLR: Pin 2 HOT, TRS: TIP HOT) |
| Input Gain (Mono) | −∞ to +60 dB |
| Input Impedance | MIC: 3 kΩ or more; LINE: 3 kΩ or more |
| Maximum Input Level | MIC: +4 dBu; LINE: +24 dBu |
| Phantom Power | +48 V |
| Equivalent Input Noise | –127 dBu or less (IHF-A) at 150 Ω input |
Outputs |
|
| LINE OUT | 1 stereo mini jack, maximum output level +1 dBu, output impedance 110 Ω or less |
| Headphone Output | 1 stereo mini jack, maximum output level 20 mW + 20 mW (32 Ω load), output impedance 10 Ω or less |
| Built-in Speaker | 20 × 30 mm elliptical dynamic speaker, effective maximum output 250 mW |
Recorder |
|
| Maximum Simultaneous Recording Tracks | 8 |
| Maximum Simultaneous Playback Tracks | 6 |
| Recording Formats | WAV 44.1/48/96/192 kHz, 16/24/32-bit float, mono/stereo, BWF and iXML supported |
| Recording Media | microSDHC/microSDXC (see ZOOM site for compatible cards) |
Display |
|
| Type | 2.00" full-color LCD (320 × 240) |
USB Audio Interface |
|
| Connector | USB Type-C (data transfer supported, bus power supported) |
| USB Standard | USB 2.0 High Speed |
| Input/Output Channels | 6 in / 2 out (Multi), 2 in / 2 out (Stereo) |
| Sampling Frequencies | 44.1/48/96 kHz (audio interface only), 44.1/48 kHz (audio interface + recording) |
| Bit Depths | 24-bit, 32-bit float |
Remote Control |
|
| Compatibility | Dedicated wireless adapter (ZOOM BTA-1) |
Power |
|

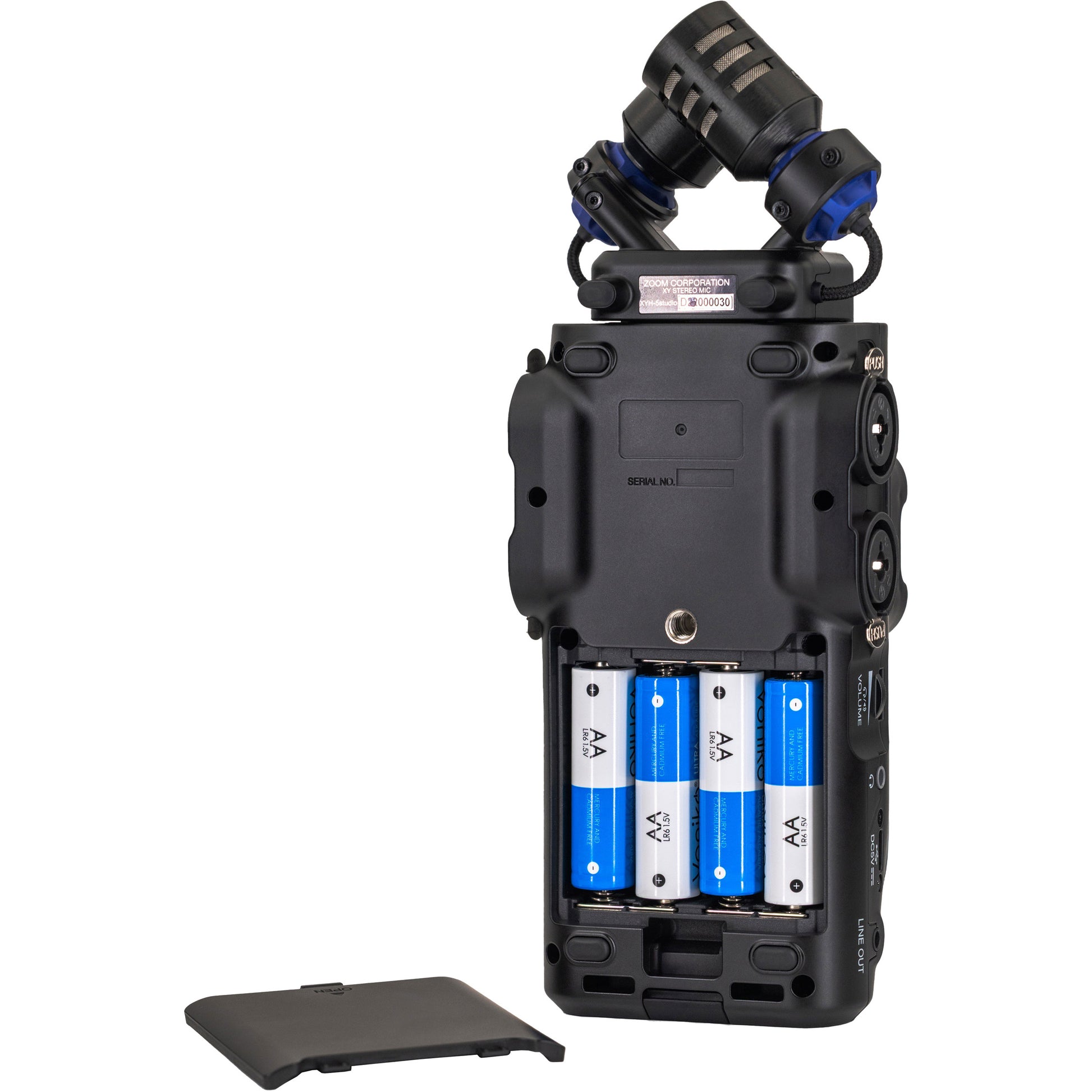

| Power Supply | 4 × AA batteries (alkaline, lithium, NiMH), AC adapter (ZOOM AD-17, DC 5V/1A), USB bus power supported |
| Battery Life (Approximate) | 2-track (48 kHz/32-bit float, phantom off): Alkaline ~15 h, NiMH (1900 mAh) ~12 h, Lithium ~26 h 6-track (48 kHz/32-bit float, phantom off, headphones used): Alkaline ~4.5 h, NiMH ~5 h, Lithium ~11 h 6-track (192 kHz/32-bit float, phantom on, headphones + line out + remote): Alkaline ~2 h, NiMH ~3 h, Lithium ~6.5 h |
| Power Consumption | 5 W maximum |
Physical |
|
| Dimensions (W × D × H) | 83.0 × 221.0 × 54.5 mm (3.27 × 8.70 × 2.15 in) |
| Weight (Including Batteries) | 477 g (1.05 lb) |
| Reference | 0 dBu = 0.775 Vrms |
