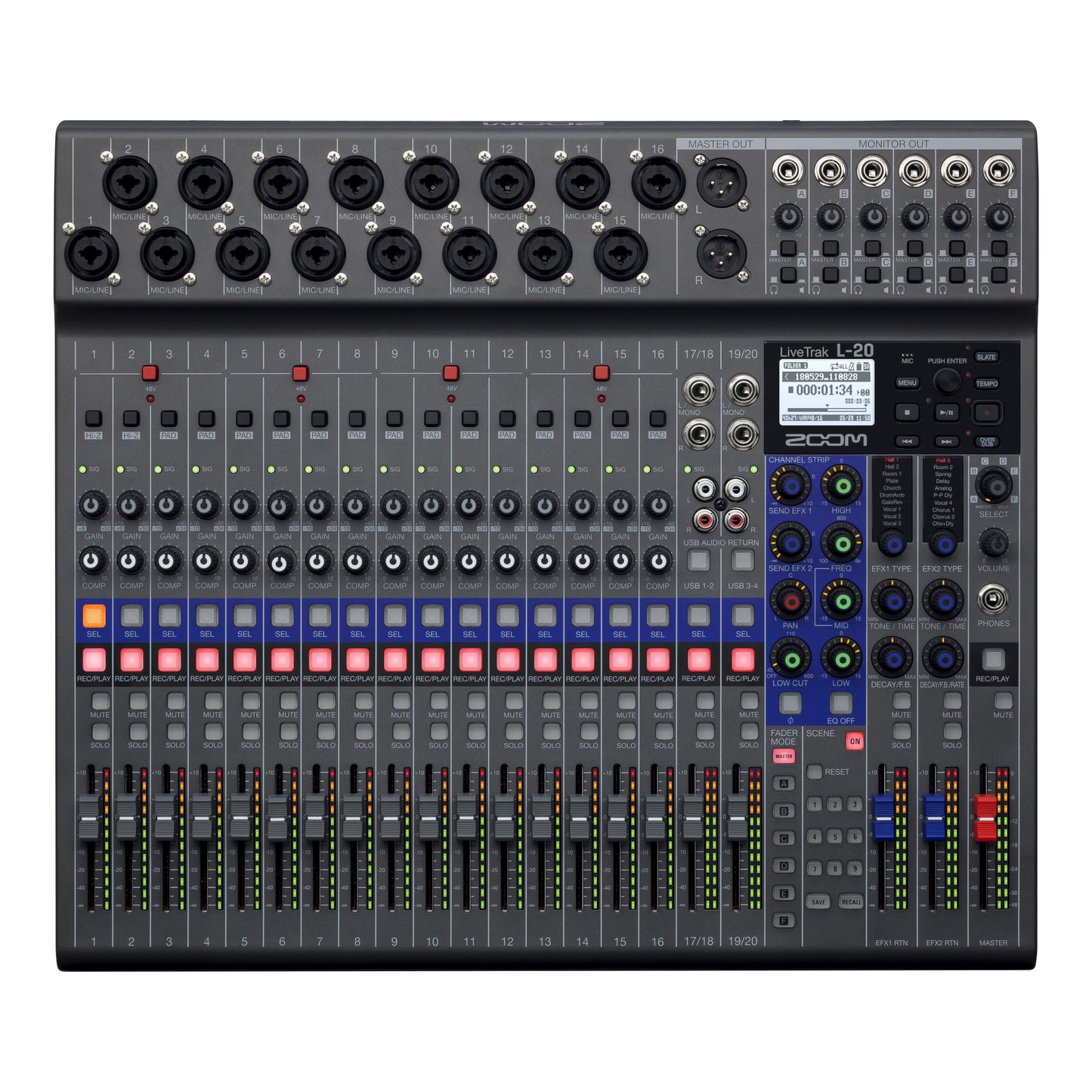

Zoom LiveTrak L-20 - 20-Input Digital Mixer & Multitrack Recorder
Zoom LiveTrak L-20 - 20-Input Digital Mixer & Multitrack Recorder
+ Free Shipping
![Blink Image](https://cdn.shopify.com/s/files/1/0750/9049/3723/files/blink-2020-sq-scaled.png?v=1695807695")
On order with the manufacturer!
Couldn't load pickup availability
- Details
- Features
- Tech Specs
- Reviews
The LiveTrak™ L-20 is the new digital console offering everything creators need to mix, monitor, and record complex productions. With 20 discrete audio channels and six individual custom monitor mixes, it’s built for bigger, bolder arrangements.
The LiveTrak L-20 is designed to mix bigger. It features 20 inputs (16 mono mic/line inputs and two stereo inputs), all with independent 3-band mid-parametric EQ. The 16 mono inputs offer stand-alone compressor control.
Record 20 discrete channels plus a stereo mix directly to an SD card. The LiveTrak L-20 captures pristine audio in resolutions up to 24-bit/96 kHz.* At -128 dBu EIN with +60 dB maximum input gain, the L-20 is equipped with our quietest and most advanced preamps ever. Mix down finished songs on the L-20 or transfer your discrete tracks to a DAW to perfect later.
*Effects, EQ, overdub, audio interface, and fader modes A-F are not available in 96 kHz.
Although the LiveTrak L-20 is designed to work as a stand-alone recording and mixing console, it can also be used as a 22-in/4-out USB audio interface. Audio Interface mode lets you route inputs to any DAW or streaming software, even while recording to an SD card. Additionally, audio can be routed from your computer into the L-20 to be mixed with your live performance. Class compliant mode, which enables connection with iOS devices, is supported as well.*
*Apple Lightning to USB Camera Adapter required.
The LiveTrak L-20 offers wireless control* via a free iOS mobile app featuring most onboard functions, including Fader Levels and Modes, Scenes, EQ, EFX sends, returns, parameters, and more. You can even manage your Effects Library and Scene Library right from your device. Control it all on either large Monitor Out view with a mini transport, or a mini Monitor Out view with expanded Transport controls.
* Zoom Bluetooth adapter (ex. BTA-1) required. Communication at up to 10 meters is possible in an unobstructed indoor space with BTA-1 units.
| Product Name | Zoom LiveTrak L-20 - 20-Input Digital Mixer & Multitrack Recorder |
|---|---|
| Brand | Zoom |
| Condition | New |
| MPN | ZL20 |
| UPC | 884354019846 |
| Shipping Option | Free Shipping to the Continental U.S. |
- 20 discrete channels (16 mono plus 2 stereo) with XLR or ¼-inch connectivity
- 22-track simultaneous recording, 20-track playback
- 22-in/4-out USB audio interface connectivity
- Records up to 24bit/96kHz audio to SD card
- 48V phantom power
- Hi-Z connectivity (channels 1-2)
- 26dB pad (channels 3-16)
- Built-in compression control (Channels 1-16)
- Solo buttons for individual channels
- Variable frequency low-cut control
- Main outputs plus 6 customizable monitor outputs
- Dedicated headphone output for sound engineer
- Scene saving function, up to 9 scenes saved at a time
- 20 built-in chorus, delay and reverb effects with adjustable parameters
- Two effect busses
- Built-in slate mic
- Class-compliant mode (for iOS compatibility)
- Compatible with Remote Mixer app for iPad
- Automatic recording starting/stopping capability
- Pre-record function
- Import/export projects with USB 2.0 host port
- Compatible functions for ZOOM FS01 footswitch
- Automatic power-save function
| NUMBER OF INPUT AND OUTPUT CHANNELS | |
|---|---|
| Inputs: |
Mono (MIC/LINE): 16 |
| Output: |
MASTER OUT: 1 |
| INPUTS 1-8 | |
| Mono (MIC/LINE): |
Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT) Input gain Input impedance Phantom power |
| Stereo (LINE): |
Type: TS phone/RCA pin (unbalanced) jacks Maximum input level : +10 dBu |
| OUTPUTS | |
| MASTER OUT: |
Type: XLR jacks (balanced) |
| MONITOR OUT A–F (with balanced output) connected to monitor speakers: |
Type: TRS phone jacks (balanced) |
| MONITOR OUT A– F (with unbalanced output) connected to headphones: |
Type: Standard stereo phone jacks |
| PHONES: |
Type: Standard stereo phone jacks |
| BUSES | |
| MASTER: |
1 |
| MONITOR: |
6 |
| SEND EFX: |
2 |
| CHANNEL STRIP | |
| COMP: | |
| LOW CUT: |
40–600 Hz, 12dB/OCT |
| EQ: |
HIGH: 10 kHz, ± 15 dB, shelving |
| PHASE: | |
| LEVEL METERS | |
| Level segments: |
12 |
| SEND EFFECTS | |
| Effects: |
20 types: EFX 1 EFX 2 |
| RECORDER | |
| Maximum simultaneous recording tracks: |
22 at 44.1/48/96 kHz |
| Maximum simultaneous playback tracks: |
20 |
| Recording format: |
WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo |
| Recording media: |
4 GB – 32 GB SDHC cards (Class 10 or higher) |
| AUDIO INTERFACE | |
| 44.1/48 kHz: |
Recording: 22 channels |
| Bit depth: |
24-bit |
| Interface: |
USB 2.0 |
| SYSTEM REQUIREMENTS FOR AUDIO INTERFACE MODE | |
| Windows: |
OS： Windows® 7 SP1 or later / 8.1 / 10 (32bit/64bit) * Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD. |
| Mac: |
OS： Mac® OS X 10.11 / 10.12 / 10.13 * Operation is not guaranteed when used with USB hubs or expansion cards. |
| iPhone/iPad: |
OS： iOS 9 / 10 / 11 * Apple Lightning-to-USB Camera Adapter required. |
| CARD READER | |
| Class: |
Class |
| USB HOST | |
| Class: |
USB 2.0 High Speed |
| Sampling frequency: |
44.1/48/96 kHz |
| Frequency characteristics: |
44.1 kHz: −1.0 dB, 20 Hz – 20 kHz |
| Equivalent input noise: |
Actual measurements: −128dB EIN (IHF-A) at +60dB/150Ω input |
| Display: |
LCD with backlight (128×64 resolution) |
| Power: |
AD-19 AC adapter (DC12V 2A) |
| Power consumption: |
24 W maximum |
| External dimensions: |
445 mm (W) × 388.4 mm (D) × 82.6 mm (H) |
| Weight (main unit only): |
3.71 kg |
