Make Every Step Legendary
With the tap of your foot you can add loops, layers, effects and rhythm patterns. And with 32-bit float processing, the MS-90LP+ gives creators flawless audio quality every time.
Five Dedicated Footswitches
Simplify your looping with UNDO and STOP buttons—no double taps or holds needed. Access essential controls with the LOOP FX and RHYTHM switches.
Technology You Can Hear
Loop with clear, high quality sound thanks to the flat phase response of the advanced analog circuitry. With dual AD converters and 32-bit float technology, you can add endless layers without losing sound quality.
Long Loops For Endless Ideas
The MS-90LP+ provides 90 minutes of recording per loop, 13 hours total capacity, and storage for up to 100 loops.

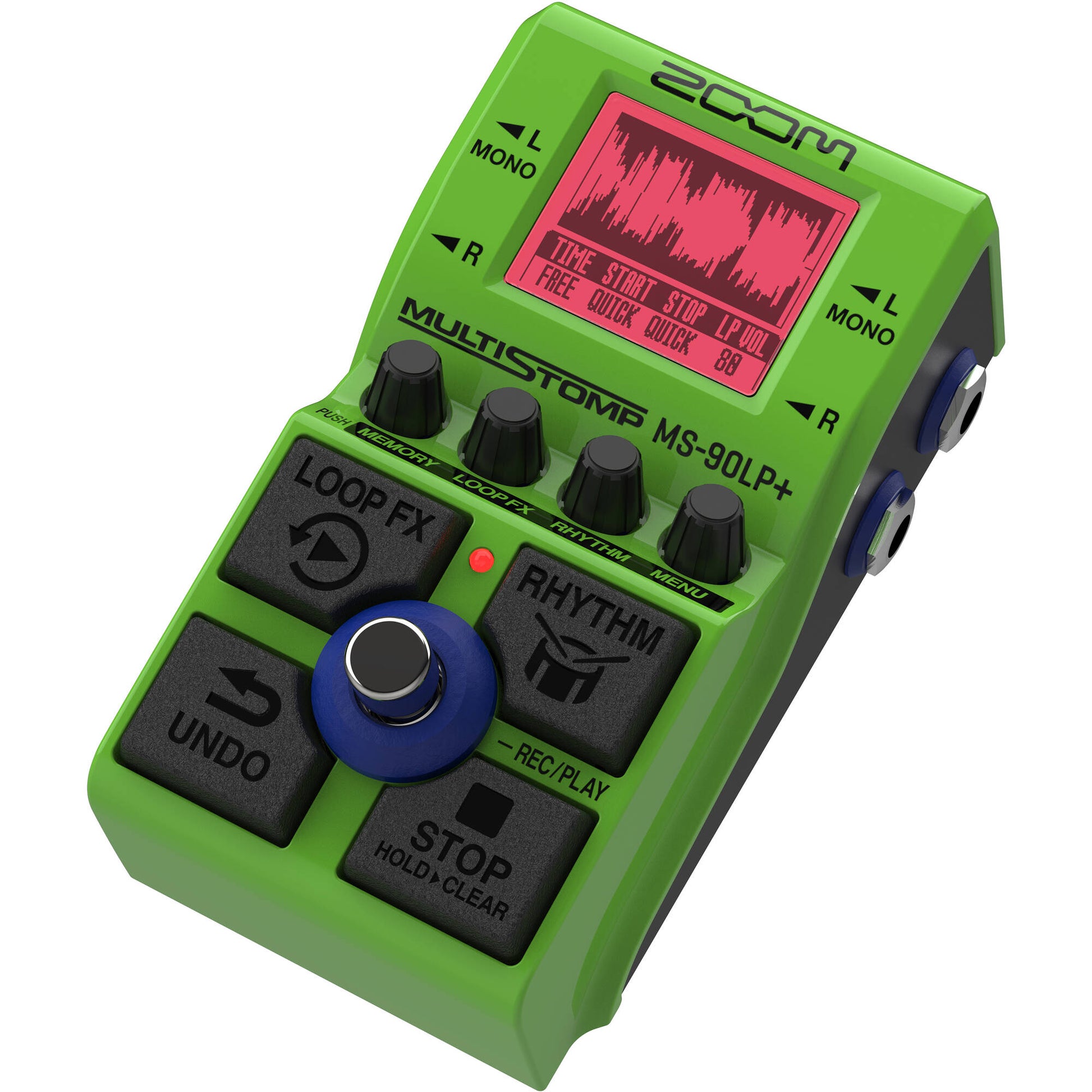

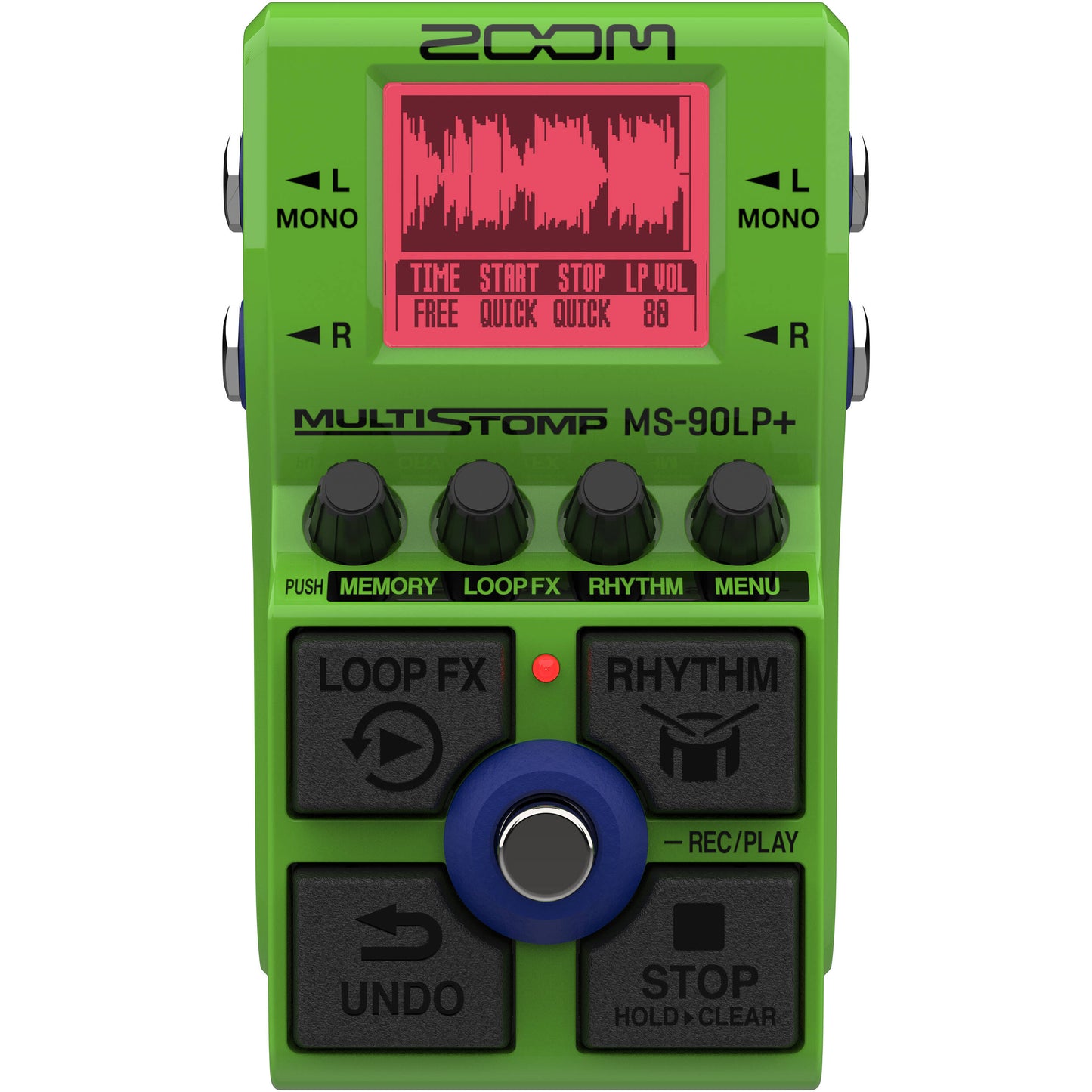

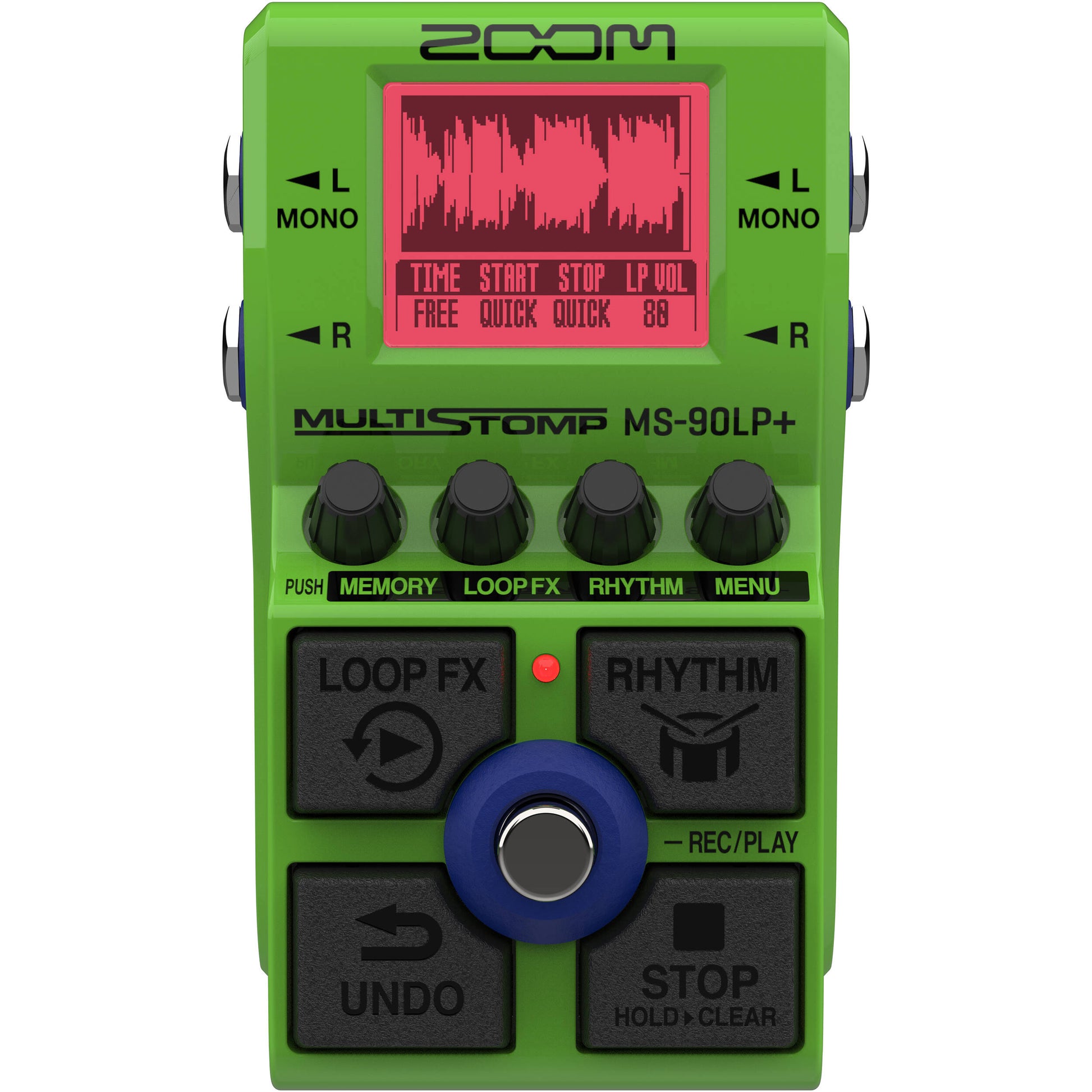

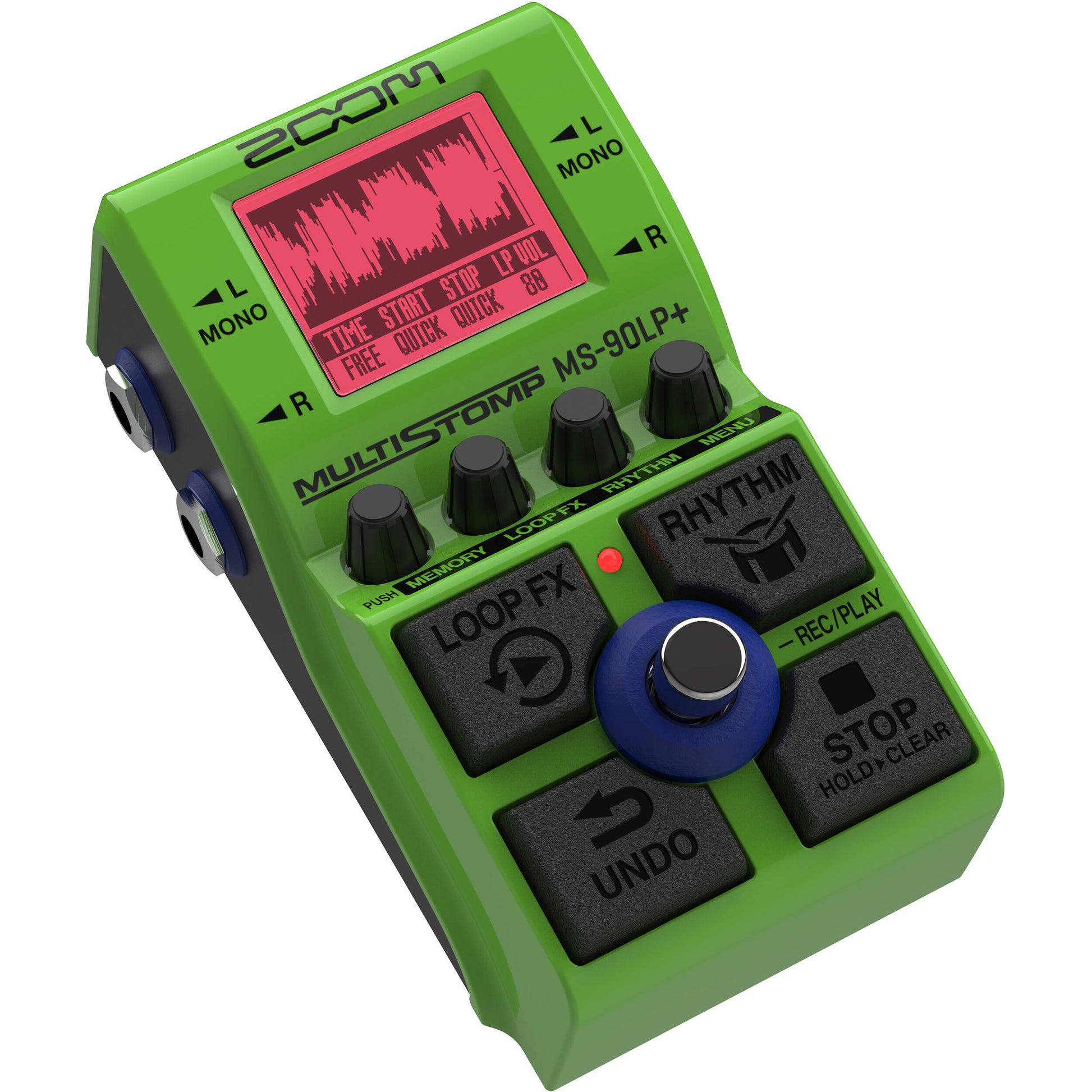

| Product Name | Zoom MS-90LP+ MultiStomp Looper Pedal |
|---|---|
| Brand | Zoom |
| MPN | MS-90LP+ |
| UPC | 4515260030026 |
What's in the Box?
- Zoom MS-90LP+ MultiStomp Looper Pedal
- High quality 32-bit processing Audio + flat phase characteristic circuit
- Up to 90 minutes of stereo recording per loop (13 hours in total)
- Independent STOP switch and UNDO switch for immediate operations
- Various LOOP FX to expand the range of expression, such as reverse playback
- Abundant rhythm patterns that can be played back in sync with the looper
- 100 phrase memories
- Tempo synchronization with other products via TRS MIDI / USB MIDI
- USB Type C port for import/export of looping materials
Specifications |
|
|---|---|
| Number of Memories | 100 |
| Sampling Frequency | 44.1 kHz |
| Signal Processing | 32-bit float |
| Number of Recording and Playback Tracks | 1 |
| Data Format | WAV (44.1 kHz, stereo, 32-bit floating point) |
| Maximum Recording Times | 90 minutes (1 loop) / 13 hours or more (total for all memories) |
| Frequency Response | 20 Hz - 20 kHz (+0.5 dB/-0.5 dB) (when 10kΩ load) |
| Display | 160x128 dot-matrix LCD with color backlight |

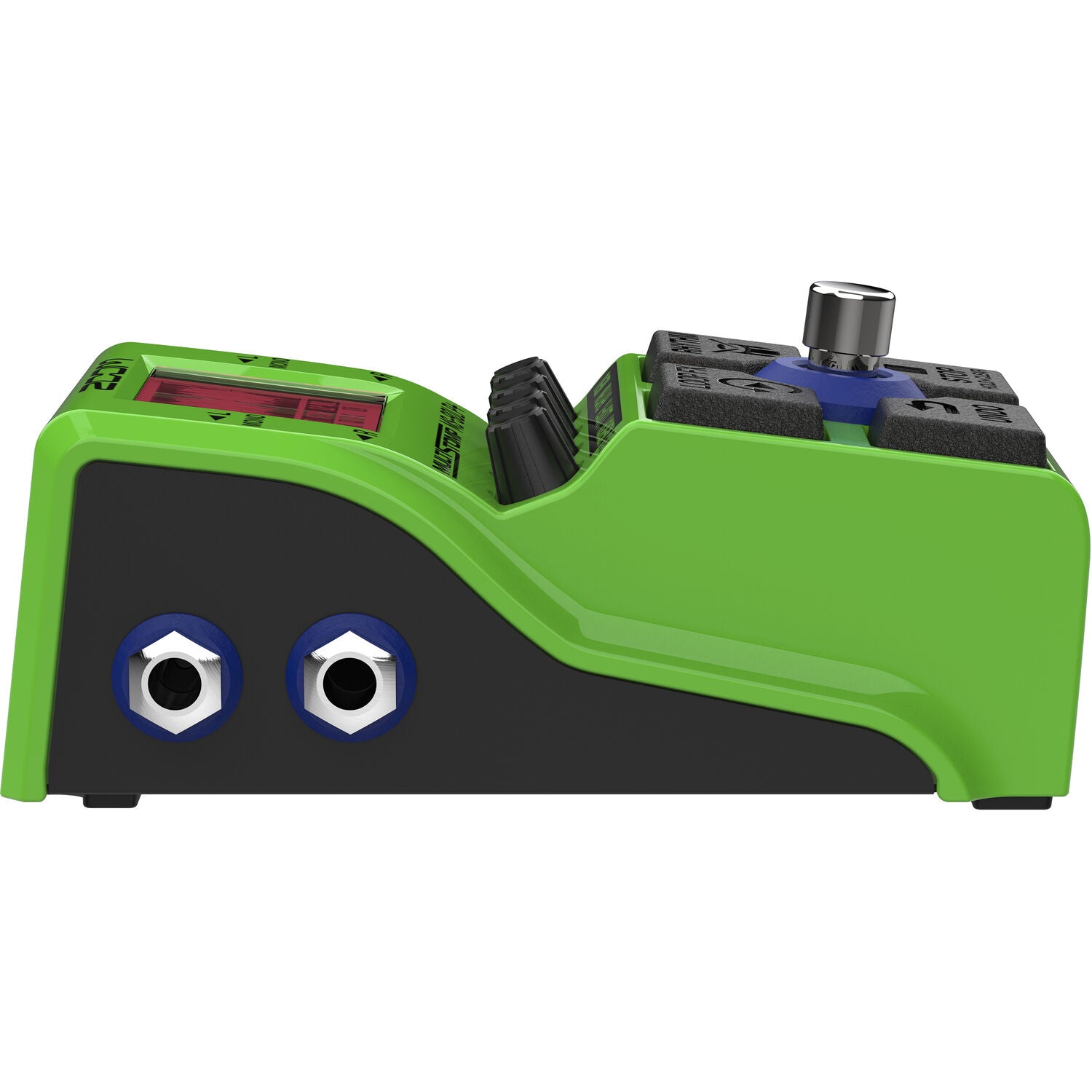

| Inputs L/R | Standard mono phone jacks Rated input level: -20 dBu Input impedance (line): 470 kΩ |
| Outputs L/R | Standard mono phone jacks Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher) |

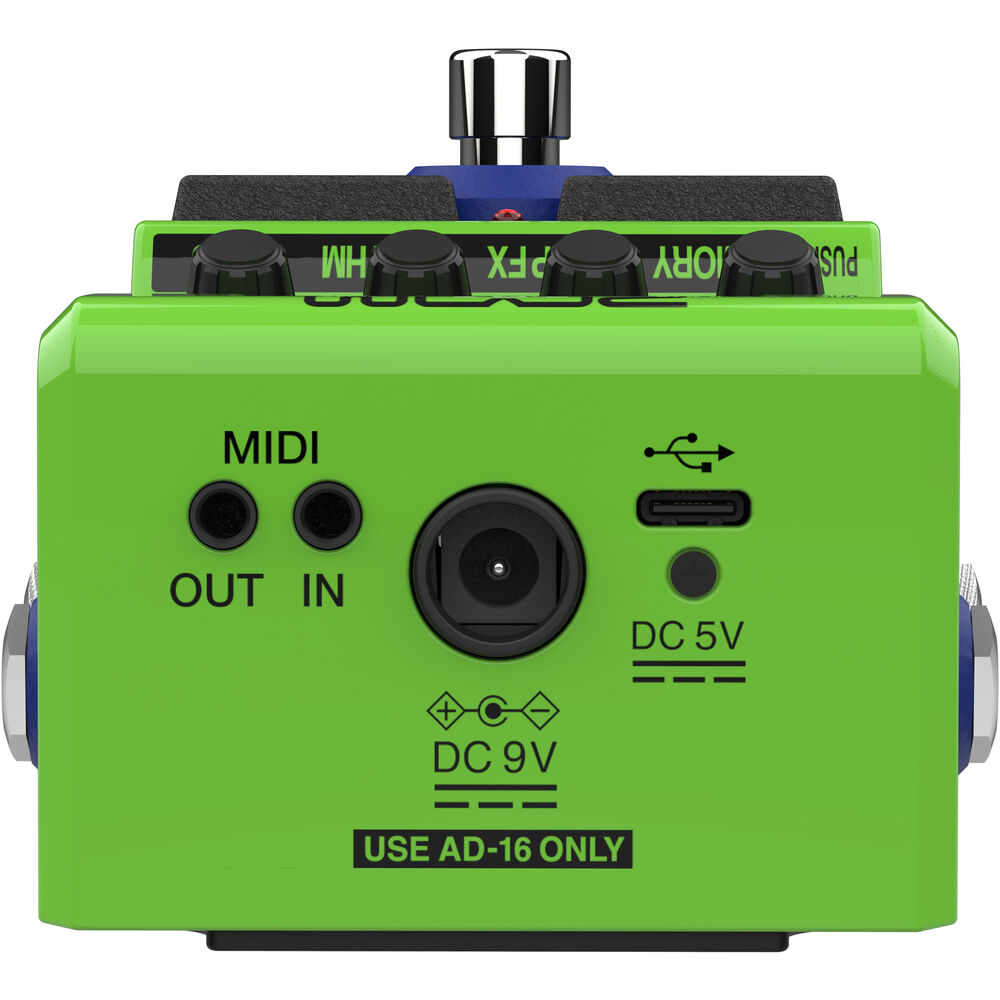

| MIDI IN/OUT Jacks | Stereo mini jack |
| Input S/N | 122 dB |
| Noise Floor (Residual Noise) | -100 dBu |
| Power (AC Adapter) | 9V DC 500mA center negative (ZOOM AD-16) |

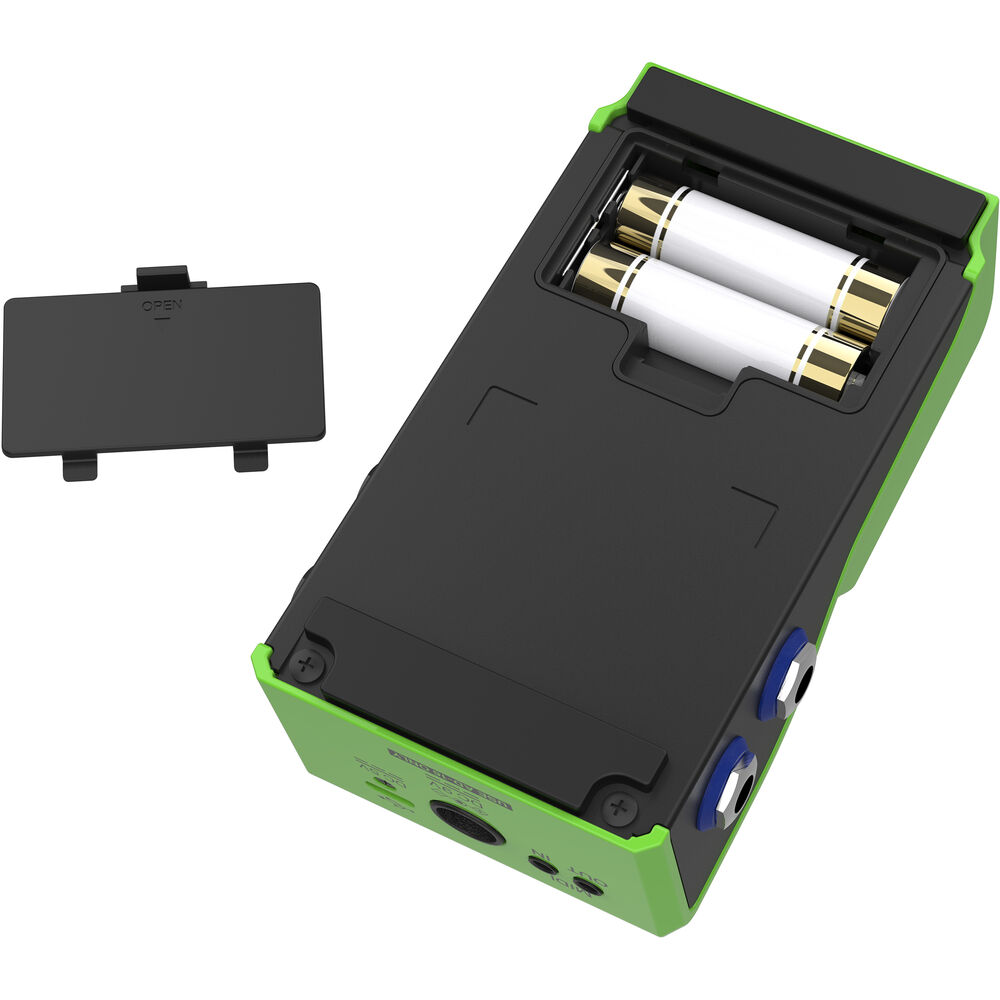

| Power (Batteries) | 2 AA batteries (Alkaline, Lithium or Rechargeable NiMH) USB bus power is supported |
| Estimated Operation Times Using Batteries |
Alkaline batteries: About 4.0 hours (about 3.5 hours using stereo input) NiMH batteries (1900 mAh): About 5 hours (about 4.5 hours using stereo input) Lithium batteries: About 9 hours (about 8 hours using stereo input) These values are approximate and vary based on conditions. |
| USB Port | USB 2.0 Type-C |
| Supported Cable Type | Type-C |
| USB MIDI | USB1.1 Full Speed |
| File Transfer | USB 2.0 High Speed Use a USB cable that supports data transfer. |
| Dimensions | 133 mm (D) x 79 mm (W) x 61 mm (H) |
| Weight | 367 g (excluding batteries), 414 g (including batteries) |
| Note | 0 dBu = 0.775 V |
Zoom MS-90LP+ MultiStomp Looper Pedal
Make Every Step Legendary
With the tap of your foot you can add loops, layers, effects and rhythm patterns. And with 32-bit float processing, the MS-90LP+ gives creators flawless audio quality every time.
Five Dedicated Footswitches
Simplify your looping with UNDO and STOP buttons—no double taps or holds needed. Access essential controls with the LOOP FX and RHYTHM switches.
Technology You Can Hear
Loop with clear, high quality sound thanks to the flat phase response of the advanced analog circuitry. With dual AD converters and 32-bit float technology, you can add endless layers without losing sound quality.
Long Loops For Endless Ideas
The MS-90LP+ provides 90 minutes of recording per loop, 13 hours total capacity, and storage for up to 100 loops.
| Product Name | Zoom MS-90LP+ MultiStomp Looper Pedal |
|---|---|
| Brand | Zoom |
| MPN | MS-90LP+ |
| UPC | 4515260030026 |
What's in the Box?
Zoom MS-90LP+ MultiStomp Looper Pedal- High quality 32-bit processing Audio + flat phase characteristic circuit
- Up to 90 minutes of stereo recording per loop (13 hours in total)
- Independent STOP switch and UNDO switch for immediate operations
- Various LOOP FX to expand the range of expression, such as reverse playback
- Abundant rhythm patterns that can be played back in sync with the looper
- 100 phrase memories
- Tempo synchronization with other products via TRS MIDI / USB MIDI
- USB Type C port for import/export of looping materials
Specifications |
|
|---|---|
| Number of Memories | 100 |
| Sampling Frequency | 44.1 kHz |
| Signal Processing | 32-bit float |
| Number of Recording and Playback Tracks | 1 |
| Data Format | WAV (44.1 kHz, stereo, 32-bit floating point) |
| Maximum Recording Times | 90 minutes (1 loop) / 13 hours or more (total for all memories) |
| Frequency Response | 20 Hz - 20 kHz (+0.5 dB/-0.5 dB) (when 10kΩ load) |
| Display | 160x128 dot-matrix LCD with color backlight |
| Inputs L/R | Standard mono phone jacks Rated input level: -20 dBu Input impedance (line): 470 kΩ |
| Outputs L/R | Standard mono phone jacks Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher) |
| MIDI IN/OUT Jacks | Stereo mini jack |
| Input S/N | 122 dB |
| Noise Floor (Residual Noise) | -100 dBu |
| Power (AC Adapter) | 9V DC 500mA center negative (ZOOM AD-16) |
| Power (Batteries) | 2 AA batteries (Alkaline, Lithium or Rechargeable NiMH) USB bus power is supported |
| Estimated Operation Times Using Batteries |
Alkaline batteries: About 4.0 hours (about 3.5 hours using stereo input) NiMH batteries (1900 mAh): About 5 hours (about 4.5 hours using stereo input) Lithium batteries: About 9 hours (about 8 hours using stereo input) These values are approximate and vary based on conditions. |
| USB Port | USB 2.0 Type-C |
| Supported Cable Type | Type-C |
| USB MIDI | USB1.1 Full Speed |
| File Transfer | USB 2.0 High Speed Use a USB cable that supports data transfer. |
| Dimensions | 133 mm (D) x 79 mm (W) x 61 mm (H) |
| Weight | 367 g (excluding batteries), 414 g (including batteries) |
| Note | 0 dBu = 0.775 V |
