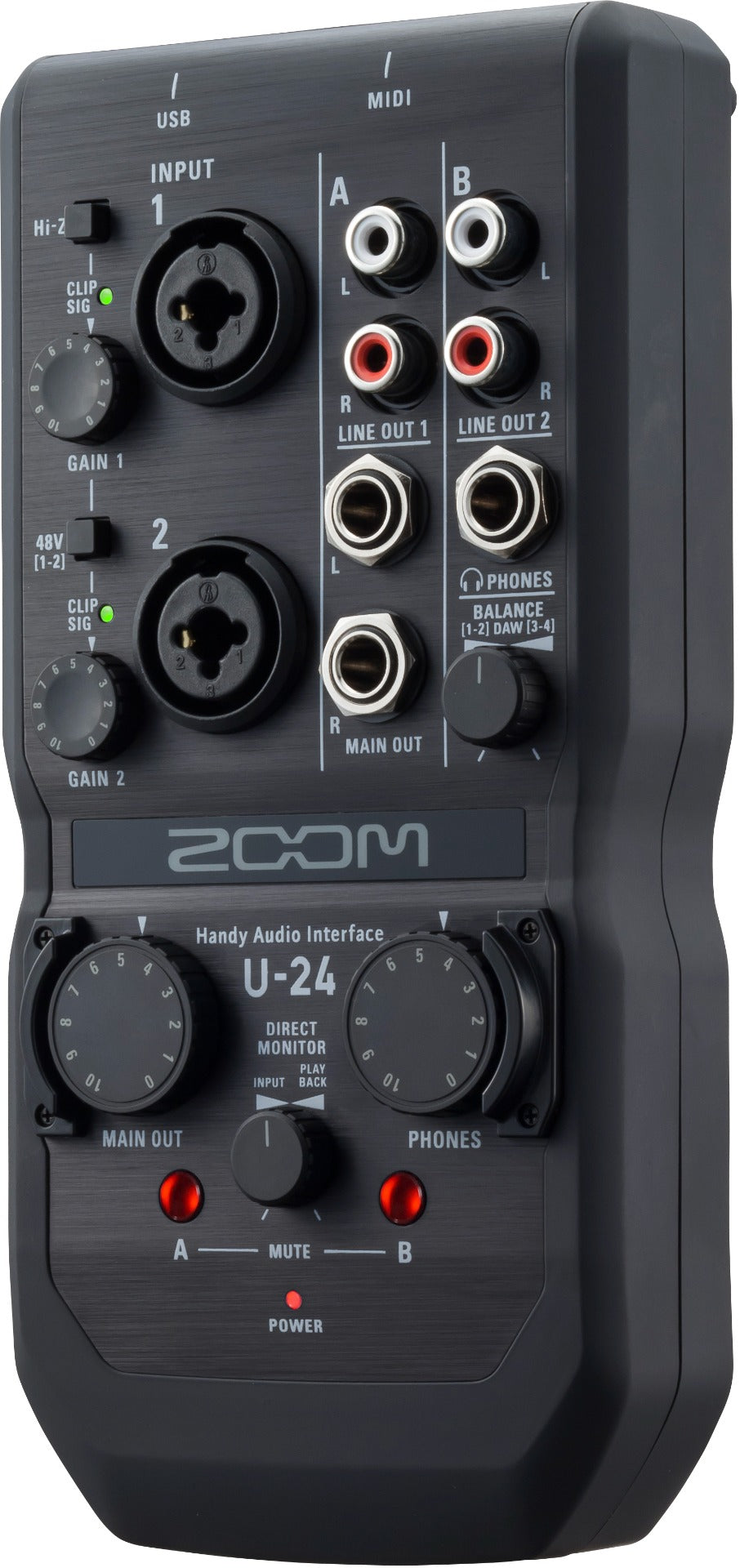

Zoom U-24 Portable USB Handy Audio Interface
Zoom U-24 Portable USB Handy Audio Interface
+ Free Shipping
![Blink Image](https://cdn.shopify.com/s/files/1/0750/9049/3723/files/blink-2020-sq-scaled.png?v=1695807695")
On order with the manufacturer!
Couldn't load pickup availability
- Details
- Features
- Tech Specs
- Reviews

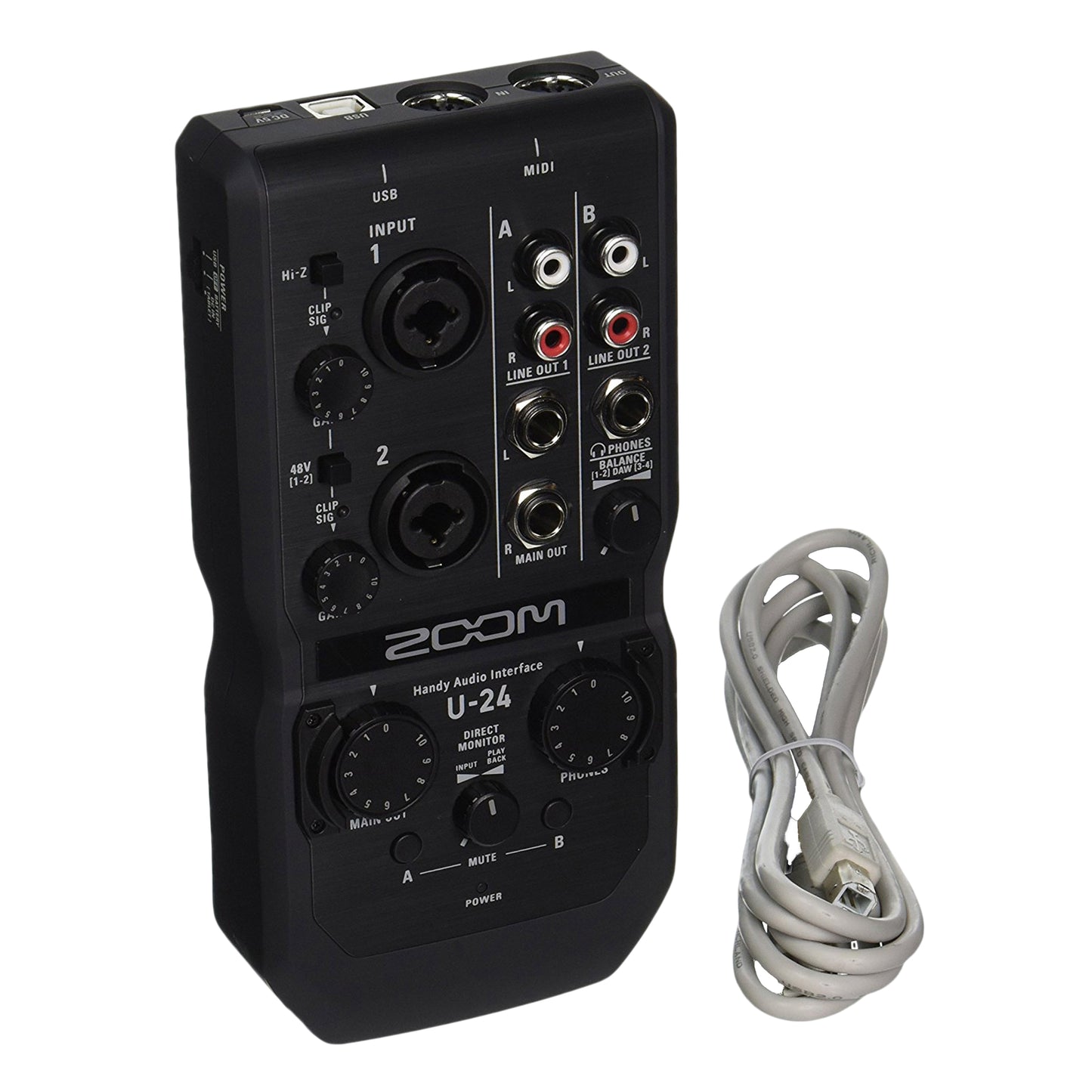

The U-24 is a compact, 2-in/4-out audio interface that provides all of the essential tools you need for recording and performing with high resolution, 24-bit/96 kHz audio-anywhere you go. Get incredible sound quality thanks to high-quality, low-noise preamps-the same ones found on our acclaimed H5 and H6 Handy Recorders. Connect to your PC, Mac, or iPad via USB and record mics, instruments, and more. The U-24delivers the same great sound as our U-44 interface, with a more streamlined feature set.
The Go-Everywhere Interface
The bus-powered U-24 packs all the essential tools into a compact form factor that fits in the palm of your hand. Record with mics, instruments, and more at home or on the go—the U-24 is iPhone/iPad* compatible and small enough to take anywhere. It can even run on just two AA batteries for recording in the most remote locations.
* Requires 2 AA batteries or optional AC adapter for power, plus an Apple iPad Camera Connection Kit or Lightning-to-USB Camera Adapter for connection to iPhone/iPad.
Pristine Recording and Playback
Inspired by our Zoom H-series recorders, the U-24 is equipped with high-performance, low-noise mic preamps (-119.5 dB EIN) that enable recording and playback at resolutions up to 24-bit/96 kHz. You can also use U-24 as a studio-quality headphone amp and listen to your favorite music in full fidelity.
Get Connected with the U-24

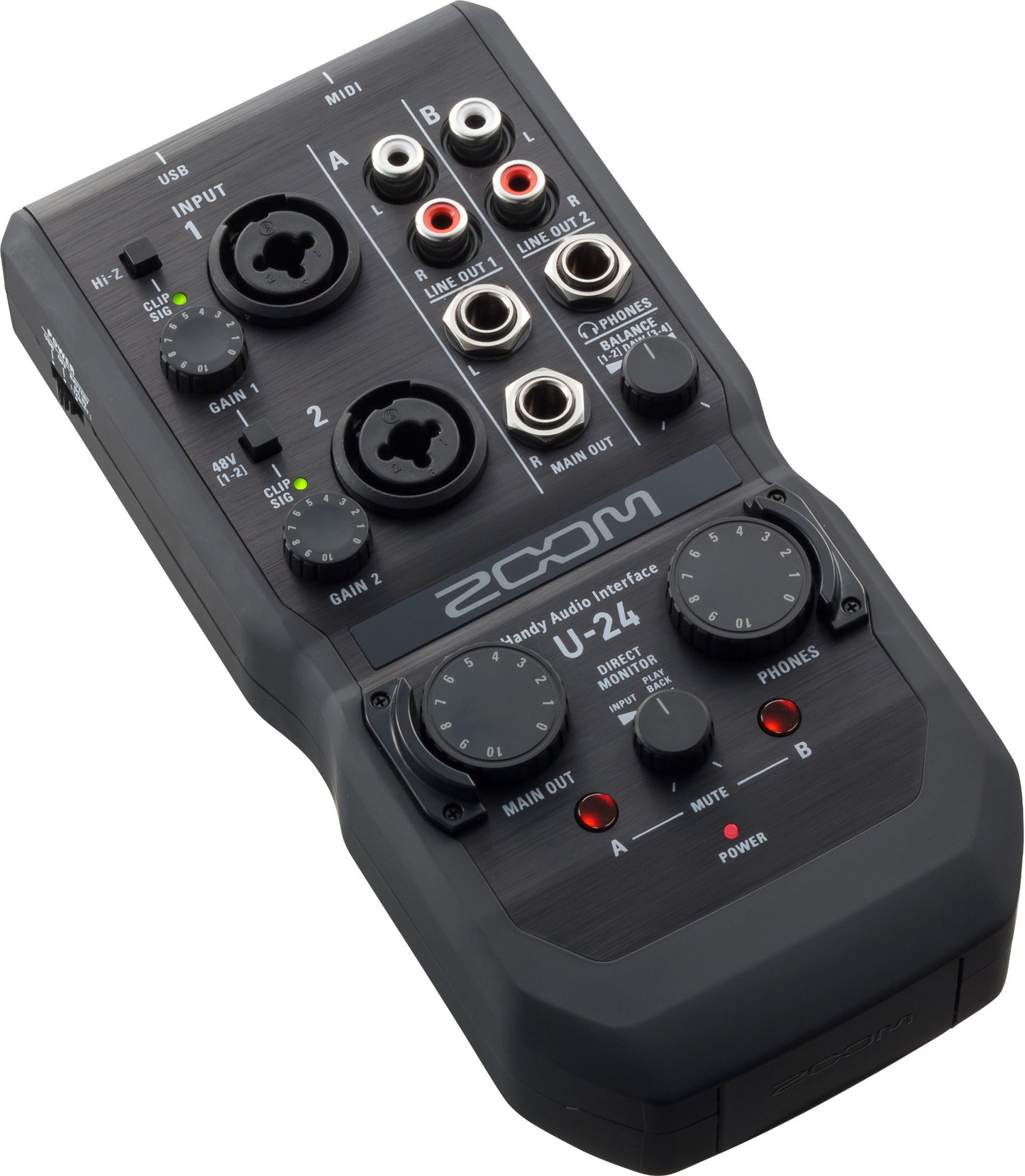

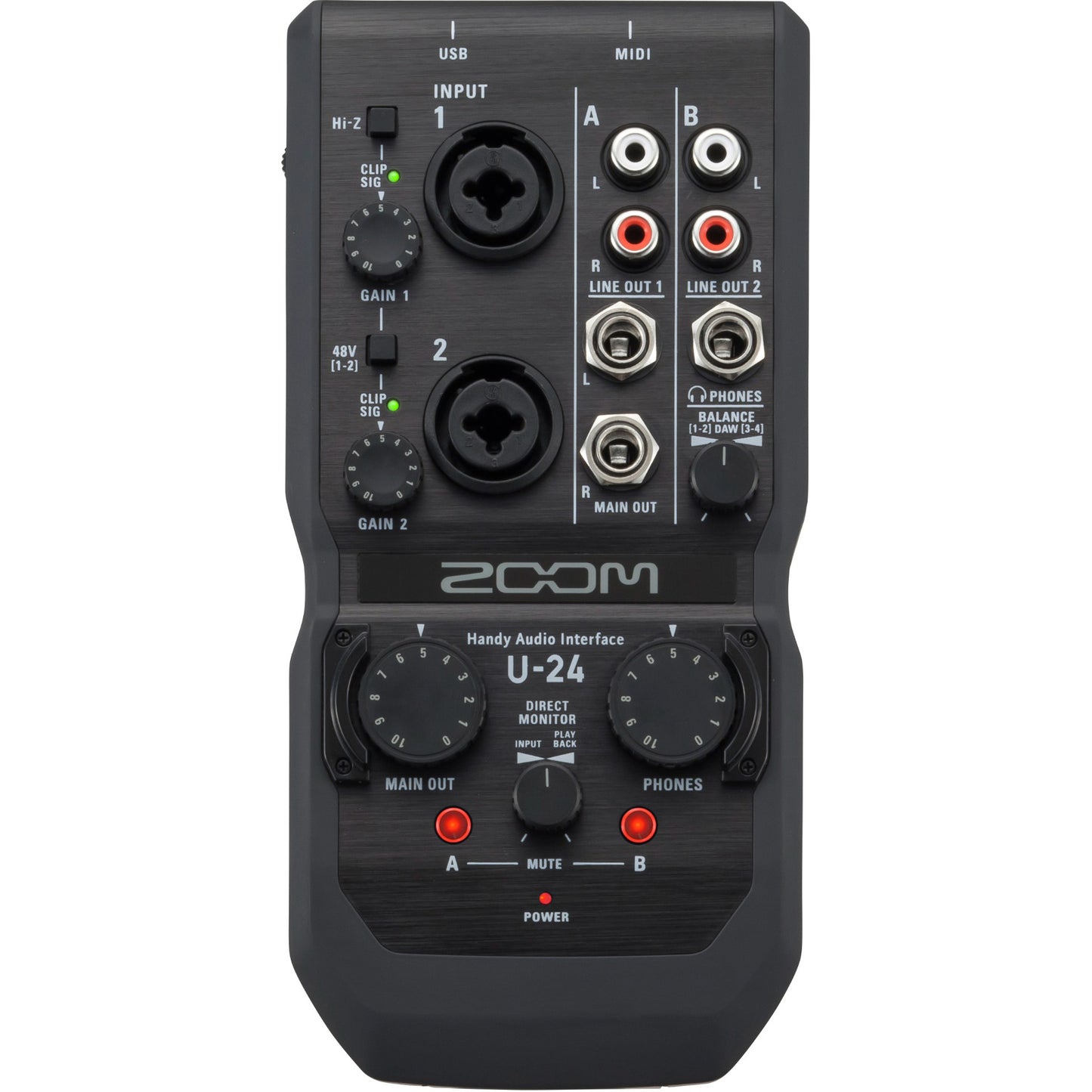

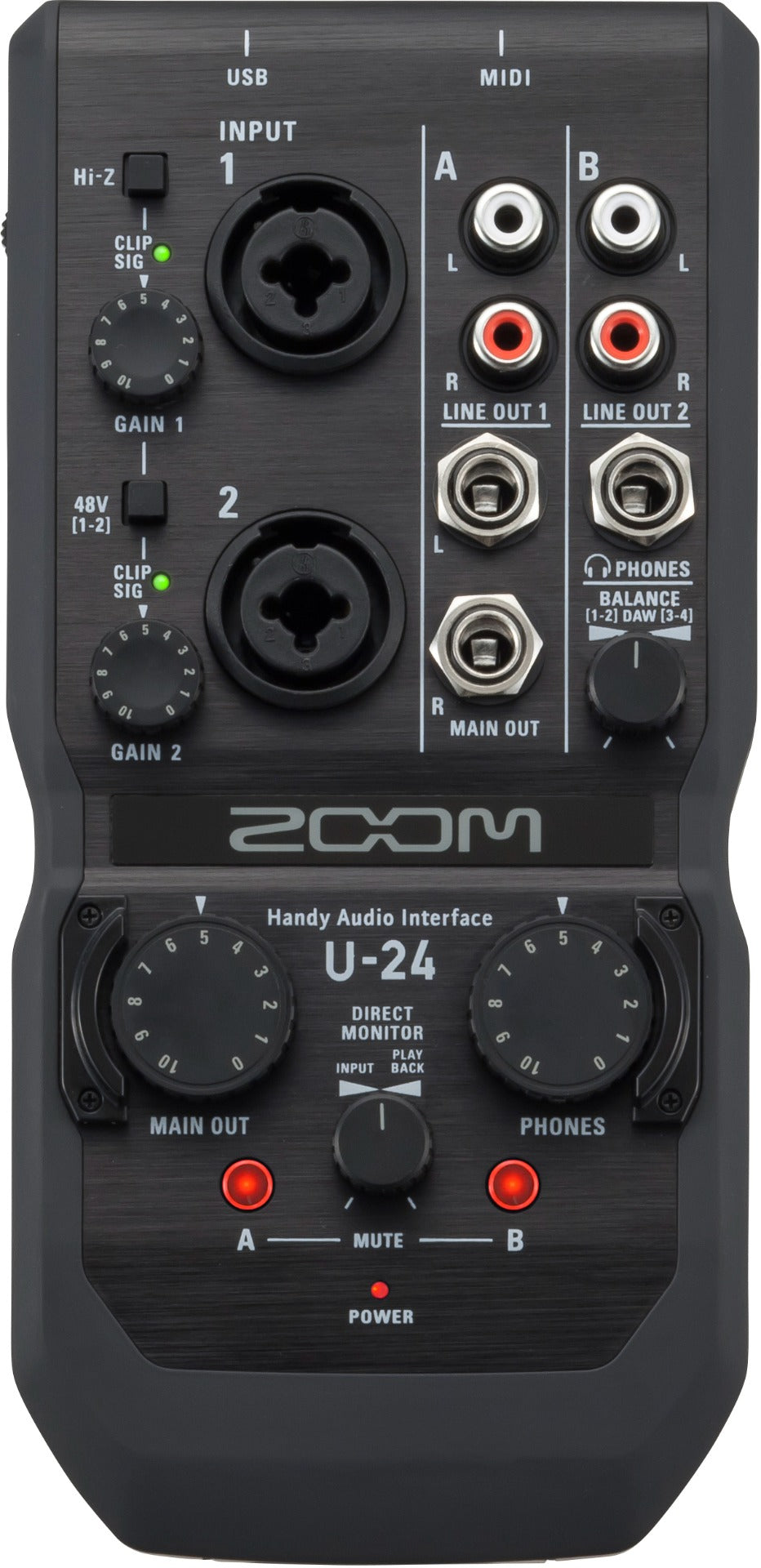

The U-24 is equipped with an essential collection of inputs and outputs for streamlined recording. Two combo inputs with independent gain knobs and multi-color level indicators allow you to connect mics, keyboards, mixers, and more. 48V phantom power can be supplied to both inputs, and input 1 supports Hi-Z for connecting guitars, basses, or other passive instruments. MIDI input and output jacks allow you to use devices like keyboards, controllers, synthesizers, and drum machines.
Separate TRS and RCA output jacks provide multiple options for connecting DJ mixers, monitors, and other gear. Finally, an independent headphone output with dedicated volume control gives you complete flexibility while monitoring.
| Product Name | Zoom U-24 Portable USB Handy Audio Interface |
|---|---|
| Brand | Zoom |
| Condition | New |
| MPN | u-24 |
| UPC | 884354016159 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Multi-channel and stereo USB audio interface for PC/Mac
- Connect to iPad with Apple iPad Camera Connection Kit or Lightning-to-USB Camera Adapter (sold separately), plus 2 AA batteries or optional AC adapter for power
- Two mic/line inputs with high-performance mic preamps
- High-quality recording and playback at resolutions upto24-bit/96 kHz
- Includes download code for Ableton Live 9 Lite
- Frequency: At 44.1kHz: 20Hz - 20kHz (-1.0dB) - At 96kHz: 20Hz - 40kHz (-3.5dB)
- Input Conversion Noise: Measured EIN: -119.5dB (IHF-A) at 43dB, 150? Input
- Audio Recording: 2 Channels
- Playback: 4 Channels
- Sampling Frequencies: 96kHz, 88.2kHz, 48kHz, 44.1kHz
- Bit Depth: 24-Bit
- Interface: USB 2.0

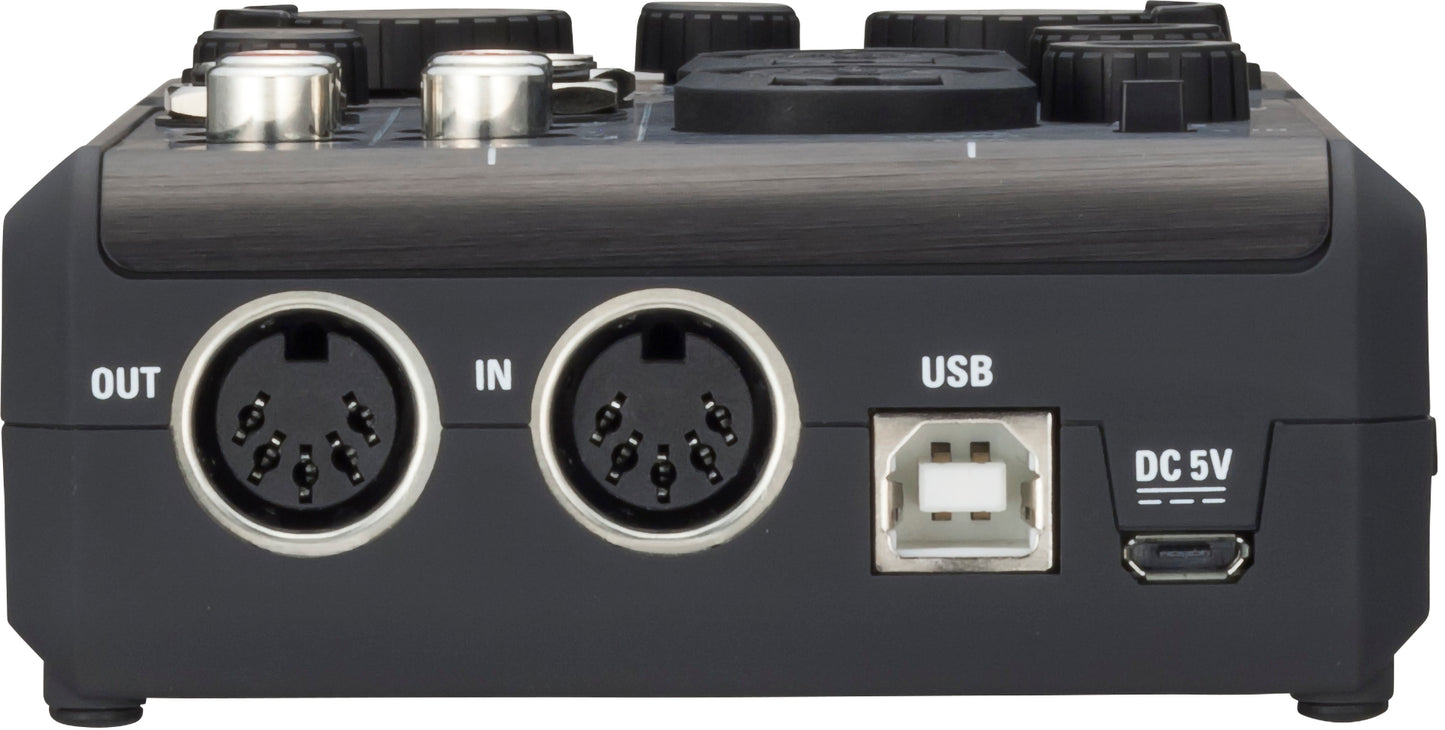

- MIDI Input/Output: 5-Pin DIN Jack
- Power Consumption: 5W Maximum
- Dimensions: 191.8mm x 92.3mm x 42.7mm (D x W x H)
- Weight: 285g

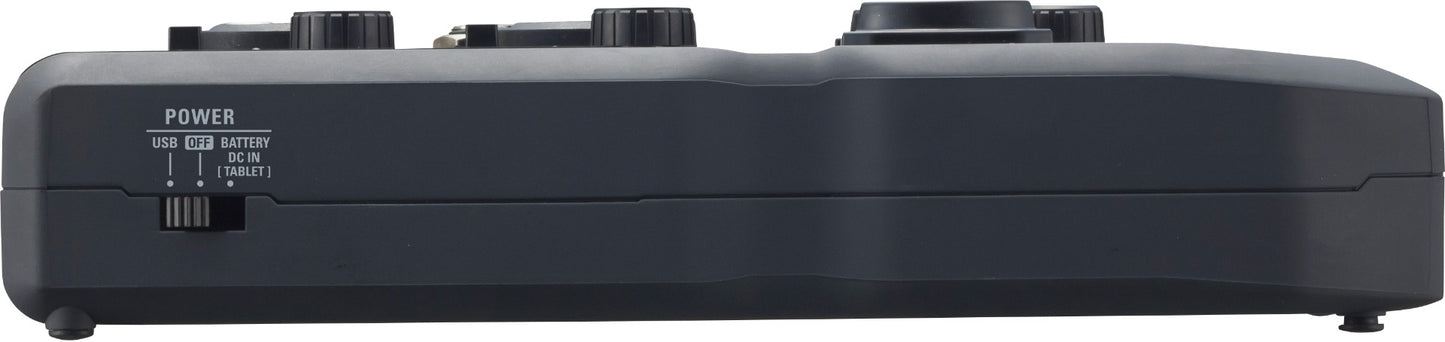

Power Source:
- USB Bus Power: Type B
- Zoom AD-17: Micro-B
- DC 5V Power Supply: Micro-B

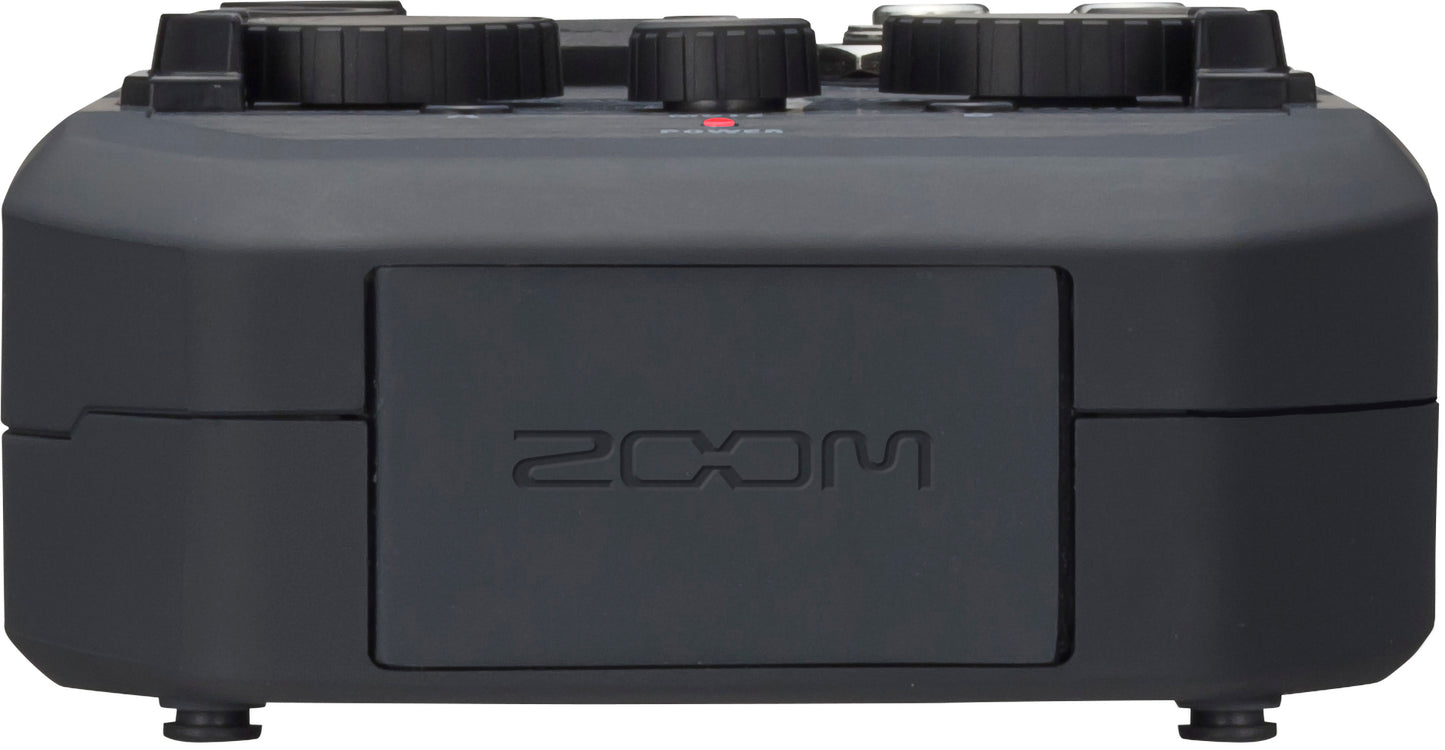

- 2 x AA Batteries: 4 Hours Continuous Operation with Phantom Power Off
Analog Input 1/2
- Connector: TRS/XLR Combo Jacks (XLR: 2 Hot, TRS: TIP Hot)
- Input Gain: 0 - 43dB
- Input Impedance: 2.6k? (Mic In) - 1.1 M? with Hi-Z On
- Maximum Input Level: - Mic In: +2.7dBu - TRS In: +20.7dBu
- Phantom Power: +48V
Analog Output - Main Out L/R
- Connector: TRS Phone Jacks Unbalanced
- Maximum Output Level: +10dBu (at 0 dBFS)
- Output Impedance: 330?
Analog Output - Line Out 1/2
- Connector: RCA (Coaxial)
- Maximum Output Level: +8dBu (at 0 dBFS)
- Output Impedance: 1k?
Analog Output - Headphones
- Connector: Standard Stereo Phone Jack
- Maximum Output Level: +10dBu (at 0 dBFS)
- Output Impedance: 33?
System Requirements
Windows:
- OS: Windows® 7 SP1 or later / 8.1 / 10 (32bit/64bit)
- CPU: Intel® Core i3 or faster (Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD)
- USB: USB 3.0/USB 2.0 (Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards)
Mac:
- OS: Mac® OS X 10.9.5 or later / 10.10 / 10.11
- CPU:Intel® Core i3 or faster
- USB: USB 3.0/USB 2.0 (Operation is not guaranteed when used with USB hubs or expansion cards)
iPad:
- OS: iOS 7.1 or later
- * Requires 2 AA batteries or optional AC adapter for power, plus an Apple iPad Camera Connection Kit or Lightning-to-USB Camera Adapter.
Zoom U-24 Portable USB Handy Audio Interface
The U-24 is a compact, 2-in/4-out audio interface that provides all of the essential tools you need for recording and performing with high resolution, 24-bit/96 kHz audio-anywhere you go. Get incredible sound quality thanks to high-quality, low-noise preamps-the same ones found on our acclaimed H5 and H6 Handy Recorders. Connect to your PC, Mac, or iPad via USB and record mics, instruments, and more. The U-24delivers the same great sound as our U-44 interface, with a more streamlined feature set.
The Go-Everywhere Interface
The bus-powered U-24 packs all the essential tools into a compact form factor that fits in the palm of your hand. Record with mics, instruments, and more at home or on the go—the U-24 is iPhone/iPad* compatible and small enough to take anywhere. It can even run on just two AA batteries for recording in the most remote locations.
* Requires 2 AA batteries or optional AC adapter for power, plus an Apple iPad Camera Connection Kit or Lightning-to-USB Camera Adapter for connection to iPhone/iPad.
Pristine Recording and Playback
Inspired by our Zoom H-series recorders, the U-24 is equipped with high-performance, low-noise mic preamps (-119.5 dB EIN) that enable recording and playback at resolutions up to 24-bit/96 kHz. You can also use U-24 as a studio-quality headphone amp and listen to your favorite music in full fidelity.
Get Connected with the U-24
The U-24 is equipped with an essential collection of inputs and outputs for streamlined recording. Two combo inputs with independent gain knobs and multi-color level indicators allow you to connect mics, keyboards, mixers, and more. 48V phantom power can be supplied to both inputs, and input 1 supports Hi-Z for connecting guitars, basses, or other passive instruments. MIDI input and output jacks allow you to use devices like keyboards, controllers, synthesizers, and drum machines.
Separate TRS and RCA output jacks provide multiple options for connecting DJ mixers, monitors, and other gear. Finally, an independent headphone output with dedicated volume control gives you complete flexibility while monitoring.
| Product Name | Zoom U-24 Portable USB Handy Audio Interface |
|---|---|
| Brand | Zoom |
| Condition | New |
| MPN | u-24 |
| UPC | 884354016159 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Multi-channel and stereo USB audio interface for PC/Mac
- Connect to iPad with Apple iPad Camera Connection Kit or Lightning-to-USB Camera Adapter (sold separately), plus 2 AA batteries or optional AC adapter for power
- Two mic/line inputs with high-performance mic preamps
- High-quality recording and playback at resolutions upto24-bit/96 kHz
- Includes download code for Ableton Live 9 Lite
- Frequency: At 44.1kHz: 20Hz - 20kHz (-1.0dB) - At 96kHz: 20Hz - 40kHz (-3.5dB)
- Input Conversion Noise: Measured EIN: -119.5dB (IHF-A) at 43dB, 150? Input
- Audio Recording: 2 Channels
- Playback: 4 Channels
- Sampling Frequencies: 96kHz, 88.2kHz, 48kHz, 44.1kHz
- Bit Depth: 24-Bit
- Interface: USB 2.0
- MIDI Input/Output: 5-Pin DIN Jack
- Power Consumption: 5W Maximum
- Dimensions: 191.8mm x 92.3mm x 42.7mm (D x W x H)
- Weight: 285g
Power Source:
- USB Bus Power: Type B
- Zoom AD-17: Micro-B
- DC 5V Power Supply: Micro-B
- 2 x AA Batteries: 4 Hours Continuous Operation with Phantom Power Off
Analog Input 1/2
- Connector: TRS/XLR Combo Jacks (XLR: 2 Hot, TRS: TIP Hot)
- Input Gain: 0 - 43dB
- Input Impedance: 2.6k? (Mic In) - 1.1 M? with Hi-Z On
- Maximum Input Level: - Mic In: +2.7dBu - TRS In: +20.7dBu
- Phantom Power: +48V
Analog Output - Main Out L/R
- Connector: TRS Phone Jacks Unbalanced
- Maximum Output Level: +10dBu (at 0 dBFS)
- Output Impedance: 330?
Analog Output - Line Out 1/2
- Connector: RCA (Coaxial)
- Maximum Output Level: +8dBu (at 0 dBFS)
- Output Impedance: 1k?
Analog Output - Headphones
- Connector: Standard Stereo Phone Jack
- Maximum Output Level: +10dBu (at 0 dBFS)
- Output Impedance: 33?
System Requirements
Windows:
- OS: Windows® 7 SP1 or later / 8.1 / 10 (32bit/64bit)
- CPU: Intel® Core i3 or faster (Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD)
- USB: USB 3.0/USB 2.0 (Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards)
Mac:
- OS: Mac® OS X 10.9.5 or later / 10.10 / 10.11
- CPU:Intel® Core i3 or faster
- USB: USB 3.0/USB 2.0 (Operation is not guaranteed when used with USB hubs or expansion cards)
iPad:
- OS: iOS 7.1 or later
- * Requires 2 AA batteries or optional AC adapter for power, plus an Apple iPad Camera Connection Kit or Lightning-to-USB Camera Adapter.
